ICON V.S. 2.0 Aluminum Front Shock for 2003-2012 Ram 2500/3500 HD 4WD 2.5 in Lift

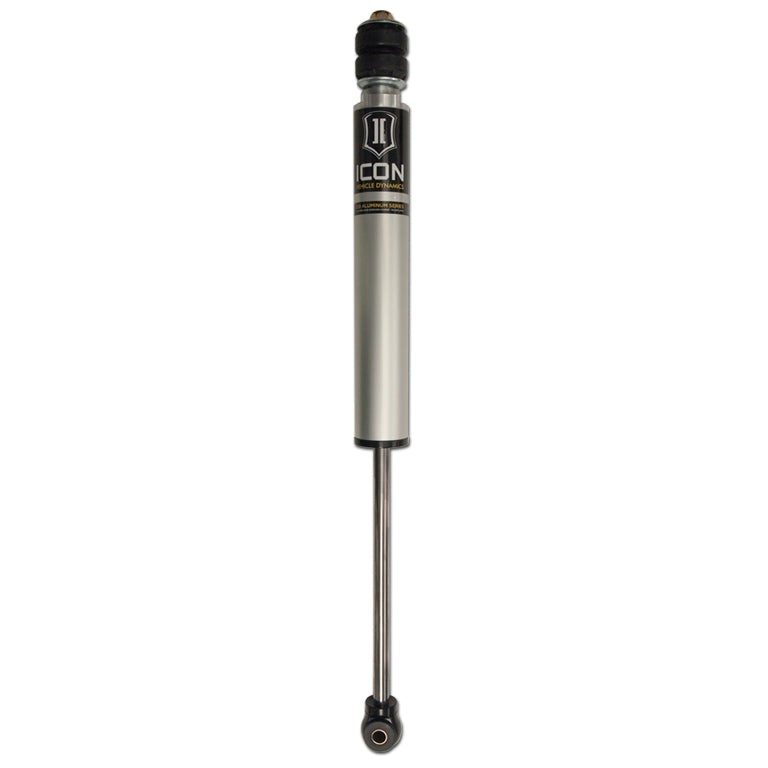

The ICON Vehicle Dynamics V.S. 2.0 Aluminum Series front shock absorber is a nitrogen-charged monotube unit engineered for 2003–2012 Ram 2500/3500 HD 4WD trucks lifted 2.5 inches, sold as a single shock. Vehicle-specific valving is calibrated for this application, delivering improved on- and off-road damping without sacrificing daily-drive comfort.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Monotube Construction Built for Consistent Damping

The nitrogen-charged monotube design with an internal reservoir separates oil from gas, preventing aeration and maintaining consistent damping force across varying terrain and temperatures. Premium 5WT shock oil holds its viscosity across a wide temperature range, so suspension response stays predictable whether the truck is running highway miles or crawling a trail.

Aluminum and Steel Where It Counts

The shock body and reservoir tubing are 6063 anodized aluminum, which dissipates heat efficiently and resists corrosion without adding unnecessary weight. The one-piece piston pairs with a 5/8 in chrome-plated hardened steel shaft that resists pitting and corrosion at the wiper seal, the point where most shocks show wear first. Rod end, top cap, and internals are 6061 aluminum for strength without bulk.

OE-Style Mounting, Long-Term Serviceability

Polyurethane bushings, zinc-plated sleeves, and forged steel mounting stems are sized to match factory mounting points on the Ram HD, keeping installation straightforward. A nitrile rubber top-out bumper prevents metal-to-metal contact at full extension without adding noise. Every V.S. 2.0 Aluminum shock is 100% rebuildable and 100% revalveable, so the unit can be serviced or retuned rather than replaced when it eventually needs attention.

Features

• Nitrogen-charged monotube with internal reservoir: resists oil aeration for consistent damping
• Vehicle-specific valving: linear/digressive one-piece piston tuned for 2003–2012 Ram 2500/3500 HD
• 5/8 in chrome-plated hardened steel shaft: resists corrosion and pitting at the seal
• 6061 aluminum rod end, top cap, and internals: strength with reduced weight
• 6063 anodized aluminum body and reservoir: heat dissipation and corrosion resistance
• 100% rebuildable and 100% revalveable: serviceable for long-term use

Specifications

Who This Is For and Isn't

This shock suits 2003–2012 Ram 2500/3500 HD owners running a 4WD drivetrain with a 2.5 in front lift who want a rebuildable, nitrogen-charged upgrade over the factory shock for both daily driving and off-road use.

This shock does not fit 2WD Ram 2500/3500 models, any Ram 1500, or Ram HD trucks outside the 2003–2012 model years. It is sold as a single unit and does not include a coil spring, upper control arm, or any other suspension component. Buyers running more demanding off-road use cases should consider the ICON V.S. 2.5 Series instead.

Common Questions

Does this shock fit 2WD Ram 2500 and 3500 trucks?

No. The ICON V.S. 2.0 Aluminum front shock for the 2003–2012 Ram 2500/3500 HD is designed for 4WD models only. It will not fit 2WD variants of the Ram HD.

How many shocks come in the box?

This listing is for one front shock absorber. Buyers replacing both front shocks will need to order two units.

Is a coil spring or upper control arm included?

No. The ICON V.S. 2.0 Aluminum front shock ships as a shock absorber only. Coil springs, upper control arms, and other suspension components are sold separately.

Can this shock be rebuilt or revalved later?

Yes. Every ICON V.S. 2.0 Aluminum Series shock is 100% rebuildable and 100% revalveable, meaning the internals can be serviced or the valving adjusted without replacing the entire unit.

Is there a California Proposition 65 warning for this product?

Yes. This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm. This warning is required under California Proposition 65.
