ICON Stage 5 Suspension System for 2017-2019 Ford F-250/F-350 Super Duty 4WD Diesel 2.5 Inch Lift

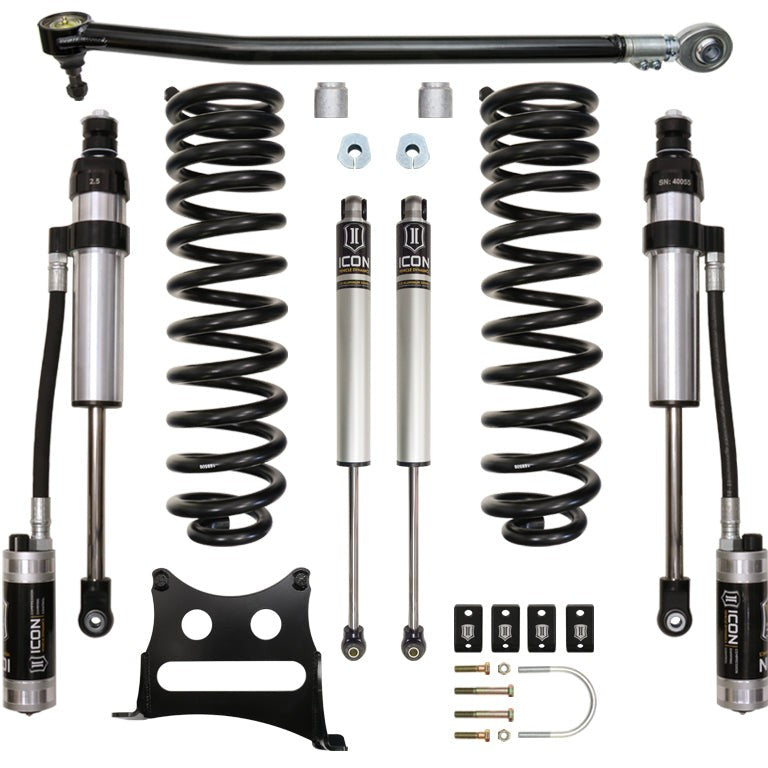

The ICON Vehicle Dynamics Stage 5 Suspension System raises 2017–2019 Ford F-250 and F-350 Super Duty 4WD Diesel trucks 2.5 inches and replaces the front and rear damping, spring, track bar, and steering stabilizer assemblies with a tuned, matched set of ICON components. The system ships as one kit covering a single application: 4WD Diesel cab configurations only, model years 2017 through 2019.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Matched Tuning Across Every Component

Because the coil springs, front remote reservoir shocks, rear piggyback shocks, and steering stabilizers are developed and valved together, each component's tune accounts for the loads the others place on the chassis. The 2.5 Series front shocks carry ICON's CDC Valve, which lets the driver adjust compression damping without tools, so the same truck can run a firm highway setting one day and a more compliant off-road setting the next. Shocks are fully rebuildable and revalvable, keeping the system serviceable over the long term rather than requiring full replacement when damping characteristics change with use.

Front Travel and Spring Rate

The ICON-engineered dual-rate coil springs increase front wheel travel approximately 25 percent over the factory suspension. A dual-rate design uses a softer initial rate for small-bump compliance and a stiffer secondary rate as the suspension compresses further, giving the truck controlled body motion under load without the harshness of a single high-rate spring. The springs carry a lifetime guarantee against breakage or sag, and ICON fabricated components carry a lifetime guarantee against breakage or defect.

Steering and Track Bar Geometry

The kit includes an adjustable track bar designed specifically for the 2017-and-up Super Duty, which corrects the lateral axle position that shifts when the front end is lifted. The dual opposing 2.0 Aluminum Series steering stabilizer kit addresses the increased steering inputs that accompany larger tires and lifted geometry. An alignment cam set is included; in rare cases a 2.6-degree cam may be required on one side to achieve proper caster split. A bump steer bracket (part 64039, sold separately) is also recommended to fully correct bump steer geometry.

Features

• CDC Valve front shocks: tool-free compression damping adjustment on the 2.5 Aluminum Series remote reservoir shocks
• Dual-rate coil springs: approximately 25% more front wheel travel over stock, lifetime breakage and sag guarantee
• Rear piggyback shocks: 2.5 VS Piggyback CDCV units compatible with 0–3 inches of rear lift over stock
• Adjustable track bar: corrects axle lateral position after a 2.5-inch front lift on 2017-and-up Super Duty
• Dual opposing steering stabilizers: 2.0 Aluminum Series, FK Rod End bearings for longevity and minimal deflection
• Corrosion-resistant anodized aluminum shock bodies with 7/8-inch shafts on 2.5 Series units

Specifications

Who This Is For and Isn't

This system suits owners of 2017–2019 Ford F-250 or F-350 Super Duty trucks equipped with a diesel engine and four-wheel drive who want a 2.5-inch front lift with matched damping, spring, track bar, and steering stabilizer components in a single purchase. The rear shocks support 0–3 inches of rear lift over stock, making the kit compatible with owners who also plan a mild rear lift.

This system does not fit gasoline-engine Super Duty trucks, 2WD configurations, F-350 Cab and Chassis models, or any Super Duty outside the 2017–2019 model years. A bump steer bracket (ICON part 64039) and an extended brake line kit (ICON part 61111) are not included and are sold separately. California residents: this product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm (Proposition 65).

Common Questions

Does this system work on gasoline-powered F-250 and F-350 trucks?

No. The ICON Stage 5 coil springs in this kit are rated for diesel engines only. Owners of gasoline-powered 2017–2019 Super Duty trucks need a different ICON system with springs matched to the lighter gasoline engine weight.

Are the front shocks adjustable after installation?

Yes. The 2.5 Aluminum Series front shocks include ICON's CDC Valve, which allows the driver to adjust compression damping without removing the shock from the vehicle. This lets the driver dial in a firmer or more compliant setting depending on road conditions or load.

What is not included that I may still need?

The ICON Stage 5 kit does not include a bump steer bracket (ICON part 64039, recommended to fully correct bump steer geometry after lifting) or an extended brake line kit (ICON part 61111, optional for owners who prefer not to bend the factory steel lines). Both are sold separately.

Can the shocks be serviced or rebuilt later?

Yes. All shocks in this Stage 5 system are fully rebuildable and revalvable, meaning damping characteristics can be adjusted or worn seals and fluid replaced by a qualified shop without replacing the entire shock body.

Will OEM wheels and tires still fit after installing this system?

Yes. The ICON Stage 5 system is confirmed compatible with OEM wheels and tires on the 2017–2019 Ford F-250/F-350 Super Duty. A maximum aftermarket tire size of 35 × 12.50 inches is recommended; larger tires may fit but will require fender trimming or other modifications.
