ICON Stage 5 Suspension System for 2009-2012 Ram 2500/3500 4.5" Lift

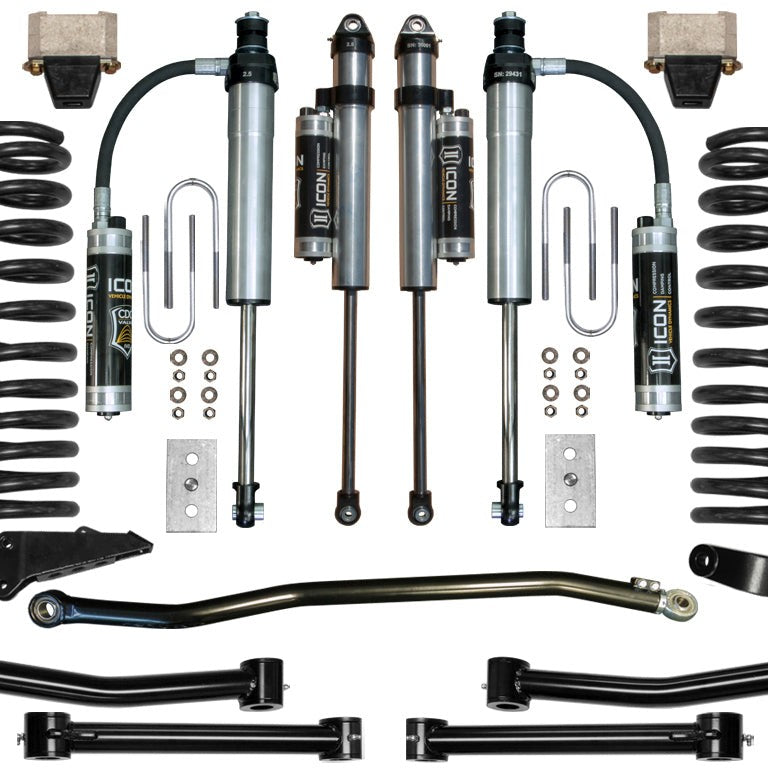

The ICON Stage 5 Suspension System delivers a 4.5-inch front lift for 2009–2012 Ram 2500 and Ram 3500 4WD diesel trucks, combining dual-rate coil springs, 2.5-inch V.S. Series aluminum shocks with Compression Damping Control Valves, heavy-duty tubular steel link arms, a forged drop pitman arm, and a bearing-style adjustable track bar into a single engineered kit. Springs are rated for diesel engines only. The system ships in multiple boxes and fits OEM wheels and tires.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Corrected Steering Geometry at Full Lift

Lifting a heavy-duty truck 4.5 inches without addressing steering geometry creates bump steer and premature wear on front-end components. The Stage 5 kit includes a forged drop pitman arm, a track bar drop bracket, and a bearing-style adjustable track bar specifically to restore correct steering angles at the lifted ride height. The adjustable track bar also lets the installer center the front axle under the truck, eliminating the lateral offset that a fixed bar would leave behind.

Tunable Compression Damping on Every Shock

All four shocks in this kit (the front 2.5 VS RR CDCV pair and the rear 2.5 VS PB CDCV pair) include an external compression damping adjustment knob. Turning that knob changes how the shock responds to compression inputs without removing the shock from the truck, so damping can be dialed softer for highway miles and firmer for loaded towing or rough terrain. The one-piece impact-extruded aluminum cylinders resist corrosion and maintain a consistent finish over the life of the shock; 7/8-inch shafts and FK bearings handle the side loads that link-arm front suspensions generate.

Reduced Bind Across the Full Travel Range

Factory link bushings introduce bind as the suspension moves through its travel, which dulls response and accelerates bushing wear. The fixed tubular steel upper and lower link arms in this kit replace those bushings with a geometry that reduces bind throughout the entire travel range, improving both on-road ride quality and off-road wheel tracking. No driveshaft modifications are required. The system is designed to clear 35-inch tires without modification; some 37-inch tires fit with minor fender-well trimming.

Features

• Dual-rate coil springs: diesel-engine rated, engineered for 4.5-inch front lift
• 2.5 VS Series shocks with CDCV: external compression damping adjustment, front and rear pairs included
• One-piece extruded aluminum shock cylinders: corrosion-resistant with FK bearings and 7/8-inch shafts
• Bearing-style adjustable track bar: PTFE-lined FK bearings, front-axle centering adjustment
• Fixed tubular steel upper and lower link arms: reduced bushing bind, improved alignment range
• Forged drop pitman arm and track bar drop bracket: restores correct steering geometry at lifted height

Specifications

California Residents: This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.

Who This Is For and Isn't

This system suits 2009–2012 Ram 2500 and Ram 3500 4WD diesel owners who want a 4.5-inch front lift with tunable damping, corrected steering geometry, and clearance for 35-inch tires without cutting bodywork.

The coil springs in this kit are rated for diesel engines only and are not intended for gas-engine Ram 2500/3500 trucks. This kit does not fit 2013 Ram 2500/3500 vehicles; contact ICON Vehicle Dynamics for 2013 fitment questions. Two-wheel-drive Ram trucks are not covered by this fitment.

Common Questions

Will this kit fit a gas-engine Ram 2500 or 3500?

The ICON Stage 5 coil springs in this kit are rated for diesel engines only. A gas-engine Ram 2500 or Ram 3500 is not a supported application for this system.

Does the kit fit 2013 Ram 2500 or 3500 trucks?

This Stage 5 system is engineered for 2009–2012 Ram 2500 and Ram 3500 4WD trucks. For 2013 model-year fitment, contact ICON Vehicle Dynamics directly before ordering.

What tire sizes clear without cutting the fenders?

The ICON Stage 5 system provides clearance for 35 x 12.50-inch tires with no modifications. Some 37-inch tires fit with minor fender-well trimming; larger tires may require additional modifications.

How is compression damping adjusted on the shocks?

All four shocks in this Stage 5 kit include an external Compression Damping Control Valve (CDCV) knob. Turning that knob adjusts compression damping without removing or disassembling the shock.

Are driveshaft modifications required to install this system?

No driveshaft modifications are required for the ICON Stage 5 system on 2009–2012 Ram 2500/3500 4WD diesel trucks.
