ICON Stage 3 Suspension System for 2008-Up Toyota Land Cruiser 1.5-3.5" Lift

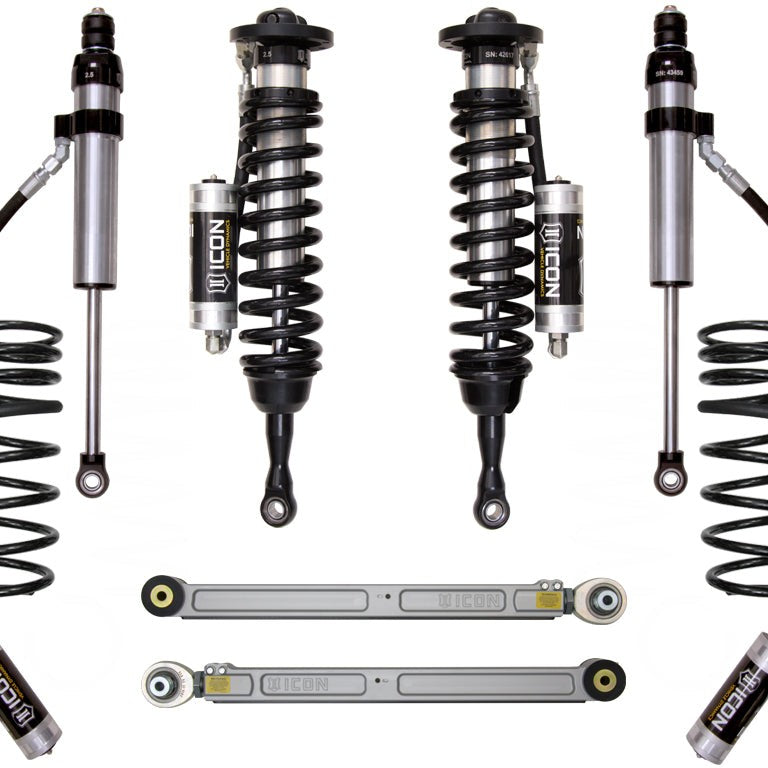

The ICON Vehicle Dynamics Stage 3 Suspension System for 2008-and-up Toyota Land Cruiser 200 Series delivers 1.5–3.5 inches of adjustable lift height through a four-component bolt-on kit: front 2.5 VS Remote Reservoir coilovers, rear 2.5 VS Remote Reservoir shocks, 1.75-inch dual-rate rear coil springs, and billet aluminum lower trailing arms, designed specifically for the Land Cruiser 200 platform.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Adjustable Lift Without Cutting or Welding

Height-adjustable front coilovers let owners dial in anywhere from 1.5 to 3.5 inches of lift on a stock-equipped vehicle, and the bolt-on design means no cutting or welding is required during installation. Ride height can be tuned to suit changes in tire size, load, or intended terrain without pulling the system.

Rear Geometry Corrected at the Source

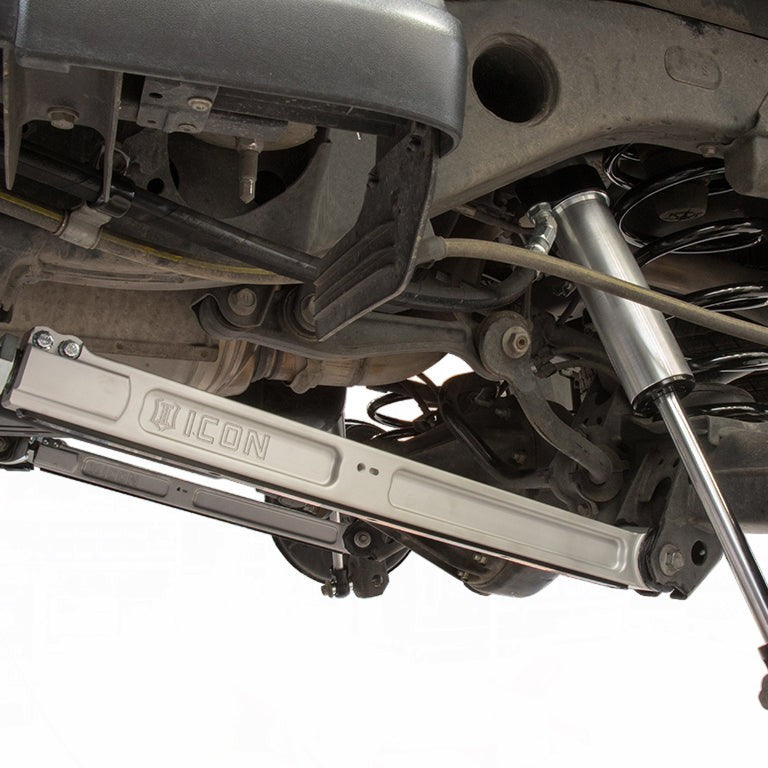

ICON-engineered 1.75-inch dual-rate rear coil springs work alongside billet aluminum lower trailing arms that allow on-vehicle pinion angle adjustment. Correcting pinion angle at the trailing arm, rather than with shims or add-on correctors, keeps the driveline geometry accurate across the full lift range and reduces vibration that commonly appears after a lift on solid-axle rear ends.

Shock Construction Built for Rebuilding

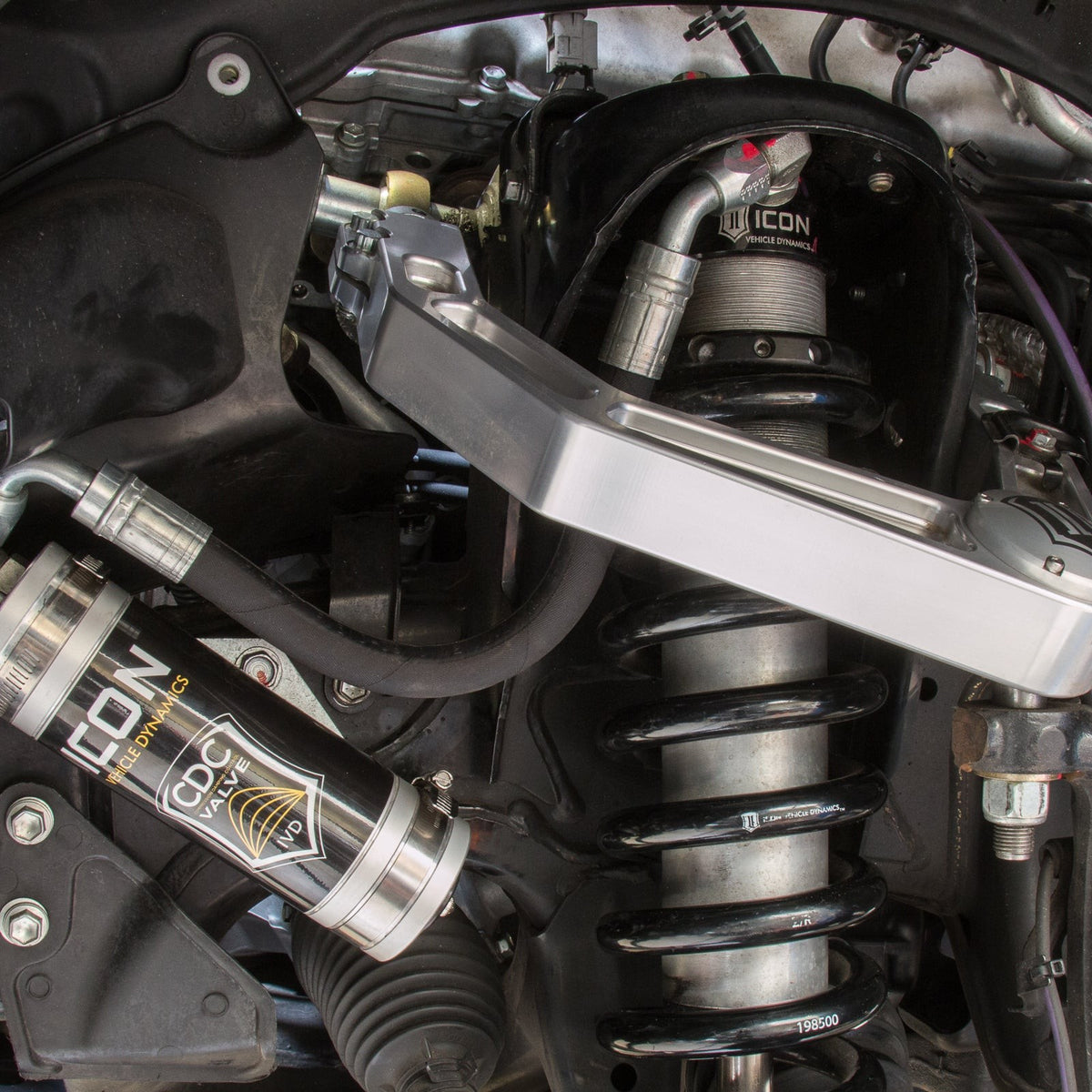

Front coilover shock bodies are CAD-plated for corrosion resistance and use 7/8-inch shafts. Rear 2.5 Aluminum Series shocks feature one-piece impact-extruded aluminum cylinders, which provide consistent finish and resist corrosion without a coating that can chip or flake. All shocks in the system are fully rebuildable and revalveable, so the damping can be serviced or retuned rather than replaced outright.

Features

• Front coilovers: 2.5 VS Remote Reservoir coilover kit, CAD-plated bodies with 7/8" shafts, 1.5–3.5" adjustable lift
• Rear shocks: 2.5 VS Remote Reservoir pair, one-piece impact-extruded aluminum cylinders
• Rear springs: ICON-engineered 1.75" dual-rate coil springs
• Trailing arms: Billet aluminum lower trailing arms with on-vehicle pinion angle adjustment
• KDSS compatible: Front sway bar relocation brackets are not used on KDSS-equipped vehicles
• Serviceability: All shocks are fully rebuildable and revalveable

Specifications

Who This Is For and Isn't

This system suits 2008-and-up Toyota Land Cruiser 200 Series owners who want 1.5–3.5 inches of adjustable lift with improved off-road damping, corrected rear pinion angle, and a fully serviceable shock package, whether the vehicle runs OEM wheels or recommended aftermarket sizes up to 34 inches.

Above 2.5 inches of lift, factory upper control arms will not align properly; an aftermarket UCA is recommended for lifts in the 2.5–3.5 inch range. Remote reservoir mounting brackets may interfere with aftermarket bumper mounts and windshield washer bottles. On KDSS-equipped vehicles, the front sway bar relocation brackets included in the kit are not used; certain model years also require trimming for front reservoir bracket fitment. This system is not a universal fit and is not compatible with non-200-Series Land Cruiser platforms.

Common Questions

Do I need aftermarket upper control arms with this system?

Above 2.5 inches of lift, the factory upper control arms on the Land Cruiser 200 will not align properly. For builds targeting 2.5–3.5 inches of lift with this Stage 3 system, an aftermarket upper control arm is recommended to maintain correct alignment geometry.

Is this system compatible with KDSS-equipped Land Cruisers?

The ICON Stage 3 system is compatible with KDSS-equipped Land Cruiser 200 models. On those vehicles, the front sway bar relocation brackets included in the kit are not used. Note that certain model years may require trimming for the front reservoir bracket to fit properly.

What tire size fits without fender modifications?

The ICON Stage 3 system is tested with 34 x 10.50-inch tires on a stock-equipped Land Cruiser 200. Larger tires may fit, but fender trimming and additional modifications may be required.

Can the shocks be serviced or revalved after installation?

All shocks in the ICON Stage 3 system are fully rebuildable and revalveable. Damping can be serviced or tuned to different specifications over the life of the system rather than requiring full shock replacement.

Will aftermarket bumpers or washer bottles cause clearance issues?

The remote reservoir mounting brackets in this Stage 3 system may interfere with certain aftermarket bumper mounts and windshield washer bottles. Verify clearance with your specific bumper and washer bottle configuration before installation.
