ICON Stage 3 Suspension System for 2004-2015 Nissan Titan 2WD/4WD 0-3 Inch Lift

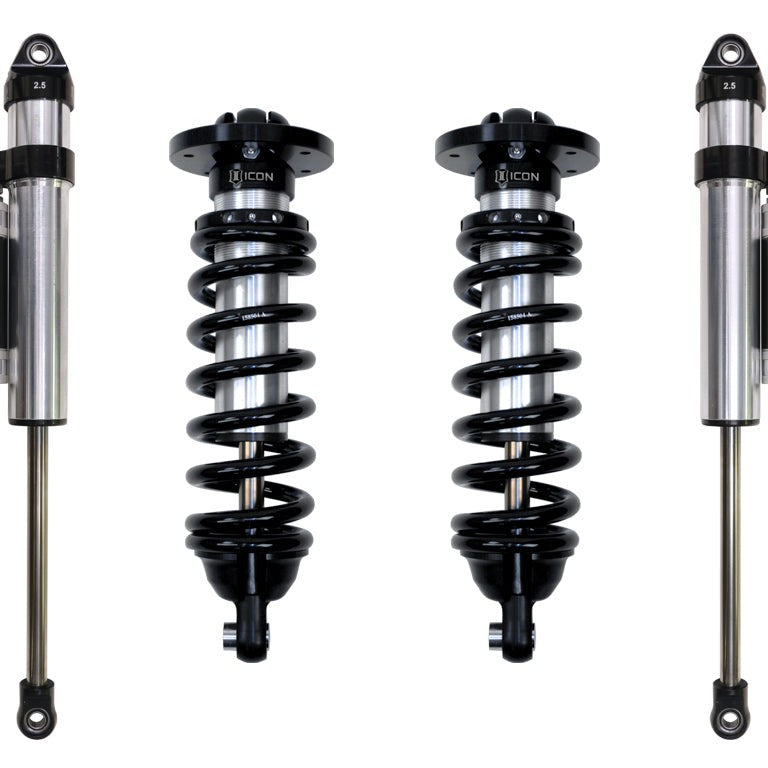

The ICON Stage 3 Suspension System for the 2004–2015 Nissan Titan (2WD and 4WD) replaces the factory front and rear dampers with a matched set of 2.5 Series shocks, raising ride height 0–3 inches over stock while increasing wheel travel and damping control on pavement and off-road. The system ships as two sub-assemblies: a front 2.5 Series internal-reservoir coilover kit and a rear 2.5 Series piggyback reservoir shock pair with CDC Valve.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Tuned Front and Rear as a Matched System

Vehicle-specific valving on both the front coilovers and the rear piggyback shocks is calibrated together so the Titan's ride balance does not shift toward the front or rear after the upgrade. Buyers who install only a front or only a rear upgrade often find the truck pitches or wallows differently under load; a matched Stage system eliminates that compromise. Towing capacity is not reduced by the installation.

Adjustable Lift and On-the-Fly Compression Control

The front coilovers adjust from 0 to 3 inches of lift over stock, letting the owner dial in ride height to clear a specific tire size or match a trailer hitch height without buying a separate spacer. The rear shocks include ICON's CDC (Compression Damping Control) Valve, which allows compression adjustment without removing the shock from the vehicle, making it practical to firm up the rear for loaded or towing use and soften it for unloaded daily driving.

Aircraft-Grade Aluminum and Corrosion-Resistant Construction

Coilover components are CNC-machined from 6061 aircraft-grade aluminum. The coilover shock body carries a CAD (cadmium) plating for corrosion resistance, and the 7/8-inch shaft runs FK Rod End bearings for reduced deflection and extended service life. Rear shock cylinders are one-piece impact-extruded aluminum for consistent finish and corrosion resistance. Internal reservoirs on the front coilovers and piggyback reservoirs on the rear shocks both increase fluid capacity, which delays heat-related fade on long descents or repeated off-road hits.

Features

• Fitment: 2004–2015 Nissan Titan, 2WD and 4WD
• Height adjustment: 0–3 inches of lift over stock, coilover-adjustable
• Front shocks: 2.5 Series internal-reservoir coilovers with ICON-engineered Eibach coil springs
• Rear shocks: 2.5 Aluminum Series piggyback reservoir shocks with CDC Compression Damping Control Valve
• Construction: 6061 aluminum CNC components, CAD-plated coilover body, 7/8-inch shaft, FK Rod End bearings
• Installation: 100% bolt-on, no drilling, cutting, or welding required

Specifications

Who This Is For and Isn't

The ICON Stage 3 system suits 2004–2015 Nissan Titan owners, both 2WD and 4WD, who want a bolt-on lift of up to 3 inches with meaningfully improved damping performance on mixed on-road and off-road use. OEM wheels and tires fit at all lift heights within the 0–3-inch range.

This system does not fit any Nissan Titan outside the 2004–2015 model years, and it does not fit any other make or model. Tires larger than 33x11.50 inches may require fender trimming and additional modifications beyond what this bolt-on system provides.

Common Questions

Will this system fit both 2WD and 4WD Titans?

Yes. The ICON Stage 3 Suspension System for the 2004–2015 Nissan Titan is designed for both 2WD and 4WD applications. No separate 2WD or 4WD variant is required.

What lift height can I run, and is it adjustable after installation?

The front coilovers in this Stage 3 system are height-adjustable from 0 to 3 inches of lift over stock. Ride height can be changed after installation by adjusting the coilover perch, with no replacement parts needed to move within that range.

What does the CDC Valve on the rear shocks do?

The CDC (Compression Damping Control) Valve on the rear 2.5 Series piggyback shocks allows the driver to adjust compression damping without removing the shock from the vehicle. This makes it practical to firm up the rear for loaded or towing use and soften it for unloaded daily driving.

Does installation require cutting, drilling, or welding?

No. The ICON Stage 3 system for the 2004–2015 Nissan Titan is a 100% bolt-on installation. No cutting, drilling, or welding is required to mount the front coilovers or rear piggyback shocks.

Will my stock wheels and tires still fit after installation?

Yes. The ICON Stage 3 system is confirmed to fit OEM Nissan Titan wheels and tires at all lift heights within the 0–3-inch range. A maximum aftermarket tire size of 33x11.50 inches is recommended; larger tires may fit but will require fender trimming and additional modifications.

Is there a California Proposition 65 warning for this product?

Yes. This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm. This warning applies to California residents under Proposition 65.
