ICON Stage 1 Suspension System for 2014 Ford F150 4WD 0-2.63" Lift

The ICON Vehicle Dynamics Stage 1 Suspension System is a complete front-and-rear upgrade for 2014 Ford F150 4WD trucks, delivering 0–2.63 inches of adjustable lift through a vehicle-specific 2.5-inch coilover kit and a pair of 2.0 Aluminum Series rear shocks, all bolt-on with no drilling, cutting, or welding required.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

More Travel, Better Control

The front coilovers pair ICON-tuned internals with ICON-engineered Eibach coil springs, increasing wheel travel and damping ability beyond stock. Greater travel means the suspension can absorb larger impacts without transferring them to the cab, so the truck stays composed on washboard dirt roads and broken pavement alike. The internal reservoir on each coilover provides additional fluid volume for heat dissipation during sustained off-road use, reducing fade when the suspension is working hardest.

Adjustable Height, OEM Wheel Compatibility Retained

The coilover height adjusts across the full 0–2.63-inch lift range, letting the owner dial in ride height to match tire size or terrain preference without swapping components. At any height within that range, OEM wheels and tires fit without modification. Owners running aftermarket wheels should note ICON's recommended fitments: 17x8.5-inch with 5.00-inch backspace / 6mm offset, 18x9-inch with 5.25-inch backspace / 6mm offset, or 20x9-inch with 5.625-inch backspace / 16mm offset. Tires up to 33x11.50 inches fit; larger sizes may require fender trimming.

Matched Front-to-Rear Valving

The two included 2.0 Aluminum Series monotube rear shocks carry vehicle-specific valving tuned to balance the F150's rear damping against the front coilovers, so the truck does not develop the nose-down or tail-high attitude common when only one end of the suspension is upgraded. The aluminum shock body and 5/8-inch polished shaft are the same construction ICON uses across its performance line. Rear shocks in this kit are rated for 0–1 inch of rear lift over stock on most models.

Features

• 2.5" VS IR Coilover Kit: vehicle-specific front coilovers with internal reservoir and ICON-engineered Eibach springs
• 2.0 Aluminum IFP Rear Shocks (×2): monotube construction with 5/8" polished shaft and vehicle-specific valving
• 6061 Aircraft-Grade Aluminum Components: CNC-machined for weight reduction and dimensional consistency
• CAD-Plated Coilover Body: corrosion-resistant finish with 7/8" shaft
• FK Rod End Bearings: high-strength alloy lower bar pin for extended longevity and minimal deflection
• 100% Bolt-On Installation: no drilling, cutting, or welding required

Specifications

Who This Is For and Isn't

This system suits 2014 Ford F150 4WD owners who want a bolt-on lift and performance suspension upgrade, whether the primary use is daily driving on rough roads, weekend off-road runs, or a combination of both, and who want front and rear damping matched rather than mixing components.

This system does not fit 2WD F150 models, or any F150 equipped with CNG or LPG fuel systems. Lifts above 2 inches over stock may require aftermarket front upper control arms to maintain proper alignment, which are not included. Rear shocks in this kit support 0–1 inch of rear lift over stock on most models; owners planning more rear lift will need additional components.

Common Questions

Does this system fit a 2014 Ford F150 with two-wheel drive?

No. The ICON Stage 1 Suspension System for the 2014 Ford F150 is compatible with 4WD models only. It is not engineered for 2WD variants of the F150.

Will OEM wheels and tires still fit after installation?

Yes. The ICON Stage 1 system is confirmed compatible with OEM F150 wheels and tires at any point in the 0–2.63-inch lift range. Owners running 33x11.50-inch aftermarket tires can also fit them; tires larger than that may require fender trimming or other modifications.

Do I need upper control arms to run the full 2.63-inch lift?

Lifts above 2 inches over stock may require aftermarket front upper control arms to maintain proper alignment. Upper control arms are not included in the Stage 1 system and would need to be purchased separately.

What tools or modifications are needed to install this system?

The ICON Stage 1 Suspension System is a 100% bolt-on kit with no drilling, cutting, or welding required. An installation guide is included. A coilover preload adjustment spanner wrench is available separately if needed for height adjustment.

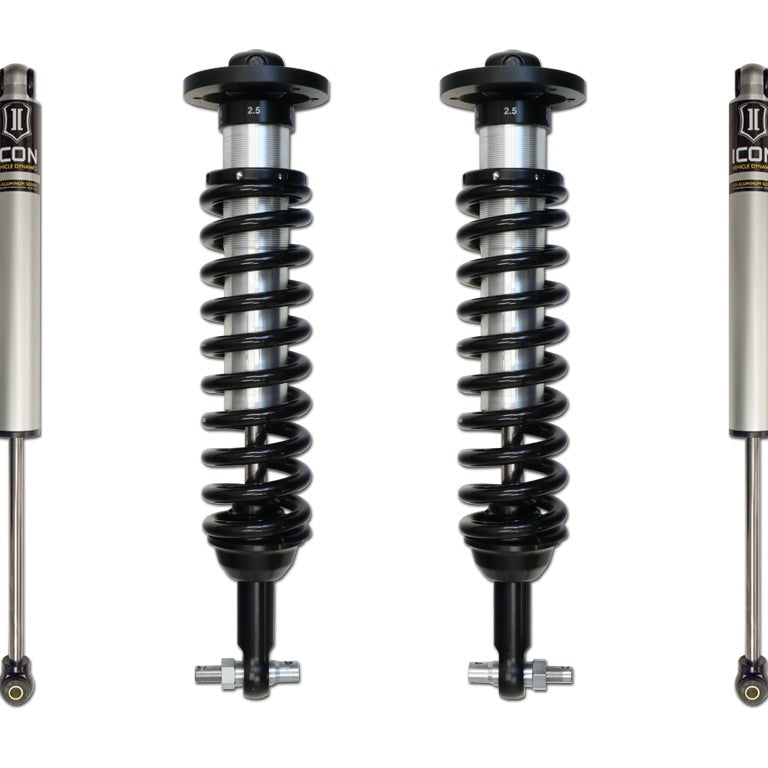

What components are included in the Stage 1 kit?

The Stage 1 system includes one 2014 F150 4WD 2.5 VS IR Coilover Kit (front) and two 2.0 Aluminum Series IFP rear shocks with vehicle-specific valving. The system ships in multiple boxes.
