ICON Stage 1 Suspension System for 2005-2011 Toyota Hilux 0-3" Lift

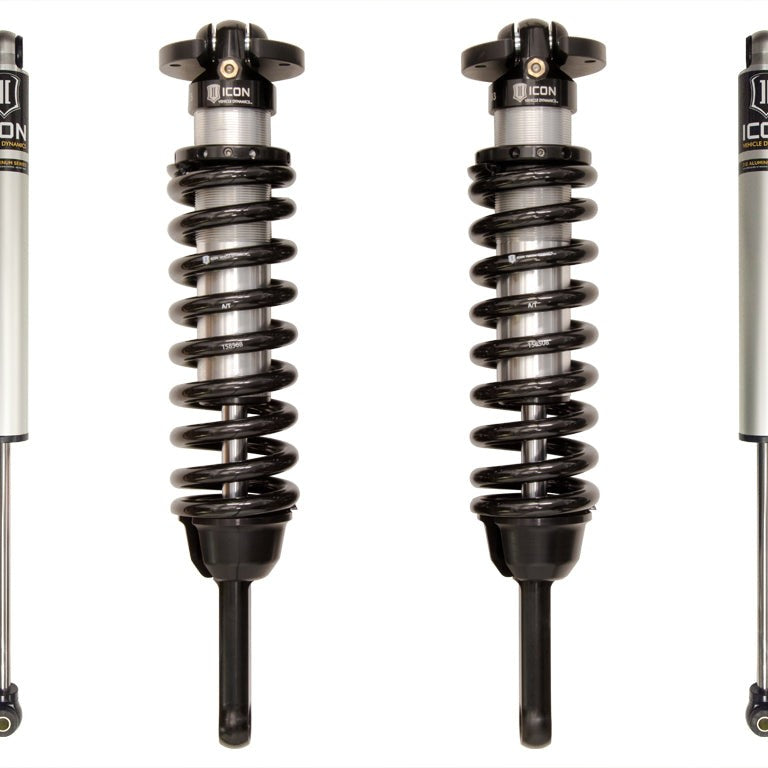

The ICON Vehicle Dynamics Stage 1 Suspension System is a complete front-and-rear upgrade for 2005–2011 Toyota Hilux trucks, delivering 0–3" of adjustable lift height through a 2.5" internal-reservoir coilover up front and ICON 2.0 Aluminum Series monotube shocks in the rear. The system installs with no drilling, cutting, or welding and retains OEM wheel and tire fitment.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Tuned for the Hilux Chassis

ICON engineered the shock tune specifically around the Hilux's stiffer chassis, which demands more robust damping than a typical truck platform. The front 2.5" coilovers pair an internal reservoir (for sustained heat dissipation during extended off-road use) with ICON-engineered Eibach coil springs chosen for their progressive feel across the full range of travel. The result is a front end that tracks predictably whether the bed is loaded or empty.

Adjustable Lift, Balanced Front to Rear

The front coilovers adjust from 0–3" of lift, allowing the Hilux to be leveled front-to-rear or raised to clear larger tires. ICON notes that coilover heights are calibrated for a stock-equipped vehicle; heavier builds can specify a 700 lb/in expedition coil spring. The rear 2.0 Aluminum Series monotube shocks are tuned to match the front's performance envelope, and optional rear springs can add up to 2" of additional rear lift height to keep pace with a full 3" front adjustment.

Built to Last in Varied Conditions

Structural components are CNC-machined from 6061 aircraft-grade aluminum. The coilover shock body carries a corrosion-resistant CAD plating, and FK rod end bearings on the 7/8" shaft minimize deflection and extend service life. The rear shocks run a 5/8" shaft. All shocks are fully serviceable.

Features

• 2.5" Internal-Reservoir Coilovers: vehicle-specific tune with Eibach springs, height-adjustable 0–3"
• 2.0 Aluminum Series Rear Shocks: monotube design, 5/8" shaft, matched rear damping tune
• 100% Bolt-On Install: no drilling, cutting, or welding required
• OEM Wheel and Tire Compatibility: fits stock Hilux wheels and tires
• 6061 Aluminum CNC Components: CAD-plated coilover body, FK rod end bearings, 7/8" front shaft
• Fully Serviceable Shocks: all units can be rebuilt and revalved

Specifications

Who This Is For and Isn't

This system suits 2005–2011 Toyota Hilux owners who want a bolt-on lift of 0–3", improved on- and off-road ride quality, and the ability to run up to 33" x 11.25" tires without modification. It works with OEM wheels and is appropriate for stock-weight to moderately equipped vehicles (a 700 lb/in expedition coil is available separately for heavier builds).

This system does not fit any Hilux year outside 2005–2011, and it is not designed for other Toyota platforms. Tires larger than 33" x 11.25" may require fender trimming or additional modifications. Rear lift beyond the front's 3" maximum requires optional rear springs sold separately. California residents should note the Proposition 65 warning: this product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.

Common Questions

Does this system require any cutting, drilling, or welding to install?

The ICON Stage 1 Hilux system is a 100% bolt-on kit. No cutting, drilling, or welding is required for installation on 2005–2011 Toyota Hilux trucks.

Will my stock Hilux wheels and tires still fit after installing this system?

Yes. The Stage 1 system is confirmed compatible with OEM Toyota Hilux wheels and tires. Aftermarket tires up to 33" x 11.25" also fit without modification; larger tires may require fender trimming.

Can I get the full 3" of front lift with matching rear lift?

The front coilovers adjust up to 3" of lift. The rear shocks included in the Stage 1 system do not add rear lift on their own; optional rear springs, sold separately, can add up to 2" of additional rear height to better match a full 3" front adjustment.

Is the Stage 1 system appropriate for a heavily loaded or expedition-equipped Hilux?

The Stage 1 system's coilover heights are calibrated for a stock-equipped vehicle. For heavier-equipped Hilux builds, a 700 lb/in expedition coil spring is available as an upgrade. Contact TerrainVault for details before ordering.

Are the shocks rebuildable if they wear out or get damaged off-road?

All shocks in the ICON Stage 1 Hilux system are fully serviceable, meaning they can be rebuilt and revalved rather than replaced outright, which extends the long-term value of the system.
