ICON Intelligent Control IIC Install Kit for 2021-2026 Ford Bronco

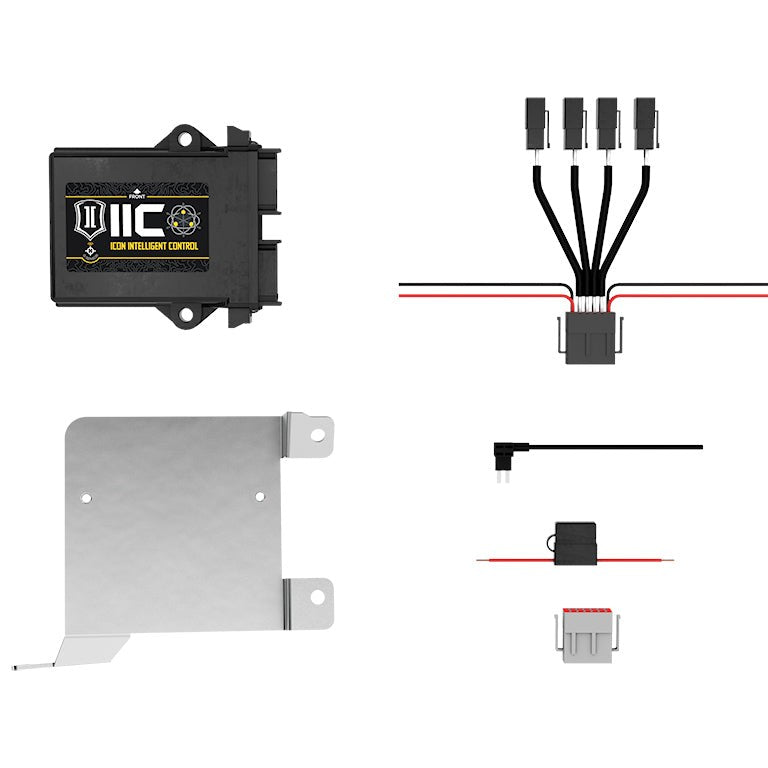

The ICON Intelligent Control (IIC) Install Kit fits 2021–2026 Ford Bronco (excluding Bronco Raptor) and adds the onboard computer that enables active, real-time compression damping adjustment on compatible ICON CDEV shocks. The kit includes application-specific mounting brackets, hardware, and wire harnesses sized for the Bronco's chassis. CDEV front and rear shocks must be installed separately before the IIC can function.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Real-Time Damping at Over 1,000 Calculations Per Second

The IIC unit reads an onboard G-force sensor and gyroscope continuously, running those inputs through custom algorithms and any user-defined settings more than 1,000 times per second. When the system detects a change in terrain or wheel position, it sends a damping command to the Compression Damping Electronic Valve (CDEV) inside the shock absorbers. That command is delivered and acted on in under 40 milliseconds, fast enough to respond to terrain variation before the chassis has time to react on its own. For Bronco owners who already run CDEV shocks, this is the hardware that turns passive electronic shocks into an active, sensor-driven system.

In-Cab Adjustment Without Stopping

The IIC connects to ICON's mobile app over Bluetooth, giving the driver a live interface to the shock system from an iOS device. Baseline firmness, vertical G-Boost sensitivity, and lateral Corner Boost sensitivity are all adjustable from the app without leaving the vehicle. Three preconfigured Drive Modes (Normal, Desert, and Haul) cover the most common use cases, and the app supports an unlimited number of user-created custom presets. The same app session also logs time, speed, distance, and G-force data, so a driver can review how the suspension performed across a specific trail or route.

Bronco-Specific Fit, Clean Installation

Rather than generic brackets adapted to fit, the IIC Install Kit ships with mounting hardware engineered for the 2021–2026 Bronco's specific attachment points and wire routing. The included wire harnesses connect directly to the CDEV shocks without splicing or fabrication. The result is a factory-clean appearance under the hood and in the wheel wells. Note that the IIC app requires an iOS device; Android is not supported.

Features

• Active damping control: onboard G-force sensor and gyroscope feed data to CDEV shocks at over 1,000 calculations per second
• 40ms response time: damping adjustments reach CDEV shock valves in under 40 milliseconds
• Bluetooth app interface: connects to ICON's iOS app for in-vehicle firmness, G-Boost, and Corner Boost adjustment
• Drive Modes: Normal, Desert, and Haul preconfigured; unlimited custom presets supported
• Data logging: records time, speed, distance, and G-force for post-trip review
• Bronco-specific hardware: application-matched mounting brackets, hardware, and wire harnesses included

Specifications

Who This Is For and Isn't

The IIC Install Kit is for 2021–2026 Ford Bronco owners who have installed or are installing ICON CDEV-equipped shocks and want active, sensor-driven damping control with in-cab adjustment via an iOS device.

The IIC Install Kit does not fit the Ford Bronco Raptor. It does not function without compatible ICON CDEV shocks already installed, and it does not support Android devices. It is not a standalone suspension upgrade and does not include shocks, springs, or any lift components.

Common Questions

Does this kit include shocks or springs?

The ICON IIC Install Kit does not include shocks or springs. It contains the IIC controller unit, application-specific mounting brackets, hardware, and wire harnesses. Compatible ICON CDEV front and rear shocks must be purchased and installed separately before the IIC system can operate.

Will the IIC kit fit a Ford Bronco Raptor?

No. The ICON IIC Install Kit is not compatible with the Ford Bronco Raptor. It is engineered specifically for the 2021–2026 Ford Bronco standard platform and uses mounting brackets and wire harnesses matched to that chassis.

What phone or device does the IIC app require?

The ICON Intelligent Control app requires an iOS device. Android devices are not supported. The app connects to the IIC unit via Bluetooth and is used to adjust shock firmness, G-Boost and Corner Boost sensitivity, Drive Mode selection, and custom preset creation.

What does the IIC app let the driver adjust while moving?

Through the IIC app on an iOS device, the driver can adjust the shocks' baseline firmness setting, the sensitivity of vertical G-Boost, and the sensitivity of lateral Corner Boost without stopping. The app also includes three preconfigured Drive Modes (Normal, Desert, and Haul) and supports unlimited user-created custom presets.

Does the IIC system log trail data?

Yes. The IIC system functions as a data logger through the ICON app, recording time, speed, distance, and G-force data during a trip. That data can be reviewed after the drive as an ICONIC Overview within the app.
