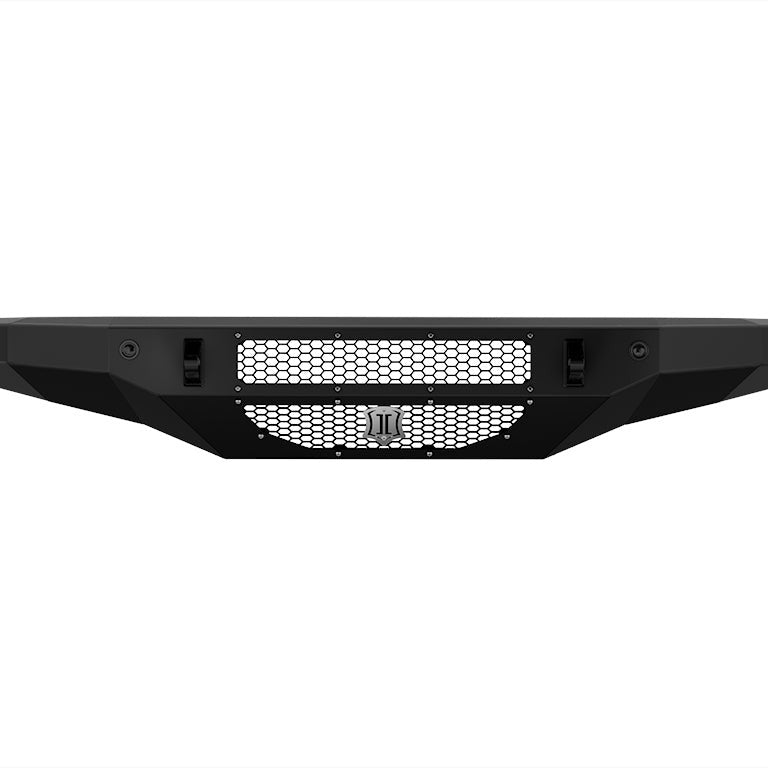

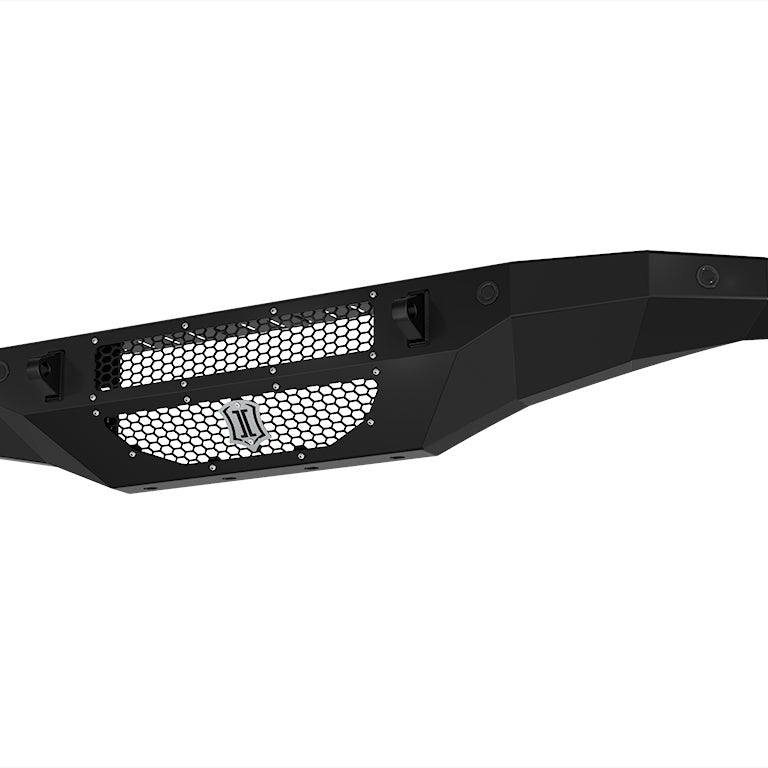

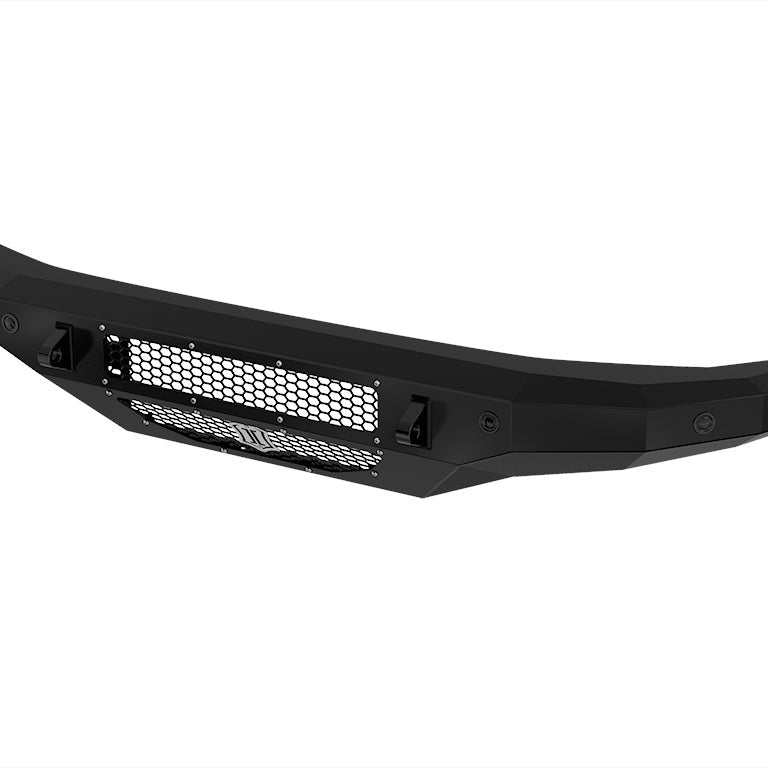

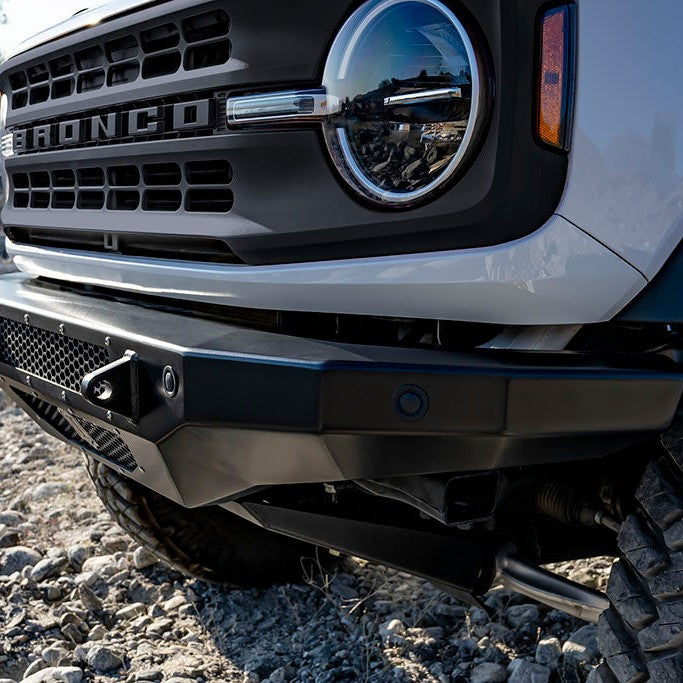

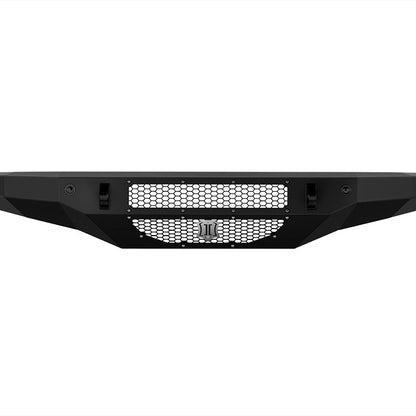

ICON Impact Trail Series Front Bumper for 2021-2026 Ford Bronco

The ICON Impact Trail Series Front Bumper is a 3/16" CNC laser-cut, brake-formed plate steel front bumper built for the 2021–2026 Ford Bronco (excluding Bronco Raptor and Bronco Everglades OE winch). Its high-clearance, multi-faceted profile maximizes approach angle on technical terrain while tapered ends shield the Bronco's lower grille corners without restricting front-tire articulation.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

High-Clearance Design That Works on Rock

The Trail Series bumper's faceted geometry is shaped to slip past tight rock features rather than catching on them. Tapered end caps protect the lower grille corners while pulling the front tires away from the body line, giving them more room to grip and climb steep obstacles. For a trail rig that sees real terrain, that combination of protection and clearance is more useful than a flat-face bumper that looks aggressive but limits approach angle.

Recovery-Ready Without Add-Ons

A pair of extreme-duty recovery shackle tabs are CNC machined from 1" thick steel plate and angled for high clearance. Each tab accepts a 3/4" shackle pin (5/8" shackle), so a standard recovery shackle mounts directly without adapters. Having rated recovery points integrated into the bumper structure means one less bracket to source and one fewer failure point when a recovery load comes on hard.

Retains OE Features, Adds Lighting Options

Parking sensor mounts with bezels are included for sensor-equipped Broncos; blanking caps are included for Broncos without sensors, so the bumper fits both configurations without cutting. A removable aluminum mesh panel behind the center section promotes airflow to the intercooler. The center mesh area accepts up to five 3×3" cube LED lights or one 20" LED light bar using the provided mounting tabs (lighting accessories are not included). Broncos equipped with Adaptive Cruise Control require relocation of the ACC module using ICON part 45209 or 45210, sold separately; note that installing part 45210 reduces cube light positions from five to four and makes the 20" light bar incompatible, while part 45209 retains all lighting options.

Features

• 3/16" plate steel construction: CNC laser cut and precision brake-formed throughout
• 1" thick recovery shackle tabs: CNC machined, angled for clearance, sized for 3/4" shackle pin (5/8" shackle)
• Parking sensor compatibility: bezels included for sensor-equipped Broncos; blanking caps included for non-sensor Broncos
• Removable aluminum mesh panel: promotes intercooler airflow; center section accepts up to five 3×3" cube LEDs or one 20" light bar (not included)
• Bolt-on installation: no cutting or drilling required
• Satin black powder coat finish: durable semi-gloss protective coating

Specifications

Who This Is For and Isn't

The Trail Series Front Bumper suits 2021–2026 Ford Bronco owners who run technical trails and want a high-clearance steel bumper with integrated recovery points, retained parking sensor functionality, and provisions for aftermarket lighting.

This bumper does not fit the Bronco Raptor or Broncos equipped with the Everglades OE winch. It is not compatible with the OE skid plate. Broncos with Adaptive Cruise Control require a separately purchased ACC relocation kit (ICON part 45209 or 45210) before the system will function. ADAS recalibration is required after installation. Lighting accessories, the optional skid plate (ICON 45207), and the optional diff skid plate (ICON 45208) are all sold separately.

Common Questions

Will this bumper fit the Ford Bronco Raptor or Bronco Everglades?

The ICON Impact Trail Series Front Bumper does not fit the Bronco Raptor. It is also not compatible with the OE winch included with the Bronco Everglades. It is designed for standard 2021–2026 Ford Bronco models only.

Does installation require cutting or drilling?

The Trail Series Front Bumper is designed for bolt-on installation with no cutting or drilling required. ADAS systems must be recalibrated after the bumper is installed, and Broncos with Adaptive Cruise Control require a separately purchased ACC relocation kit.

What happens to my Bronco's parking sensors?

The Trail Series bumper includes parking sensor mounts with bezels for Broncos equipped with sensors. Blanking caps are also included for Broncos without parking sensors, so both configurations are covered without additional purchases.

Can I mount a winch or light bar to this bumper?

The Trail Series Front Bumper is not compatible with the Bronco Everglades OE winch. The center mesh panel area includes mounting tabs for up to five 3×3" cube LED lights or one 20" LED light bar (lighting accessories are not included). Installing ICON's ACC relocation part 45210 reduces cube light positions to four and makes the 20" light bar incompatible; part 45209 retains all lighting options.

Is a skid plate included with the bumper?

No skid plate is included. An optional skid plate (ICON part 45207) and an optional diff skid plate (ICON part 45208) are available separately. The Trail Series Front Bumper is not compatible with the OE skid plate.
