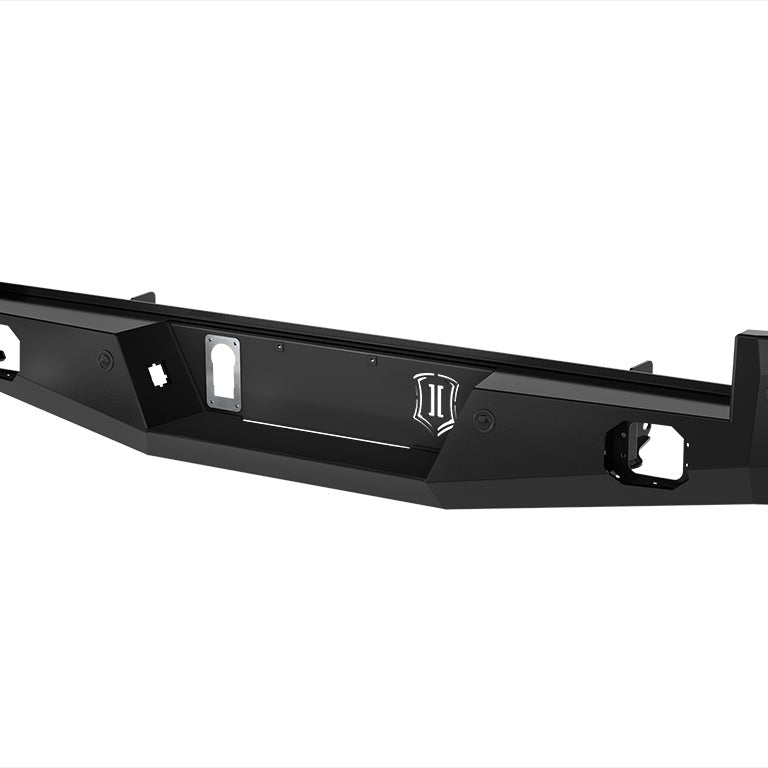

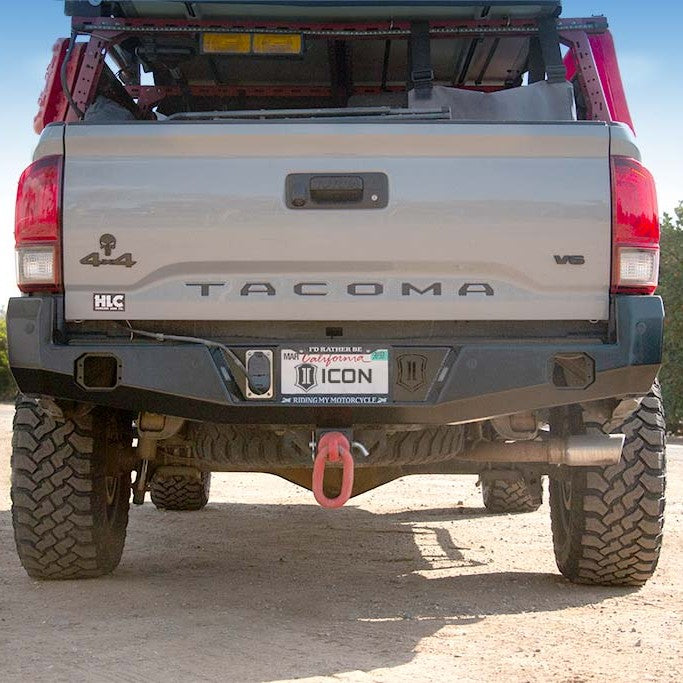

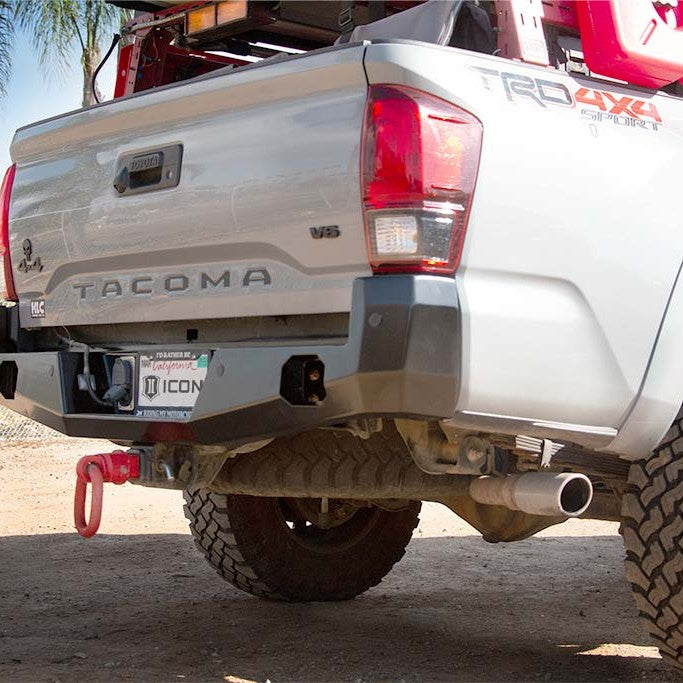

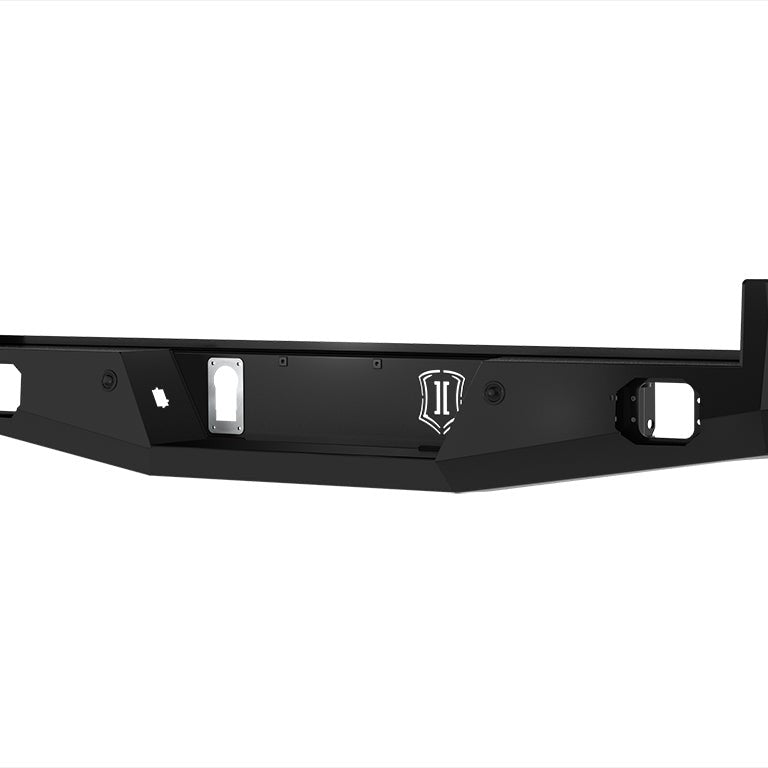

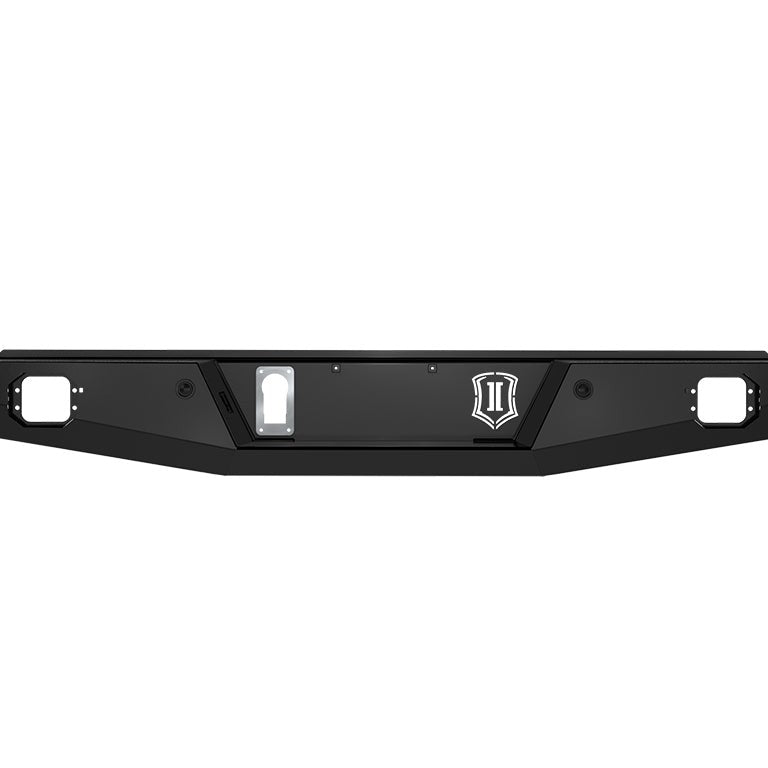

ICON Impact Series 2016-2023 Toyota Tacoma Rear Bumper

The ICON Impact Series Rear Bumper is a full-width steel replacement rear bumper for 2016–2023 Toyota Tacoma, fabricated from CNC laser-cut, precision brake-formed 3/16-inch steel and finished in satin black powder coat. The bumper bolts directly to factory mounting points and is engineered to retain the factory tow hitch, OE tow harness receptacle, license plate lights, and backup sensors.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Full-Width Protection Without Sacrificing Function

The ICON Impact Series Rear Bumper spans the full width of the Tacoma's rear, replacing the factory bumper with 3/16-inch steel that absorbs trail impacts and brush contact across the entire rear corner, not just the center section. Because it bolts to factory mounting points, the structural load transfers directly into the frame rather than relying on secondary brackets, which matters when a rock or tree stump catches a corner at speed or on a steep descent.

Factory Systems Stay Intact

The bumper is engineered around the Tacoma's existing rear hardware. The factory tow hitch receiver and OE tow harness receptacle are retained, so towing capability is not lost after installation. License plate lighting and backup sensors also carry over from the factory setup. The bumper is not compatible with factory blind spot monitoring systems, and buyers who rely on that feature should account for this before purchasing.

Rear-Facing Light Pod Windows

Two rear-facing light pod windows are built into the bumper shell and sized for common 3×3-inch flush-mount cube LED lights. The recessed pocket design keeps lighting equipment behind the steel face, protecting the lights from direct trail contact. Lighting accessories are not included with the bumper.

Features

• 3/16-inch steel construction: CNC laser-cut and precision brake-formed for consistent geometry and weld fit
• Satin black powder coat: durable finish that resists rust and corrosion
• Factory hitch retention: works with the OEM tow hitch receiver and tow harness receptacle
• Sensor and light compatibility: retains OE backup sensors and license plate lights
• Flush-mount light pod windows: accepts common 3×3-inch flush-mount cube LED pods (lighting not included)
• Factory bolt-on installation: mounts directly to factory points with no cutting required

Specifications

Who This Is For and Isn't

This bumper suits 2016–2023 Toyota Tacoma owners who want full-width steel rear protection, retain towing capability, and plan to run flush-mount cube LED lights at the rear corners.

This bumper does not fit any Tacoma outside the 2016–2023 model years, is not compatible with factory blind spot monitoring systems, and does not include lighting accessories.

Common Questions

Does this bumper work with the factory tow hitch?

Yes. The ICON Impact Series Rear Bumper for 2016–2023 Toyota Tacoma is engineered to work with the factory tow hitch receiver and includes provisions to retain the OE tow harness receptacle, so towing function is preserved after installation.

Will the factory backup sensors and license plate lights still work?

Yes. The ICON Impact Series Rear Bumper retains the OE backup sensors and license plate lights. Blind spot monitoring is not compatible with this bumper and will not function after installation.

What size lights fit the rear-facing light pod windows?

The light pod windows on the ICON Impact Series Rear Bumper are compatible with common 3×3-inch flush-mount cube LED lights. Lighting accessories are sold separately and are not included with the bumper.

Does this bumper require cutting or drilling the factory frame?

The ICON Impact Series Rear Bumper bolts directly to factory mounting points on the 2016–2023 Toyota Tacoma. No cutting of the factory frame is required for installation.
