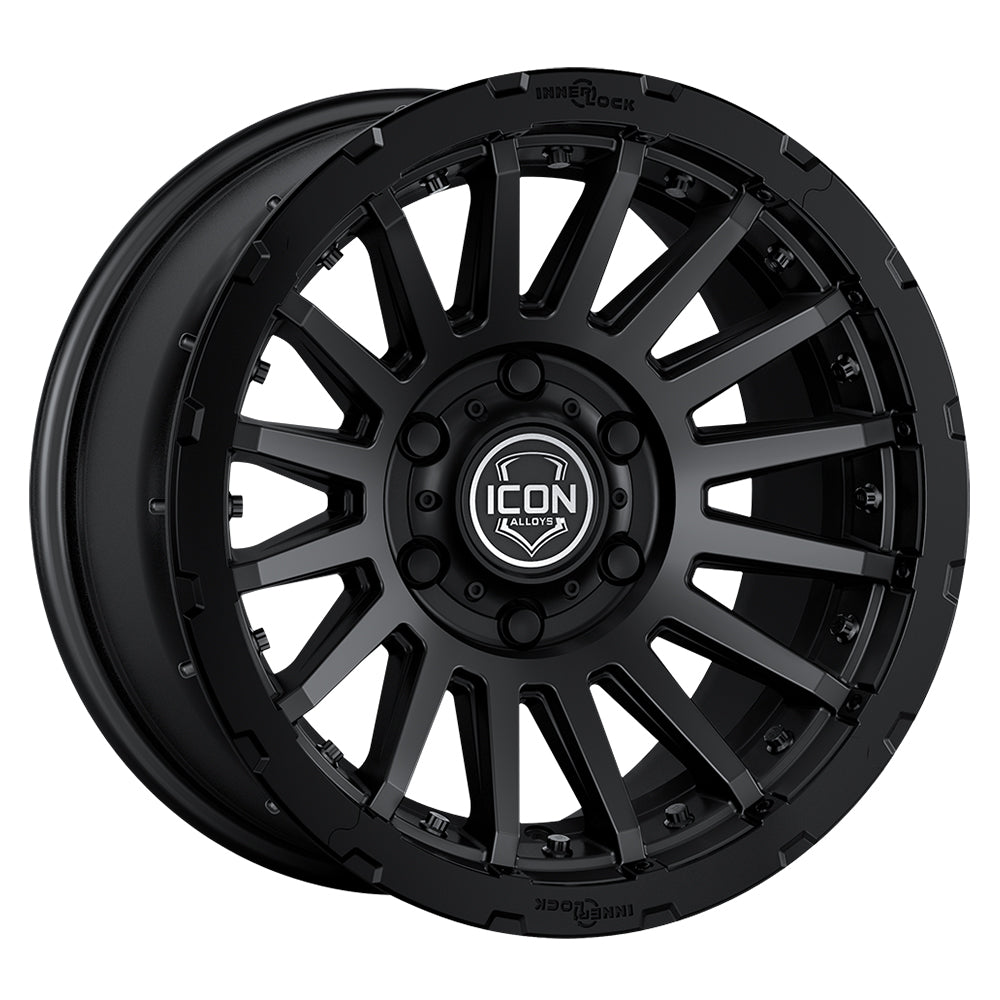

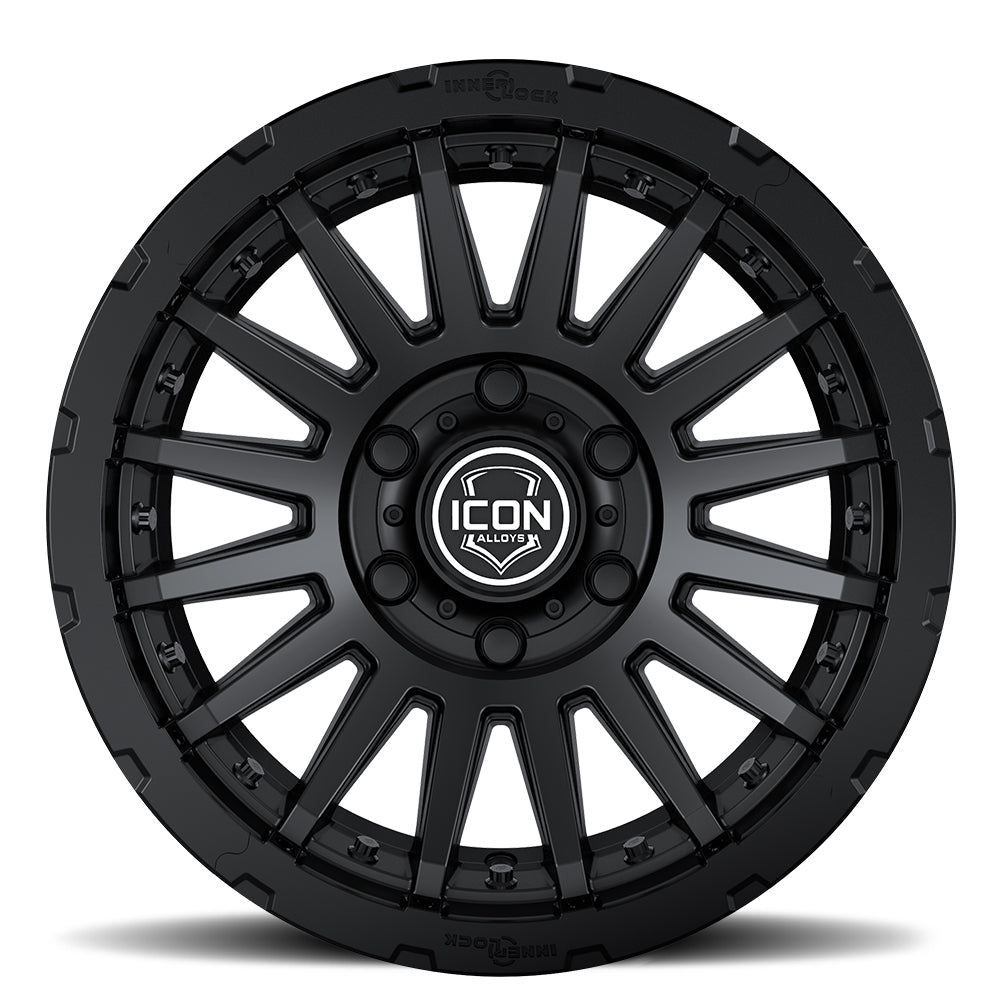

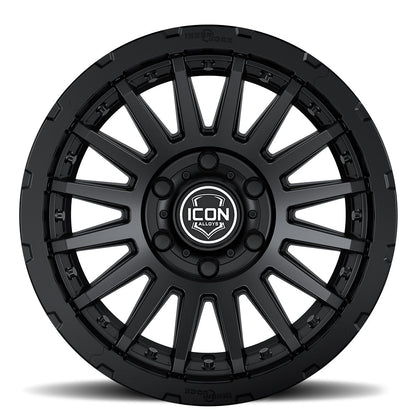

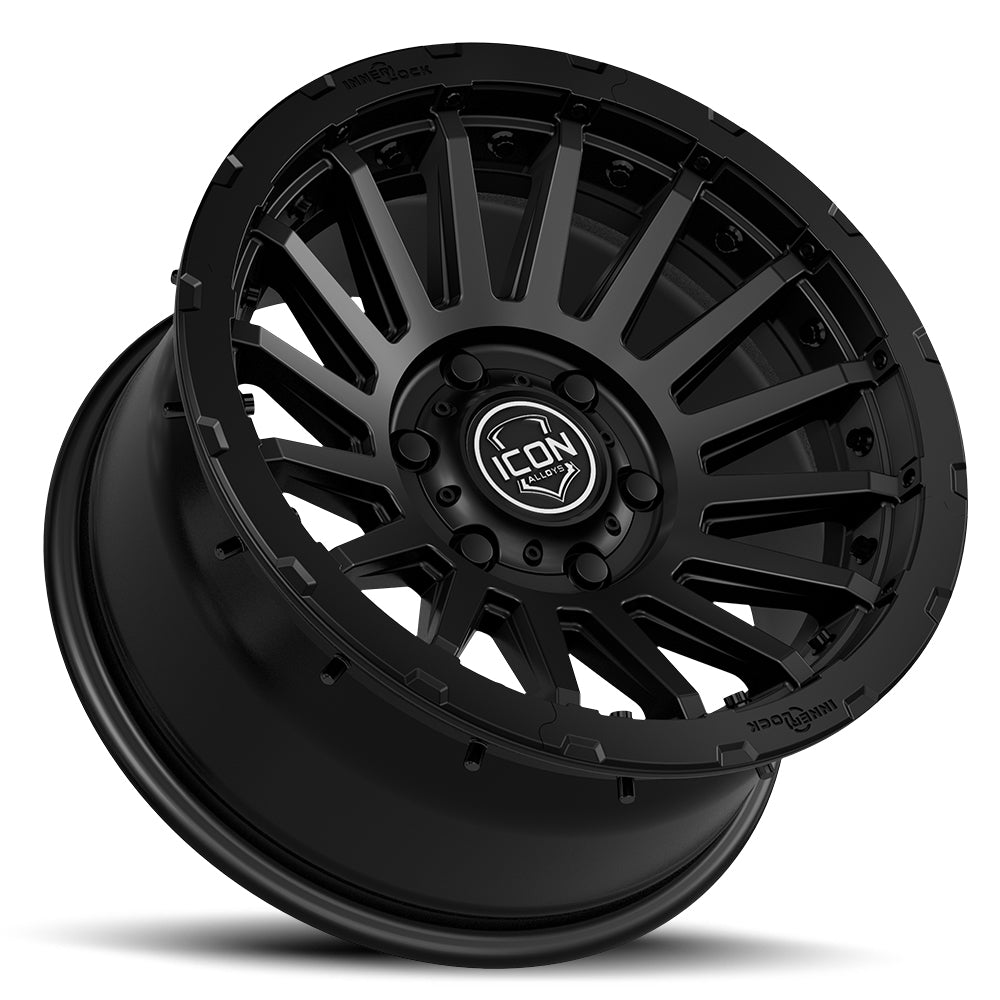

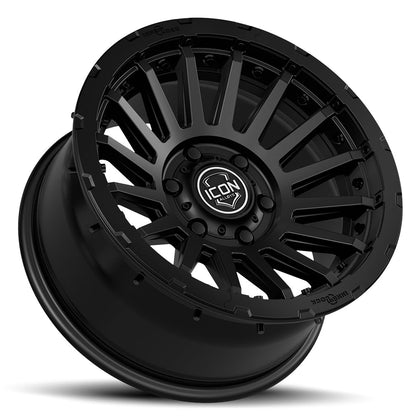

ICON Alloys Recon Pro 18x9 8x6.5 +12mm Satin Black Wheel

The ICON Alloys Recon Pro is an 18x9 off-road wheel with an 8x6.5 bolt pattern, 12mm offset, 5.5-inch backspace, and a 4,000 lb load rating. Its patented InnerLock bead retention system (U.S. Patent No. 11,090,976) keeps the tire bead secured at low pressures while remaining fully DOT compliant, a combination traditional beadlock wheels cannot offer. The Recon Pro ships in Satin Black and includes HALO Wheel Armor.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Low-Pressure Confidence Without the Beadlock Compromise

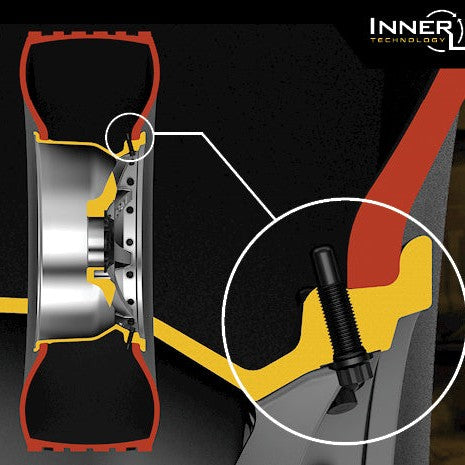

Running lower tire pressures off-road widens the contact patch and smooths out rough terrain, but it also raises the risk of de-beading a tire under hard cornering or side loads. Traditional beadlocks solve that problem by clamping the bead mechanically, but they add rotational mass, demand frequent re-torquing, require specialty tools for tire changes, and are not street-legal in most jurisdictions. The Recon Pro's InnerLock system uses hardened alloy retention pins with SAE J1926 O-ring seals, thermochemically treated for corrosion resistance, to hold the bead without any of those trade-offs. ICON subjected the wheel to the FMVSS No. 139 Tire Bead Unseat Resistance Test at 10 psi; independent lab results exceeded 7,600 lbs of load without a de-bead event, surpassing the test machine's mechanical limits.

Replaceable Protection Built Into the Wheel

The Recon Pro ships with HALO Wheel Armor: a high-grade aluminum ring that wraps the outer face and absorbs trail rash before it reaches the wheel itself. The armor is segmented into 90-degree sections, so a single damaged quarter can be swapped out without replacing the full ring. The segments are also available in different finishes, making it straightforward to change the look of the wheel after purchase. InnerLock's retention pins are similarly removable, reusable, and replaceable, and the system is compatible with a wide variety of tire sizes without shims or specialty mounting tools.

Engineered Dimensions for Suspension and Steering Clearance

The 12mm offset and 5.5-inch backspace on this Recon Pro variant were developed to maximize caliper clearance, support unobstructed suspension travel, and reduce scrub radius, the geometry factor that most directly affects steering feel and tire wear. Aluminum alloy construction keeps unsprung and rotating mass lower than a comparable steel beadlock, which benefits both on-road handling and suspension response on the trail.

Features

• Patented InnerLock bead retention: U.S. Patent No. 11,090,976; hardened alloy pins with SAE J1926 O-ring seals hold the tire bead at low pressures without sacrificing DOT compliance.
• 4,000 lb load rating: strength-tested figure for this wheel.
• Included HALO Wheel Armor: high-grade aluminum outer ring, replaceable in 90-degree segments to limit replacement cost after trail damage.
• Corrosion-resistant retention pins: thermochemically treated high-strength alloy; removable, reusable, and replaceable.
• Application-specific offset and backspace: 12mm offset and 5.5-inch backspace engineered for caliper clearance and reduced scrub radius.
• No-shim tire compatibility: works with a wide variety of tire sizes without shims or specialty mounting tools; professional mounting and balancing recommended before installation.

Specifications

California Residents: This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm (Proposition 65).

Who This Is For and Isn't

The Recon Pro suits off-road drivers, including truck, Jeep, and SUV owners, who want to run low tire pressures on the trail without giving up street legality or accepting the maintenance burden of a traditional beadlock. The 8x6.5 bolt pattern and 18x9 size target full-size trucks and larger SUVs that share that bolt circle.

This wheel is sold individually; a full set requires purchasing four. Confirm that the 8x6.5 bolt pattern, 12mm offset, 5.5-inch backspace, and hub bore are compatible with your specific vehicle before ordering. Professional tire mounting and balancing is required before the wheel is installed on a vehicle.

Common Questions

Is the Recon Pro legal to drive on public roads?

Yes. Unlike traditional beadlock wheels, the Recon Pro with InnerLock technology is fully DOT compliant, meaning it meets federal motor vehicle safety standards and can be used on public roads as well as off-road.

What makes InnerLock different from a traditional beadlock?

A traditional beadlock clamps the tire bead from the outside with a bolted ring, which adds rotational mass, requires periodic re-torquing, and is not street-legal. The Recon Pro's InnerLock system uses internal hardened alloy pins with O-ring seals to retain the bead. There is no external ring, no specialty tools are needed for tire changes, and DOT compliance is maintained.

What is included with the wheel?

Each Recon Pro ships with the HALO Wheel Armor ring, a high-grade aluminum outer protector segmented into 90-degree sections for partial replacement if one section is damaged on the trail. The InnerLock retention pins are also included as part of the wheel assembly.

Can the HALO Wheel Armor be replaced if it gets damaged?

Yes. The HALO Wheel Armor on the Recon Pro is designed to be removable and replaceable, and it is segmented into four 90-degree sections. If only one section sustains trail damage, that section alone can be replaced rather than the entire ring.

Does this wheel require special tools or shims to mount a tire?

No specialty tools or shims are required to mount a tire on the Recon Pro. The InnerLock system is compatible with a wide variety of tire sizes using standard mounting equipment. Professional mounting and balancing at a tire shop is recommended before the wheel is installed on the vehicle.
