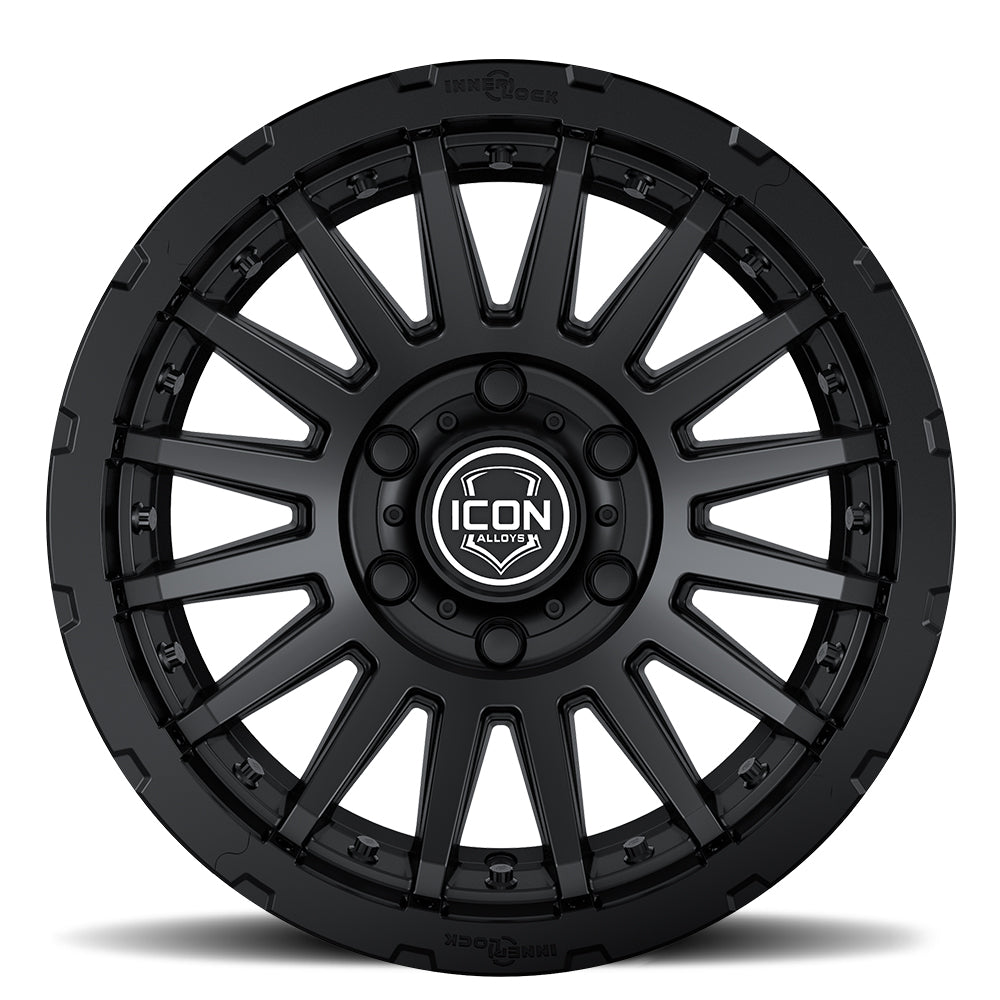

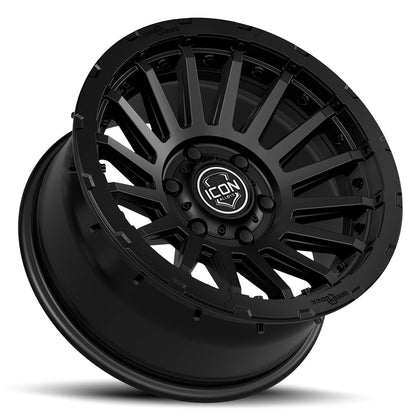

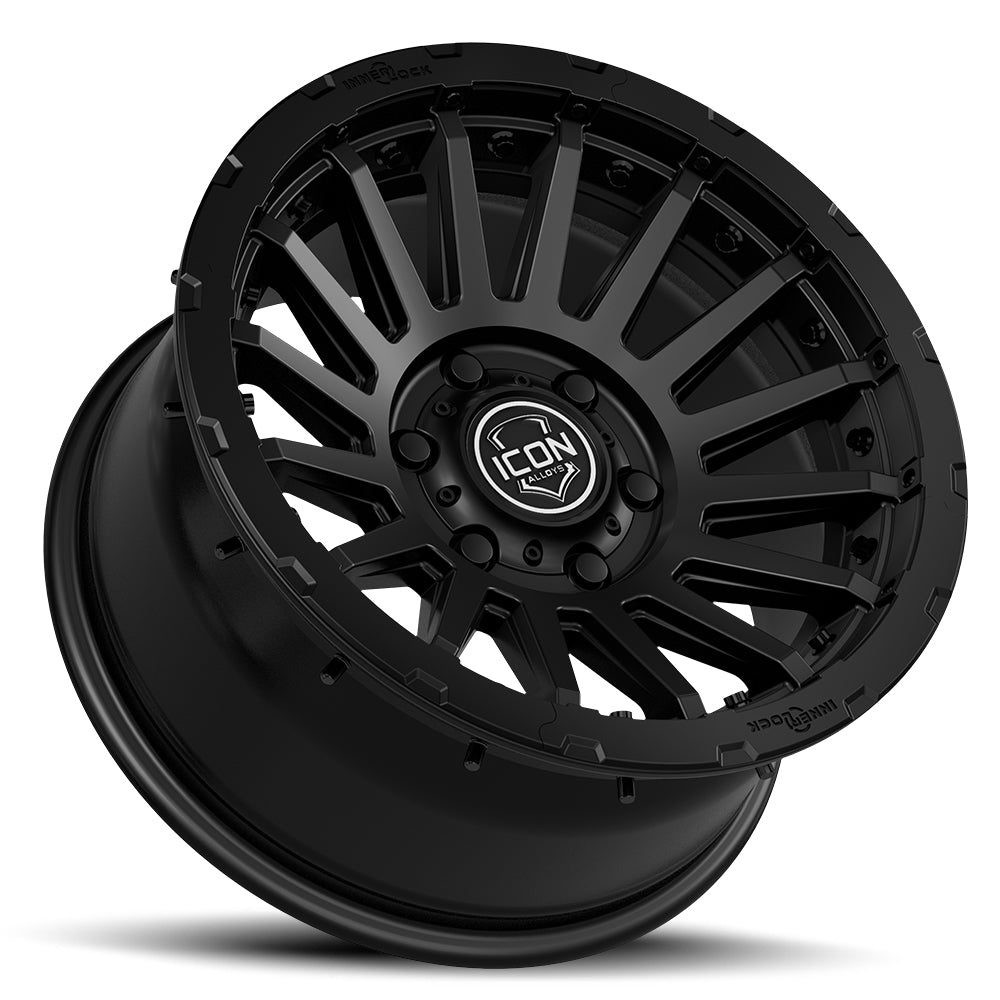

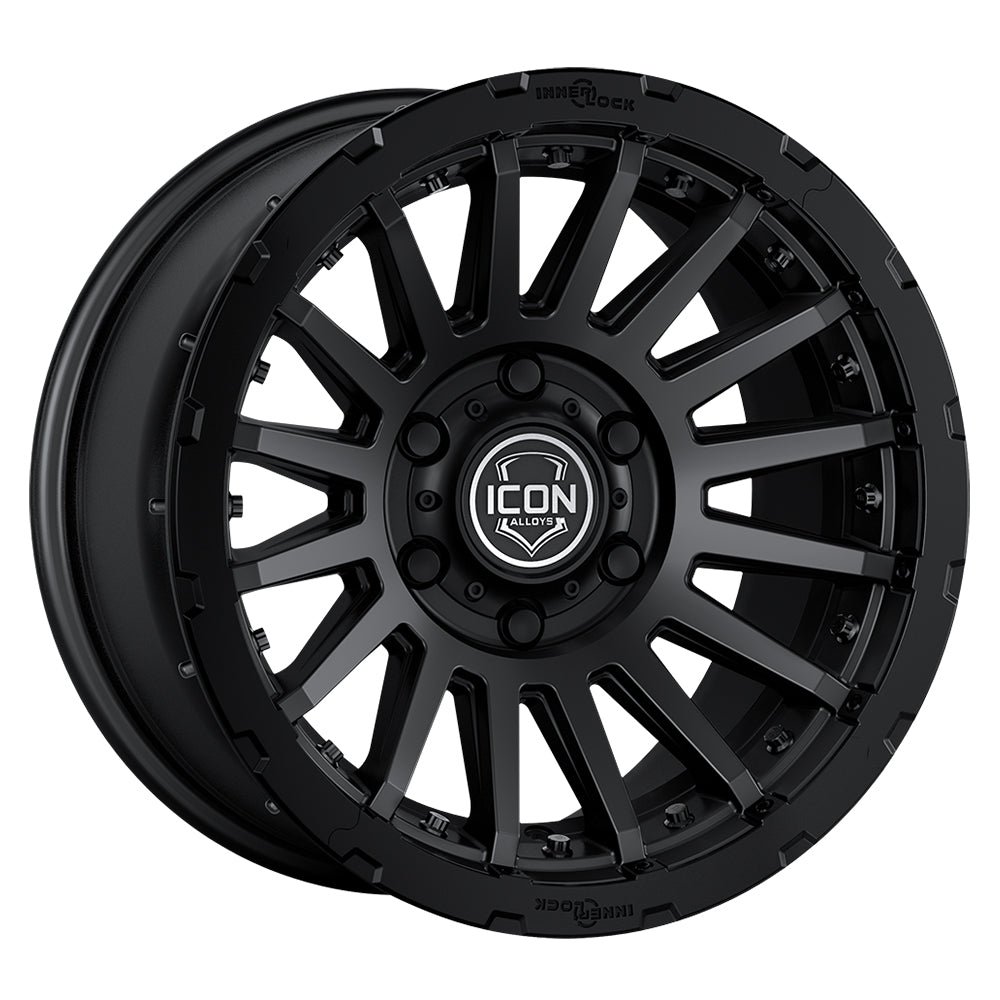

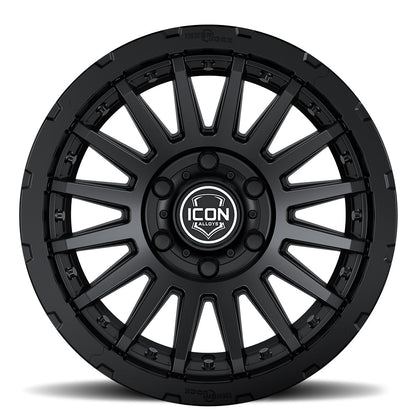

ICON Alloys Recon Pro 18x9 6x5.5 +40mm Satin Black Wheel

The ICON Alloys Recon Pro is an 18x9 off-road wheel in a 6x5.5 bolt pattern with a +40mm offset and 6.6" backspace, built for trucks, Jeeps, and SUVs that see both trail and street use. ICON's patented InnerLock bead retention system (U.S. Patent No. 11,090,976) keeps the tire bead secured at low pressures without the on-road legal restrictions of a traditional beadlock, and the wheel carries a 3,200 lb load rating. This listing is for one Satin Black Recon Pro wheel; tires and mounting hardware are sold separately.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Bead Retention Without the Beadlock Tradeoffs

Running lower tire pressures off-road widens the contact patch and smooths out rough terrain, but it raises the risk of unseating the tire bead under hard cornering or side loads. Traditional beadlock wheels solve that problem mechanically but add rotational mass, require specialty tools and frequent re-torquing, and are not street-legal in most jurisdictions. The Recon Pro's InnerLock system uses hardened alloy pins with SAE J1926 O-ring seals, thermochemically treated for corrosion resistance, to retain the bead internally. The pins are removable, reusable, and replaceable, and the wheel passed the FMVSS No. 139 Tire Bead Unseat Resistance Test (modified to 10 psi), exceeding 7,600 lbs of load without de-beading during independent lab testing. The result is a wheel that can run low pressures confidently on the trail and drive home legally on the street.

HALO Wheel Armor Included

Every Recon Pro ships with ICON's HALO Wheel Armor, a high-grade aluminum ring that wraps the outer face and absorbs trail rash before it reaches the wheel itself. The ring is segmented into 90° sections, so a single damaged quarter can be swapped out without replacing the entire ring. The segments are also available in different finishes, giving owners a straightforward way to change the wheel's look without buying a new wheel.

Engineered Dimensions for Suspension Clearance

The Recon Pro's offset and backspace figures are application-specific: the +40mm offset and 6.6" backspace are chosen to maximize caliper clearance, reduce scrub radius, and keep the tire centered in the wheel well without binding against suspension or steering components. Aluminum alloy construction keeps unsprung and rotating mass lower than a comparable traditional beadlock, which benefits both handling response and ride quality.

Features

• InnerLock Bead Retention: patented internal pin system (U.S. Patent No. 11,090,976) retains tire bead at low pressures; DOT compliant
• 3,200 lb Load Rating: strength-tested aluminum alloy construction
• HALO Wheel Armor Included: removable, replaceable high-grade aluminum ring in 90° segments
• Corrosion-Resistant Pins: hardened alloy with SAE J1926 O-ring seals, thermochemically treated
• No Shims or Special Tools: compatible with a wide variety of tires using standard mounting equipment
• Prop 65 Warning: this product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm

Specifications

Who This Is For and Isn't

The Recon Pro suits truck, Jeep, and SUV owners who wheel on trails at low tire pressures and also drive on public roads, and who want bead retention without the maintenance burden or street-legality restrictions of a traditional beadlock. The 6x5.5 bolt pattern and +40mm offset make this a direct candidate for many full-size truck and body-on-frame SUV applications.

This wheel does not fit vehicles with bolt patterns other than 6x5.5. Tires, lug nuts, and TPMS sensors are not included. Professional mounting and balancing before installation is recommended. Buyers should confirm bore diameter and hub-centric ring requirements against their specific vehicle before ordering.

Common Questions

Is the Recon Pro street-legal?

Yes. Unlike traditional beadlock wheels, the ICON Alloys Recon Pro with InnerLock technology is DOT compliant, meaning it can be driven on public roads. The bead retention system works internally and does not require the external clamping ring that makes conventional beadlocks non-street-legal.

What does the InnerLock system actually do?

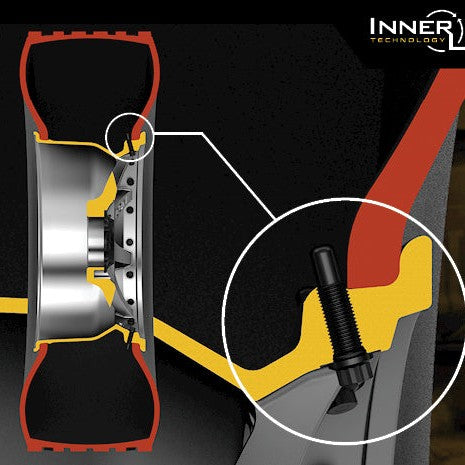

InnerLock uses hardened alloy pins with SAE J1926 O-ring seals, seated inside the wheel, to hold the tire bead in place when air pressure drops. The pins are removable, reusable, and replaceable. During independent lab testing the system exceeded 7,600 lbs of bead unseat load at 10 psi without de-beading the tire.

What is included with each Recon Pro wheel?

Each ICON Alloys Recon Pro wheel ships with the HALO Wheel Armor ring installed. The HALO ring is a high-grade aluminum protector segmented into 90° sections. Tires, lug nuts, TPMS sensors, and hub-centric rings are not included and must be sourced separately.

Can the HALO Wheel Armor be replaced if it gets damaged on the trail?

Yes. The HALO Wheel Armor on the Recon Pro is segmented into four 90° sections. If one section is damaged, only that quarter needs to be replaced rather than the entire ring. Replacement segments are also available in different finishes.

Does this wheel fit my vehicle?

The Recon Pro in this listing has a 6x5.5 bolt pattern, +40mm offset, and 6.6" backspace. No vehicle-specific fitment list is published for this wheel. Buyers should verify that their vehicle's bolt pattern, hub bore, and suspension clearance match these figures before ordering, using a wheel fitment guide or specialist as needed.
