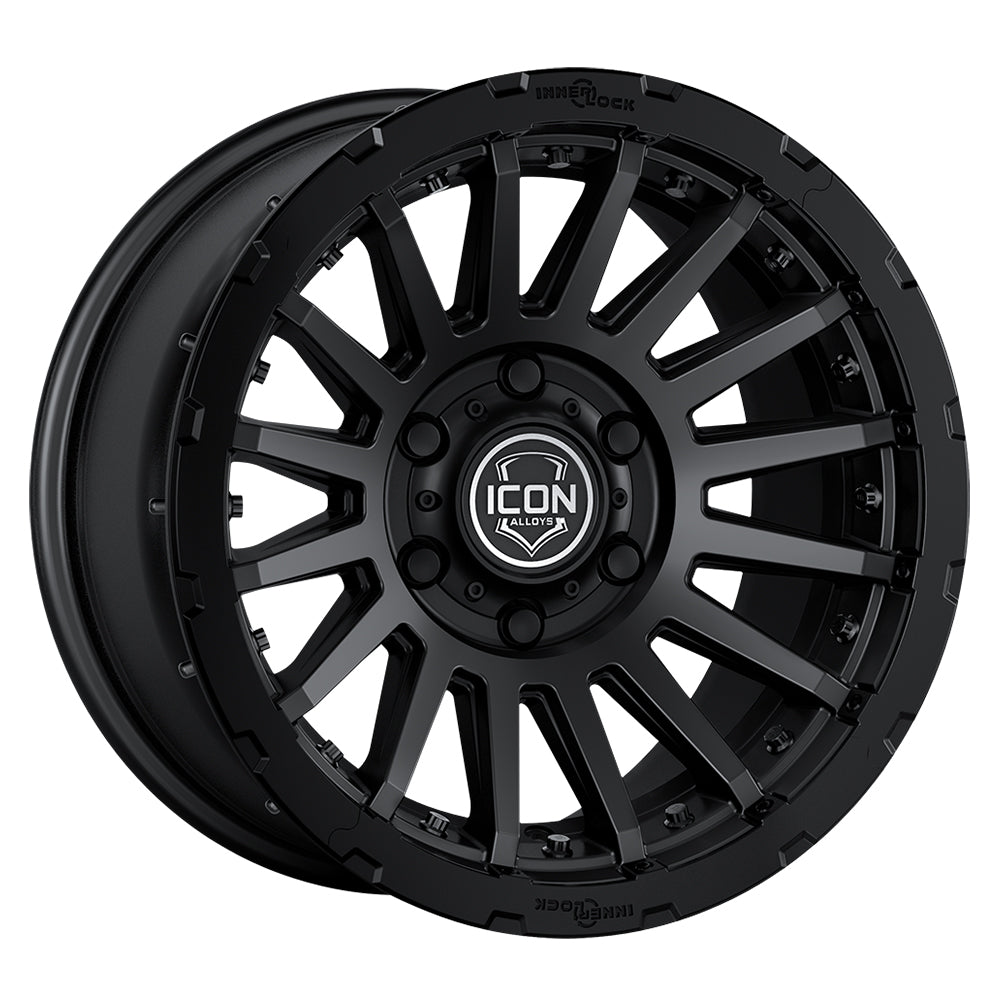

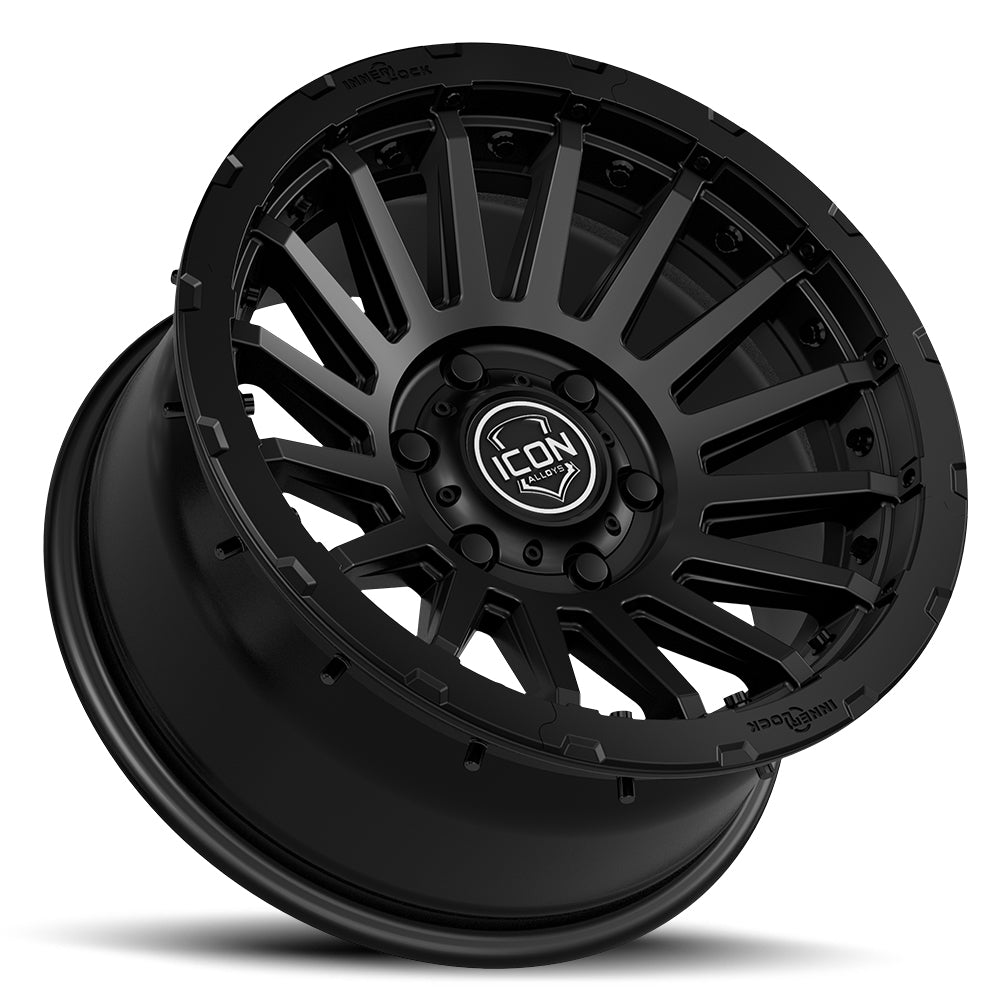

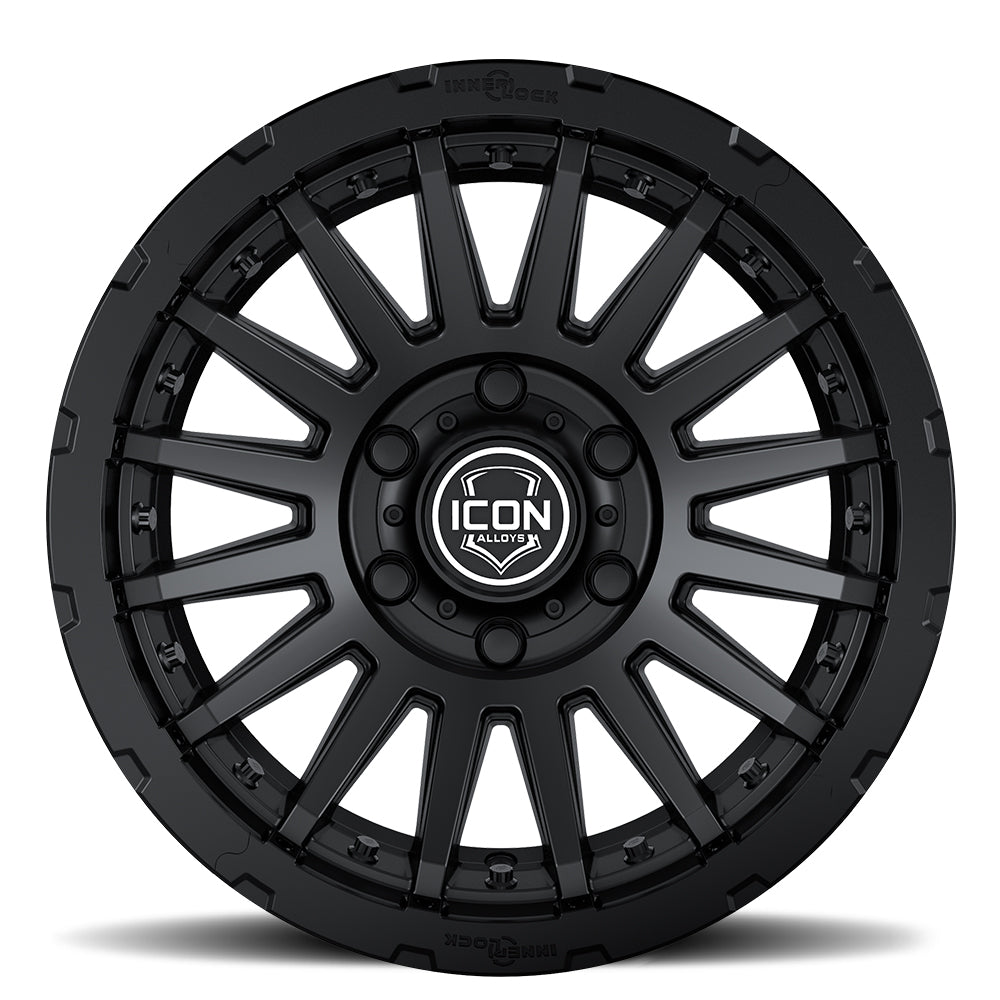

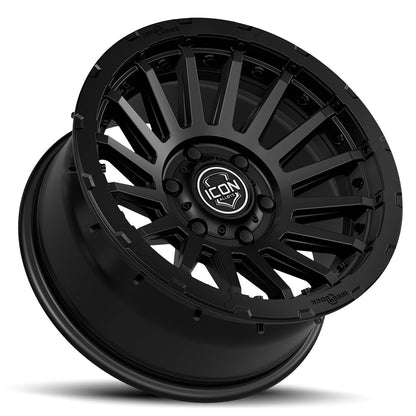

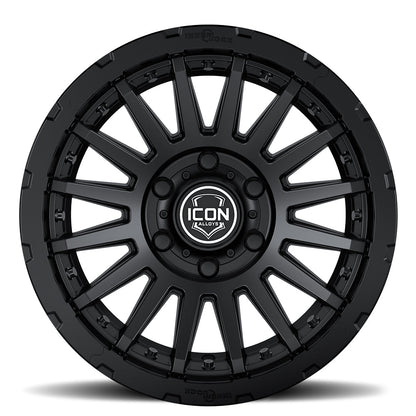

ICON Alloys Recon Pro 18x9 6x5.5 +25mm Satin Black Wheel

The ICON Alloys Recon Pro is an 18x9 off-road wheel with a 6x5.5 bolt pattern, +25mm offset, and 6-inch backspace, built around ICON's patented InnerLock bead retention system (U.S. Patent No. 11,090,976) that keeps a tire bead secured at low pressures while remaining fully DOT compliant. The Recon Pro is available in Satin Black and carries a 3,200 lb load rating.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Bead Retention Without the Bead Lock Trade-Offs

Running low tire pressures off-road improves ride quality and increases the tire's contact patch, but it raises the risk of de-beading under hard side loads. Traditional bead lock wheels solve that problem by mechanically clamping the bead, but they add rotational mass, require specialty tools and frequent maintenance, and are not legal for street use. The Recon Pro's InnerLock system uses hardened alloy bead retention pins with SAE J1926 O-ring seals, thermochemically treated for corrosion resistance, to hold the bead without any of those compromises. The result is a wheel that can be driven to the trailhead legally and pushed hard once you're there.

Lab-Validated Strength

ICON subjected the Recon Pro to the FMVSS No. 139 Tire Bead Unseat Resistance Test, modified to 10 psi, conducted by an independent contractor. Testing exceeded the mechanical limits of the test machine at over 7,600 lbs of load without de-beading the tire. The wheel's aluminum alloy construction also yields a 3,200 lb load rating. The bead retention pins are removable, reusable, and replaceable, and the design is compatible with a wide variety of tires without shims or specialty tools.

HALO Wheel Armor Included

Every Recon Pro ships with HALO Wheel Armor: a high-grade aluminum ring that protects the wheel's outer edge from trail rash. The armor is segmented into 90-degree sections, so a damaged portion can be replaced individually rather than replacing the entire ring. The segments are also available in different finishes, allowing the wheel's appearance to be customized over time.

Features

• Patented InnerLock bead retention: U.S. Patent No. 11,090,976; DOT compliant, no specialty tools required for tire mounting
• Hardened alloy retention pins: SAE J1926 O-ring sealed, thermochemically treated for corrosion resistance; removable, reusable, and replaceable
• 3,200 lb load rating: strength-tested aluminum alloy construction
• HALO Wheel Armor included: high-grade aluminum, replaceable in 90-degree segments
• Application-specific offset and backspace: engineered to maximize caliper clearance, reduce scrub radius, and optimize suspension travel

Specifications

Who This Is For and Isn't

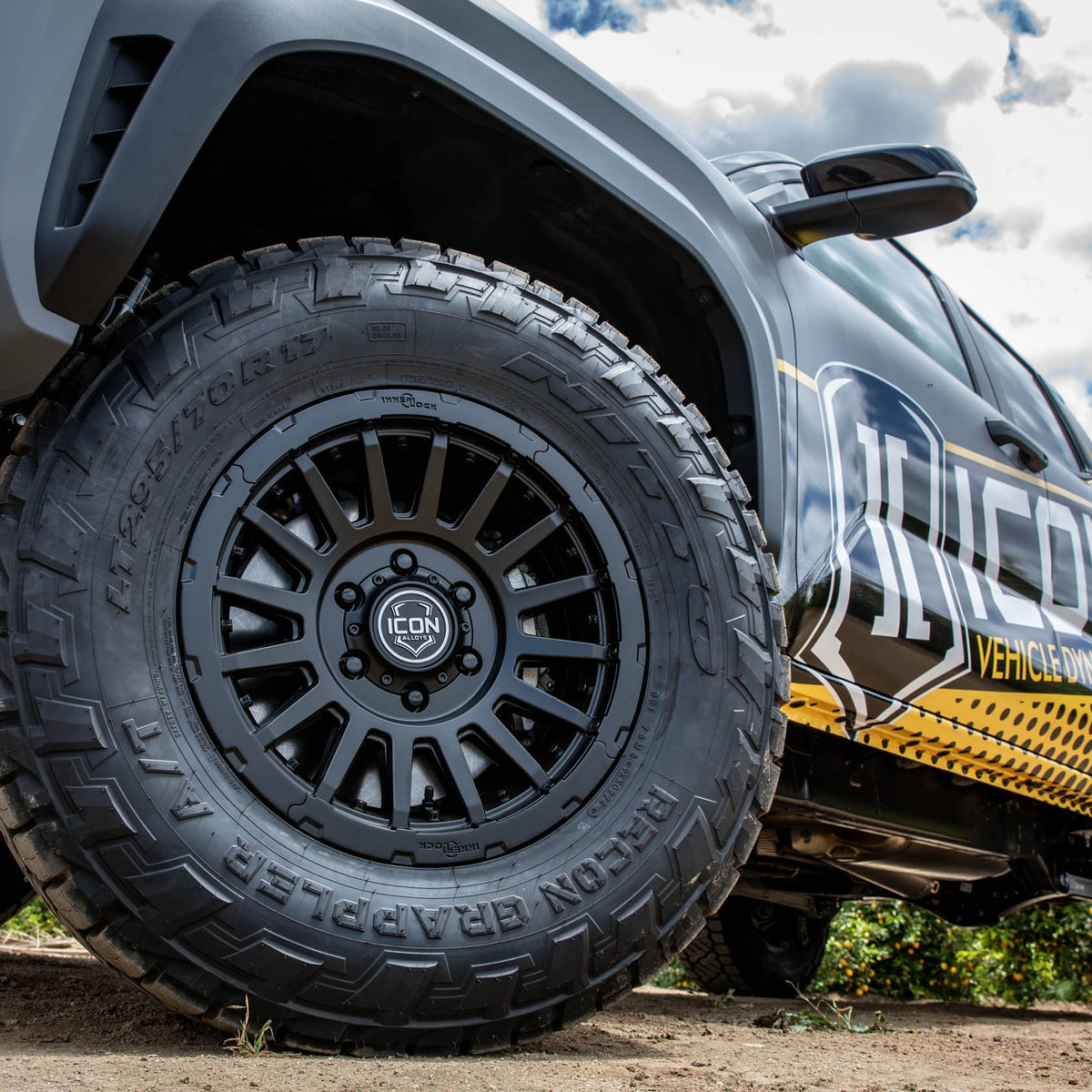

The Recon Pro suits off-road drivers who run low tire pressures on trails and need bead retention without giving up street legality. It fits trucks, Jeeps, and SUVs with a 6x5.5 bolt pattern, and the DOT-compliant InnerLock system makes it equally usable as a daily driver and a dedicated trail wheel.

This wheel is sold individually; a full set requires purchasing four. It is not a traditional bead lock wheel and does not use an external bead lock ring. Vehicles with a bolt pattern other than 6x5.5 are not compatible with this specific wheel. Professional tire mounting and balancing is recommended before installation. California residents: this product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm (Prop 65).

Common Questions

Is the Recon Pro street legal?

Yes. Unlike traditional bead lock wheels, the Recon Pro with InnerLock technology is fully DOT compliant and legal for on-road use. The bead retention system secures the tire bead internally without the external clamping ring that makes conventional bead locks street-prohibited.

What bolt pattern does this wheel fit?

This specific Recon Pro is drilled for a 6x5.5 bolt pattern. Buyers should confirm their vehicle's bolt pattern before ordering, as the Recon Pro is available in multiple bolt pattern configurations and this listing covers only the 6x5.5 variant.

Does the Recon Pro require special tools or shims for tire mounting?

No specialty tools or shims are required. The InnerLock bead retention pins are designed for quick, easy, and safe tire installation and removal at a standard tire shop. Professional mounting and balancing prior to vehicle installation is recommended.

What is the HALO Wheel Armor and is it included?

HALO Wheel Armor is a high-grade aluminum protective ring that shields the Recon Pro's outer edge from trail rash. It is included with each wheel. The armor is segmented into 90-degree sections, so individual damaged sections can be replaced without replacing the full ring.

How many wheels does this listing cover?

This listing is for one Recon Pro wheel. Buyers equipping a full vehicle will need to add four to cart. Each wheel ships with its own set of HALO Wheel Armor segments.
