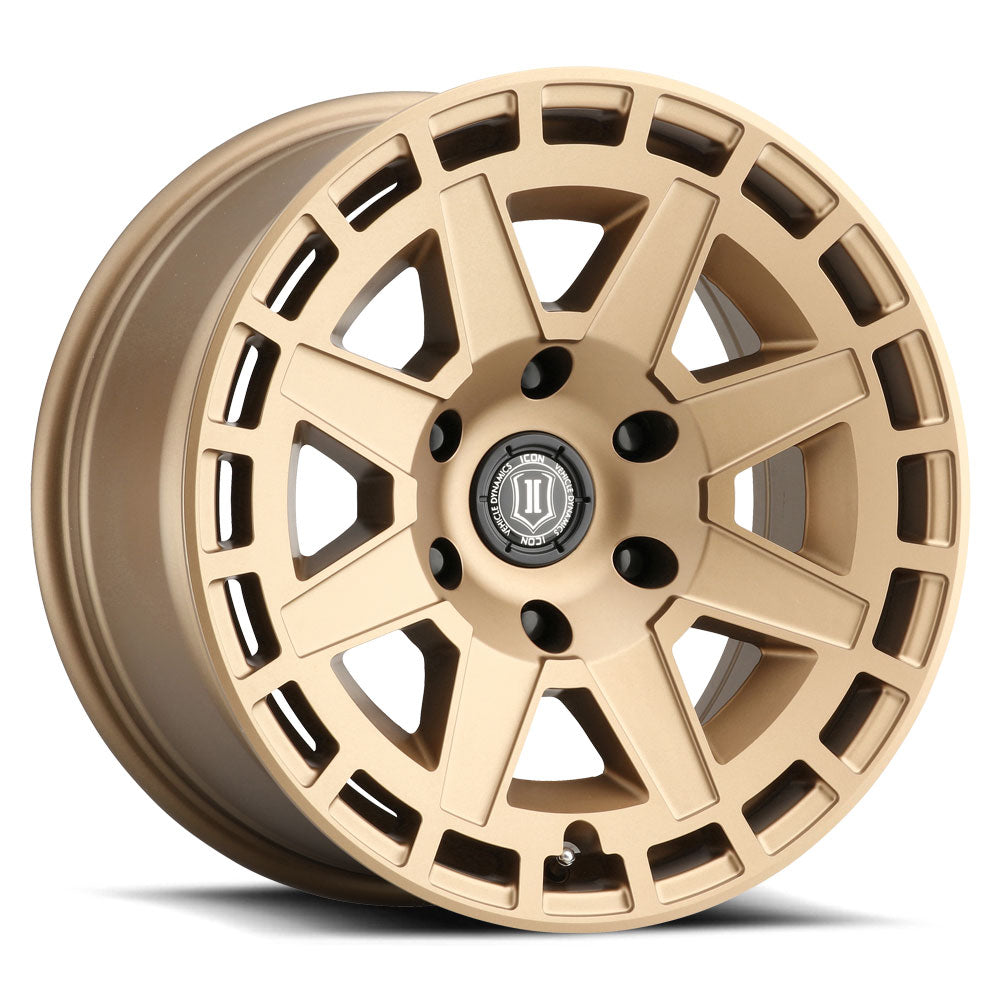

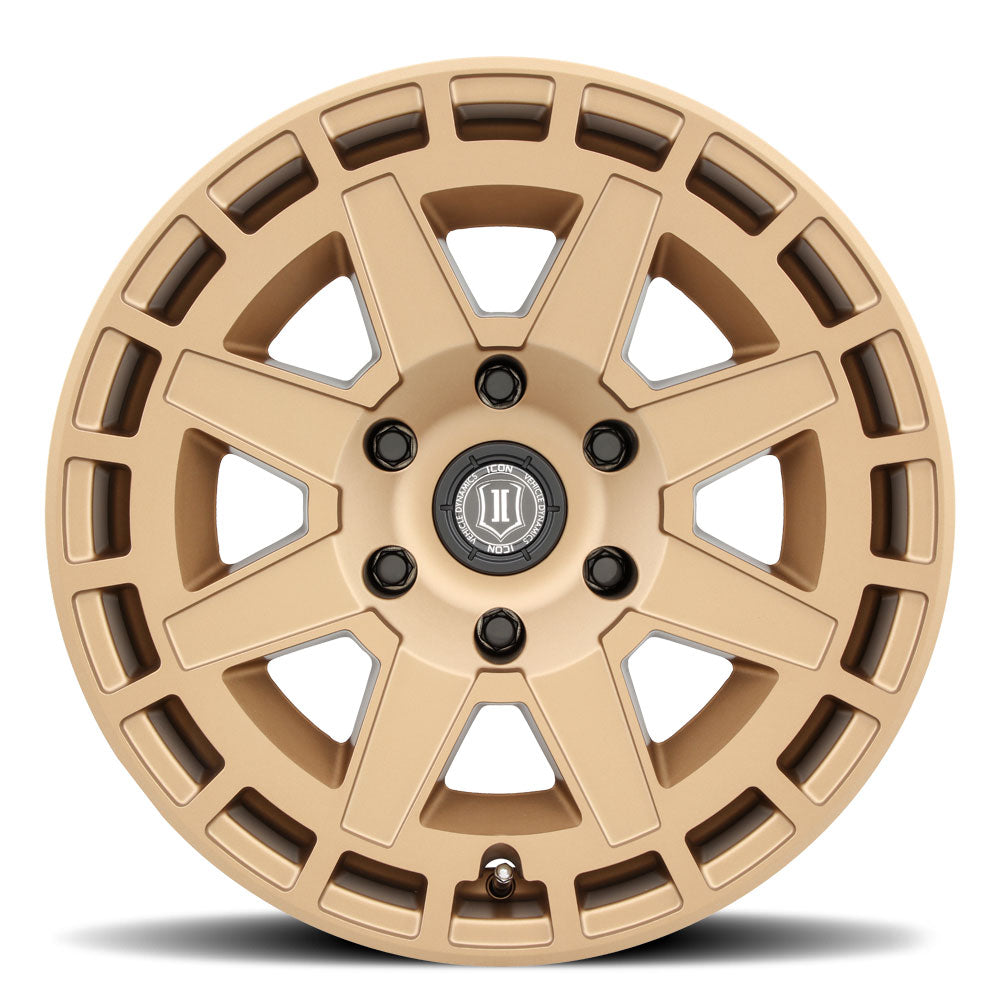

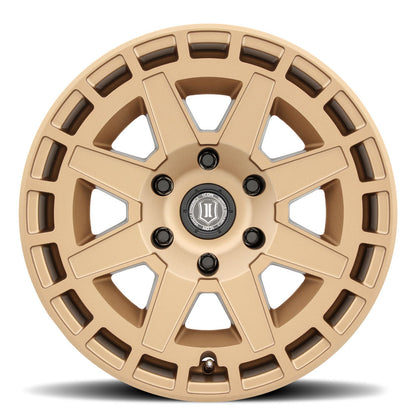

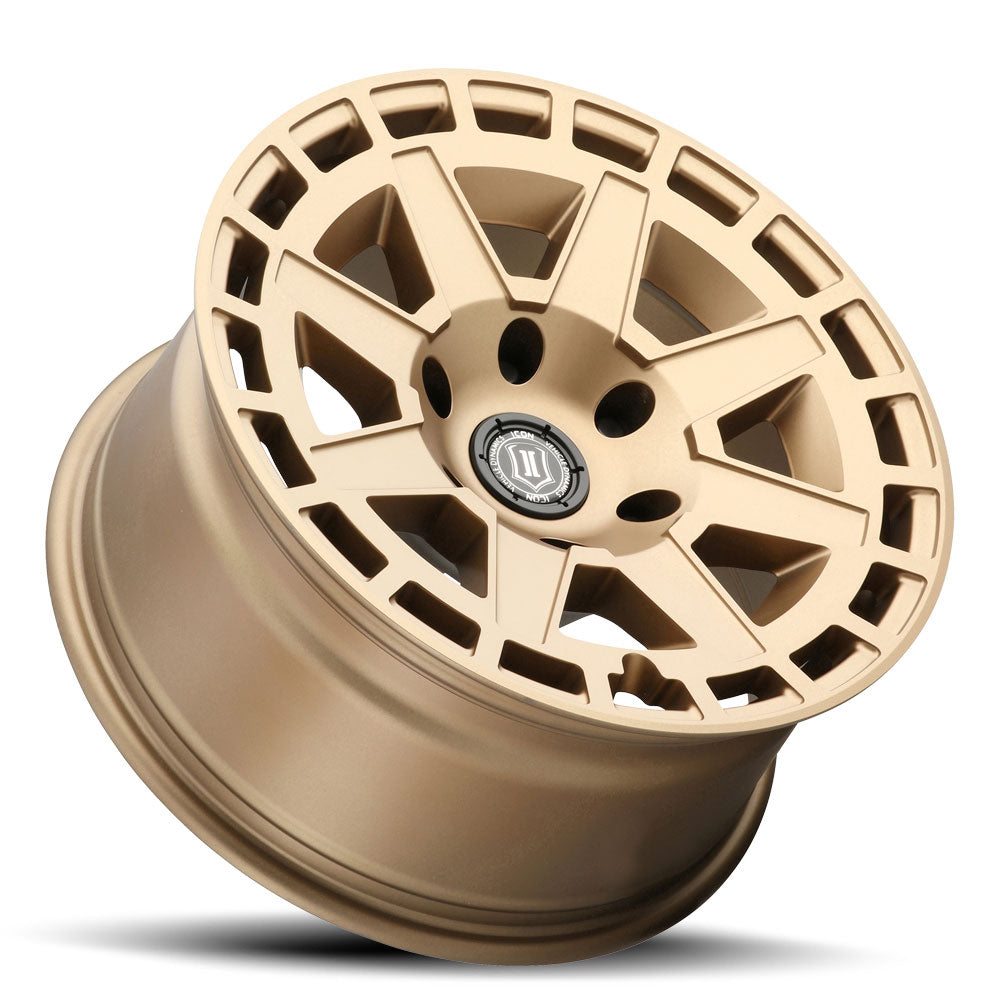

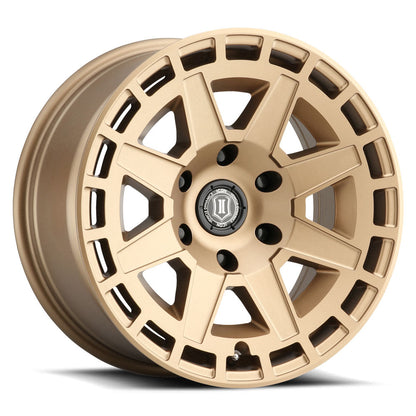

ICON Alloys Compass 17x8.5 6x135 +6mm Satin Brass Wheel

The ICON Alloys Compass is a 17×8.5-inch aluminum alloy wheel built for trucks, SUVs, and Jeeps running a 6×135 bolt pattern, with a 6mm offset, 5-inch backspace, and a strength-tested 2,750 lb load rating. The Compass is available in Satin Brass and Satin Black finishes.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Engineered for Suspension Clearance and Handling

The Compass was dimensioned specifically to maximize caliper clearance and keep the wheel positioned for unobstructed suspension travel and steering function. The 6mm offset and 5-inch backspace were chosen to reduce scrub radius (the geometry factor that governs steering effort and torque steer), not selected for appearance alone. For a truck or SUV already running an ICON Vehicle Dynamics suspension system, the Compass dimensions are matched to that system's travel envelope.

Aluminum Alloy Construction and Load Rating

The Compass is built from aluminum alloy, which reduces unsprung and rotating mass compared to heavier wheel materials. Lower rotating mass improves acceleration, braking response, and suspension reaction on uneven terrain. Strength testing confirms a 2,750 lb load rating per wheel, supporting the demands of loaded trucks and off-road use.

8-Spoke Design with Vented Rock Ring

The Compass uses a modern 8-spoke layout with sharp lines and a vented rock ring around the outer barrel. The vented rock ring helps deflect trail debris away from the tire bead area, a practical detail for off-road driving on rocky terrain.

Features

• Load rating: 2,750 lb strength-tested capacity
• 8-spoke design: modern profile with vented rock ring
• Aluminum alloy construction: reduces unsprung and rotating mass
• Application-specific offset and backspace: 6mm offset, 5-inch backspace engineered to reduce scrub radius and maximize caliper clearance
• Finish: Satin Brass (Satin Black sold separately)

Specifications

Who This Is For and Isn't

The ICON Alloys Compass in this listing suits trucks, SUVs, and Jeeps running a 6×135 bolt pattern that need a 17×8.5-inch wheel with a 6mm offset and 5-inch backspace. It pairs directly with ICON Vehicle Dynamics suspension systems, whose travel and clearance envelopes the Compass dimensions are matched to.

The Compass 17×8.5 in Satin Brass does not fit vehicles with bolt patterns other than 6×135. The Satin Black finish is a separate product. Professional mounting and balancing of an appropriately sized tire before installation onto the vehicle is recommended. California residents: this product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm (Prop 65).

Common Questions

What bolt pattern does the ICON Alloys Compass 17×8.5 fit?

The ICON Alloys Compass in this listing is drilled for a 6×135 bolt pattern. It will not fit vehicles with a different bolt pattern. Verify your vehicle's bolt pattern before ordering.

What is the load rating of the ICON Alloys Compass wheel?

The ICON Alloys Compass 17×8.5 has been strength-tested to a 2,750 lb load rating per wheel, supporting the demands of loaded trucks and off-road driving conditions.

Why does the offset and backspace matter on the Compass?

The Compass was engineered with a 6mm offset and 5-inch backspace to reduce scrub radius and maximize caliper clearance. These dimensions keep the wheel positioned for full suspension travel and steering function, particularly when paired with an ICON Vehicle Dynamics lift system.

Does this listing include a tire or a set of four wheels?

This listing is for one ICON Alloys Compass wheel in Satin Brass. Tires are not included. Professional mounting and balancing of an appropriately sized tire is recommended before installing the wheel on the vehicle.
