ICON Alloys Attitude Adjustment Collar 0.5-2.25 Inch Front Leveling Kit for 2017-2020 Ford Raptor

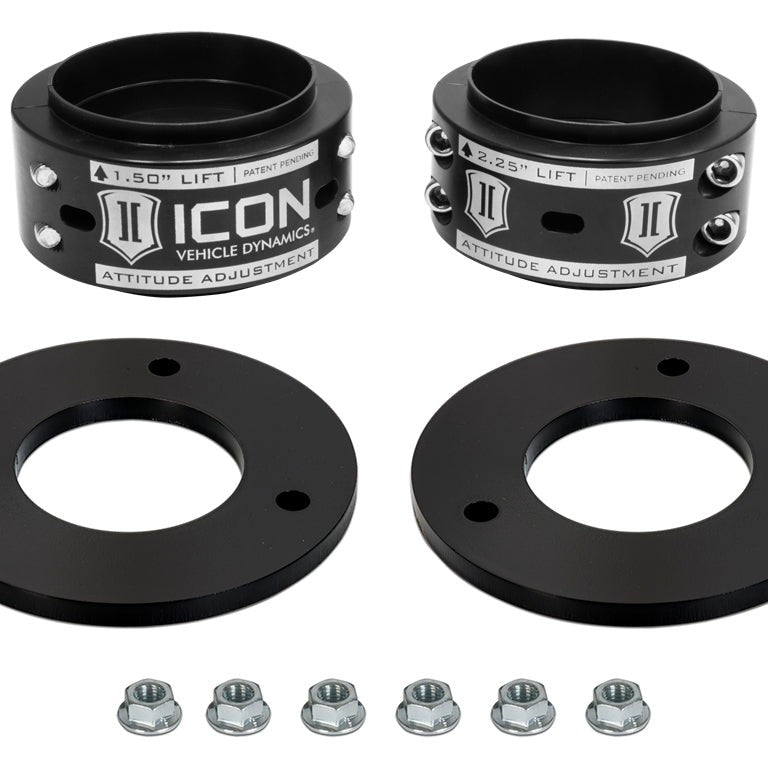

The ICON Alloys Attitude Adjustment Collar (AAC) is a multi-height front leveling kit for the 2017–2020 Ford F-150 Raptor (Gen 2) that uses a CNC-machined 6061 billet aluminum collar and top-load shim system configurable in five positions to deliver 0.5" to 2.25" of front lift height over stock without removing the factory shock.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Lift Range Without Sacrificing Ride Quality

Most leveling kits raise the front end by compressing the coil spring against the shock, pushing the shock into its rebound zone at ride height. The Attitude Adjustment Collar works differently: the collar-and-shim design positions the OE shock to remain in its designed ride zone across the full 0.5"–2.25" lift range. The practical result is that the factory shock continues to do what it was tuned to do, and the Raptor's ride character on pavement and trail is preserved rather than traded away for a leveled stance.

No Shock Disassembly Required

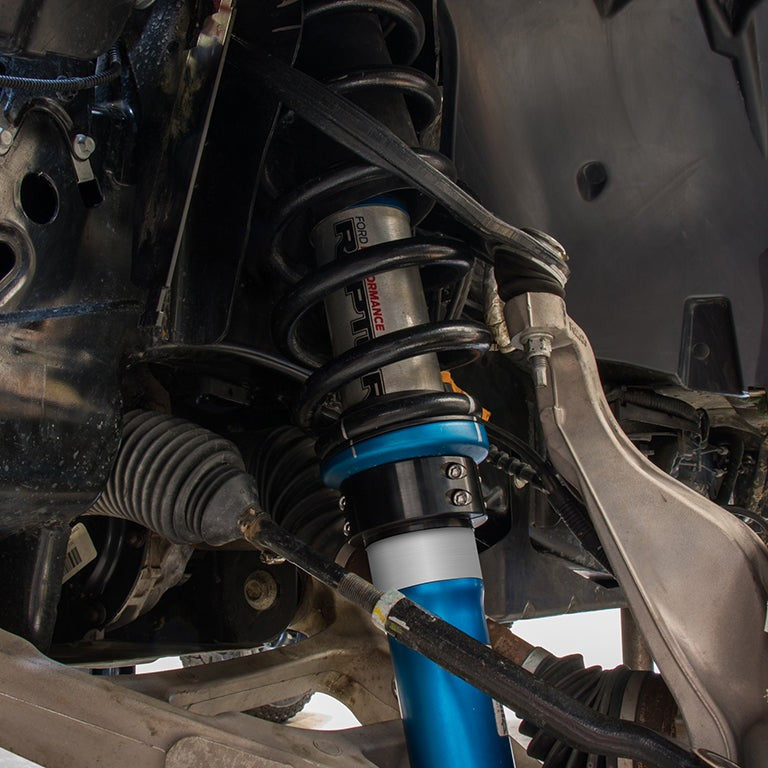

Installing the AAC does not require removing or disassembling the factory shock. The collar seats around the existing coil spring perch and the shim loads from the top, so the job stays at the spring and collar level rather than requiring a spring compressor or shock rebuild. For 2019–2020 Raptor owners, ride height sensor recalibration is recommended after installation.

Built to Last in Harsh Conditions

The collar is CNC machined from 6061 billet aluminum and finished with a black anodized coating for corrosion resistance. The 2019–2020 model-specific versions include mounting holes for the factory wire harnesses, so no bracket fabrication or wire rerouting is needed to accommodate the harness routing the Raptor left the factory with.

Features

• Five-position shim system: configurable to yield 0.5"–2.25" of front lift height over stock
• Ride-zone retention: keeps the OE shock in its designed ride zone at all lift settings
• No shock disassembly: installs at the coil spring collar level only
• CNC machined 6061 billet aluminum: black anodized finish for corrosion resistance
• 2019–2020 wire harness provisions: mounting holes for model-specific harnesses included

Specifications

Who This Is For and Isn't

The Attitude Adjustment Collar suits 2017–2020 Ford F-150 Raptor owners who want an adjustable front lift of 0.5"–2.25" while retaining the factory shock and its tuned ride quality. It is a strong fit for owners running OEM wheels and tires or the recommended 17x8.5 aftermarket wheel spec, and for those who want a straightforward installation that does not require a spring compressor or shock rebuild.

This kit does not fit any Raptor generation outside of 2017–2020 (Gen 2). Owners of 2019–2020 Raptors should plan for ride height sensor recalibration after installation. Tires larger than 35" x 12.50" may require fender trimming and additional modifications that are not part of this kit. This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm (California Proposition 65).

Common Questions

Which Raptor years does this leveling kit fit?

The ICON Alloys Attitude Adjustment Collar is designed specifically for the 2017–2020 Ford F-150 Raptor (Gen 2 body style). It does not fit earlier or later Raptor generations, and fitment should not be assumed for any other Ford F-150 variant.

Do I need to remove or rebuild the factory shock to install this kit?

No. The Attitude Adjustment Collar installs at the coil spring collar level and does not require disassembly of the OE shock. A spring compressor or shock rebuild is not part of the installation process, which keeps the job more straightforward than leveling kits that require shock removal.

How much front lift does this kit provide, and can I adjust it?

The Attitude Adjustment Collar is configurable in five positions using the included top-load shim, yielding 0.5" to 2.25" of front lift height over stock. The lift height can be changed by reconfiguring the shim position without purchasing additional components.

Will my factory wheels and tires still fit after installation?

Yes, OEM wheels and tires are confirmed compatible with the Attitude Adjustment Collar. For aftermarket fitments, ICON recommends a 17x8.5 wheel with 5" backspacing and 6mm offset. Tires up to 35" x 12.50" are recommended; larger tires may fit but could require fender trimming and additional modifications.

Is any calibration or sensor work needed after installation on a 2019 or 2020 Raptor?

Ride height sensor recalibration is recommended after installing the Attitude Adjustment Collar on 2019–2020 Ford F-150 Raptors. The 2019–2020 versions of the collar also include mounting holes to accommodate the model-specific factory wire harnesses without rerouting.
