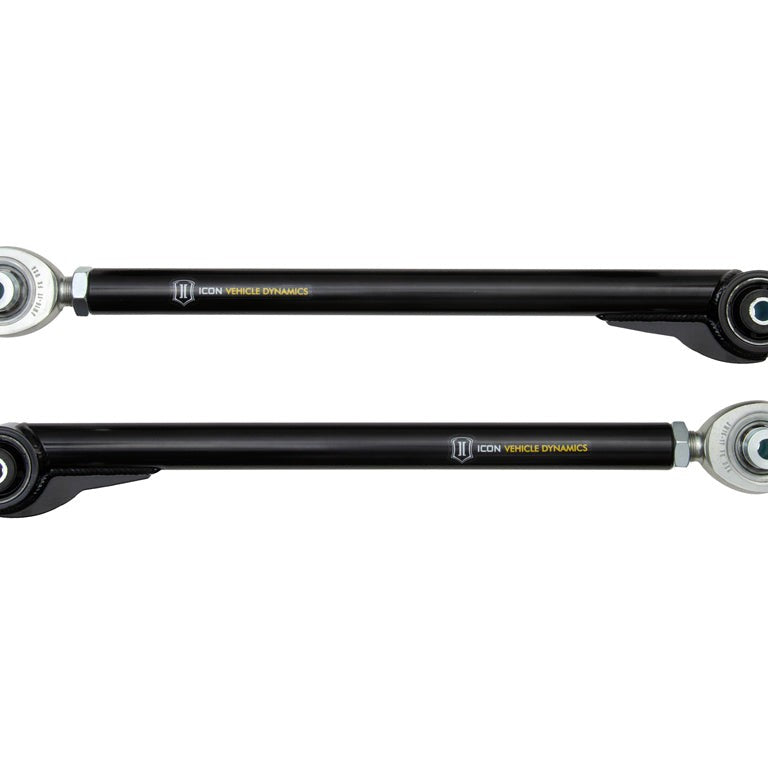

ICON Adjustable Tubular Rear Lower Link Kit for Jeep Gladiator and Ram 1500

The ICON Adjustable Tubular Rear Lower Link Kit is a direct-replacement rear lower link system for the 2020–2023 Jeep Gladiator and 2019–2026 Ram 1500, engineered to free up rear axle movement for increased suspension travel and articulation. The kit fits both platforms and is adjustable for a range of lift heights and driveline angles.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

High-Clearance Barrel Design

The tubular links use a high-clearance barrel profile, which reduces the chance of contact with rocks, roots, and trail obstacles that can catch a conventional lower link mid-flex. For Gladiator and Ram 1500 owners who run technical terrain, that geometry difference means fewer hangups without sacrificing the structural integrity the links need to handle repeated off-road stress.

DOM Steel Construction with CNC-Machined Ends

Each link is formed from 1.5-inch x .313-wall 1026 DOM steel tubing, then fitted with CNC-machined threaded ends and bushing housings. A multi-stage black powder coat finish protects the steel. At one end, a JM16T PTFE-lined FK Rod End provides maximum angularity; at the other, a dual-durometer high-angle greaseless bushing isolates road noise and vibration without requiring periodic greasing for the life of the bushing.

Adjustable for Lift and Driveline Angle

The threaded adjustability lets the links be set for the correct pinion angle across a range of lift heights rather than locking the vehicle into one fixed geometry. This matters most when pairing the links with a lift kit: correct pinion angle reduces driveline vibration and wear that a non-adjustable link cannot address after the axle has been repositioned.

Features

• 1026 DOM Steel Tubing: 1.5-inch diameter, .313-wall, CNC machined and notched
• JM16T PTFE-Lined FK Rod End: High-angularity rod end at one end of each link
• Dual-Durometer Greaseless Bushing: High-angle bushing at the opposite end; no greasing required for the life of the bushing
• High-Clearance Barrel Profile: Reduces trail contact and hangup risk
• Adjustable Length: Compatible with a range of rear lift heights and driveline angles
• Multi-Stage Black Powder Coat: Protective finish over the full tubular assembly

Specifications

Who This Is For and Isn't

This kit suits 2020–2023 Jeep Gladiator and 2019–2026 Ram 1500 owners running a rear lift or seeking improved axle articulation on technical terrain, particularly those who need adjustable link geometry to correct driveline angle after a lift.

This kit does not fit 2019–2024 Ram 1500 Classic models, the Ram 1500 TRX, or the Ram 1500 RHO. It is also not compatible with vehicles equipped with rear factory air ride suspension. California residents: this product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm (Proposition 65).

Common Questions

Which Ram 1500 models does this kit not fit?

The ICON Adjustable Tubular Rear Lower Link Kit does not fit 2019–2024 Ram 1500 Classic models, the Ram 1500 TRX, or the Ram 1500 RHO. It is also incompatible with any Ram 1500 or Jeep Gladiator equipped with rear factory air ride suspension.

How much rear lift is this kit compatible with?

On most Ram 1500 submodels, the kit is compatible with 0–3 inches of rear lift. On the Ram 1500 Rebel specifically, the compatible range is 0–2.5 inches. On most Jeep Gladiator submodels, the compatible range is 0–2 inches of rear lift.

Do the bushings require periodic greasing?

No. The dual-durometer high-angle bushing used in this lower link kit is a greaseless design and requires no lubrication for the life of the bushing. The FK Rod End at the opposite end is PTFE-lined, which also eliminates the need for greasing at that joint.

Is an installation guide available?

ICON Vehicle Dynamics provides an installation guide for this lower link kit. Contact TerrainVault for access to the guide before beginning installation.
