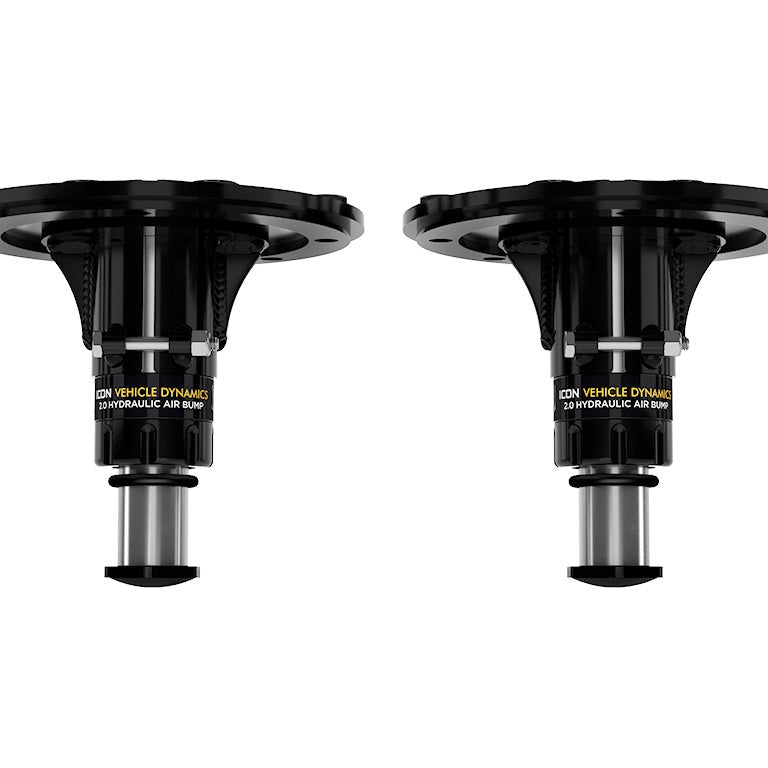

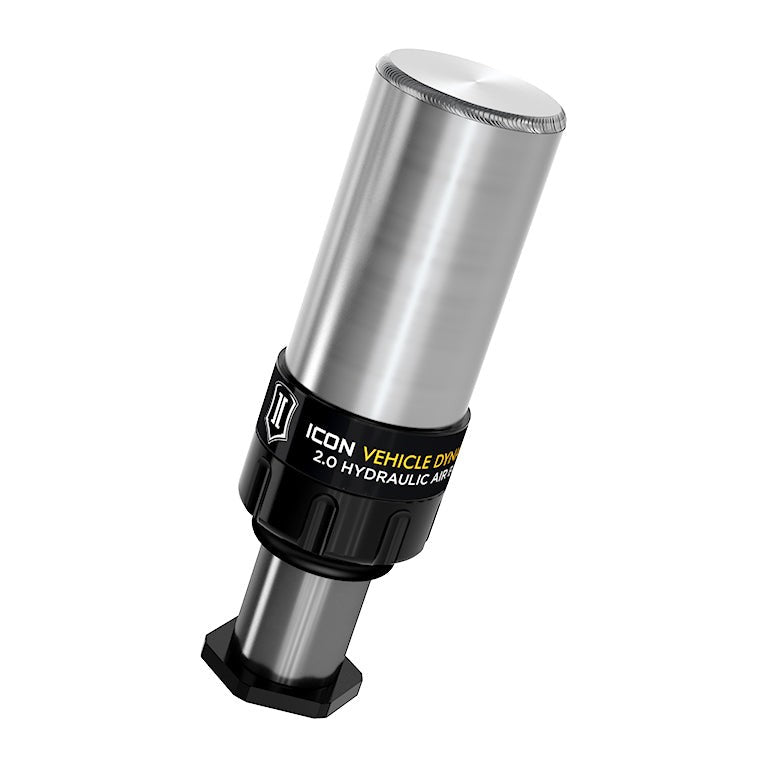

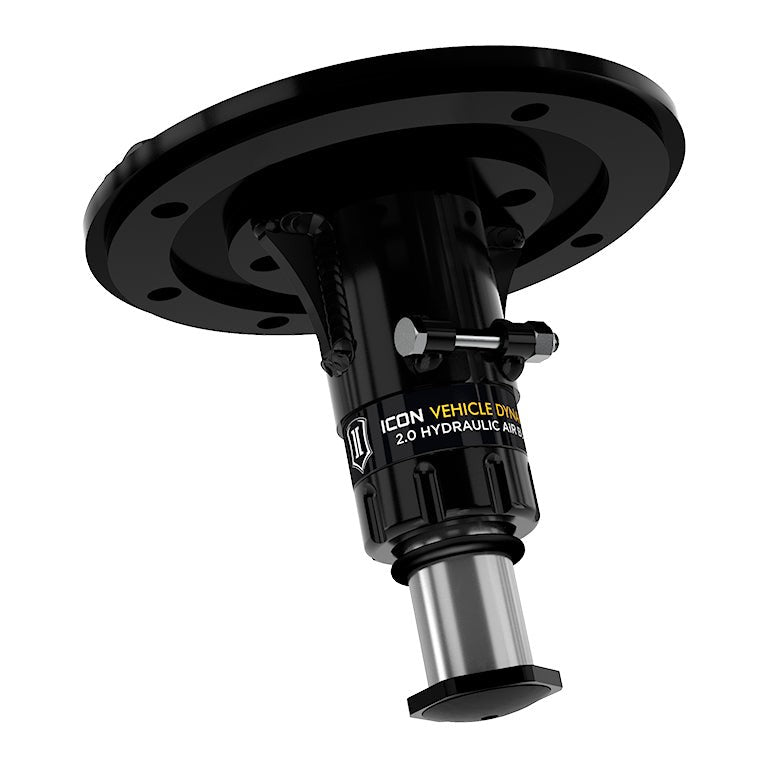

ICON 2024-2026 Toyota Tacoma Rear 2.0 Hydraulic Bump Stop Kit 1.75 Travel

The ICON Vehicle Dynamics 2.0" Hydraulic Bump Stop Kit is a bolt-on rear suspension upgrade for 2024–2026 Toyota Tacoma trucks equipped with rear coil springs, delivering 1.75 inches of controlled travel through velocity- and position-sensitive damping technology. It replaces the factory rubber bump stops with a hydraulic system that absorbs and releases suspension energy progressively, reducing rear-end kick and bottoming harshness on rough terrain.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Controlled Bottom-Out Resistance Without Sacrificing Articulation

Factory rubber bump stops absorb energy at a fixed rate and release it abruptly on rebound, producing the harsh jolt familiar to Tacoma owners on washboard roads and rocky trails. The ICON hydraulic bump stop uses velocity- and position-sensitive technology so that damping force increases exponentially as shaft speed rises through the 1.75" of travel. The result is progressive resistance that firms up exactly when the suspension needs it most, without stiffening the ride during normal articulation or slow-speed crawling.

Digressive Rebound Valving for Predictable Handling

Beyond bottom-out control, the digressive rebound piston valving governs how quickly the suspension returns after compression. Uncontrolled rebound is a primary cause of rear-end instability and wheel hop on rough terrain. By metering the release of stored energy, the ICON bump stop keeps the rear tires in better contact with the ground and the truck tracking predictably through successive impacts.

Bolt-On Installation, Fully Rebuildable Construction

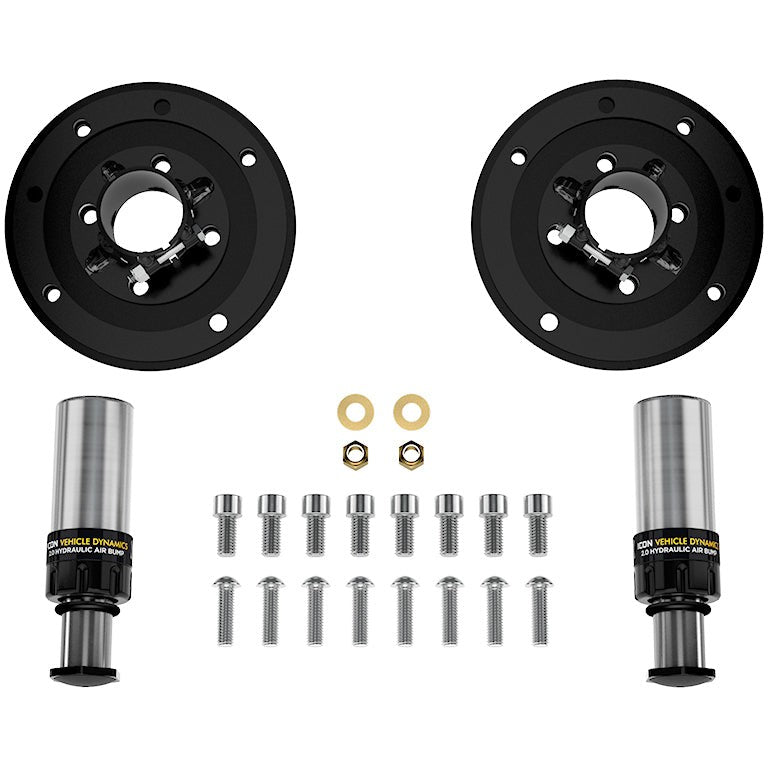

The kit mounts on top of the existing rear coil springs using the included CNC laser-cut steel brackets, requiring no cutting, welding, or permanent modification. The 2.0" diameter bodies are machined from CNC 6061 billet aluminum with a multi-stage CAD-plated finish for corrosion resistance; brackets carry a semi-gloss black powder coat. Hardened 1.25" nitro steel shafts and replaceable noise-reducing striker pads mean the system can be rebuilt and retuned rather than replaced when service is eventually needed.

Features

• 2.0" diameter hydraulic bodies with 1.75" of controlled travel
• Velocity- and position-sensitive damping increases bottom-out resistance exponentially with shaft speed
• Digressive rebound piston valving for controlled energy release and stable handling
• CNC 6061 billet aluminum construction with multi-stage CAD-plated body for corrosion resistance
• 1.25" hardened nitro steel shafts with replaceable noise-reducing striker pads
• Fully rebuildable and re-tunable design; CNC laser-cut steel brackets with semi-gloss black powder coat included

Specifications

Who This Is For and Isn't

This kit suits 2024–2026 Toyota Tacoma owners running rear coil springs who want to reduce bottoming harshness and rear-end kick on off-road terrain without permanent modification to the vehicle.

This kit will not fit any 2024–2026 Toyota Tacoma submodel equipped with rear leaf springs; confirm your suspension configuration before ordering.

Common Questions

Does this kit require cutting or welding for installation?

The ICON 2.0" Hydraulic Bump Stop Kit is a 100% bolt-on installation. The kit mounts on top of the existing rear coil springs using the included CNC laser-cut steel mounting brackets, with no cutting, welding, or permanent modification to the Tacoma required.

Will this fit my Tacoma if it has rear leaf springs?

No. Per ICON Application Note #164, this hydraulic bump stop kit will not fit 2024–2026 Toyota Tacoma submodels equipped with rear leaf springs. It is designed exclusively for Tacoma configurations running rear coil springs.

What makes hydraulic bump stops better than the factory rubber ones?

Factory rubber bump stops absorb energy at a fixed rate and release it abruptly, causing harsh jolts on rebound. The ICON hydraulic bump stops use velocity- and position-sensitive technology with digressive rebound piston valving to absorb and release energy progressively, reducing rear-end kick and improving handling predictability on rough terrain.

Can the bump stops be serviced or rebuilt after extended use?

Yes. The ICON 2.0" hydraulic bump stops are fully rebuildable and re-tunable. The replaceable noise-reducing striker pads and serviceable construction mean the system can be maintained over time rather than replaced as a complete unit.
