ICON 2023-2026 Ford F-250/F-350/F-450/F-550 Super Duty 4WD Gas 2.5" Front Dual Rate Coil Spring Kit

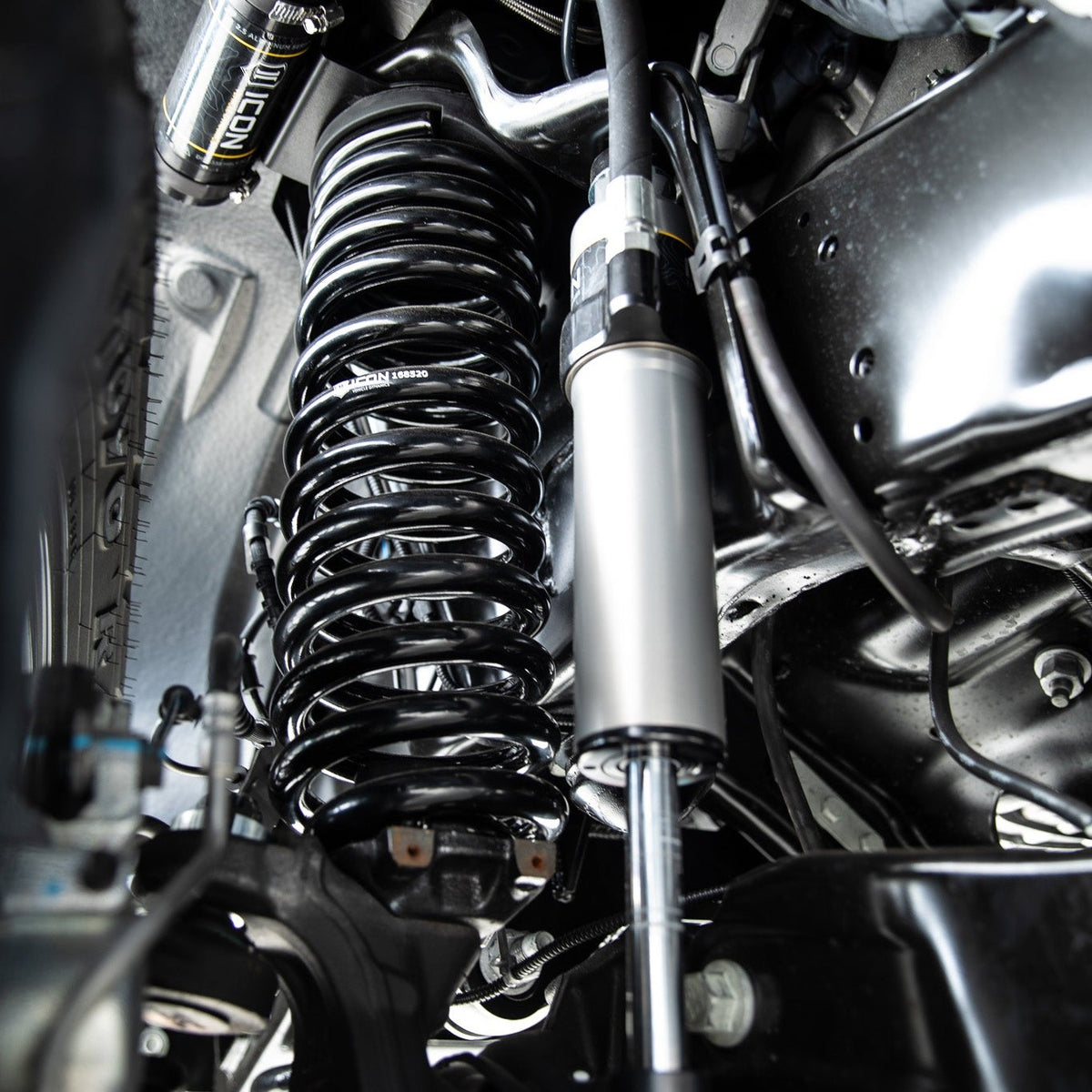

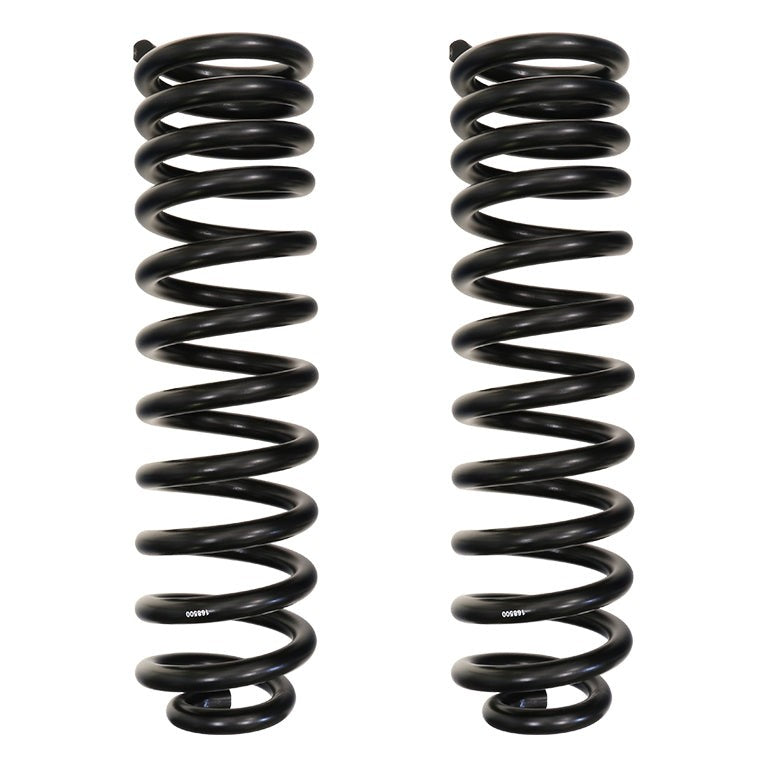

The ICON Vehicle Dynamics Dual Rate Front Coil Spring Kit lifts 2023-2026 Ford F-250, F-350, F-450, and F-550 Super Duty 4WD trucks with gasoline engines 2.5 inches at the front, using a progressive dual-rate design that improves both on-road comfort and off-road bottoming resistance over the factory springs. The kit is a 100% bolt-on replacement and is covered by a lifetime guarantee against sagging and breakage.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Progressive Rate Where It Counts

The dual-rate coil design uses a softer initial spring rate during everyday driving, which smooths out pavement imperfections without the harsh, oversprung feel common to lifted trucks. As the suspension compresses further under load or rough terrain, the spring transitions to a firmer secondary rate that resists bottoming out. The result is a front end that rides comfortably on the highway and stays composed on washboard or rocky trails without requiring a compromise between the two.

Corrosion Resistance Built In

Each spring receives a dual-stage, semi-gloss powder coat finish that protects against road salt, mud, and moisture. Suspension components that see regular off-pavement use are especially vulnerable to corrosion, and the finish is applied before the springs ship, so no additional prep or coating is needed at install.

Bolt-On Installation

The kit is designed as a direct replacement for the factory front coil springs with no cutting or welding required. Caster correction is required for this lift height and must be sourced separately: appropriate caster cams, an aftermarket radius arm kit, or a 4-link conversion are all options. An adjustable track bar is also recommended to realign the front axle laterally. Advanced Driver Assistance Systems (ADAS) require recalibration after installation.

Features

• 2.5" front lift height, based on 4WD crew cab gas configuration
• Dual-rate spring design: softer initial rate for comfort, firmer secondary rate for bottoming resistance
• Dual-stage semi-gloss powder coat: corrosion-resistant finish applied at the factory
• 100% bolt-on fitment, direct replacement for factory front coil springs
• Lifetime guarantee against sagging and breakage

Specifications

Who This Is For and Isn't

This kit suits owners of 2023-2026 Ford F-250, F-350, F-450, or F-550 Super Duty trucks with 4WD and a gasoline engine who want 2.5 inches of front lift with improved on- and off-road ride quality over the factory springs. It pairs with ICON shocks for increased wheel travel and supports fitment of up to 35-inch tires without modification.

This kit does not fit diesel-powered Super Duty models, 2WD configurations, or any Super Duty outside the 2023-2026 model years. Trucks equipped with the Tremor package will see approximately 1.5 inches of lift over stock rather than 2.5 inches. Caster correction components, an adjustable track bar, and ADAS recalibration are required after installation and are not included. The optional brake line kit (ICON part 61111) is sold separately.

Common Questions

Do these springs fit diesel Super Duty models?

No. The ICON 62517 dual-rate front coil springs are rated for gasoline engines only and are not compatible with diesel-powered 2023-2026 Ford Super Duty trucks.

What lift height will Tremor-package trucks see?

Ford Super Duty trucks equipped with the Tremor package will gain approximately 1.5 inches of front lift over stock with this kit, rather than the 2.5 inches achieved on standard 4WD crew cab gas configurations.

Is caster correction included or required?

Caster correction is required for this lift height but is not included. Appropriate caster cams, an aftermarket radius arm kit, or a 4-link conversion must be sourced separately to correct the caster angle after installing these front coil springs.

Do ADAS features need recalibration after installation?

Yes. Advanced Driver Assistance Systems on 2023-2026 Ford Super Duty trucks require recalibration after these front coil springs are installed. This step is not part of the spring installation itself and should be performed by a qualified technician.

What is covered by the lifetime guarantee?

The lifetime guarantee on these coil springs covers sagging and breakage. It applies to gasoline-engine, 4WD, 2023-2026 Ford Super Duty applications only.
