ICON 2021-2026 Ford F-150 Raptor Stage 1 Coil Spring Suspension System

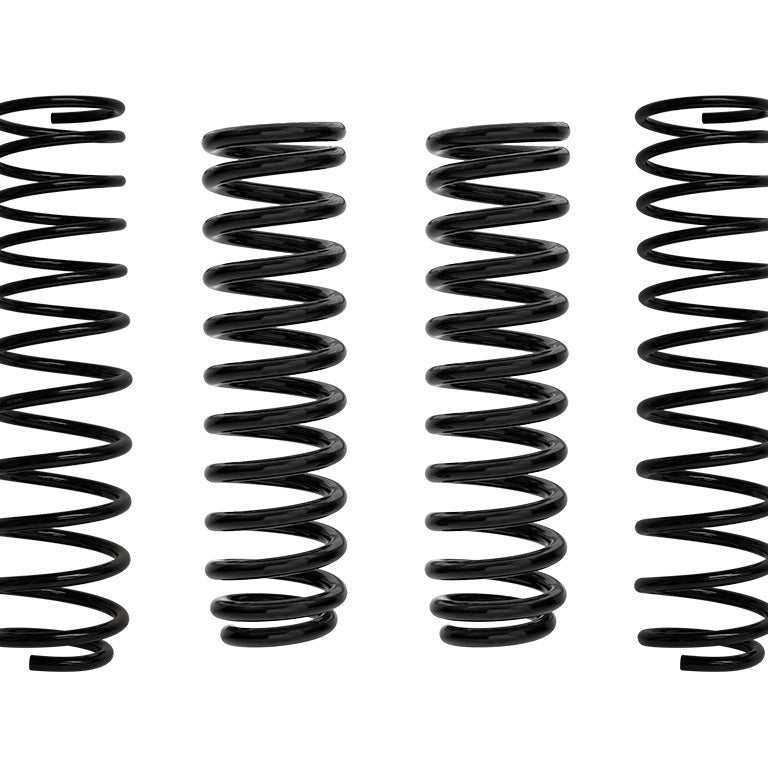

The ICON Vehicle Dynamics Stage 1 Suspension System is a bolt-on coil spring upgrade for 2021–2026 Ford F-150 Raptor and Raptor R trucks running OE coilovers, delivering 2.25 inches of front lift on the standard Raptor and 2 inches on the Raptor R, paired with 1 inch of rear lift on trucks without added rear weight. The kit includes a front spring kit (95232) and a triple-rate rear coil spring kit (95230), both engineered specifically for the Gen3 platform.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Linear Front Rate for Predictable Handling

The front coil springs use a linear spring rate, which means spring resistance increases at a consistent, predictable ratio throughout the stroke. For a Raptor driver, that translates to steering feel and body control that stays consistent whether navigating a highway on-ramp or a high-speed desert wash: no sudden stiffening mid-corner and no vague, unpredictable transitions. The springs are designed to maintain full compatibility with all available OE electronic shock absorbers, so the factory adaptive damping system continues to function as intended after installation.

Triple-Rate Rear Springs for All-Conditions Performance

The rear coil springs use three distinct spring rates engineered by ICON: an extra-soft initial rate for maximum droop travel and articulation, a performance ride rate that balances compliance and comfort under normal load, and an overload rate that resists bottom-out when the truck is loaded or working hard off-road. A tapered wire design in the rear coils allows the spring to achieve maximum travel and efficiency within the factory envelope. The result is a rear suspension that handles an unladen trail run and a loaded camp haul without requiring a spring swap between uses.

Bolt-On Build with Long-Term Corrosion Protection

Both the front and rear springs install without cutting or permanent modification to the factory suspension. A dual-stage powder coating protects the spring wire against corrosion across a range of environments, from coastal salt air to muddy trail conditions. ICON backs these springs with a lifetime guarantee against sagging or breakage.

Features

• Front lift: 2.25 inches over stock on F-150 Raptor; 2 inches over stock on Raptor R
• Rear lift: 1 inch over stock on Raptors without additional rear weight
• Linear front coil springs: consistent rate for predictable handling with OE electronic shocks
• Triple-rate rear coil springs: ICON-engineered droop, ride, and overload rates with tapered wire design
• Dual-stage powder coating: corrosion resistance for on- and off-road environments
• Bolt-on installation: no cutting or modifications required

Specifications

Who This Is For and Isn't

This kit suits 2021–2026 Ford F-150 Raptor and Raptor R owners who want a moderate front and rear lift using their factory OE coilovers, with no cutting or permanent modification. It is a strong fit for trucks running OEM wheels and tires or the recommended 35x12.50 (without 37 Package) or 37x12.50 (with 37 Package) aftermarket tire sizes.

This system fits only trucks equipped with OE (factory) coilovers; it will not fit trucks running ICON or other aftermarket coilovers. It cannot be combined with coil spacers. Advertised lift heights apply to a stock-weight vehicle; adding accessories or cargo weight will alter the actual lift achieved. ADAS recalibration is required after installation. Larger tires than those listed above may fit but will require fender trimming and modifications not included in this kit.

Common Questions

Will this kit work with my aftermarket coilovers?

The ICON Stage 1 Suspension System is designed exclusively for trucks running OE (factory) coilovers. It will not fit ICON or other aftermarket coilovers. Owners who have already upgraded to aftermarket coilovers should look at a different ICON system matched to their existing hardware.

Does installation require cutting or drilling?

No cutting or drilling is required. The front and rear coil springs in this Stage 1 kit are bolt-on replacements designed to install in the factory suspension locations without permanent modification to the truck.

Will the factory electronic shock controls still work after installing these springs?

Yes. The front coil springs in this kit are designed to maintain full compatibility with all available OE electronic shock absorbers, so the factory adaptive damping system continues to operate normally. ADAS recalibration is required after installation.

How much lift does this system provide on a Raptor R versus a standard Raptor?

On a standard F-150 Raptor, the front springs deliver 2.25 inches of lift over stock. On the Raptor R, the same front springs deliver 2 inches of lift over stock. Both variants receive 1 inch of rear lift, assuming no additional weight is added to the rear of the truck.

Can I run coil spacers alongside this kit?

No. Combining this Stage 1 coil spring system with coil spacers is explicitly not supported and may cause damage. The kit is engineered to deliver its stated lift heights as a standalone spring replacement without supplemental spacers.
