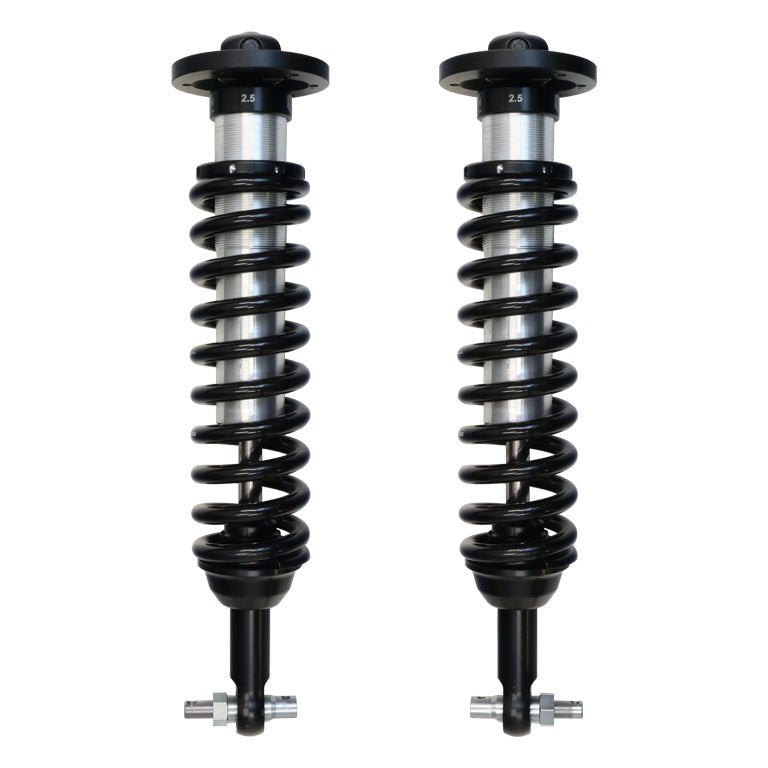

ICON 2015-2020 Ford F-150 4WD 0-2.63" Lift Front 2.5 VS Coilover Kit

The ICON Vehicle Dynamics 2.5 VS Coilover Kit fits 2015–2020 Ford F-150 4WD trucks and provides 0–2.63 inches of front lift height adjustability through a 2.5-inch shock body with vehicle-specific valving tuned for the lighter chassis of the 13th-generation F-150. The kit is available in one configuration and installs without drilling, cutting, or welding.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Vehicle-Specific Valving for the F-150 Platform

ICON developed the damping tune in this coilover kit specifically for the lighter curb weight of the 2015–2020 F-150, rather than adapting a universal calibration. That specificity matters on the road and on the trail: the shock responds to the actual load inputs of this truck, so the ride stays composed over washboard and highway alike without the harshness or float that comes from a generic tune applied to the wrong platform.

2.5-Inch Shock Body with Corrosion-Resistant Construction

The larger 2.5-inch shock body increases piston area over the factory unit, which improves damping capacity across varying terrain. The shock body carries a CAD-plated corrosion-resistant finish and a 7/8-inch shaft. CNC-machined 6061 aircraft-grade aluminum components and FK rod end bearings reduce deflection and extend service life. Those construction details matter when the front suspension is absorbing repeated off-road impacts over years of use.

Lift Range That Works with Factory and Aftermarket Wheels

The 0–2.63-inch adjustable lift range lets the truck run on factory wheels and tires at the lower end, or accommodate larger, more aggressive tire combinations at the upper end. ICON's own fitment data confirms compatibility with factory wheels and tires and recommends 33x11.50-inch tires as the practical maximum without fender trimming or body modifications. Pairing this front kit with ICON rear 2.0 Aluminum Series or 2.5 Series shocks balances vehicle control front to rear.

Features

• Bolt-on installation: no drilling, cutting, or welding required
• Adjustable lift height: 0–2.63 inches over stock front ride height
• ICON-engineered Eibach springs: matched to the F-150 platform tune
• 6061 aircraft-grade aluminum: CNC-machined components throughout
• CAD-plated shock body: corrosion-resistant finish with 7/8-inch shaft
• FK rod end bearings: extended longevity and minimal deflection

Specifications

Who This Is For and Isn't

This coilover kit suits 2015–2020 Ford F-150 4WD owners who want adjustable front lift between 0 and 2.63 inches, improved damping over stock, and the ability to run larger tires for daily driving, overlanding, or mixed on- and off-road use.

This kit does not fit 2WD F-150 models or any F-150 outside the 2015–2020 model years. Power-Stroke diesel-equipped trucks are compatible but have a reduced lift range of 0–2.13 inches. Lift heights above 2 inches over stock may require aftermarket front upper control arms to maintain proper alignment. Those control arms are not included. Tires larger than 33x11.50 inches may require fender trimming and body modifications.

Common Questions

Does this kit fit my 2WD F-150?

The ICON 2.5 VS Coilover Kit is designed exclusively for 4-wheel drive (4WD) F-150 models from 2015 through 2020. It is not compatible with 2WD variants of the F-150.

What lift height does this kit provide on a Power-Stroke diesel F-150?

On F-150 trucks equipped with the Power-Stroke diesel engine, the 2.5 VS Coilover Kit provides a lift height range of 0–2.13 inches over stock rather than the standard 0–2.63-inch range available on gasoline-powered models.

Do I need to drill or cut anything during installation?

The ICON 2.5 VS Coilover Kit is a 100% bolt-on fitment for 2015–2020 Ford F-150 4WD trucks. No drilling, cutting, or welding is required for installation.

Will I need new upper control arms if I lift the truck more than 2 inches?

Lift heights above 2 inches over stock may require aftermarket front upper control arms to maintain proper wheel alignment on the 2015–2020 F-150. Upper control arms are not included with this coilover kit and would need to be purchased separately.

What is the largest tire I can run with this kit without modifying the fenders?

ICON's fitment data for this coilover kit on the 2015–2020 F-150 4WD recommends a maximum tire size of 33x11.50 inches without fender trimming or body modifications. Larger tires may physically fit but will require additional modifications.
