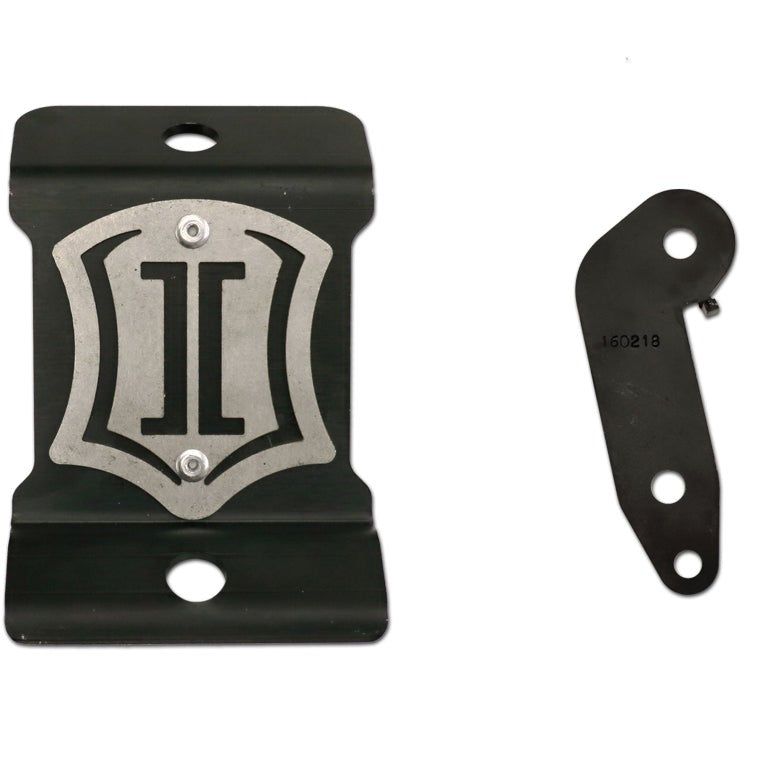

ICON 2011-2022 Ford F-250/F-350 Super Duty Rear 7-Inch Brake Line Bracket Kit

The ICON Vehicle Dynamics Rear 7-Inch Brake Line Bracket Kit relocates the factory rear axle brake lines on 2011-2022 Ford F-250 and F-350 Super Duty trucks to prevent over-extension when ICON 7-inch lift suspension systems are installed. The kit is designed to work with the factory brake lines already on the truck, so the brake system does not need to be opened and no aftermarket extended lines are required.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Keeps the Factory Brake System Intact

When a 7-inch lift is installed on the rear of a Super Duty, the factory brake lines are placed under tension that can lead to damage or failure over time. These brackets reposition the lines at the correct routing angle for the lifted ride height, restoring the slack the factory engineered into the system. The brackets work with the existing lines, so there is no need to bleed the brakes, source extended lines, or disturb any brake-system fittings: installation does not require opening the brake system at any point.

CNC-Formed Steel With a Durable Finish

Each bracket is CNC laser-cut and brake-formed from steel plate, producing consistent geometry across the set. A semi-gloss black powder coat provides corrosion resistance in the conditions a lifted Super Duty typically sees. A stainless steel ICON shield logo is included on the brackets.

Features

• OE brake line relocation: repositions factory rear brake lines for correct routing at 7-inch lift height
• No brake system opening required: eliminates the need for aftermarket extended brake lines or bleeding
• CNC laser-cut and brake-formed steel: consistent bracket geometry from steel plate construction
• Semi-gloss black powder coat: corrosion-resistant finish suited to off-road and all-weather use
• Stainless steel ICON shield logo: included on the brackets

Specifications

Who This Is For and Isn't

This bracket kit is for owners of 2011-2022 Ford F-250 or F-350 Super Duty trucks who are installing or have installed an ICON 7-inch rear lift suspension system and need to reroute the factory rear brake lines to the correct position for that lift height.

This kit does not fit Super Duty model years outside the 2011-2022 range, and it is compatible only with ICON 7-inch rear lift suspension systems. It does not include extended brake lines, brake hardware, or any front brake line components.

Common Questions

Do I need to open the brake system or bleed the brakes to install this kit?

The ICON Rear 7-Inch Brake Line Bracket Kit is designed to work with the factory brake lines already on the truck. Because the kit relocates the existing lines rather than replacing them, the brake system does not need to be opened and no bleeding is required during installation.

What is the bracket made from, and will it hold up off-road?

The brackets in this kit are CNC laser-cut and brake-formed from steel plate and finished with a semi-gloss black powder coat for corrosion resistance. The steel construction and powder coat finish are suited to the conditions a lifted Super Duty encounters in off-road and all-weather use.
