ICON 2010-2014 Ford F-150 SVT Raptor Rear Leaf Spring Hardware Kit

The ICON Leaf Spring Hardware Kit (SKU 95220H) supplies all installation hardware required to fit ICON 198501 Multi-Rate Leaf Springs on 2010–2014 Ford F-150 SVT Raptor rear suspensions. The kit replaces every piece of factory hardware that must be cut or discarded during the leaf spring swap, so no separate fastener sourcing is needed to complete the job.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Purpose-Built for the ICON 198501 Leaf Spring Swap

Removing the factory leaf springs on the 2010–2014 F-150 SVT Raptor requires cutting the original front mounting bolts, and eliminating the OE lift blocks means the factory bump stop geometry no longer works as-is. This kit addresses both issues in one package, pairing replacement front mounting bolts with billet aluminum bump stop spacers that restore correct bump stop contact without the OE blocks.

E-Coated U-Bolts and Heavy-Duty Plates

The U-bolts in this kit carry a black E-coat finish, a corrosion-resistant electrocoating process that protects the fasteners in the exposed undercarriage environment. Heavy-duty U-bolt plates work alongside them to distribute clamping load evenly across the leaf spring pack, keeping the assembly secure under the load cycles and terrain variation the Raptor platform is built for.

Billet Aluminum Bump Stop Spacers

Precision-machined billet aluminum bump stop spacers allow the factory rear bump stops to remain in service after the OE lift blocks are removed. Retaining the factory bump stops preserves the rear suspension's end-of-travel behavior without requiring additional bump stop hardware.

Features

• Required companion hardware: designed specifically for installation of ICON 198501 Multi-Rate Leaf Springs on 2010–2014 Ford F-150 SVT Raptor
• Black E-coated U-bolts: corrosion-resistant finish for undercarriage durability, paired with heavy-duty U-bolt plates
• Billet aluminum bump stop spacers: allow OE rear bump stops to be retained after factory lift block removal
• Replacement front mounting bolts: replace factory bolts that must be cut during OE leaf spring removal

Specifications

Who This Is For and Isn't

This hardware kit is for owners of 2010–2014 Ford F-150 SVT Raptor trucks who are installing ICON 198501 Multi-Rate Leaf Springs and need all required mounting and bump stop hardware in a single purchase.

This kit is not a standalone suspension upgrade and does not include leaf springs. It is not compatible with F-150 model years outside 2010–2014, and it is not designed for use with leaf spring assemblies other than the ICON 198501.

Common Questions

Do the ICON 198501 leaf springs come included in this kit?

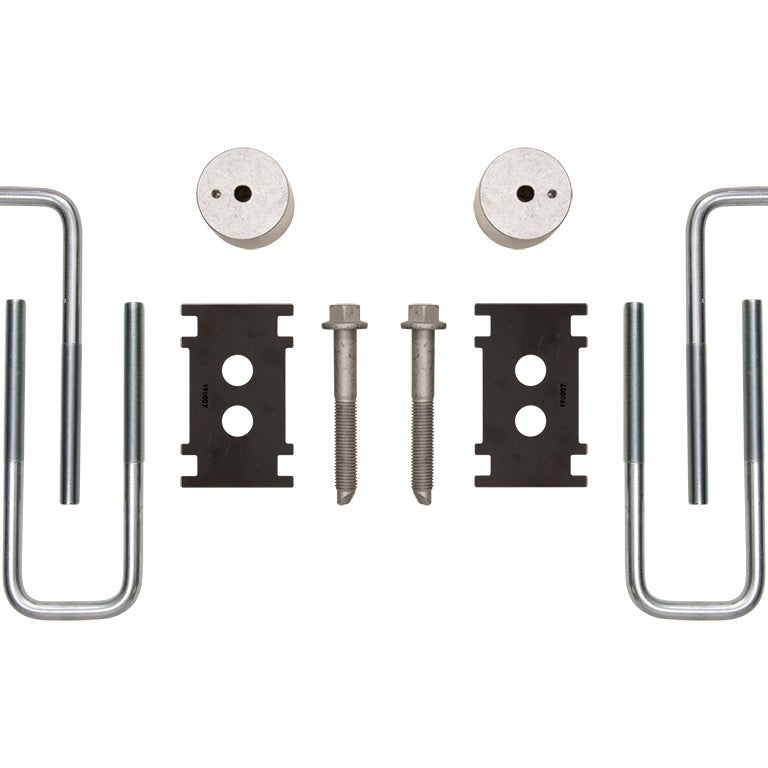

The ICON Leaf Spring Hardware Kit (95220H) does not include leaf springs. The kit contains the installation hardware (U-bolts, U-bolt plates, billet aluminum bump stop spacers, and front mounting bolts) required to fit the ICON 198501 Multi-Rate Leaf Springs, which are sold separately.

Why do the front mounting bolts need to be replaced?

Removing the factory leaf springs on the 2010–2014 Ford F-150 SVT Raptor requires cutting the original front leaf spring mounting bolts. This hardware kit includes new replacement bolts so the ICON 198501 leaf springs can be properly secured without sourcing factory-spec fasteners separately.

Can the factory rear bump stops be reused after installing this kit?

Yes. The billet aluminum bump stop spacers included in this kit are designed to allow the factory rear bump stops to remain in service after the OE lift blocks are eliminated, preserving the suspension's end-of-travel behavior without requiring replacement bump stop hardware.

Does this kit fit all F-150 Raptor model years?

This hardware kit fits only the 2010–2014 Ford F-150 SVT Raptor. It is not listed as compatible with any other F-150 Raptor generation or model year.
