ICON 2009-2012 Ram 2500/3500 4.5" Lift Stage 1 Suspension System

The ICON 2009–2012 Ram 2500/3500 4.5" Lift Stage 1 Suspension System is a complete front and rear lift kit engineered for 4WD diesel-powered Ram 2500 and Ram 3500 trucks, delivering 4.5 inches of lift with corrected steering geometry and no driveshaft modifications required. The system is available as a single kit (SKU K214550T) covering the 2009–2012 model years.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Corrected Geometry at Every Point in the Travel Range

Lifting a heavy-duty truck without addressing steering and track bar placement creates bind, bump steer, and uneven tire wear that compound on rough terrain. The Stage 1 system includes a forged pitman arm, track bar drop bracket, and sway bar drop brackets specifically positioned to restore factory steering geometry at the new ride height. The result is predictable steering response whether the truck is loaded for a job site or running an uneven dirt road.

Tubular Steel Links That Eliminate Factory Bushing Bind

The factory upper and lower link bushings are a known source of bind as lift height increases, reducing suspension travel and degrading ride quality. ICON's fixed tubular steel upper and lower link arms replace the factory units and remove that bind, increasing the usable range of alignment adjustment and improving both on-road compliance and off-road articulation. Towing capacity is not affected by the link arm swap.

Match-Tuned Springs and Shocks Front and Rear

The front dual rate coil springs are rated for diesel engine weight and are paired with 2.0 Aluminum Series smooth body shocks at both axles. ICON tunes these shocks alongside its springs as a matched set. Dual rate springs provide a compliant initial rate for highway driving and a firmer secondary rate under load or hard compression, so the truck does not feel harsh empty or wallow when towing. The rear uses 2.5" lift blocks with u-bolts and matching 2.0 Series shocks to bring the rear stance level with the front.

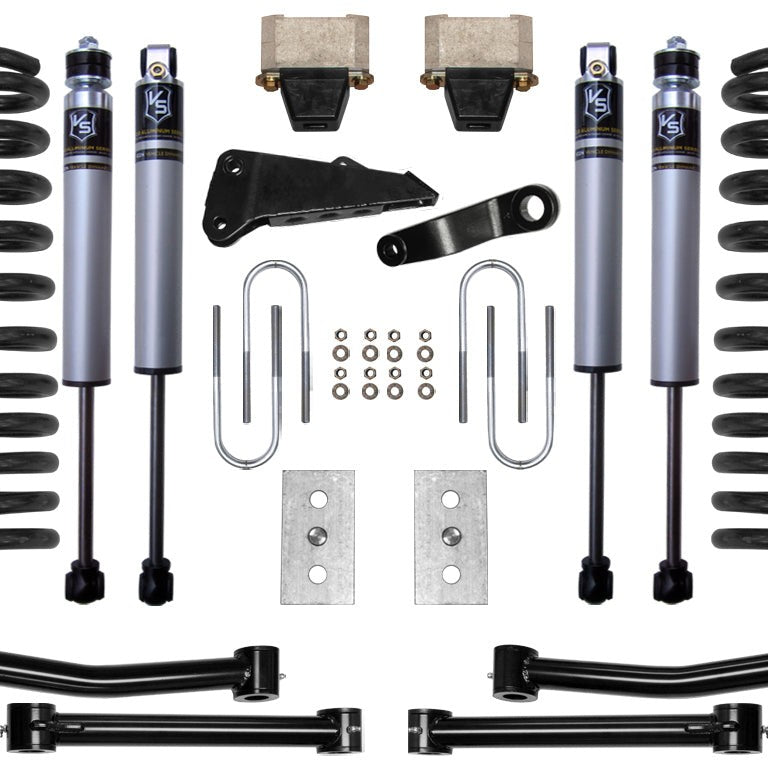

Features

• Dual rate coil springs: front springs rated for diesel engines, matched to 2.0 Aluminum Series shocks
• Tubular steel upper and lower link arms: eliminate factory bushing bind and expand alignment range
• Forged pitman arm and track bar drop bracket: restore correct steering geometry at 4.5" lift
• Rear 2.5" lift blocks with u-bolts: level stance front to rear without driveshaft modification
• Polyurethane bumpstops with billet extension: protect suspension at full compression
• OEM wheels and tires fit confirmed: 35" tires clear with no modification; some 37" tires fit with minor fender well trimming

Specifications

Who This Is For and Isn't

This system suits owners of 2009–2012 Ram 2500 or Ram 3500 4WD trucks with diesel engines who want 4.5 inches of lift, improved off-road capability, and clearance for 35" tires without modifying the driveshaft. It is designed for buyers who want a complete, component-matched kit rather than sourcing shocks and springs separately.

The coil springs in this kit are rated for diesel engines only and are not validated for gas-engine Ram 2500/3500 applications. This kit does not fit 2013 Ram 2500/3500 trucks; buyers with a 2013 model should call ICON directly to confirm fitment before ordering. An adjustable track bar is not included and may be needed to realign the axle laterally depending on the specific vehicle. California residents: this product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm (Proposition 65).

Common Questions

Does this kit fit both Ram 2500 and Ram 3500 trucks?

The ICON Stage 1 4.5" Lift System is confirmed to fit 2009–2012 Ram 2500 and Ram 3500 4WD trucks. It does not cover 2013 model year trucks; buyers with a 2013 Ram 2500 or 3500 should call ICON directly to verify fitment before ordering.

Are the springs in this kit compatible with a gas-engine Ram?

No. The dual rate coil springs included in this Stage 1 system are rated for diesel engines only. The kit is not validated for gas-engine Ram 2500 or Ram 3500 applications; a different spring specification would be required for a gas-powered truck.

Will the factory driveshaft need to be modified or replaced?

No driveshaft modifications are required when installing this ICON Stage 1 system on a 2009–2012 Ram 2500/3500 4WD. The forged pitman arm and track bar drop bracket included in the kit are positioned to maintain proper driveline angles at the 4.5" lift height.

What tire sizes will fit after installing this kit?

This Stage 1 system provides clearance for 35" x 12.50" tires with no modifications. Some 37" tires will fit with minor fender well trimming. Larger tires may require additional fender or body modifications beyond what the kit provides.

Is an adjustable track bar included?

An adjustable track bar is not included in the Stage 1 kit. Depending on the specific vehicle, an adjustable track bar may be needed to realign the axle from left to right or to add additional strength. This is noted as a conditional requirement in the application notes for this system.
