Flatline Van Co Sprinter Van Dash Mount

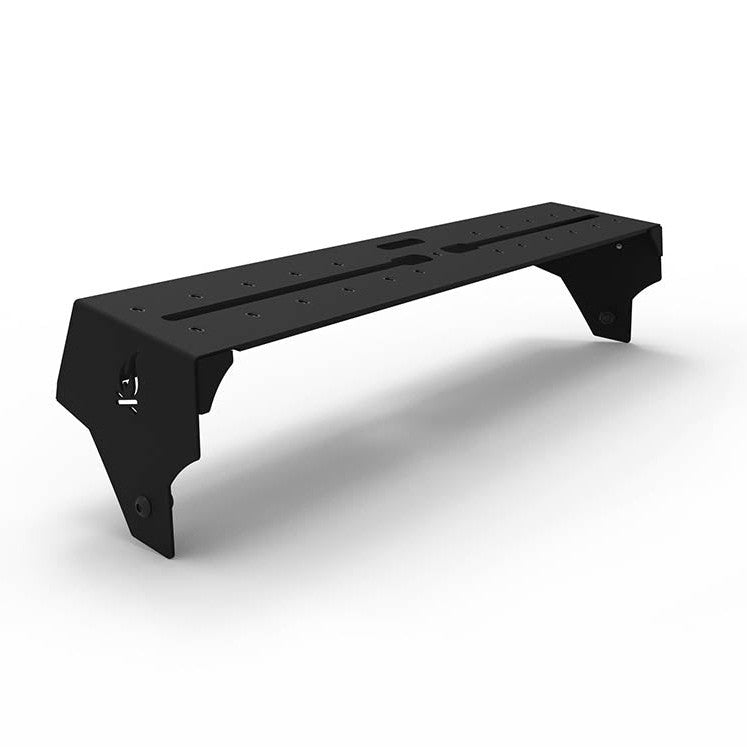

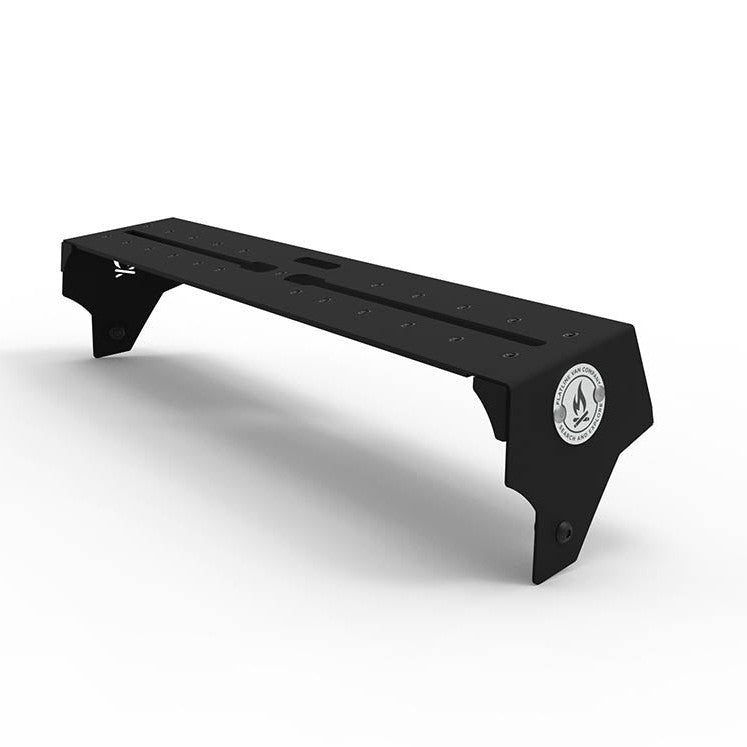

The Flatline Van Co Sprinter Van Dash Mount is a 1.5mm steel panel that bolts to the OEM center-console dash of 2019 and newer Mercedes-Benz Sprinter 1500, 2500, 3500, and 3500XD vans, converting that surface into a low-profile device and accessory hub. It is compatible with the AMPS mounting hole pattern and T-nut accessory tracks, and all mounting hardware is included. Fitment covers 144-inch, 170-inch, and 170-inch Extended wheelbases in both Low and High Roof configurations.

One Mount, Many Devices

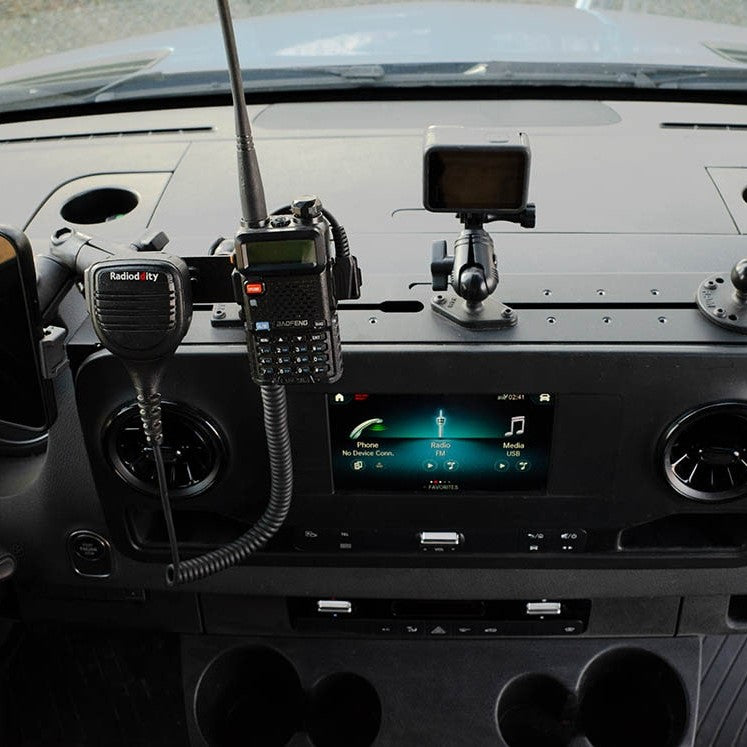

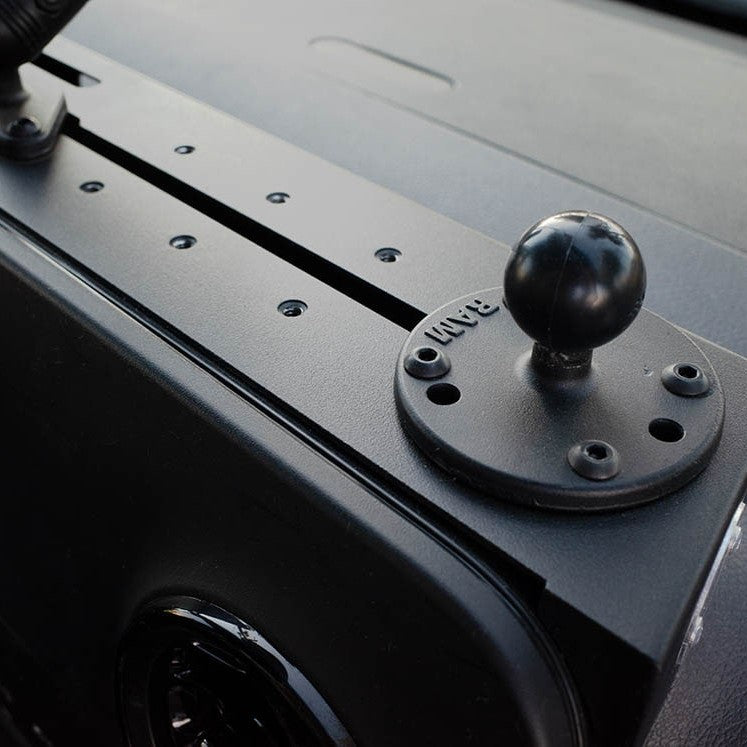

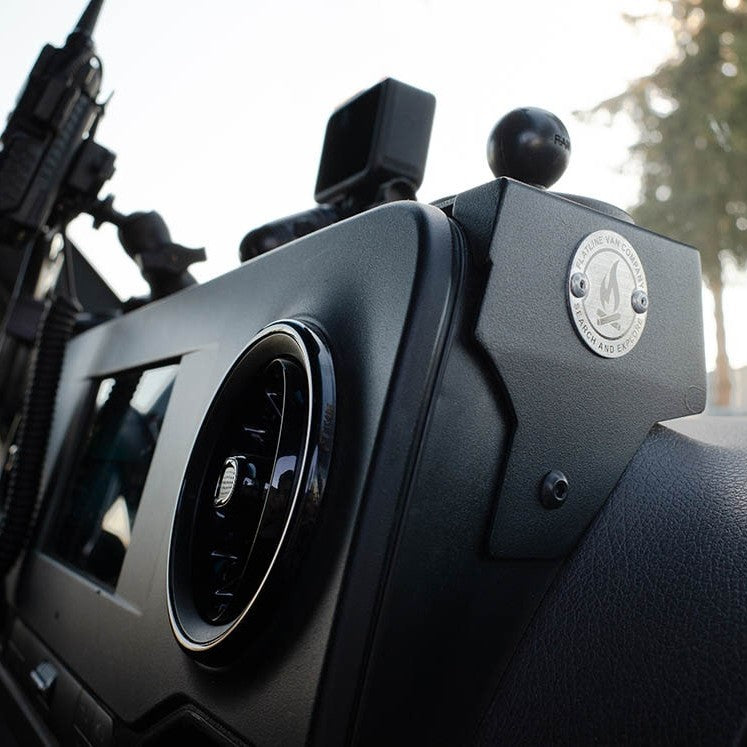

The AMPS mounting hole pattern on the Sprinter Van Dash Mount is the same standard used by RAM mount arms, most GPS cradles, and a wide range of handheld-device holders. That means a builder or driver who already owns RAM hardware can attach it directly without adapters, and anyone sourcing new hardware has the full AMPS ecosystem to draw from rather than a proprietary selection. Switching between a phone holder, a tablet arm, or a GPS cradle requires no new drilling and no new panel.

T-Nut Tracks for Accessories Beyond Devices

Alongside the AMPS pattern, the dash mount includes T-nut compatible tracks that accept a broad range of T-nut accessories. These tracks let a builder add switches, small organizers, or other track-mount hardware to the same panel without committing to a fixed layout. The combination of AMPS holes and T-nut tracks on a single panel means the mount can serve as a device holder today and be reconfigured as a build evolves.

Clean Installation, Tidy Cables

Cord management slots are built into the panel so charging cables route back toward the Sprinter's dash power supply without draping across the console. The included hardware (10-24 thread stainless steel press-fit nuts and 10-24 x 0.5-inch button head screws) secures the mount directly to the OEM dash. The exterior-rated powder coat finish and textured surface are matched to complement factory dash components, keeping the installed result low-profile and visually consistent with the Sprinter's interior rather than looking like an afterthought.

Features

• AMPS Mounting Hole Pattern: compatible with RAM mount arms, GPS cradles, and other AMPS-standard device holders
• T-Nut Compatible Tracks: accept a wide range of T-nut accessories for flexible panel configuration
• 1.5mm Steel Sheet Construction: rigid panel that mounts to the OEM Sprinter center-console dash
• Cord Management Slots: route charging cables back toward the dash power supply
• Hardware Included: 10-24 stainless steel press-fit nuts and 10-24 x 0.5-inch button head screws
• Exterior-Rated Powder Coat Finish: textured surface resists UV exposure and complements factory dash components

Specifications

Who This Is For and Isn't

The Sprinter Van Dash Mount suits owners of 2019 or newer Mercedes-Benz Sprinter 1500, 2500, 3500, or 3500XD vans, across 144-inch, 170-inch, and 170-inch Extended wheelbases in Low or High Roof, who want a clean, OEM-integrated location for a phone, tablet, GPS, or RAM-compatible device mount without permanent modification to the factory dash.

This mount does not fit pre-2019 Sprinter vans or any other van make or model, including Ford Transit, Ram ProMaster, or Winnebago Ekko and Revel. It is a dash panel, not a windshield or A-pillar mount, and it does not include a device cradle, RAM arm, or T-nut accessories. Those are sourced separately.

WARNING: This product can expose you to chemicals including lead and lead compounds, DEHP, and bisphenol A (BPA), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Common Questions

Which Sprinter model years and configurations does this dash mount fit?

The Sprinter Van Dash Mount fits 2019 and newer Mercedes-Benz Sprinter 1500, 2500, 3500, and 3500XD vans with 144-inch, 170-inch, or 170-inch Extended wheelbases in both Low Roof and High Roof configurations. It does not fit Sprinter vans built before the 2019 model year.

What device mounts and accessories are compatible with this panel?

The Sprinter Van Dash Mount uses the AMPS mounting hole pattern, which is compatible with RAM mount arms, most GPS cradles, and a wide range of handheld-device holders. The panel also includes T-nut compatible tracks that accept T-nut accessories. Device cradles, RAM arms, and T-nut accessories are not included and are sourced separately.

What hardware is included, and does installation require drilling?

The Sprinter Van Dash Mount includes 10-24 thread stainless steel press-fit nuts and 10-24 x 0.5-inch button head screws. The mount attaches to the OEM Sprinter center-console dash using the included hardware, so no drilling into the factory dash is required. An installation guide is available for this product.

How does the dash mount handle cable routing?

The Sprinter Van Dash Mount has built-in cord management slots that allow charging cables to be routed back toward the Sprinter's dash power supply. This keeps cables organized and out of the way rather than draped across the console or dash surface.

Is the finish durable enough for a van that sees sun and outdoor use?

The Sprinter Van Dash Mount is finished with an exterior-rated powder coat, which is formulated to resist UV exposure. The textured surface is designed to complement the Sprinter's factory dash components for a low-profile, integrated appearance rather than a visually mismatched aftermarket look.
