Flatline Van Co Sprinter Van Ceiling Structure Kit

The Flatline Van Co Sprinter Van Ceiling Structure Kit is a 2mm aluminum panel system for 2019+ Mercedes-Benz Sprinter 1500, 2500, 3500, and 3500XD High Roof vans that creates a continuous 13-inch wide flat mounting surface across the full ceiling length, bridging the gaps between factory structural ribs. Stainless steel brackets secure the panels to the van's existing structure. Two variants are available: one sized for the 144-inch wheelbase and one for the 170-inch wheelbase.

A Flat Ceiling Surface Where You Actually Need It

Factory Sprinter ceiling ribs are spaced irregularly, which forces builders to locate cabinets and shelves around the ribs rather than where the layout calls for them. The Ceiling Structure Kit bridges those gaps with a continuous 13-inch wide aluminum surface that runs the full length of the ceiling, so upper cabinets and shelves can be mounted at any point along that span without hunting for a structural rib underneath. The result is a layout driven by how the van will be used, not by where the factory ribs happen to fall.

Built-In Flange, Wire Channel, and Insulation Pockets

At the wall-to-ceiling junction, the kit includes a built-in flange that keeps interior wall panels straight and flush without furring strips or separate leveling work. The flat edge runs the full length of the van, closing the gap between wall and ceiling for a clean finished appearance. Along the outside edge of each panel, a slight drop forms a dedicated wire channel with multiple pass-throughs, so electrical runs can follow the ceiling length without exposed conduit or improvised routing. The panel geometry also creates pockets sized for insulation batts, keeping the insulation layer integrated with the ceiling structure rather than added as a separate step.

2mm Aluminum Construction with Stainless Steel Brackets

The panels are formed from 2mm aluminum, which holds fasteners firmly across the full mounting surface without the flex or sag that can develop in thinner sheet goods over time. Stainless steel brackets connect the panels to the van's factory structure, resisting corrosion in the humid conditions that develop inside a van during camping or daily use. The combination keeps the ceiling surface stable under the weight of upper cabinets and their contents through road vibration and temperature cycling.

Features

• Continuous flat mounting surface: 13-inch wide aluminum panel spans the full ceiling length
• Rib-bridging design: fills gaps between factory Sprinter ceiling ribs for unrestricted cabinet placement
• Built-in wall-to-ceiling flange: keeps interior wall panels aligned without furring strips
• Integrated wire channel: outside-edge drop with multiple pass-throughs routes wiring along the ceiling length
• Insulation pockets: panel geometry creates dedicated cavities for insulation
• 2mm aluminum panels with stainless steel brackets

Specifications

WARNING (California Proposition 65): This product can expose you to chemicals including lead and lead compounds, DEHP, and bisphenol A (BPA), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Who This Is For and Isn't

The Sprinter Van Ceiling Structure Kit suits builders converting a 2019 or newer Mercedes-Benz Sprinter 1500, 2500, 3500, or 3500XD with a High Roof into a camper van or work vehicle, whether that is a first-time DIY build or a professional upfit. It is particularly well suited to layouts that require upper cabinets or shelves at specific positions along the ceiling, or that need a clean wall-to-ceiling transition and organized wiring runs.

This kit fits only the High Roof configuration of the 2019+ Sprinter in 144-inch or 170-inch wheelbase. It does not fit low-roof or medium-roof Sprinter vans, pre-2019 Sprinter generations, or any other van make or model. Insulation, upper cabinets, and shelves are not included.

Common Questions

Which Sprinter wheelbases and roof heights does this kit fit?

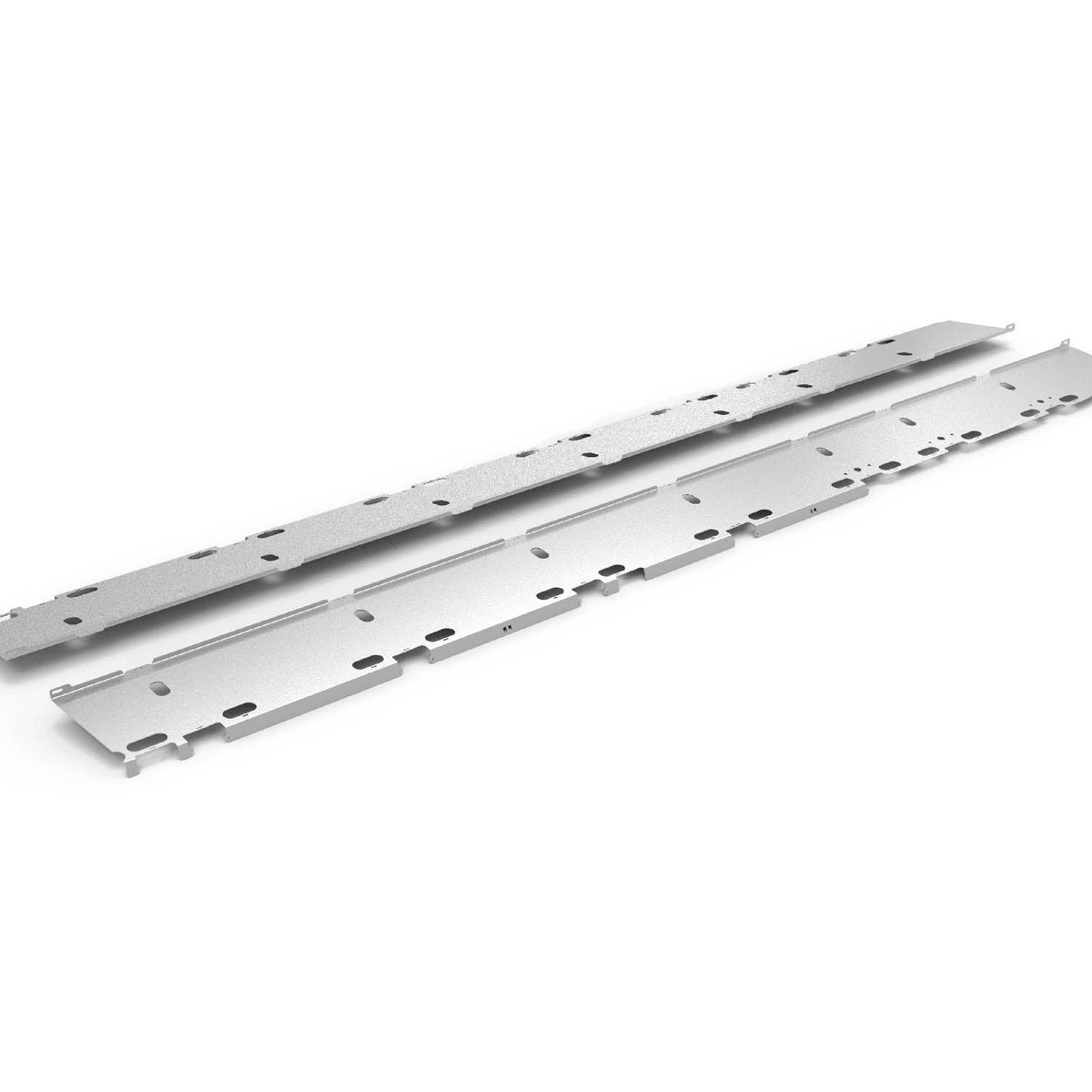

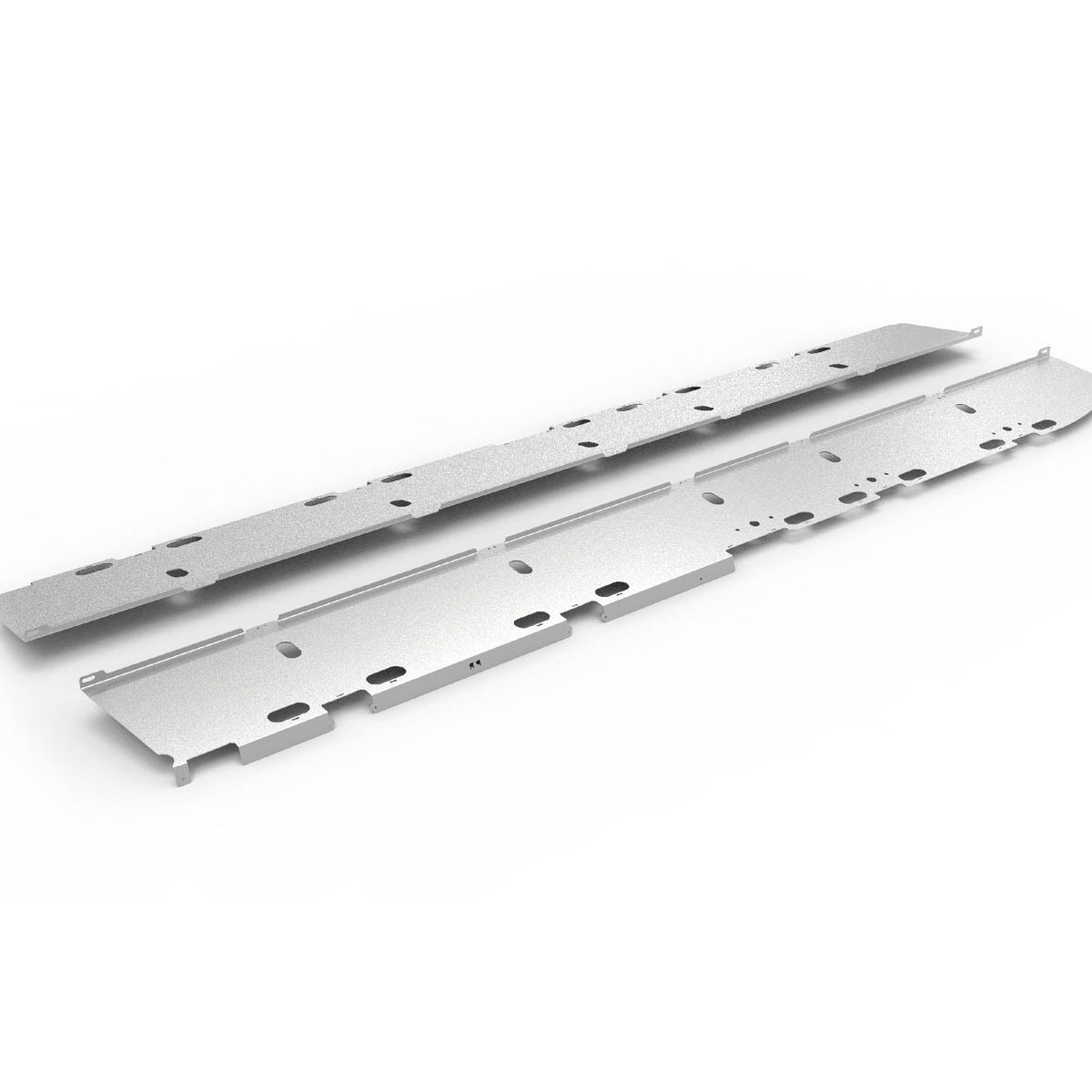

The Sprinter Van Ceiling Structure Kit fits 2019 and newer Mercedes-Benz Sprinter 1500, 2500, 3500, and 3500XD vans in the High Roof configuration only. Two size variants are available: one for the 144-inch wheelbase (SP1014B) and one for the 170-inch wheelbase (SP1015B). The kit does not fit low-roof or medium-roof Sprinter vans or pre-2019 model years.

Does the kit include insulation, upper cabinets, or shelves?

The Sprinter Van Ceiling Structure Kit includes the aluminum ceiling panels and stainless steel brackets. Insulation, upper cabinets, and shelves are not included. The panel design creates dedicated pockets sized to accept insulation and a flat mounting surface compatible with Flatline Van Co upper cabinets and shelves, which are sold separately.

How does the ceiling structure kit attach to the van?

The Ceiling Structure Kit uses stainless steel brackets to connect the 2mm aluminum panels to the Sprinter's existing factory ceiling structure. The built-in flange at the wall-to-ceiling junction seats against the van's interior wall panels to hold alignment without requiring furring strips or separate leveling hardware.

Can electrical wiring be routed through or along the kit?

Yes. Each panel in the Sprinter Van Ceiling Structure Kit is engineered with a slight drop along the outside edge that forms a dedicated wire channel running the full length of the ceiling. Multiple pass-throughs are built into this channel, allowing wiring to be routed cleanly from one end of the van to the other without exposed conduit or separate wire management hardware.

What material is the ceiling structure kit made from?

The Sprinter Van Ceiling Structure Kit panels are constructed from 2mm aluminum. The brackets that secure the panels to the van's factory structure are stainless steel. Both materials are chosen for dimensional stability and resistance to the humidity and temperature swings common in van interiors during camping and daily use.
