Flatline Van Co Sprinter Van Bed Brackets

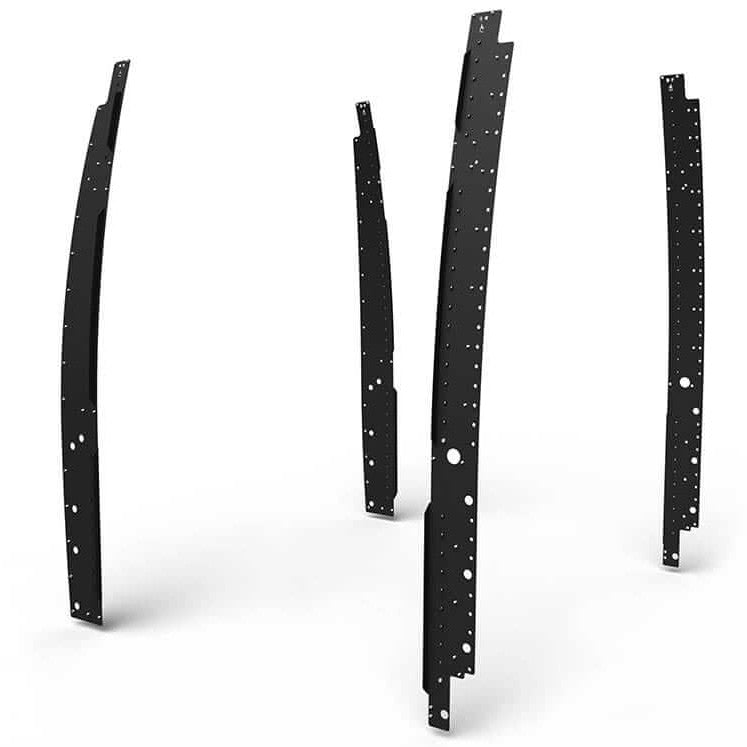

The Flatline Van Co Sprinter Van Bed Brackets are 14GA powder-coated steel structural brackets that mount directly to the internal sheet metal of a 2019+ Mercedes-Benz Sprinter 1500, 2500, 3500, or 3500XD van to provide a solid foundation for a Flatline Van Co Sprinter Van Bed System. Two size variants are available: 144" High Roof and 170".

Structural Support Where the Wall Meets the Frame

The Sprinter Van Bed Brackets attach to the van's internal sheet metal structure rather than surface-mounting to wall panels, distributing the load of the bed system into the vehicle's own framing. That connection point lets the bed rails sit higher than the window cavity, creating more usable under-bed storage. The brackets themselves sit hidden behind finished wall panels for a clean interior appearance.

A Foundation for Floor-to-Ceiling Mounting

The brackets are designed to work with Flatline Van Co Sprinter Bed Bracket L-track Kits, which add vertical L-track runs from floor to ceiling. With L-track in place, bed height becomes adjustable and the same mounting points can carry additional gear. That flexibility is difficult to retrofit into a build that skipped the bracket layer. Other brands of L-track may fit the brackets, but Flatline Van Co recommends their own L-track Kits for confirmed fitment.

DIY-Friendly Installation

Installation of the Sprinter Van Bed Brackets can be completed without professional help in a couple of hours using basic hand tools. The kit includes 1/4-20 Pem nuts. Flatline Van Co provides separate installation guides for the 144" High Roof (SP0310B) and 170" (SP0311B) variants.

Features

• 14GA steel construction: heavy-gauge sheet steel for structural bed support
• Powder coated black finish: durable protective coating for interior use
• 1/4-20 Pem nuts included: hardware for mounting is in the box
• Hidden installation: brackets sit behind finished wall panels for a polished look
• L-track compatible: designed to integrate with Flatline Van Co Sprinter Bed Bracket L-track Kits for floor-to-ceiling mounting options

Specifications

WARNING: This product can expose you to chemicals including lead and lead compounds, DEHP, and bisphenol A (BPA), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Who This Is For and Isn't

These brackets suit Sprinter van builders on 2019+ Mercedes-Benz Sprinter 1500, 2500, 3500, or 3500XD platforms who are installing a Flatline Van Co Sprinter Van Bed System and want to mount the bed above the window cavity, create under-bed gear storage, or retain the option to add L-track for adjustable floor-to-ceiling mounting later. They are compatible with Flarespace "Space Saver" trim rings.

These brackets do not fit Sprinter passenger vans. They are not compatible with Flarespace "Original" trim rings. The Flatline Van Co Sprinter Van Bed System can be installed without these brackets. They are an optional structural upgrade, not a required component. L-track kits and the bed system itself are sold separately.

Common Questions

Which Sprinter vans do these brackets fit?

The Sprinter Van Bed Brackets fit 2019 and newer Mercedes-Benz Sprinter 1500, 2500, 3500, and 3500XD vans. The 144" High Roof variant (SP0310B) is confirmed for that wheelbase and roof height. The 170" variant (SP0311B) fits the 170" wheelbase. These brackets do not fit Sprinter passenger vans.

Do I need these brackets to install a Flatline Van Co bed system?

The Flatline Van Co Sprinter Van Bed System can be installed without the Sprinter Van Bed Brackets. The brackets are an optional structural upgrade for builders who want to mount the bed higher than the window cavity, create storage space underneath, or add L-track for adjustable floor-to-ceiling mounting options in the future.

What tools are required for installation?

The Sprinter Van Bed Brackets can be installed with basic hand tools in a couple of hours. Flatline Van Co provides separate installation guides for the 144" High Roof (SP0310B) and 170" (SP0311B) variants to walk through the process.

What hardware is included with the brackets?

Each Sprinter Van Bed Bracket kit includes 1/4-20 Pem nuts. The Flatline Van Co Sprinter Van Bed System and Sprinter Bed Bracket L-track Kits are sold separately and are not included.

Can I use other brands of L-track with these brackets?

Other brands of L-track may be physically compatible with the Sprinter Van Bed Brackets, but Flatline Van Co recommends using their own Sprinter Bed Bracket L-track Kits for confirmed fitment. Using third-party L-track is at the builder's discretion.

Will these brackets work with Flarespace trim rings?

The Sprinter Van Bed Brackets are compatible with Flarespace "Space Saver" trim rings. They are not compatible with Flarespace "Original" trim rings.
