DV8 Offroad Universal MOLLE Panels

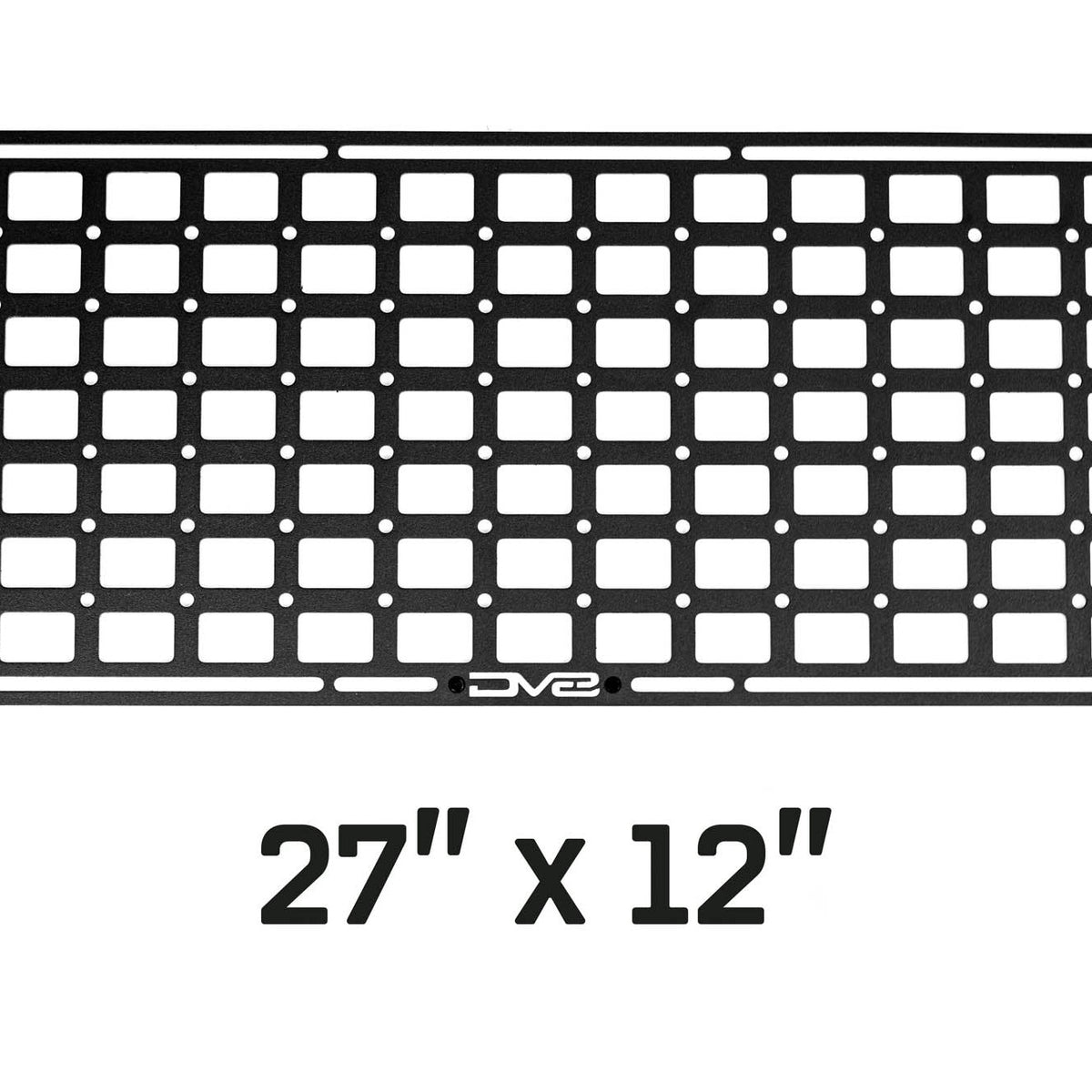

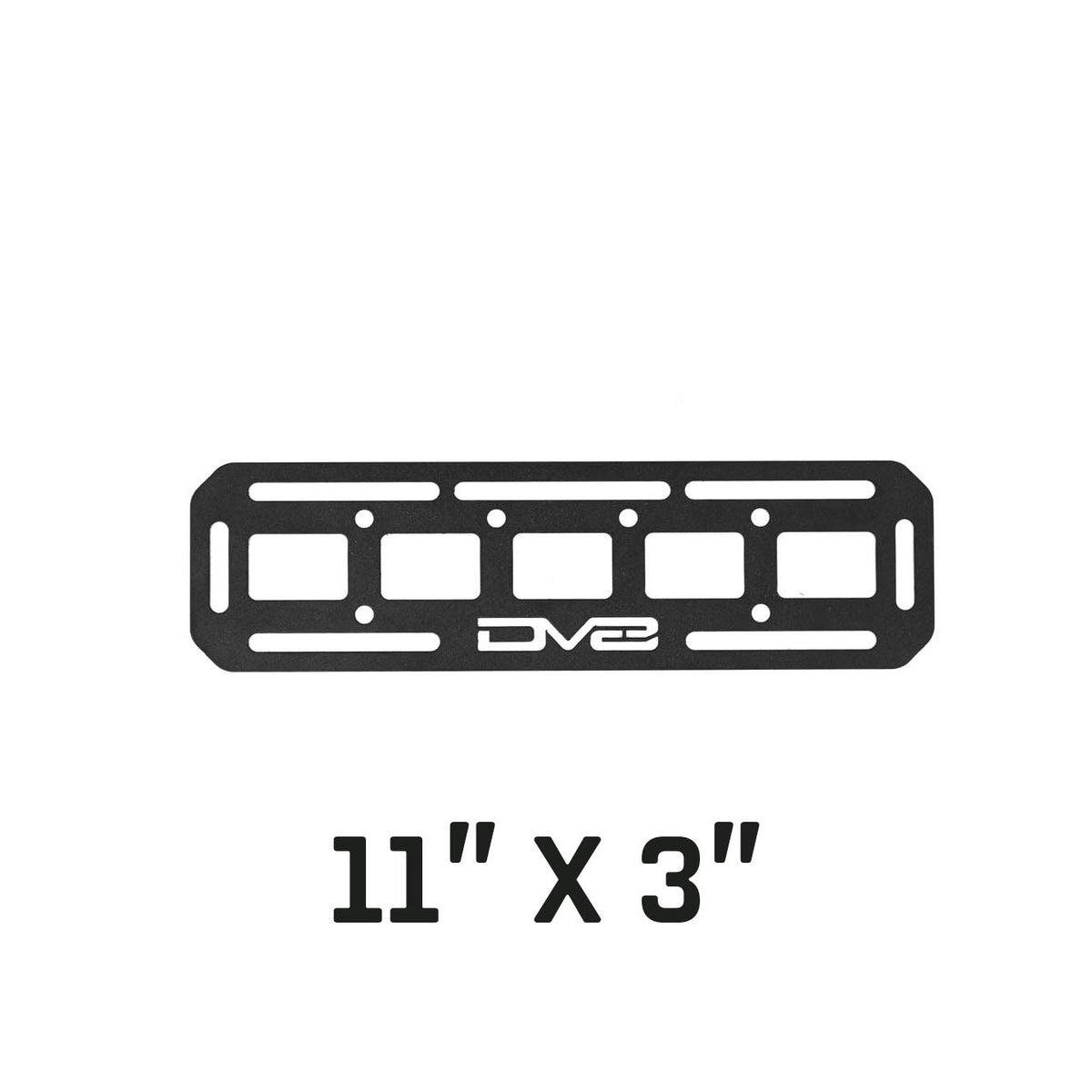

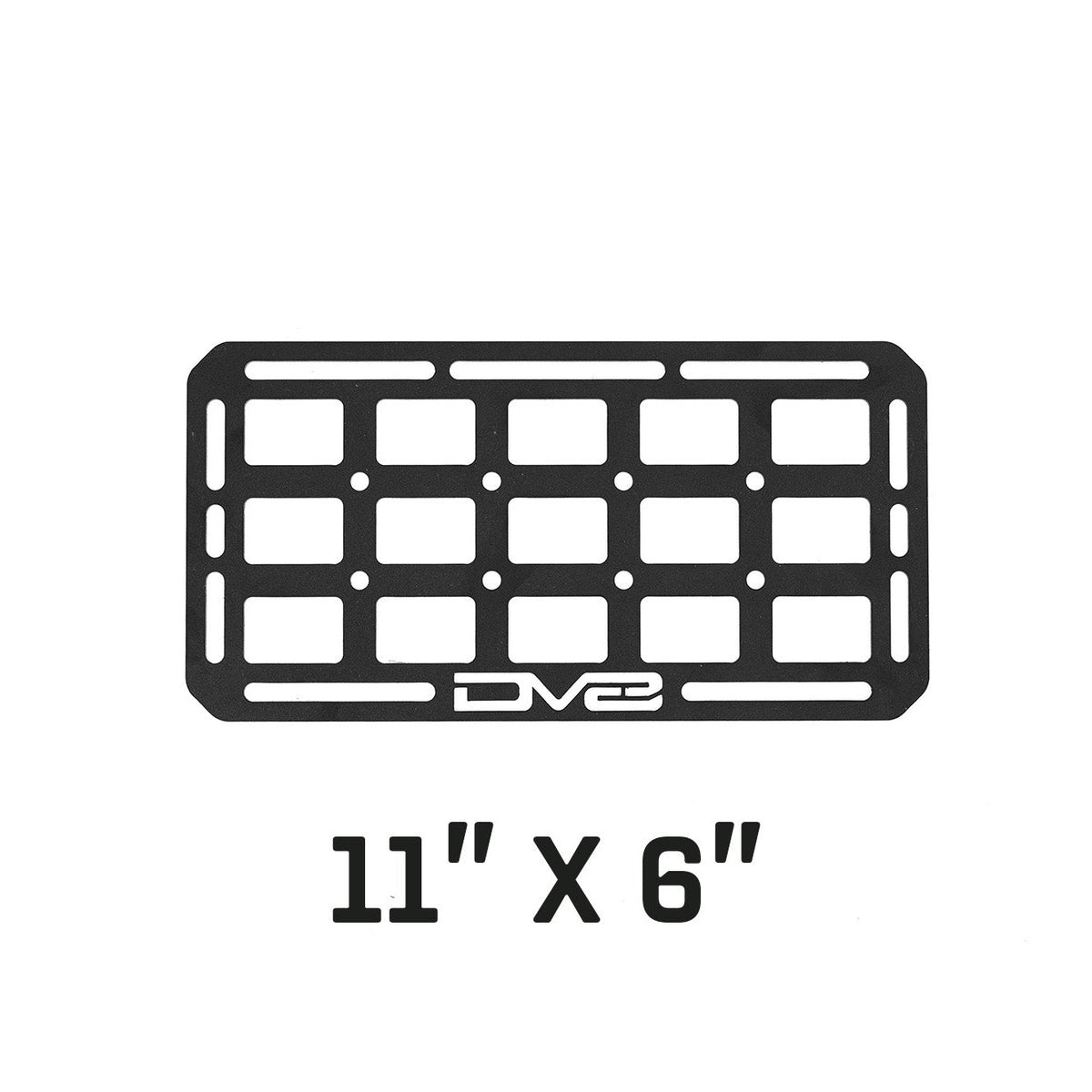

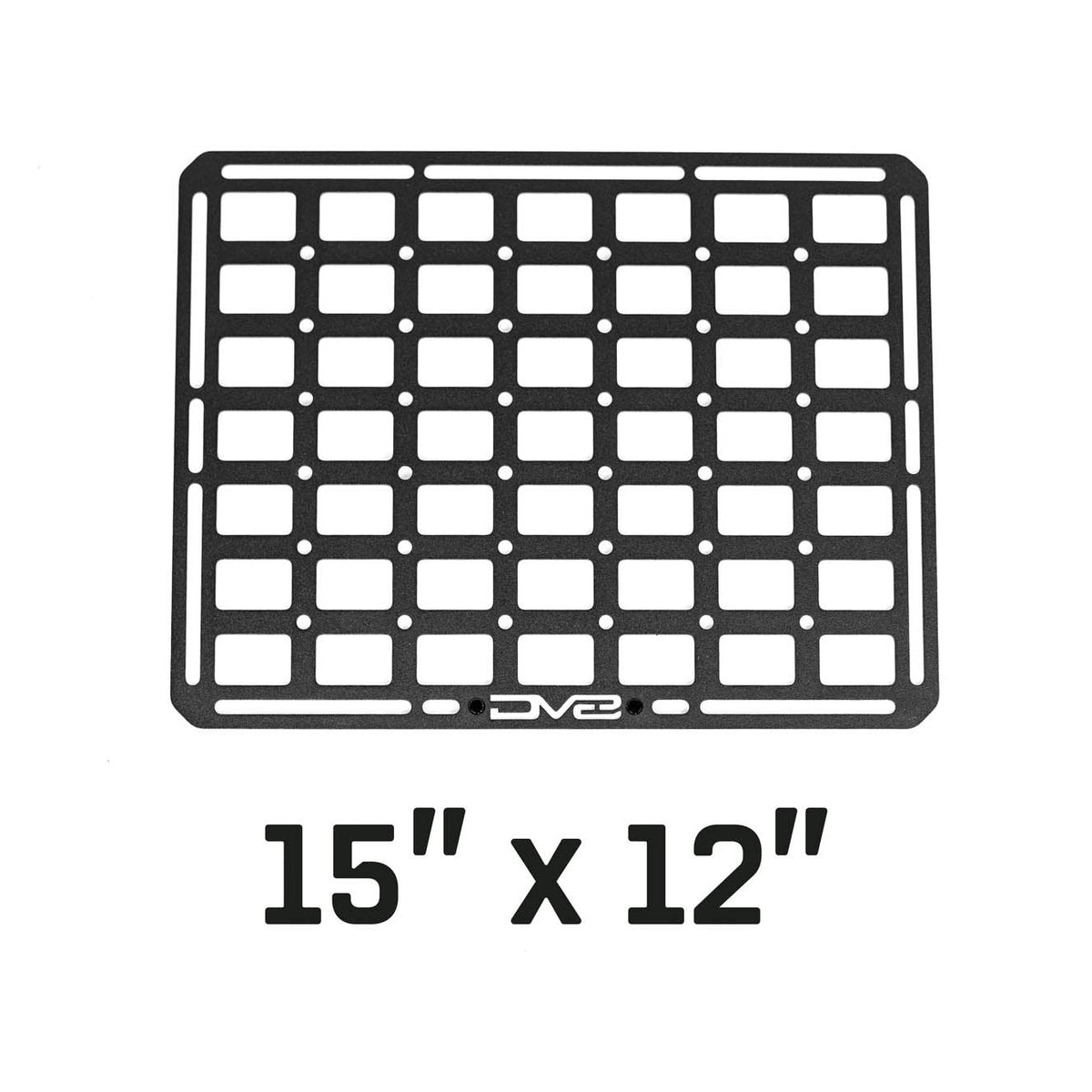

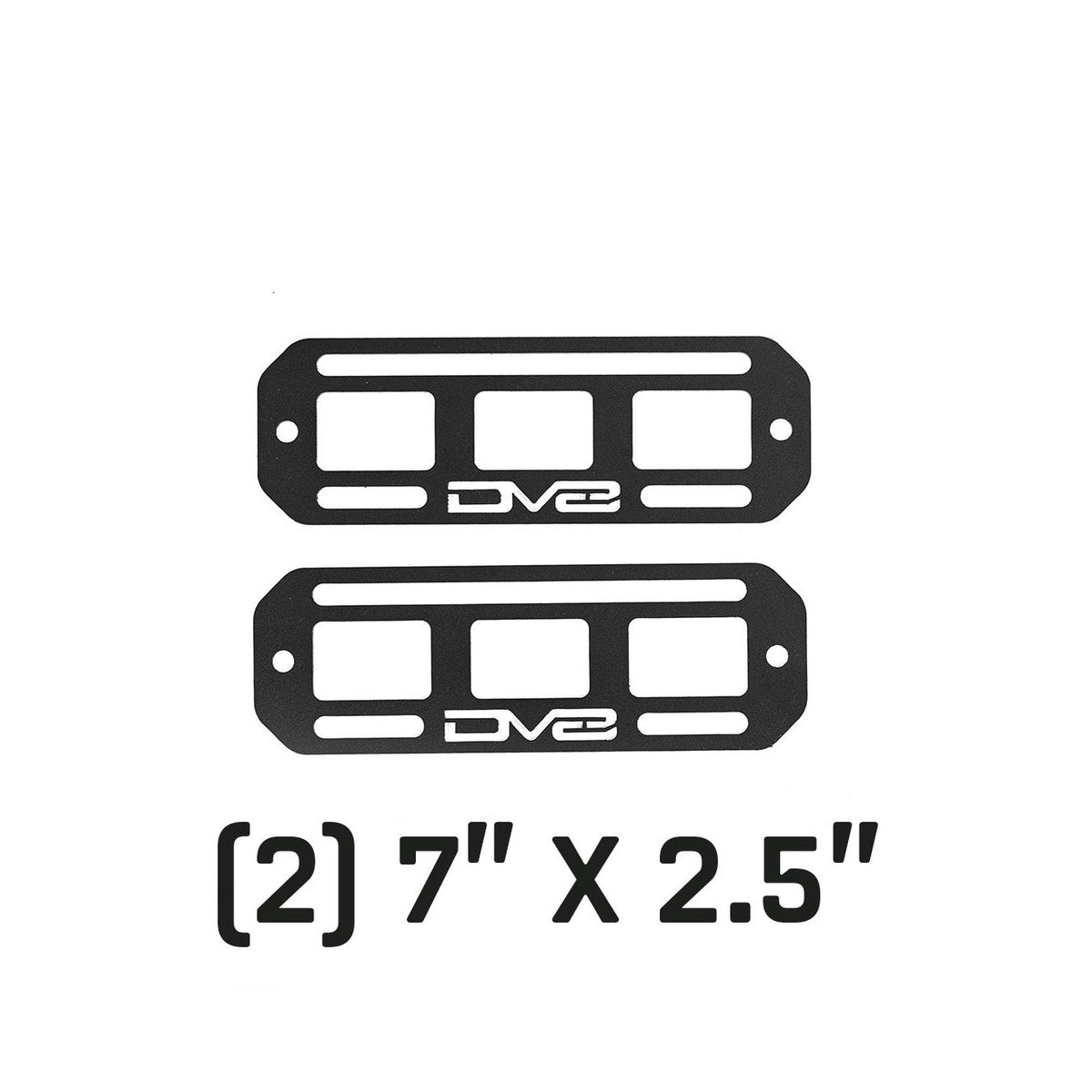

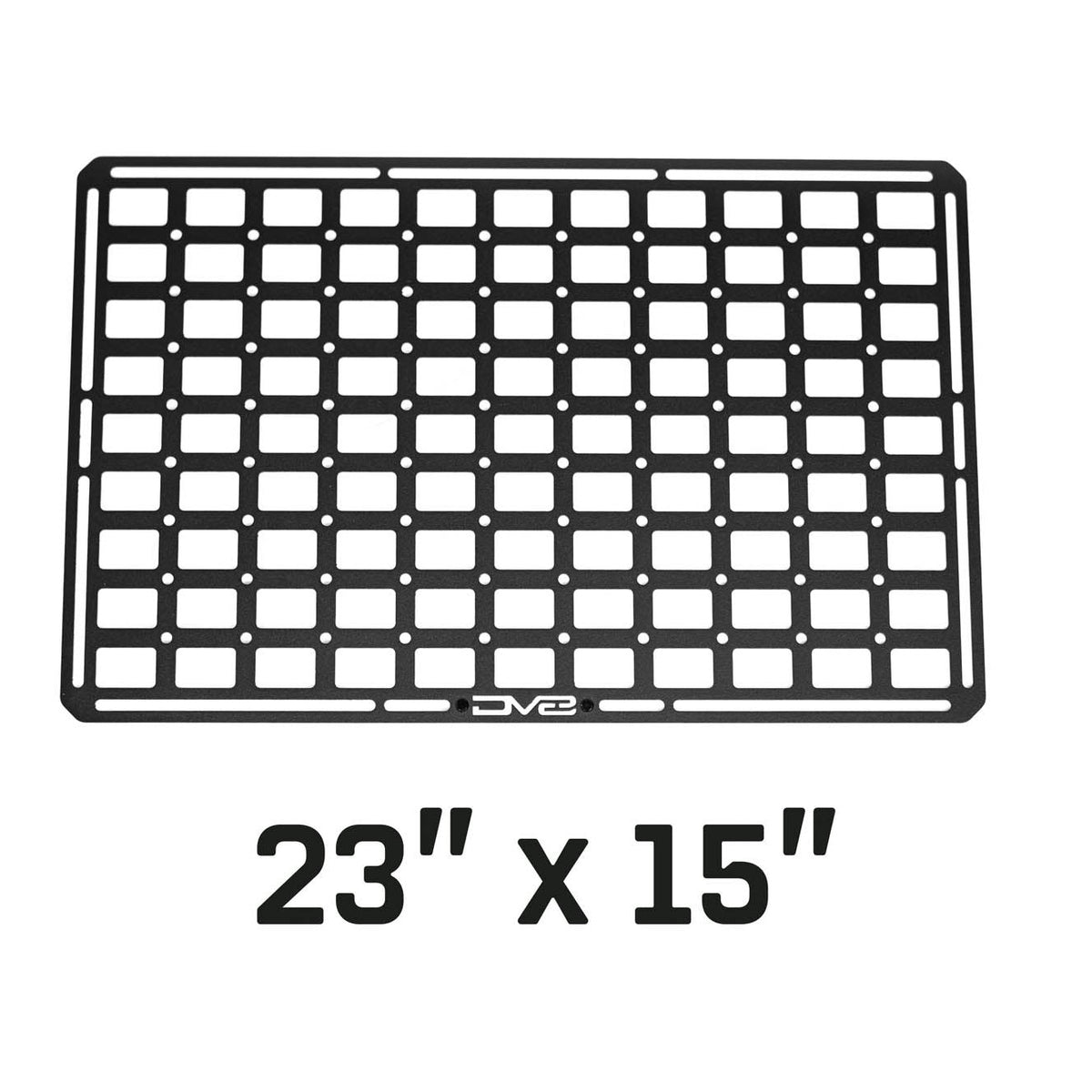

DV8 Offroad Universal MOLLE Panels are rigid 3mm steel gear-organization panels finished in a micro-texture black powder coat, available in six sizes from a 7"×2.5" pair up to a single 27"×12" panel. Each panel mounts to vehicles, garages, workshops, or any other surface up to 5mm thick using the included nutserts. Drilling is required. Six size options let buyers configure a single panel or a multi-panel layout to match their storage needs.

One Material, Any Location

Each DV8 Offroad Universal MOLLE Panel is cut from 3mm steel and finished in a micro-texture black powder coat. That combination resists the flex and rattle that thinner sheet-metal panels develop over time on rough roads, and the textured finish holds up to contact with tools and recovery gear without showing wear the way a gloss coat would. Because the panels mount via nutserts rather than welded studs, they can go on plastic interior trim, metal bulkheads, or wood shop walls, provided the material is 5mm or thinner and a drill can reach.

MOLLE Cut-Outs and Extra Mounting Holes

The 1.5"×1" MOLLE cut-outs on each panel accept standard MOLLE-compatible pouches, straps, and tool mounts, the same attachment system used across most aftermarket overlanding storage accessories. Evenly spaced 1/4" mounting holes run across the panel face alongside the MOLLE slots, so accessories that bolt directly rather than weave through MOLLE webbing have a home too. Included spacers offset the panel from its mounting surface, leaving clearance behind the panel for strap ends and hardware to seat properly.

Paintable Aluminum Logo Backing Plate

Each panel ships with a paintable aluminum logo backing plate. Because aluminum takes rattle-can and brush-applied paint well, the backing plate can be color-matched to an interior or left in its natural state. This is a detail-level customization option, not a structural component; the steel panel itself carries the load.

Features

• 3mm steel construction: rigid panel resists flex under load
• 1.5"×1" MOLLE cut-outs: compatible with standard MOLLE pouches, straps, and tool mounts
• 1/4" mounting holes: evenly spaced across the panel for bolt-on accessories
• Included hardware: nutserts and spacers included; nutserts suit surfaces up to 5mm thick
• Paintable aluminum logo backing plate: allows color customization
• Micro-texture black powder coat finish: durable, low-glare surface

Specifications

Who This Is For and Isn't

DV8 Offroad Universal MOLLE Panels suit overlanders, off-road drivers, and workshop users who want a rigid, permanent gear-organization surface they can populate with standard MOLLE-compatible pouches, tool mounts, or bolt-on accessories. Any location where drilling is feasible and the mounting surface is 5mm or thinner is a candidate: vehicle interiors, cargo areas, truck beds, garage walls, and similar surfaces.

These panels are not a fit for surfaces thicker than 5mm when using the included nutserts, or for any installation where drilling into the mounting surface is not possible or permitted. No load rating is stated for these panels; buyers who need a rated capacity for a specific application should confirm suitability before purchasing. These panels do not include MOLLE pouches, tool mounts, or other accessories; those are sold separately.

Common Questions

What hardware is included with the DV8 Offroad Universal MOLLE Panels?

Each DV8 Offroad Universal MOLLE Panel ships with nutserts and spacers. The nutserts are the primary fasteners that anchor the panel to the mounting surface; the spacers create an offset between the panel and the surface so strap ends and hardware behind the panel have clearance. No MOLLE pouches, tool mounts, or other accessories are included.

What surface thickness do the included nutserts support?

The included nutserts are designed for mounting surfaces up to 5mm thick; plastic interior trim, sheet metal, and similar materials fall within that range. Surfaces thicker than 5mm are not compatible with the provided hardware; a different fastening method would be needed for those applications.

Does installing a DV8 Offroad Universal MOLLE Panel require drilling?

Drilling is required for all installations. The panels mount via nutserts that are set into drilled holes in the mounting surface. DV8 Offroad estimates installation at approximately 60 minutes, though actual time will vary depending on the installer's experience and the complexity of the mounting location.

Are these panels compatible with standard MOLLE accessories?

The DV8 Offroad Universal MOLLE Panels use 1.5"×1" MOLLE cut-outs, which are the standard slot dimensions used across most MOLLE-compatible pouches, straps, and tool mounts. Accessories that use the standard MOLLE weave attachment method should be compatible; buyers should verify the slot dimensions against any accessory's stated requirements before purchasing.

Can the panels be painted or finished in a different color?

The steel panel itself ships in a micro-texture black powder coat that is not intended to be repainted. The included aluminum logo backing plate is described as paintable and can be color-matched or finished to suit a build. Buyers who want a full custom color on the panel face would need to strip and refinish the powder coat themselves.
