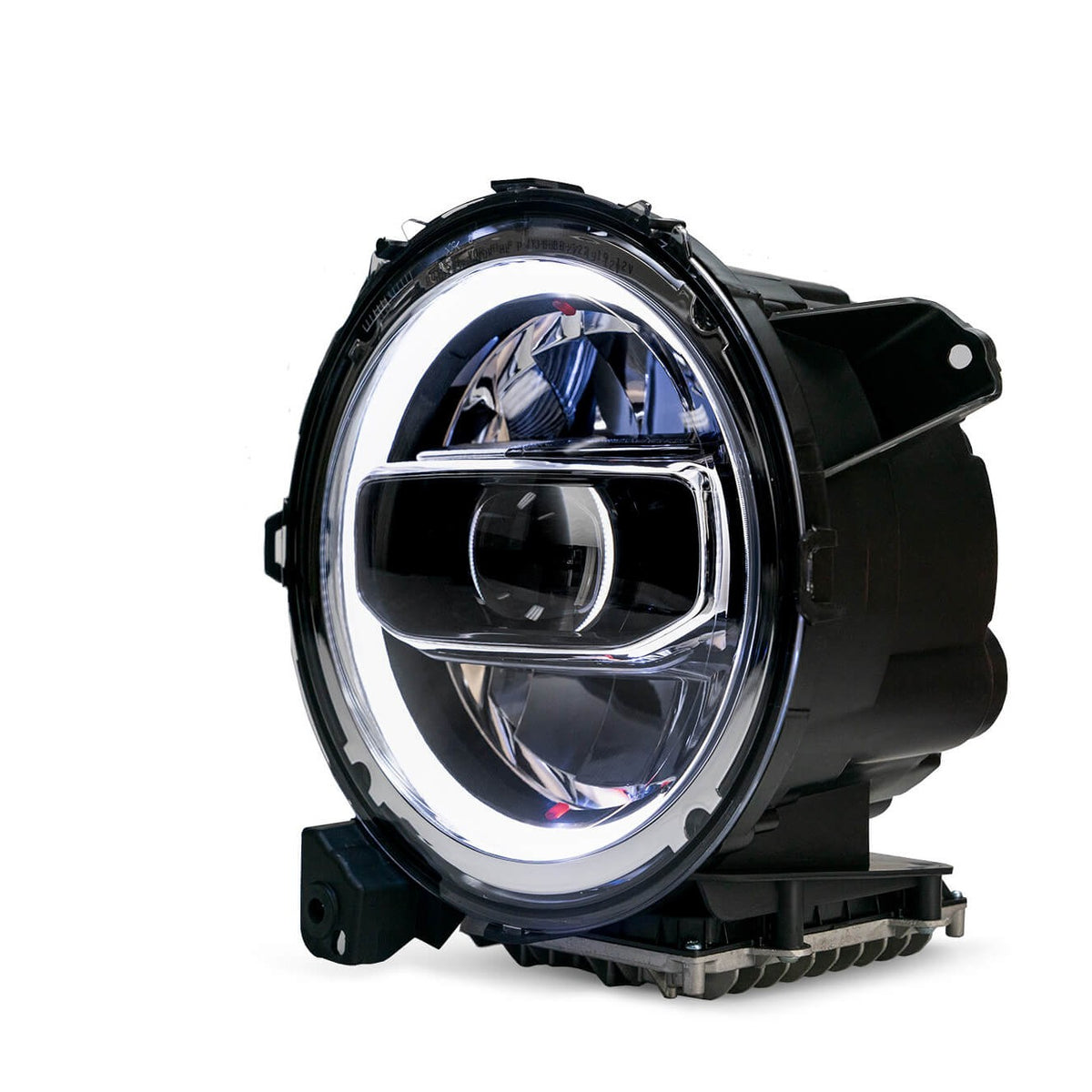

DV8 Offroad LED Headlights for Jeep Wrangler JL and Gladiator JT, Chrome

The DV8 Offroad HLCJL-01 LED headlights are direct-fit replacements for factory halogen headlights on 2018–2026 Jeep Wrangler JL, 2021–2026 Wrangler 4Xe, 2021–2026 Rubicon 392, and 2020–2026 Gladiator JT. The pair draws 90W total, produces a 6000K white LED projector beam, and adds white and amber halo rings, all in a chrome bezel housing rated IP67 for dust and water resistance. Light mounts are included, and installation is plug-and-play using the factory wiring harness.

LED Projector Output Over Factory Halogen

The HLCJL-01 headlights use an LED projector beam tuned to 6000K color temperature, which produces a crisp, white light pattern compared to the warmer, lower-output beam of a factory halogen bulb. For Wrangler JL and Gladiator JT owners whose vehicles left the factory with halogen headlights, this is a direct upgrade that uses the existing mounting points and wiring, with no adapter harness, no cutting, and no splicing required. The 90W draw for the pair keeps the load within the factory electrical system's design range.

White and Amber Halo Rings, Each Independently Wired

The white halo ring integrates with the vehicle's existing daytime running light circuit. No additional wiring is required to activate it; the white halo functions as soon as the headlight is connected to the factory plug. The amber halo ring has its own dedicated wiring, which allows it to be connected separately to the turn signal circuit. This means the amber halo can serve as a sequential or static turn indicator rather than being tied to the DRL function, giving the front end a distinct look without requiring a controller or relay kit beyond what the factory harness already provides.

IP67-Rated Housing Built for Off-Road Conditions

The HLCJL-01 housing is constructed from die-cast aluminum and plastic injection components, with an IP67 ingress protection rating, meaning the housing is fully dust-tight and sealed against water immersion up to one meter. The rated operating temperature range runs from -40°F to approximately 185°F, covering the thermal extremes a Wrangler or Gladiator encounters from high-desert summer heat to winter trail use. The LED array is rated for 50,000 hours of service life, which substantially exceeds the replacement interval of a halogen bulb.

Features

• Direct-fit replacement: bolt-in fitment using factory mounting points and OEM wiring plug on JL and JT models equipped with halogen headlights
• LED projector beam: 6000K color temperature, 90W total draw for the pair
• White halo ring: integrates with factory daytime running light circuit, no additional wiring required
• Amber halo ring: independently wired for connection to the turn signal circuit
• IP67-rated housing: die-cast aluminum and plastic injection construction, operating range -40°F to ~185°F
• 50,000-hour LED lifespan: light mounts included

Specifications

WARNING: This product can expose you to chemicals including lead and lead compounds, DEHP and bisphenol A (BPA) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Who This Is For and Isn't

These headlights suit 2018–2026 Jeep Wrangler JL, 2021–2026 Wrangler 4Xe, 2021–2026 Rubicon 392, and 2020–2026 Gladiator JT owners whose vehicles were built with factory halogen headlights and who want a direct-fit LED upgrade with integrated white and amber halo rings. The plug-and-play harness connection makes them appropriate for owners comfortable with a basic headlight swap.

These headlights do not fit the Jeep Wrangler JK or any Wrangler or Gladiator model year outside the stated fitment range. They are not designed for vehicles that left the factory with OEM LED headlights. The chrome bezel is the only finish in this listing; the black bezel version is a separate product.

Common Questions

Which Jeep models and years do the HLCJL-01 headlights fit?

The DV8 Offroad HLCJL-01 LED headlights are a direct fit for the 2018–2026 Jeep Wrangler JL, 2021–2026 Jeep Wrangler 4Xe, 2021–2026 Rubicon 392, and the 2020–2026 Jeep Gladiator JT. They are not compatible with the Wrangler JK or model years outside these ranges.

Do these headlights work on Wranglers that already have factory LED headlights?

The HLCJL-01 headlights are designed as replacements for factory halogen headlights on the Wrangler JL and Gladiator JT. They are not intended for vehicles that came equipped with OEM LED headlights from the factory.

Does the amber halo require additional wiring to connect to the turn signals?

The amber halo ring on the HLCJL-01 has its own dedicated wiring, separate from the white halo. This allows the amber halo to be wired independently to the vehicle's turn signal circuit. The white halo integrates with the factory daytime running light plug and requires no additional wiring.

What is the IP rating, and what does it mean for off-road use?

The HLCJL-01 headlights carry an IP67 ingress protection rating, meaning the housing is fully dust-tight and sealed against water immersion. The operating temperature range is -40°F to approximately 185°F, making these headlights suitable for the thermal and moisture conditions typical of off-road and overlanding use.

Are light mounts included, and what tools are needed for installation?

Light mounts are included with the HLCJL-01 headlights. Installation uses the factory wiring plug and existing mounting points, making it a plug-and-play swap that does not require cutting or splicing the factory harness.

What is the expected service life of these LED headlights?

The LED array in the HLCJL-01 headlights is rated for 50,000 hours of service life, which substantially exceeds the typical replacement interval of a factory halogen bulb.
