DV8 Offroad Elite Series 20-Inch Single-Row LED Light Bar

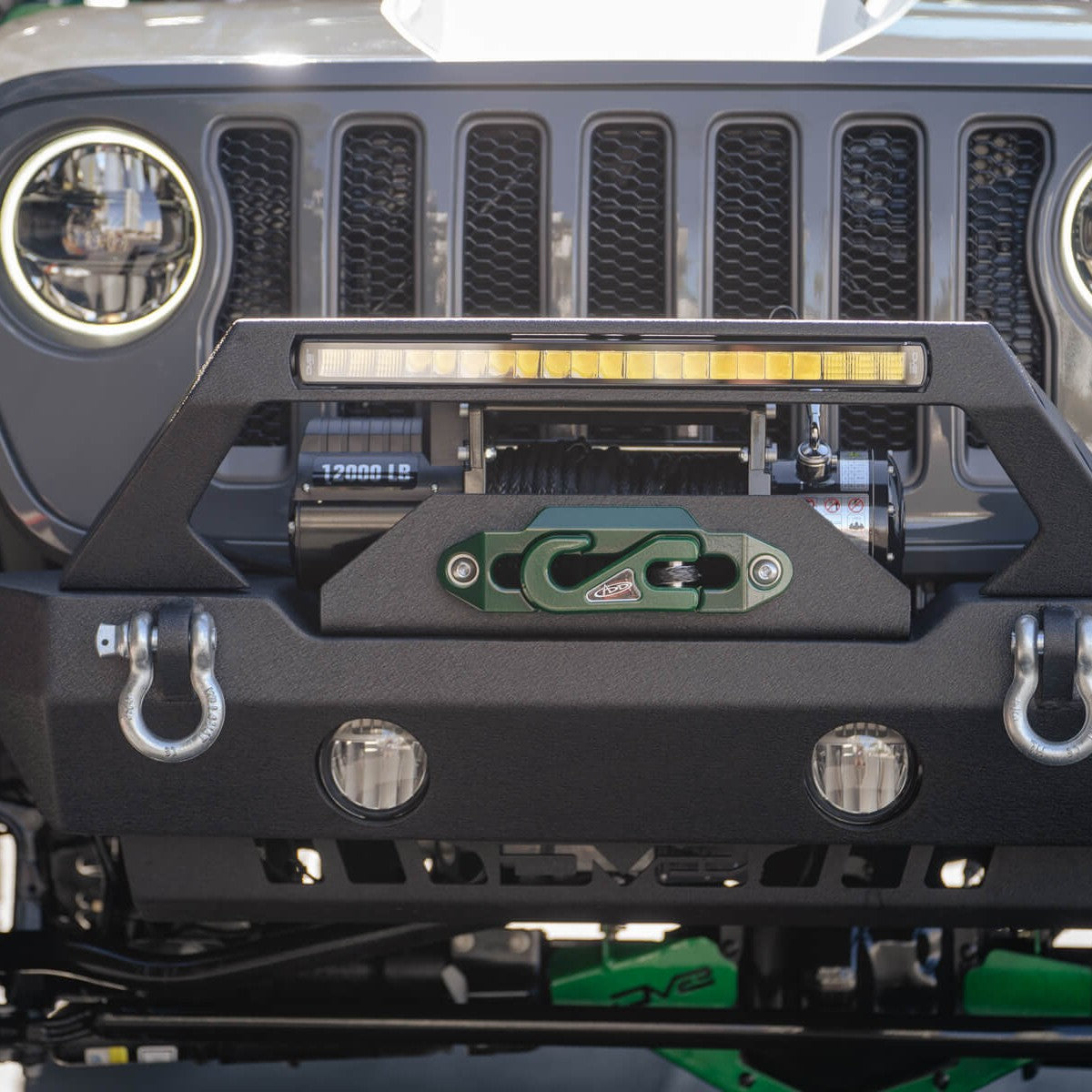

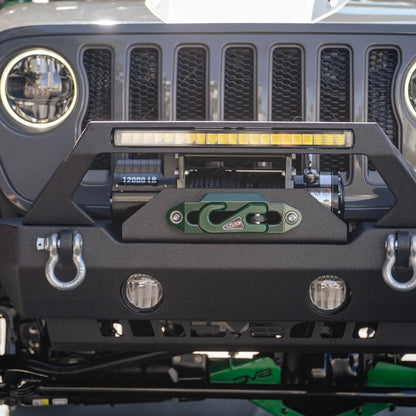

The DV8 Offroad Elite Series 20-Inch Single-Row LED Light Bar is a universal-mount auxiliary light rated at 8,800 lumens and 105 watts, built around OSRAM LEDs with a 50,000-hour service life. The bezel-less, IP68-rated housing fits bumper, hood, and roof-bar positions on overland and off-road vehicles. It is available as a single bar or a matched pair.

OSRAM Output Built for the Long Haul

The Elite Series light bar draws on OSRAM LEDs to deliver 8,800 lumens from a 105-watt draw. OSRAM LEDs are rated at 50,000 hours of use, which translates to years of regular trail use before output degrades. For a buyer who runs the same rig season after season, that rated lifespan means fewer replacements and consistent light output on the trails where reliability matters most.

IP68 Sealing and a Lens Built to Take Abuse

An IP68 rating means the light bar is sealed against continuous water submersion as well as dust, dirt, and sand, conditions that are routine on muddy forest roads or desert washes. The UV-resistant lens is shatterproof and shaped to shed ice and water rather than let them accumulate. Buyers who run in wet climates or wash their rigs frequently can mount this bar and leave it without pulling it for storage.

Bezel-Less Housing with Active Heat Management

The housing omits the traditional bezel surround, keeping the profile at 1.5 inches wide and 2.0 inches tall. That slim footprint is a real advantage when fitting the bar behind a bumper cutout or under a low hood line. Integrated heat fins draw heat away from the LED array, protecting output and longevity during extended runs when the bar stays on for hours at a time.

Features

• OSRAM LEDs, 50,000-hour rated life: consistent output over extended service
• 8,800 lumens / 105 watts: flood/spot combo beam pattern
• IP68 rated: sealed against water, dust, dirt, and sand
• Shatterproof UV-resistant lens: sheds ice and water, resists UV degradation
• Bezel-less housing with heat fins: low-profile fit and thermal management
• 1-year limited warranty

Specifications

WARNING: This product can expose you to chemicals including lead and lead compounds, DEHP, and bisphenol A (BPA), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Who This Is For and Isn't

The DV8 Offroad Elite Series 20-Inch LED Light Bar suits overlanders and off-road drivers who need high-output auxiliary lighting for bumper, hood, or roof-bar mounting on any vehicle platform. Buyers running technical trails at night or supplementing weak factory lighting will find the 8,800-lumen output and IP68 sealing well matched to those conditions. The pair option suits builds where two bars replace or anchor the primary forward lighting.

A wiring harness is not included and must be purchased separately before the light bar can be wired to the vehicle. No mounting bracket is included or specified; confirm bracket compatibility for your specific mount position before ordering. This is a universal-fit product with no vehicle-specific bracket or plug-and-play harness included.

Common Questions

Is the beam pattern flood, spot, or a combination?

The DV8 Offroad Elite Series 20-Inch LED Light Bar uses a flood/spot combo beam pattern. The indirect reflector is designed to focus light direction while reducing glare and hotspots, giving a spread useful for both close-range peripheral coverage and mid-range trail illumination.

What does the IP68 rating mean for trail use?

IP68 is the highest common ingress-protection rating for solid particles and water. For trail use, it means the Elite Series light bar is sealed against continuous water submersion as well as dust, dirt, and sand, conditions common on muddy, sandy, or stream-crossing routes.

Does a wiring harness come included?

No. A wiring harness is sold separately and is required to connect the Elite Series LED light bar to the vehicle's electrical system. TerrainVault carries compatible DV8 Offroad light wiring harnesses; select one when adding this bar to your build.

Should I buy the single bar or the pair?

A single Elite Series 20-inch bar works well as a supplemental light alongside existing driving lights or as a dedicated bumper fill light. The pair option is suited to builds where two bars serve as the primary forward trail lighting, delivering a combined 17,600 lumens across the full forward arc.

What is the warranty on this light bar?

The DV8 Offroad Elite Series LED Light Bar carries a 1-year limited warranty covering defects in workmanship and materials from the date of purchase. TerrainVault's own return and support policies apply to orders placed through TerrainVault.
