DV8 Offroad 60 AMP and 4-Way Wire Harness Bundle for LED Lights

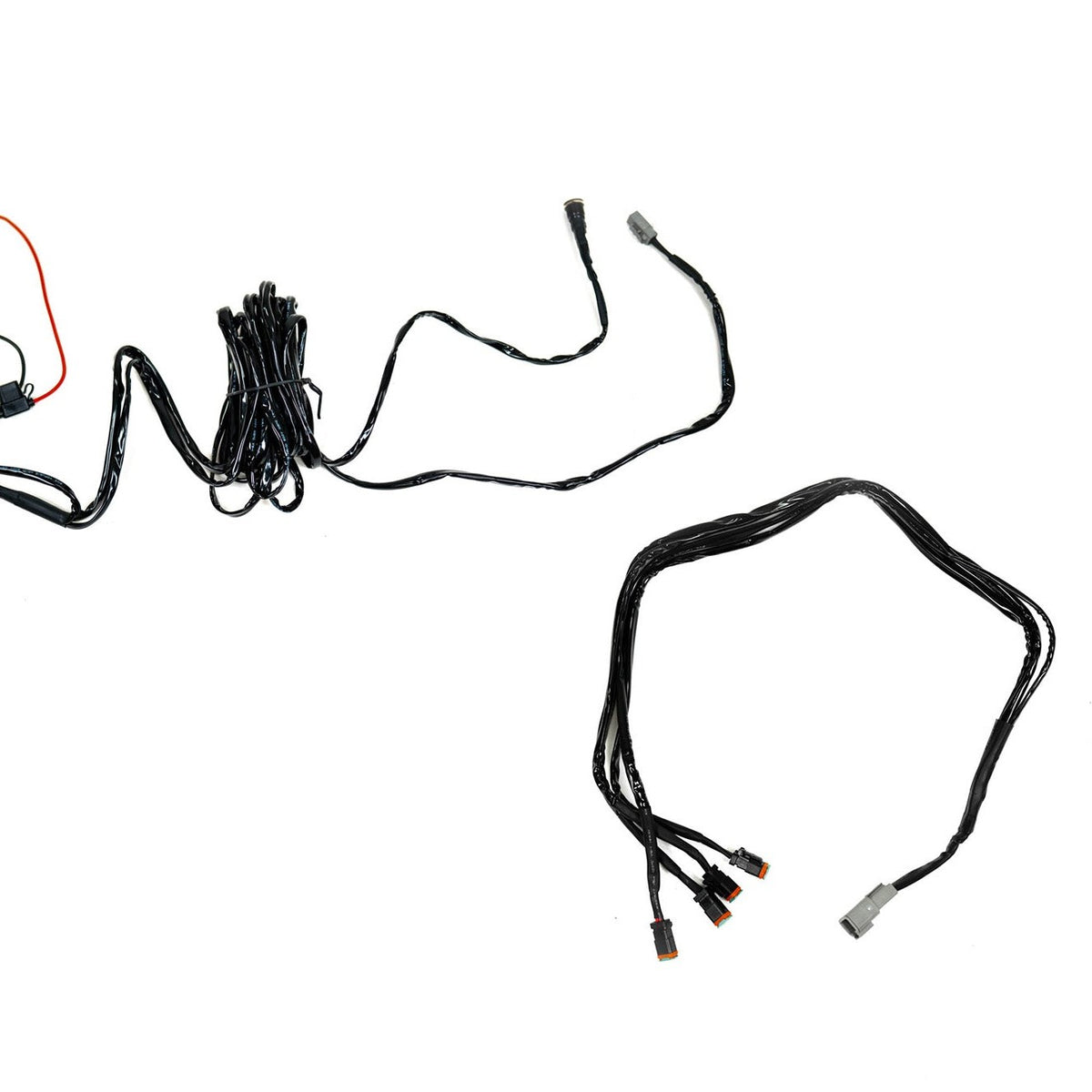

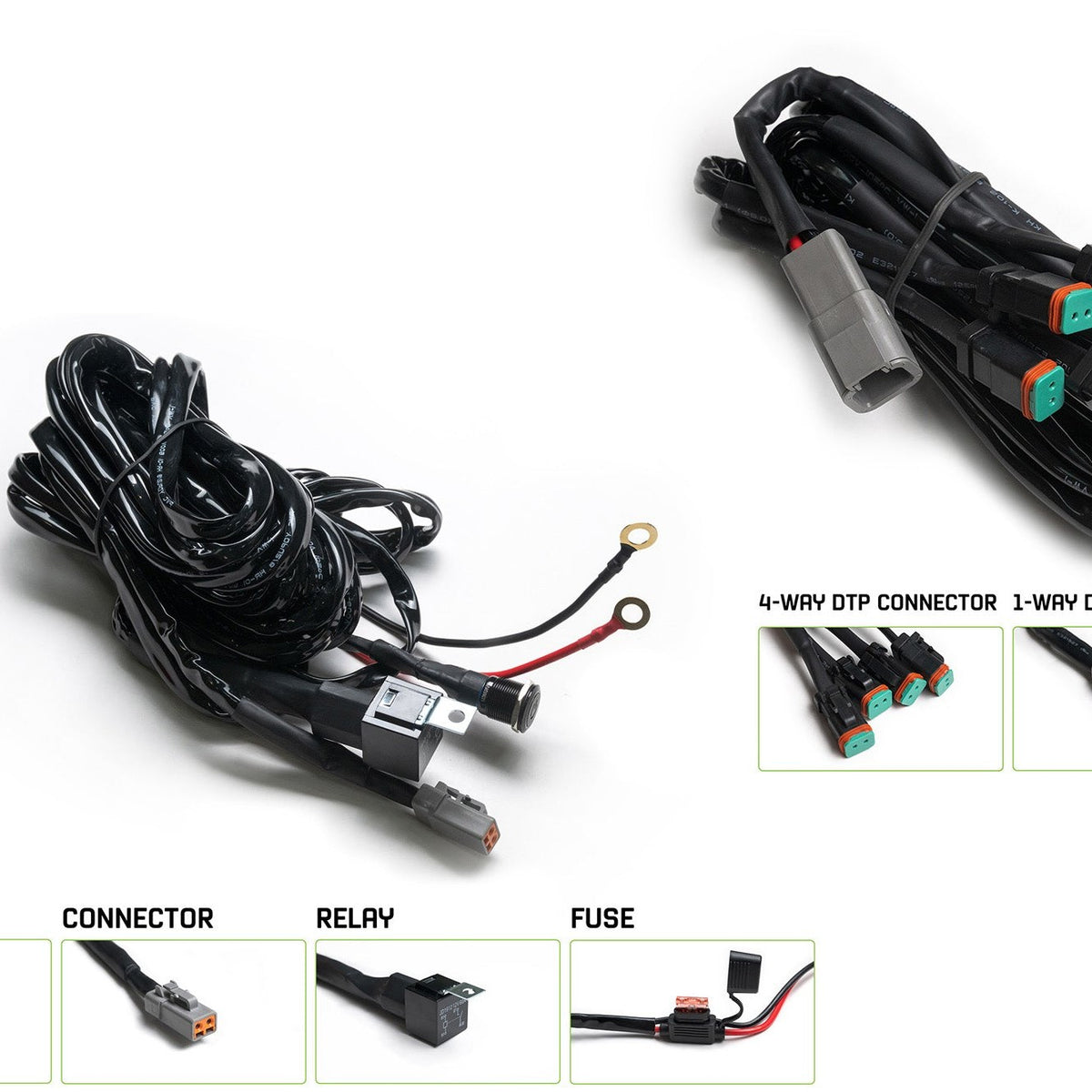

The DV8 Offroad 4-Way Wire Harness and 60 AMP Switch Wire Harness Bundle combines two harnesses (a 60 AMP switched harness with DTP connector, UNWH-01, and a 4-Way 1-DTP to 4-DTP plug harness, UNWH-02) into a single purchase that gives DV8 Elite pod light and light bar owners everything needed to wire up to four lights or a bar-and-pod combination from one switched circuit. This bundle is universal and not specific to any vehicle make or model.

One Circuit, Multiple Lights

The 60 AMP switch harness handles the power draw of running multiple DV8 Elite lights simultaneously, routing current through a single switched connection so all lights in the configuration turn on and off together. For a buyer adding two or four pod lights to a bumper or roof rack, that means one switch controls the entire array rather than requiring separate wiring runs for each fixture.

DTP Connector System Simplifies the Split

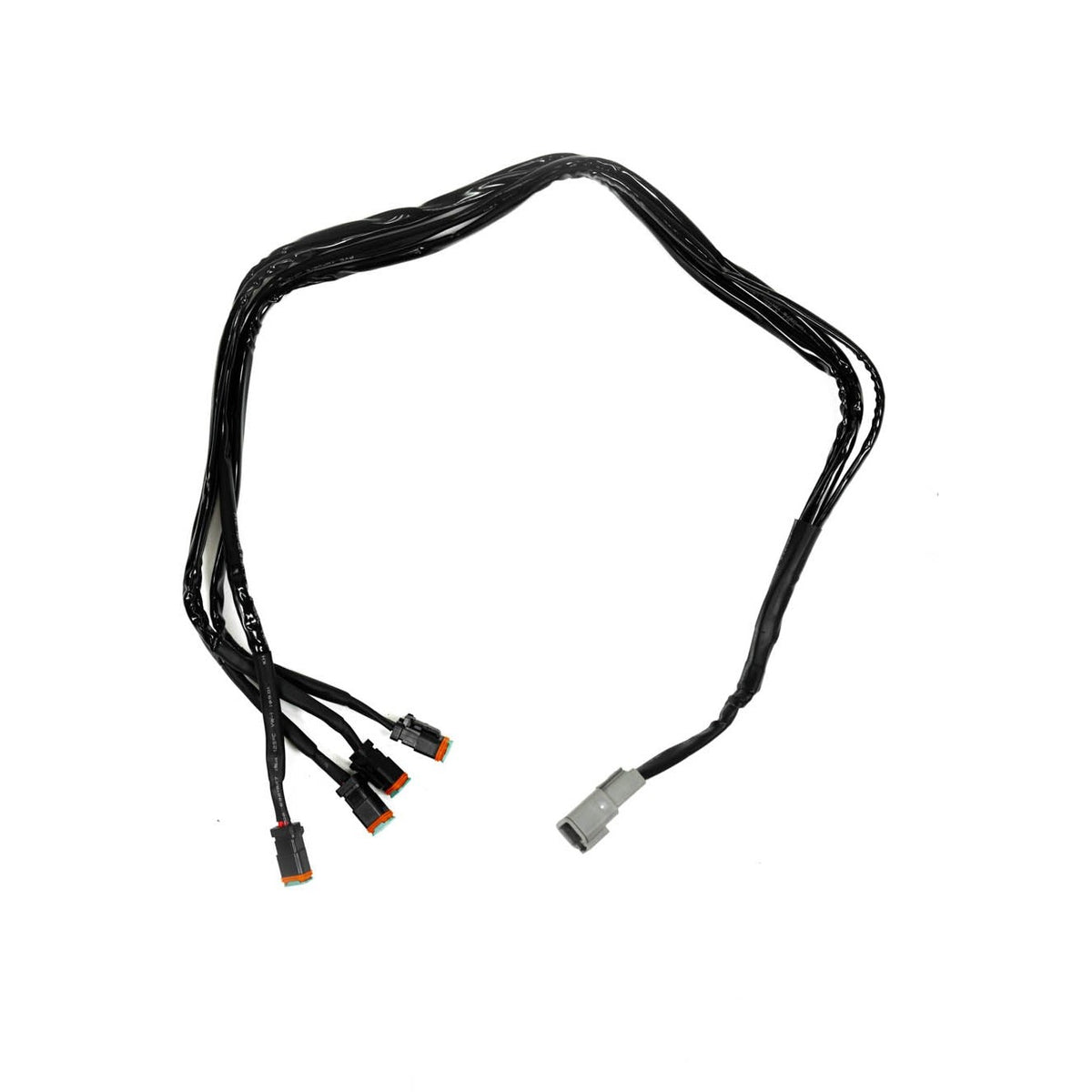

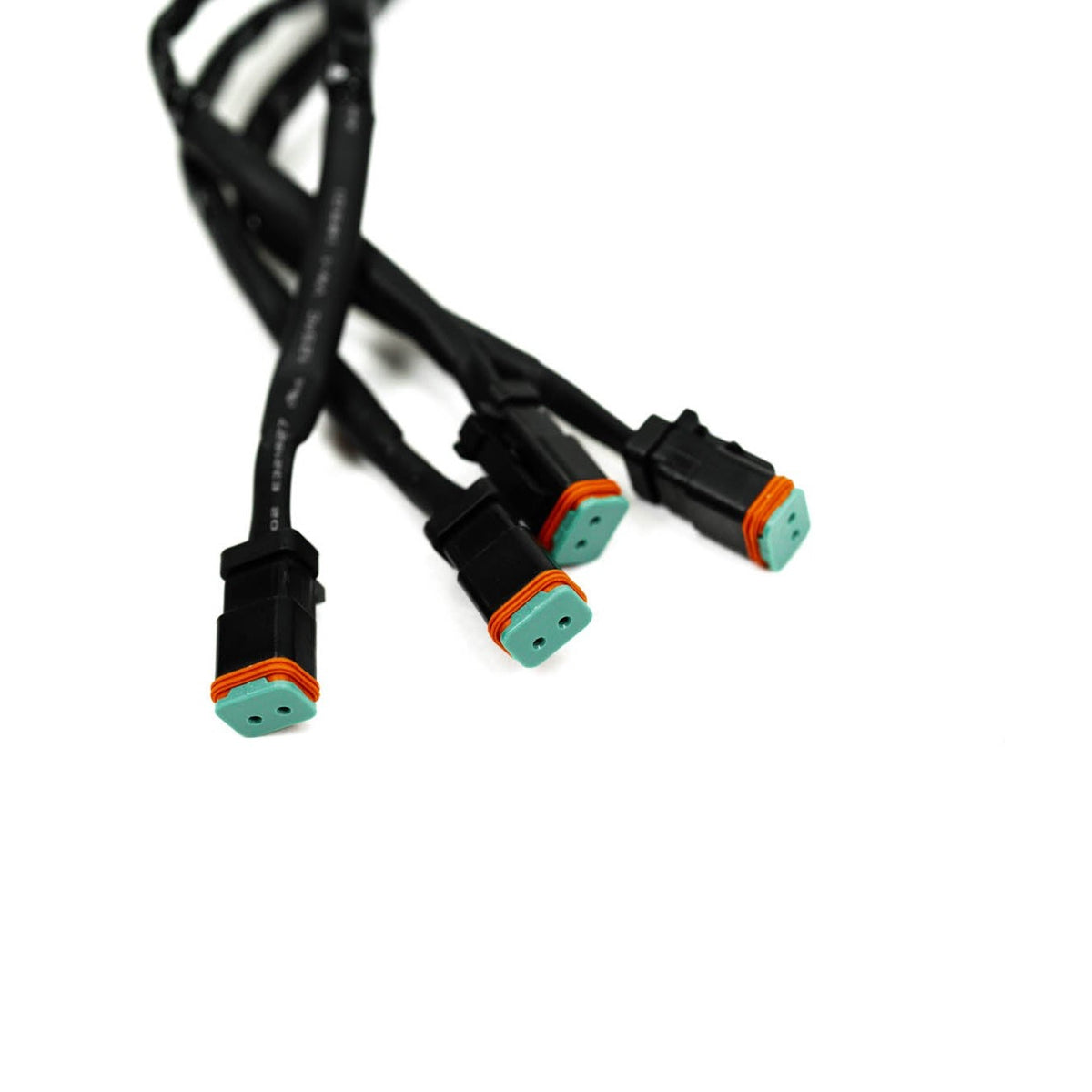

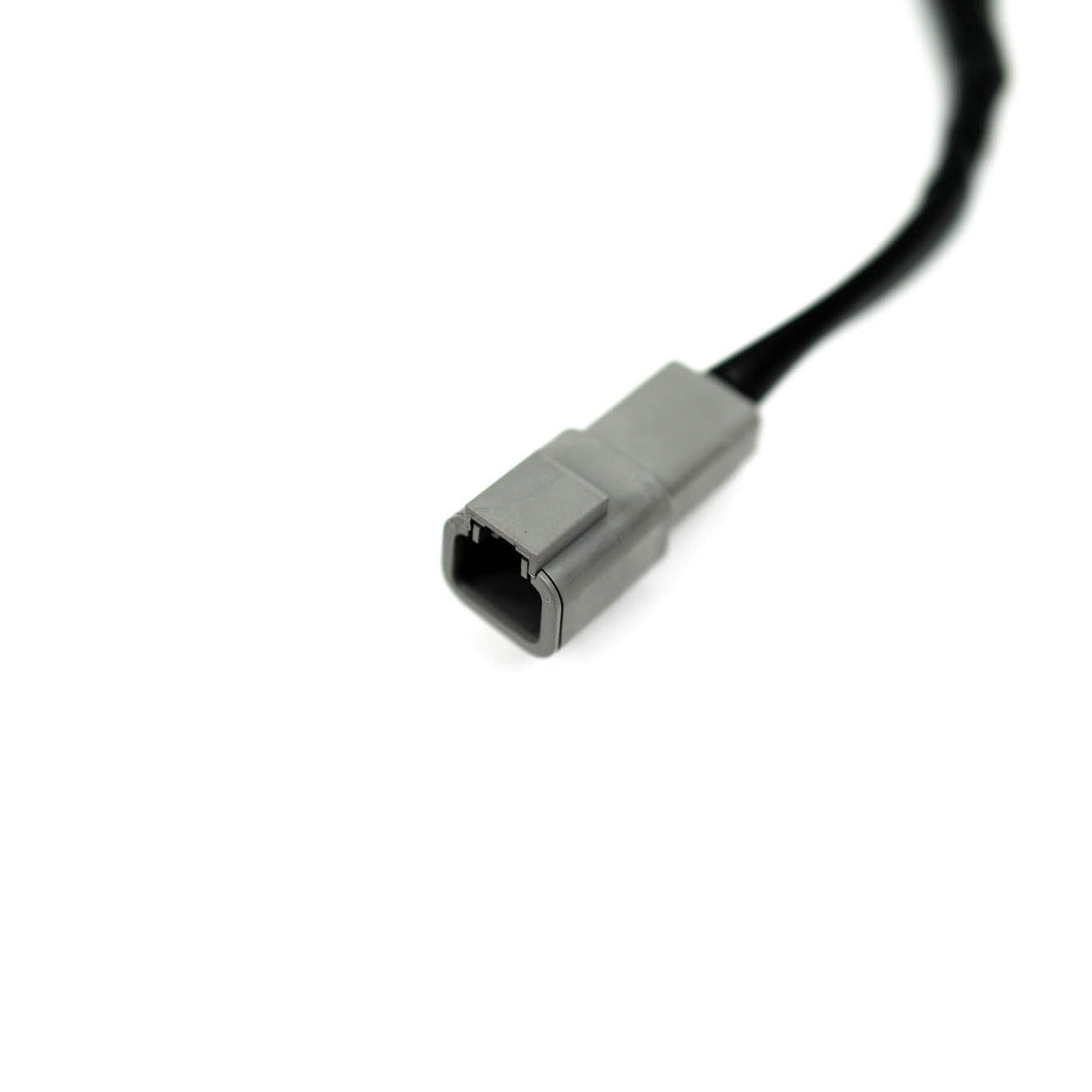

The 4-Way plug harness converts a single DTP output from the 60 AMP harness into four DTP connections, allowing up to four pod lights to draw from one source without splicing or custom wiring. The DTP connector format is the same standard used on the compatible DV8 Elite lights, so the harnesses mate directly to the fixtures without adapters.

Bundle Covers the Full Configuration

Purchasing the two harnesses as a bundle means the switched power source and the 4-way distribution leg arrive together. Buyers running a 20-inch or 13-inch Elite Single Row Light Bar alongside two Elite Pod Lights get both the bar's power connection and the pod distribution handled by this pair, rather than sourcing each harness separately and confirming compatibility after the fact.

Features

• 60 AMP switched harness (UNWH-01): provides switched power with DTP connector for DV8 Elite lighting
• 4-Way DTP plug harness (UNWH-02): splits one DTP input into four DTP outputs for multi-pod configurations
• Supported configurations: 1–4 Elite Pod Lights; one 20" Elite Single Row Light Bar with two Elite Pod Lights; one 13" Elite Single Row Light Bar with two Elite Pod Lights
• DTP connector compatibility: mates directly to compatible DV8 Elite light SKUs without additional adapters
• Bundle SKUs included: UNWH-01 and UNWH-02 shipped together

Specifications

Who This Is For and Isn't

This bundle suits buyers who own or are adding DV8 Elite Pod Lights or Elite Single Row Light Bars (specifically SKUs BE3FMW40W, BE3FMW40W-A, BE3EW40W, BE3EW40W-A, BE20SW105W, BE20SW105W-A, or BE13EW45W) and need a complete switched wiring solution to run up to four lights or a bar-and-pod combination from one circuit.

This bundle is not compatible with DV8 lights outside the seven listed SKUs, and it is not designed for non-DV8 lighting systems. Installation guides are not included in the box; installation documentation is available on the individual product pages for the UNWH-01 and UNWH-02 harnesses.

WARNING: This product can expose you to chemicals including lead and lead compounds, DEHP, and bisphenol A (BPA), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Common Questions

Which DV8 lights are compatible with this harness bundle?

The DV8 Offroad wire harness bundle is compatible only with these seven DV8 Elite light SKUs: BE3FMW40W, BE3FMW40W-A, BE3EW40W, BE3EW40W-A, BE20SW105W, BE20SW105W-A, and BE13EW45W. No other DV8 lights or third-party fixtures are confirmed compatible.

How many lights can this bundle power at once?

The DV8 Offroad 4-Way and 60 AMP harness bundle supports up to four Elite Pod Lights running simultaneously, or one 20-inch or 13-inch Elite Single Row Light Bar paired with two Elite Pod Lights, all controlled by the single switched 60 AMP harness.

What does each harness in the bundle do?

The UNWH-01 is a 60 AMP switched harness with a DTP connector that provides the switched power source for the lighting circuit. The UNWH-02 is a 4-Way plug harness that splits one DTP input into four DTP outputs, distributing power to multiple pod lights from that single source.

Does this bundle include a switch?

Yes. The UNWH-01 60 AMP Wire Harness included in this bundle comes with a switch, allowing the connected DV8 Elite lights to be turned on and off from inside the vehicle without additional switch hardware.

Where can I find installation instructions for these harnesses?

Installation guides for the DV8 Offroad wire harnesses are not included in the box. Installation documentation for the UNWH-01 and UNWH-02 harnesses is available on their individual product pages.
