Cali Off-Road Vertex 9116 20x10 Wheel
Cali Off-Road Vertex 9116 20x10 Wheel
Couldn't load pickup availability
The Cali Off-Road Vertex 9116 is a 20x10 aftermarket wheel, sold individually (price is per wheel, not per set). Built to a 3,640-pound load capacity using advanced manufacturing methods, it is available in three bolt patterns (6-135, 5-127, and 6-139.7) and two finishes: Gloss Black/Milled Spokes and Chrome. Each wheel weighs 35 lb and ships with a center cap included.
Multi-Window Design and Deep Lip
The Vertex 9116 features an extraordinary multi-window spoke layout that opens up the face of the wheel, reducing visual mass while maintaining structural integrity. The ultra deep lip pushes the face forward for an aggressive stance that reads clearly from the side of the vehicle. Because the design is executed at the manufacturing stage rather than added as a cosmetic overlay, the proportions hold up under load and across terrain rather than just on a showroom floor.
3,640-Pound Load Capacity
Advanced manufacturing methods bring the Vertex 9116 to a 3,640-pound load rating per wheel. For a truck or SUV carrying gear, a roof load, or a heavy aftermarket bumper, that headroom matters: a wheel rated close to the vehicle's corner weight leaves little margin, while a higher-rated wheel keeps the structural safety factor intact even when the vehicle is fully loaded. The direct bolt application is engineered for precision fitment to the specific bolt pattern and hub bore of each SKU, so the wheel seats flush without shimming or adapter hardware.
Finish Durability

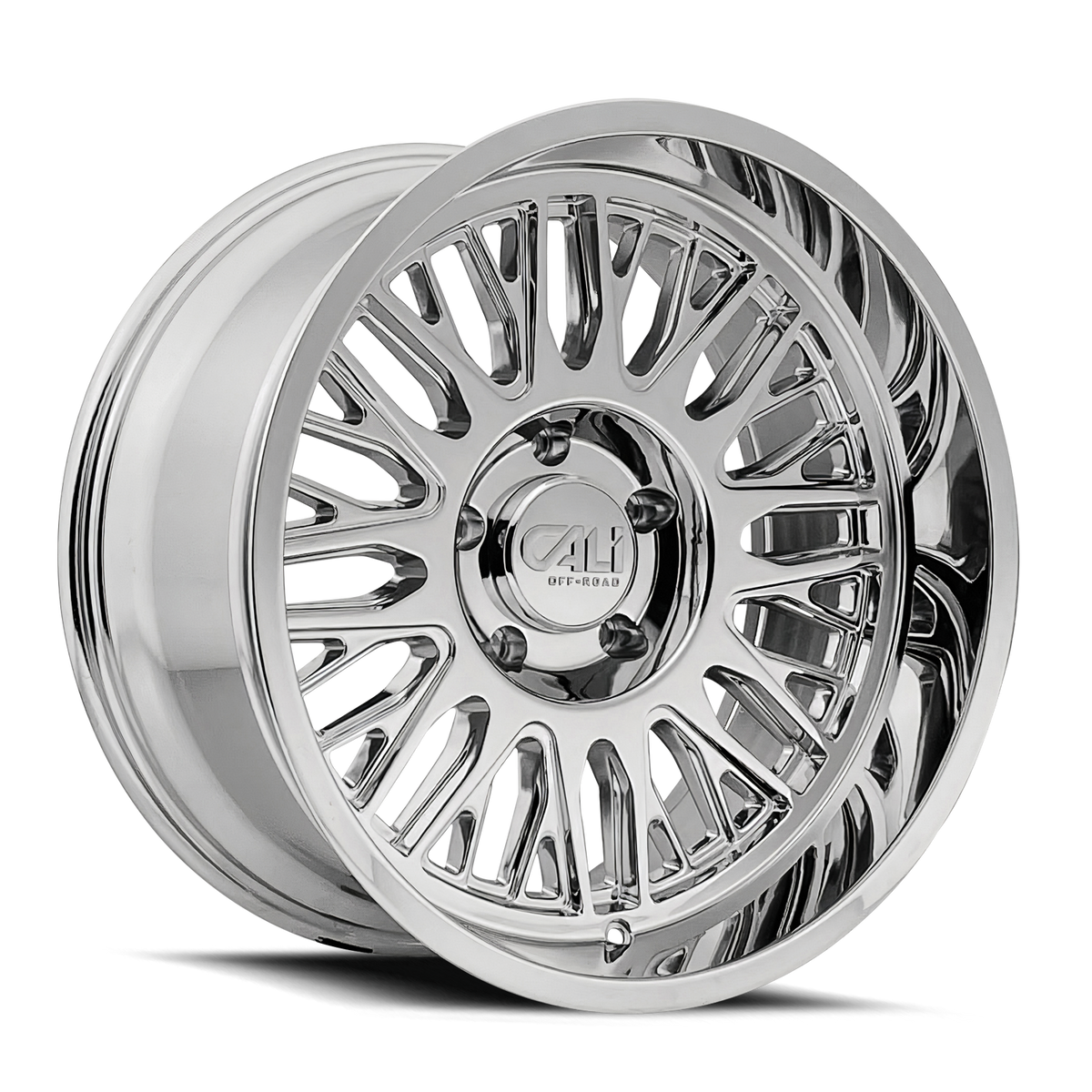

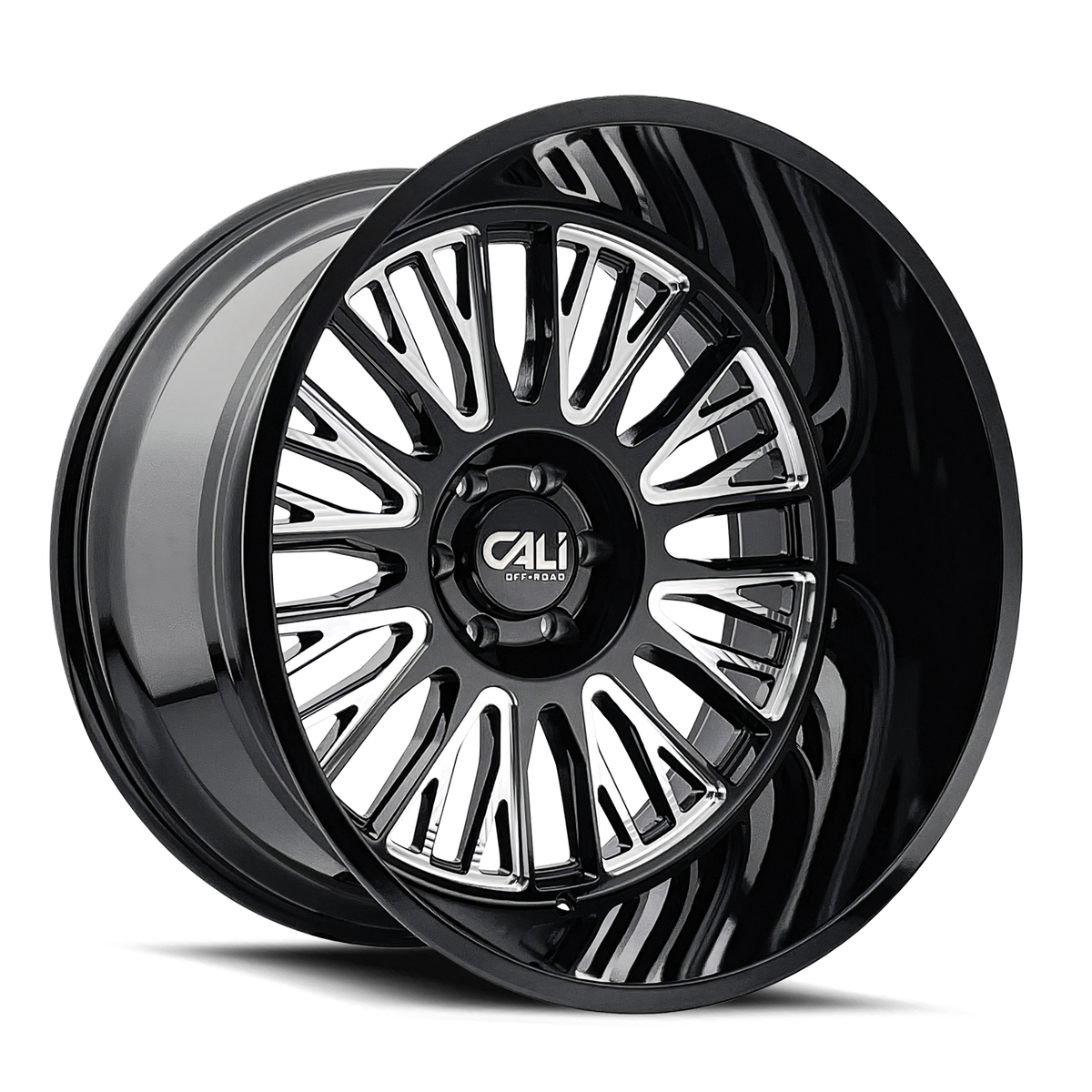

The Gloss Black/Milled Spokes finish combines a gloss black base with machined spoke faces, giving the wheel contrast that holds its definition over time. The Chrome finish on the 5-127 variant delivers a high-reflectivity look. Both finishes are applied using processes Cali Off-Road describes as among the most progressive in the industry, intended to keep the wheel's appearance consistent through repeated off-road and weather exposure.
Features
- Multi-window spoke design: open face layout with structural integrity maintained through the manufacturing process
- Ultra deep lip: aggressive forward-set face for a pronounced stance
- 3,640 lb load capacity: achieved through advanced manufacturing methods
- Direct bolt application: precision fitment to stated bolt pattern and hub bore per SKU
- Center cap included: ships with each wheel
- TPMS compatible: accommodates tire pressure monitoring sensors
Specifications
| SKU | Size | Bolt Pattern | Offset | Hub Bore | Finish | Wheel Weight | Country of Manufacture |
|---|---|---|---|---|---|---|---|
| 9116-2136BM | 20x10 | 6-135 | -25 mm | 87.1 mm | Gloss Black/Milled Spokes | 35 lb | Thailand |
| 9116-2173BM | 20x10 | 5-127 | -25 mm | 78.1 mm | Gloss Black/Milled Spokes | 35 lb | Thailand |
| 9116-2173C | 20x10 | 5-127 | -25 mm | 78.1 mm | Chrome | 35 lb | China |
| 9116-2183BM | 20x10 | 6-139.7 | -25 mm | 106 mm | Gloss Black/Milled Spokes | 35 lb | Thailand |
Who This Is For and Isn't
The Vertex 9116 suits truck and SUV owners who need a 20x10 wheel in one of the three listed bolt patterns (6-135, 5-127, or 6-139.7) and want a high load-rated aftermarket wheel with a deep-lip, multi-window look. Each wheel ships with a center cap and is TPMS compatible, making it a straightforward swap for most bolt-on fitments.
This listing covers one wheel. Buyers needing a full set must purchase four. The Vertex 9116 is available only in 20x10 with a -25 mm offset; vehicles requiring a different size, offset, or a bolt pattern outside the three listed will not find a fit here. Lug nuts are not included.
Common Questions
Is this listing for one wheel or a set of four?
The Cali Off-Road Vertex 9116 is sold individually. The price shown is for one wheel. Buyers who need a complete set of four should add four units to their cart.
What bolt patterns does the Vertex 9116 come in?
The Vertex 9116 is available in three bolt patterns: 6-135, 5-127, and 6-139.7. Each bolt pattern variant also has a specific hub bore (87.1 mm for 6-135; 78.1 mm for 5-127; 106 mm for 6-139.7), so confirm both figures match your vehicle before ordering.
What is the load rating on the Vertex 9116?
The Cali Off-Road Vertex 9116 carries a 3,640-pound load capacity per wheel, achieved through advanced manufacturing methods. This rating applies across all listed SKUs.
Does the Vertex 9116 work with my existing TPMS sensors?
The Vertex 9116 is TPMS compatible, meaning it is designed to accommodate tire pressure monitoring sensors. Confirm sensor type compatibility with your tire installer before mounting.
What is included with each wheel?
Each Cali Off-Road Vertex 9116 ships with a center cap. Lug nuts are not included.
Where is the Vertex 9116 manufactured?
Country of manufacture varies by SKU. The Gloss Black/Milled Spokes variants (6-135, 5-127, and 6-139.7 bolt patterns) are made in Thailand. The Chrome variant (5-127 bolt pattern) is made in China.
