Cali Off-Road Summit Dually 9110 Wheel
Cali Off-Road Summit Dually 9110 Wheel
Couldn't load pickup availability
The Cali Off-Road Summit Dually 9110 is a 20x8.25 aftermarket dually wheel built for heavy-duty 8-lug applications, rated to carry up to 3,640 lbs per wheel on tires up to 40 inches. Available in three bolt patterns (8-200, 8-210, and 8-165.1) and four finishes, the Summit Dually 9110 is sold individually, one wheel per order.
Built to Carry Real Loads
A 3,640 lb load rating per wheel is a meaningful number for anyone running a dually under a heavy camper, a loaded flatbed, or a work truck that earns its keep. That rating, combined with compatibility with tires up to 40 inches, means the Summit Dually 9110 is sized and rated for the actual demands of a working dually rather than just the look of one. A wheel that can't keep pace with the load is a liability; one that's rated beyond your daily maximum gives you a real margin.
Finishes That Hold Up

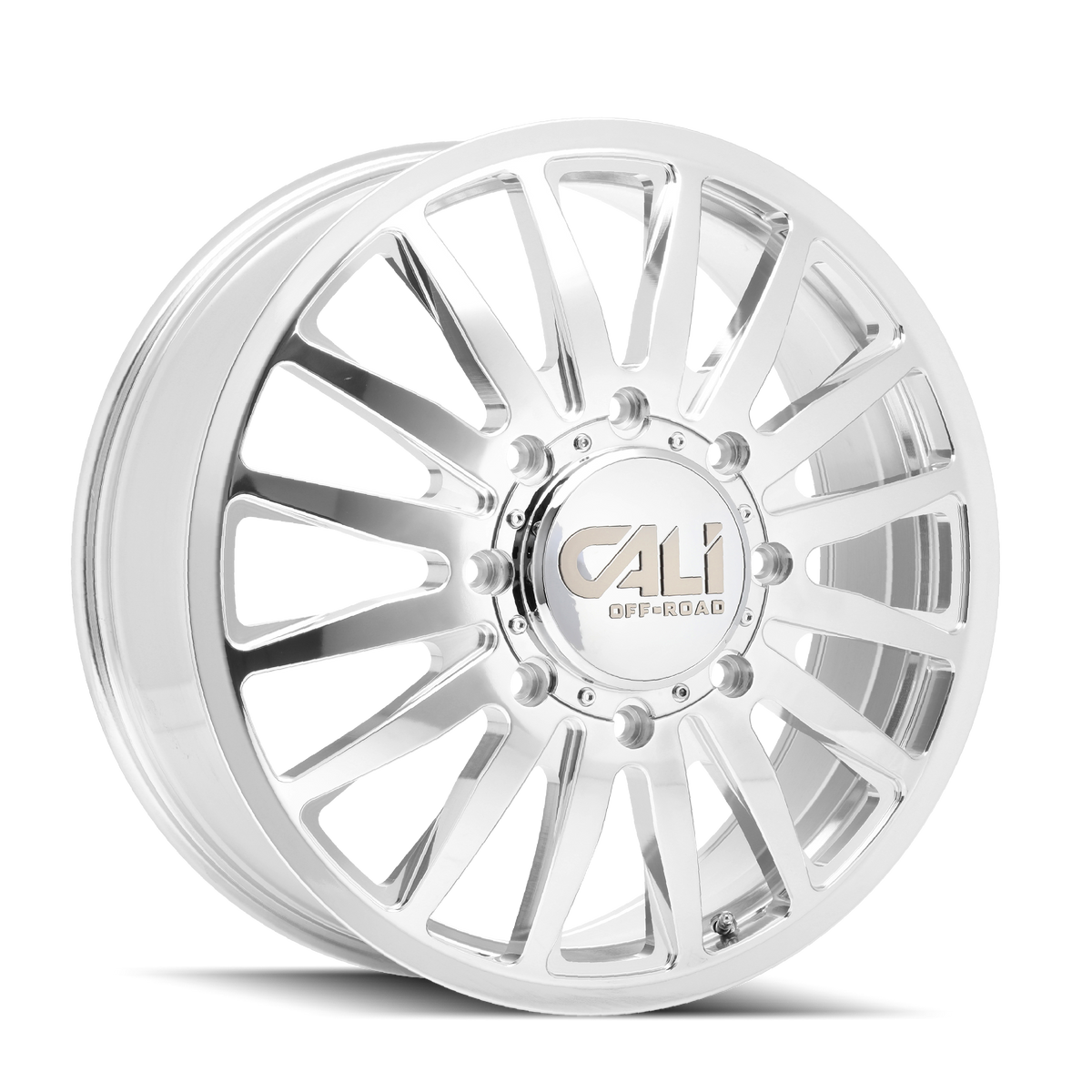

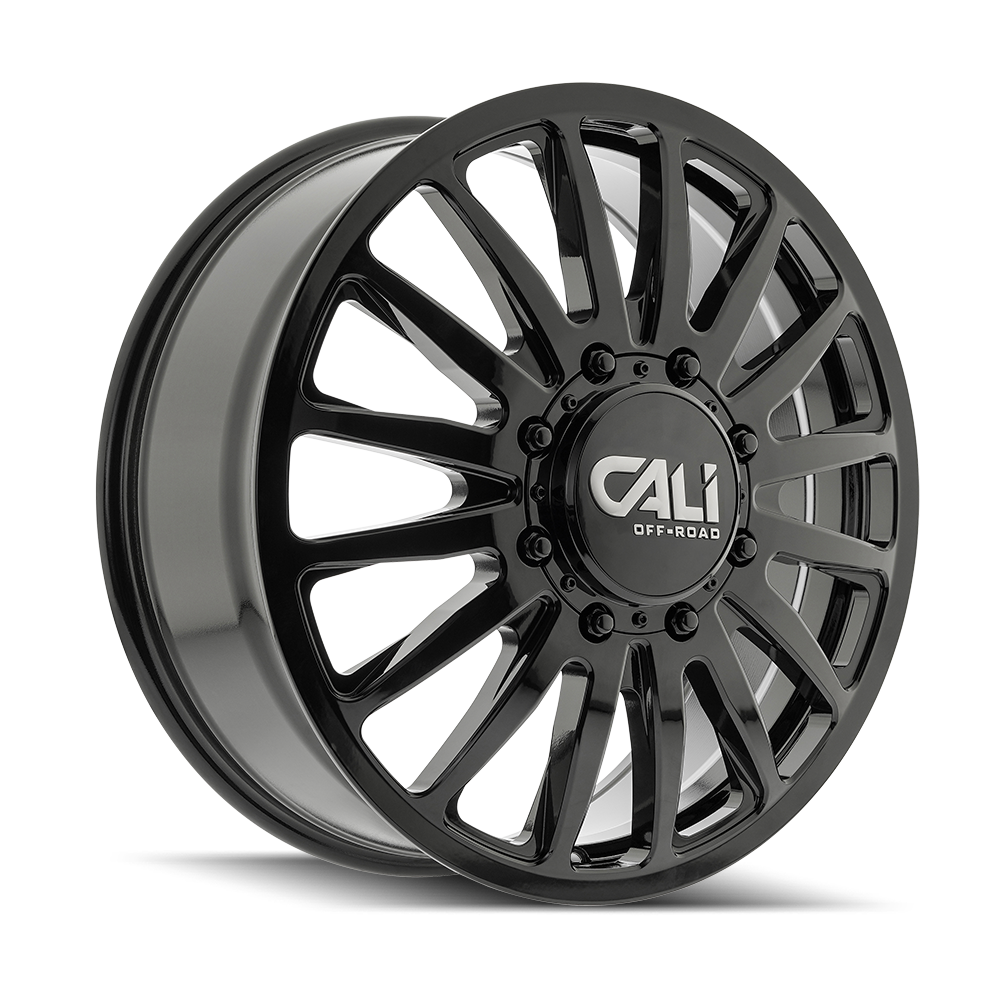

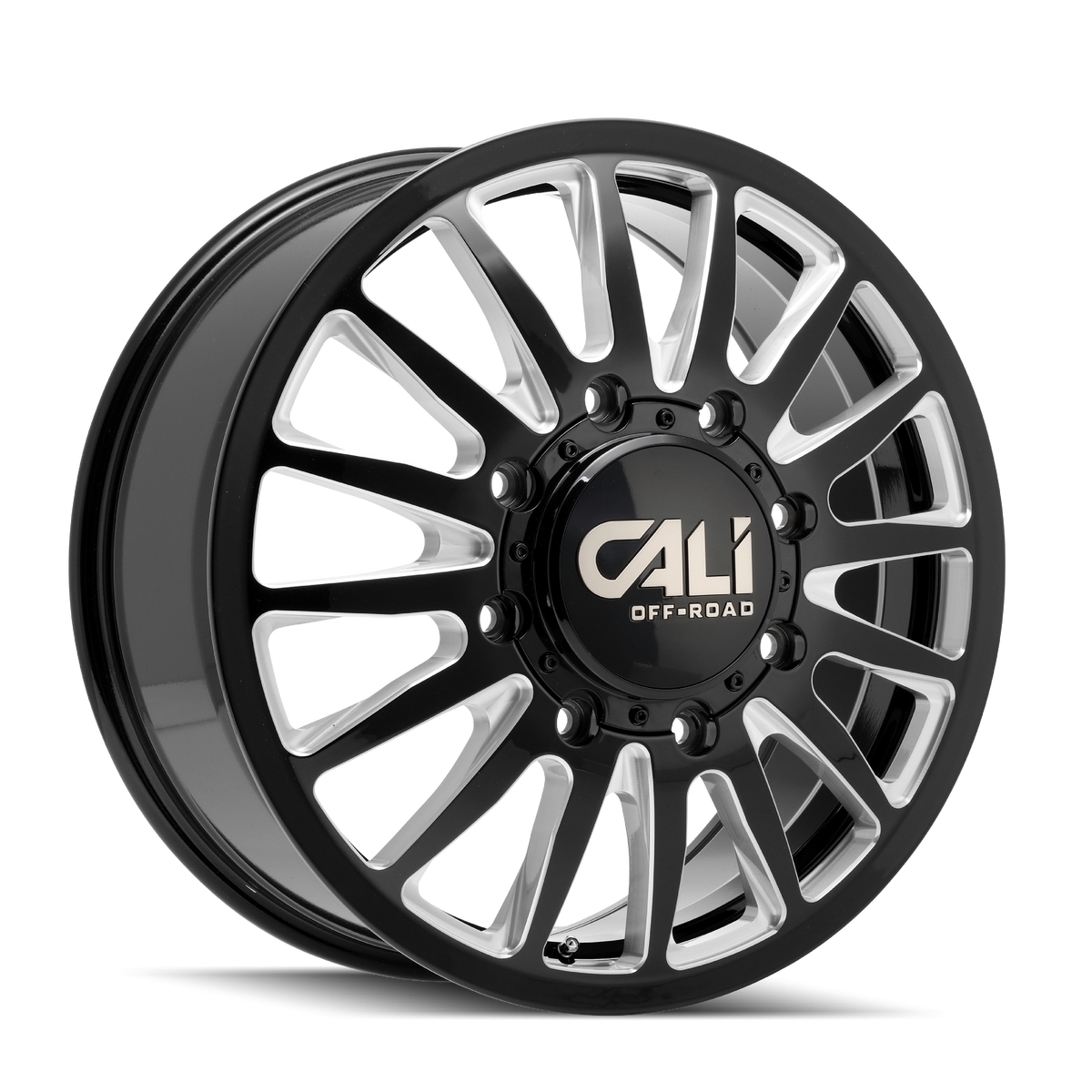

The Summit Dually 9110 is offered in Gloss Black Milled, Gloss Black, Matte Black, and Polished. Precision machining is applied to the milled variant to expose the underlying metal against the gloss black base. The finish selection lets buyers match an existing truck aesthetic or start fresh, and because the finish is applied to a properly machined surface, it's built to maintain its appearance over time rather than degrade quickly at the edges.
Lifetime Structural Warranty
The Summit Dually 9110 carries a lifetime structural warranty. For a wheel that will see repeated loading cycles, road stress, and the occasional rough surface, a structural warranty that doesn't expire is a meaningful commitment to the wheel's long-term integrity and a signal that the construction is intended to outlast the truck it's mounted on.
Features
- Load rating: up to 3,640 lbs per wheel on tires up to 40 inches
- Three bolt patterns: 8-200, 8-210, and 8-165.1 (select the pattern that matches your hub)
- Four finishes: Gloss Black Milled, Gloss Black, Matte Black, and Polished
- Precision machining: applied to milled finish variants for clean contrast at the face
- Lifetime structural warranty
- Sold individually: price is per wheel
Specifications
| Spec | 8-200 variants | 8-210 variants | 8-165.1 variants |
|---|---|---|---|
| Size | 20x8.25 | 20x8.25 | 20x8.25 |
| Bolt Pattern | 8-200 | 8-210 | 8-165.1 |
| Hub Bore | 142 mm | 154.2 mm | 121.3 mm |
| Available Offsets | +115 mm, -192 mm, -232 mm (Gloss Black Milled, Gloss Black, Polished); +100 mm, +115 mm (Matte Black) | +115 mm, -192 mm, -232 mm (Gloss Black Milled, Gloss Black, Polished); +100 mm, +115 mm (Matte Black) | +115 mm, -192 mm, -232 mm (Gloss Black Milled, Gloss Black, Polished); +100 mm, +115 mm (Matte Black) |
| Product Weight (by finish/offset) | 36–45 lb depending on finish and offset | 36–45 lb depending on finish and offset | 36–45 lb depending on finish and offset |
| Max Load Rating | 3,640 lbs per wheel (on tires up to 40 in) | ||
| Finish Options | Gloss Black Milled · Gloss Black · Matte Black · Polished | ||
| Country of Manufacture | China | ||
| Warranty | Lifetime structural | ||
| Sold As | Individual wheel (one per order) | ||
Who This Is For and Isn't
The Summit Dually 9110 suits dually truck owners running 8-lug hubs on an 8-200, 8-210, or 8-165.1 bolt pattern who need a 20x8.25 wheel with a high load rating for heavy payloads or large tires. Buyers who want a finish choice beyond stock (milled, gloss, matte, or polished) without sacrificing structural capacity will find the range here.
The Summit Dually 9110 does not fit single-rear-wheel (SRW) applications or any hub with a bolt pattern other than 8-200, 8-210, or 8-165.1. The -192 mm and -232 mm negative-offset variants are not available in Matte Black; the +100 mm offset is available in Matte Black only. No vehicle makes or models are specified for this wheel; confirm bolt pattern, offset, and hub bore against your specific vehicle before ordering.
Common Questions
Is this wheel sold as a set or individually?
The Cali Off-Road Summit Dually 9110 is sold individually, one wheel per order. Buyers outfitting a dually will need to add the correct quantity at checkout based on how many wheels they are replacing.
How do I confirm this wheel fits my truck?
Fit depends on three measurements: bolt pattern (8-200, 8-210, or 8-165.1), hub bore (142 mm, 154.2 mm, or 121.3 mm respectively), and offset. The Summit Dually 9110 is only available in 20x8.25. No vehicle makes or models are specified for this wheel; verify your truck's bolt pattern, hub bore, and required offset before selecting a variant.
What offsets are available, and does every finish come in every offset?
Three offsets are offered across most finishes: +115 mm, -192 mm, and -232 mm in Gloss Black Milled, Gloss Black, and Polished. Matte Black is available at +100 mm and +115 mm only. The -192 mm and -232 mm negative offsets are not offered in Matte Black.
What is the load rating, and does it depend on tire size?
The Summit Dually 9110 is rated to carry up to 3,640 lbs per wheel. That rating applies when running tires up to 40 inches in diameter. Confirm that your tire and load combination falls within this rating before installation.
What warranty does the Summit Dually 9110 carry?
The Cali Off-Road Summit Dually 9110 includes a lifetime structural warranty. Contact TerrainVault for assistance with coverage questions or initiating a claim.
