Cali Off-Road Summit 9110 20-Inch Wheel
Cali Off-Road Summit 9110 20-Inch Wheel
Couldn't load pickup availability
The Cali Off-Road Summit 9110 is a 20-inch aftermarket wheel built around a classic split 10-spoke design with an ultra-deep lip, available in three widths (9, 10, and 12 inches), five bolt patterns (5-139.7, 6-139.7, 8-165.1, 8-170, and 8-180), and four finishes. Load capacity reaches up to 3,640 lb depending on the specific variant. This listing is priced and sold per wheel; purchase four for a complete set.
Structural Capacity Where It Counts
The Summit 9110 carries a maximum load rating of 3,640 lb. For a truck or SUV running larger tires and heavier recovery gear, that headroom matters: a higher-rated wheel handles the combined weight of the vehicle, cargo, and mounted accessories without operating near its limit. Buyers running lift kits and aggressive all-terrain or mud-terrain tires can spec the Summit 9110 with confidence that the wheel itself is not the weak point in the build.
Deep Lip, Direct Bolt Fitment
The ultra-deep lip profile gives the Summit 9110 its aggressive stance, pushing the face of the wheel outward for a wide, planted look. The negative offsets on the 20x10 (-25 mm) and 20x12 (-51 mm) sizes reinforce that stance by moving the wheel face further outboard relative to the hub mounting surface. Direct bolt applications mean the wheel is engineered to the specific bolt patterns and hub bores listed, with no adapter rings required for a correctly matched fitment.
Finish Durability Across Conditions

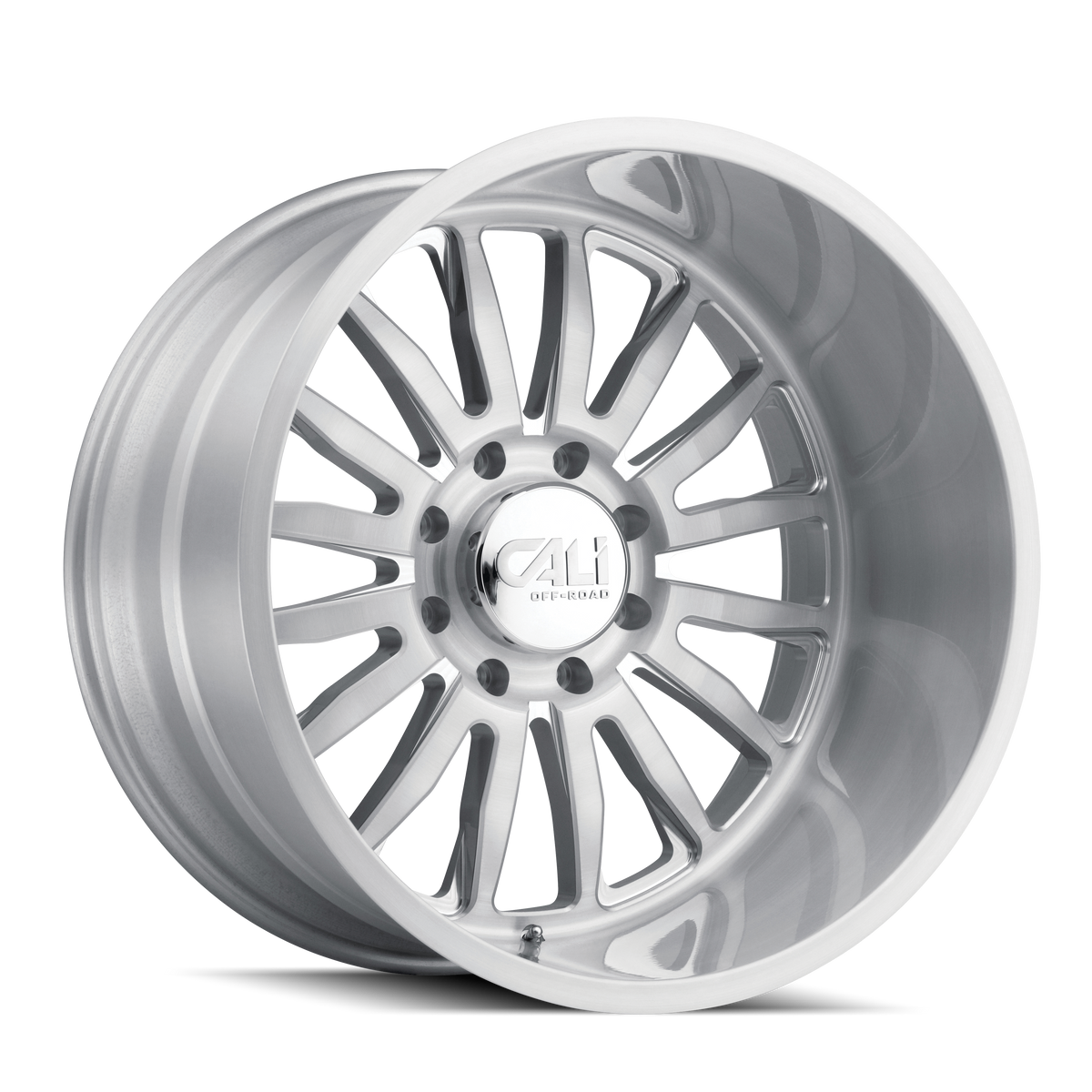

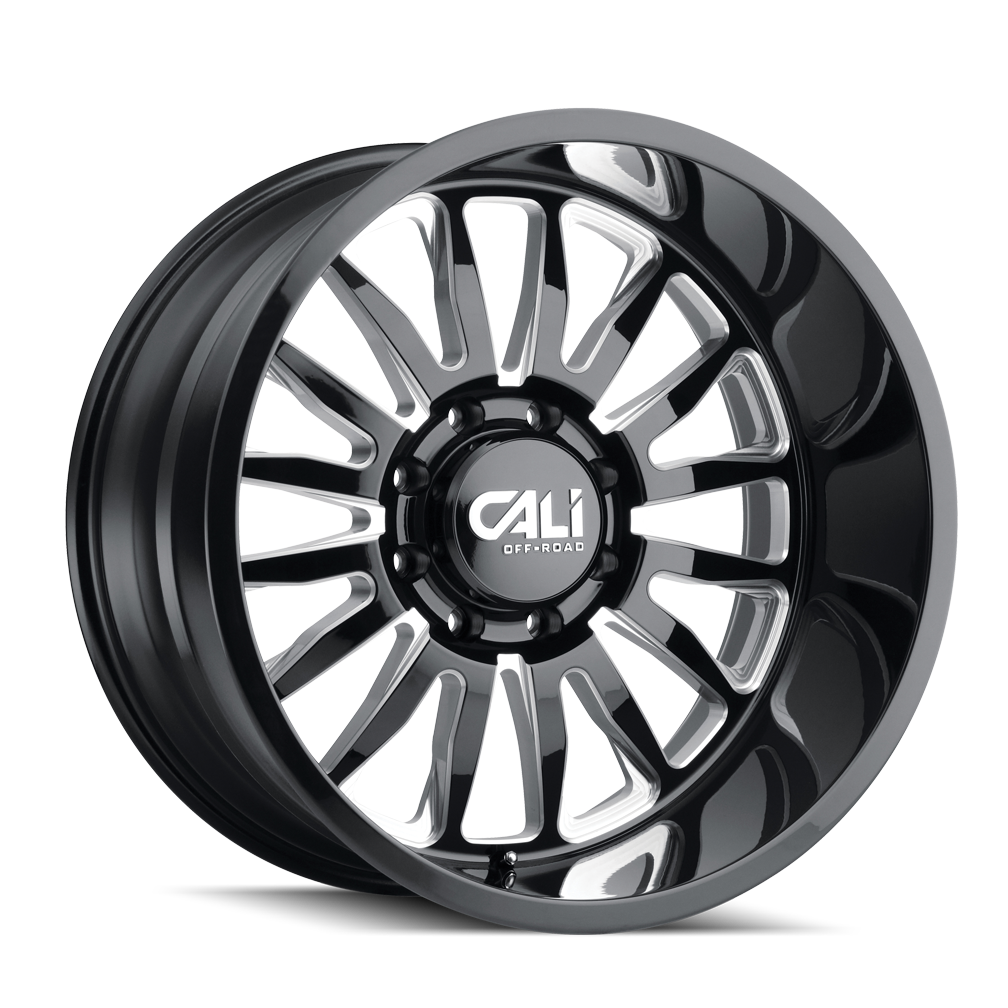

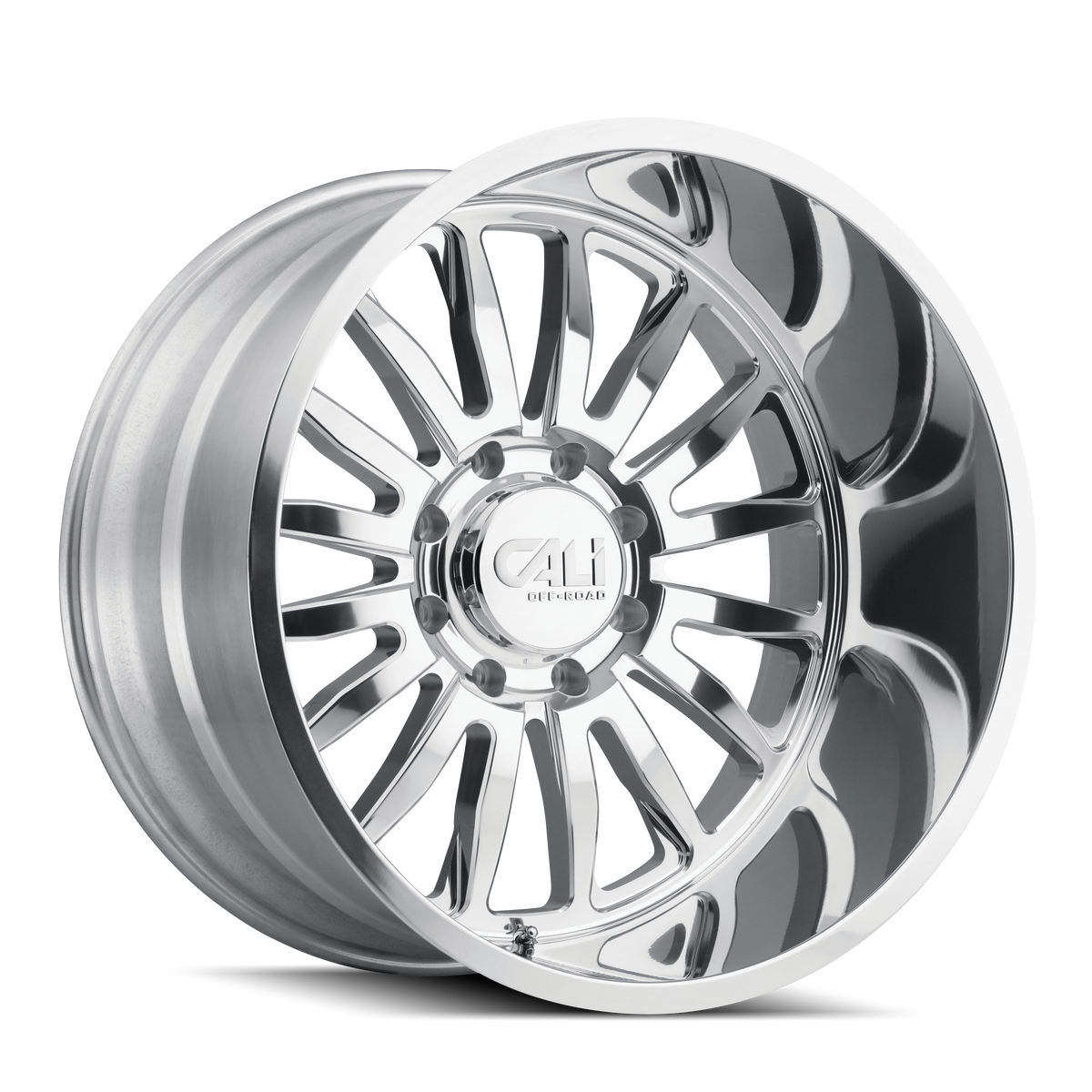

The Summit 9110 is offered in Gloss Black/Milled Spokes, Gloss Black, Polished, and Brushed Milled finishes. Milled spoke faces contrast with the gloss or brushed base to highlight the spoke geometry. A center cap is included with each wheel. The Summit 9110 is TPMS compatible, so existing tire-pressure monitoring sensors can be retained when mounting new tires.
Features
- Split 10-spoke design: classic spoke layout with an ultra-deep lip for an aggressive outboard profile
- Up to 3,640 lb load capacity: high-rated construction suited to loaded trucks and SUVs
- Direct bolt applications: engineered to specific bolt patterns and hub bores, with no adapters needed for a matched fitment
- Four finish options: Gloss Black/Milled Spokes, Gloss Black, Polished, and Brushed Milled
- Center cap included: one center cap ships with each wheel
- TPMS compatible: accepts standard tire-pressure monitoring sensors
Specifications
| Size | Bolt Pattern | Offset | Hub Bore | Product Weight |
|---|---|---|---|---|
| 20x9 | 8-170 | +0 mm | 125.2 mm | 36 lb |
| 20x9 | 8-180 | +0 mm | 124.1 mm | 33 lb |
| 20x9 | 8-165.1 | +0 mm | 125.2 mm | 36 lb |
| 20x10 | 5-139.7 | -25 mm | 87.1 mm | 39 lb |
| 20x10 | 6-139.7 | -25 mm | 106 mm | 37–41 lb |
| 20x10 | 8-165.1 | -25 mm | 125.2 mm | 39–41 lb |
| 20x10 | 8-170 | -25 mm | 125.2 mm | 39–41 lb |
| 20x10 | 8-180 | -25 mm | 124.1 mm | 39 lb |
| 20x12 | 6-139.7 | -51 mm | 106 mm | 43 lb |
| 20x12 | 8-165.1 | -51 mm | 125.2 mm | 43 lb |
| 20x12 | 8-170 | -51 mm | 125.2 mm | 42–43 lb |
| 20x12 | 8-180 | -51 mm | 124.1 mm | 41–42 lb |
| Load capacity (max): 3,640 lb | Center cap: included | TPMS: compatible | ||||
Who This Is For and Isn't
The Summit 9110 suits truck and SUV owners running 8-lug (8-170, 8-180, 8-165.1), 6-lug (6-139.7), or 5-lug (5-139.7) bolt patterns who want a 20-inch wheel with a deep-lip profile and a high load rating for overlanding, off-road, or daily-driven builds carrying heavy loads.
The Summit 9110 is not available in sizes or bolt patterns beyond those listed in the Specifications table above. Tires, lug nuts, and TPMS sensors are not included. Vehicle fitment must be confirmed against the buyer's specific bolt pattern, hub bore, and offset requirements; no vehicle makes or models are listed in the wheel specifications.
Common Questions
Is this listing for one wheel or a set of four?
The Cali Off-Road Summit 9110 is sold individually; the price shown is for one wheel. Buyers who need a full set should add four to the cart, selecting the same size, bolt pattern, and finish for each.
How do I confirm the Summit 9110 fits my vehicle?
Fitment for the Summit 9110 depends on three numbers: bolt pattern, hub bore, and offset. Match the bolt pattern and hub bore from the Specifications table to your vehicle's factory specs, then confirm the offset (-25 mm for 20x10, -51 mm for 20x12, 0 mm for 20x9) works with your suspension and fender clearance. No vehicle makes or models are listed in the Summit 9110 specifications; verify fitment using your vehicle's owner manual or a fitment guide before ordering.
What finishes are available, and do they vary by size?
The Summit 9110 is offered in Gloss Black/Milled Spokes, Gloss Black, Polished, and Brushed Milled. Not every finish is available in every size and bolt pattern combination. Use the variant selectors on this page to see which finish options are offered for the specific size and bolt pattern you need.
Does the Summit 9110 work with my existing TPMS sensors?
The Summit 9110 is TPMS compatible, meaning it is designed to accept standard tire-pressure monitoring sensors. TPMS sensors are not included with the wheel; buyers retain their existing sensors or source new ones separately when having tires mounted.
Is a center cap included?
One center cap is included with each Summit 9110 wheel purchased. Lug nuts and tires are not included and must be sourced separately to match the buyer's vehicle and tire size.
