C4 Fabrication Tacoma Overland Rear Bumper 3rd Gen 2016-2023

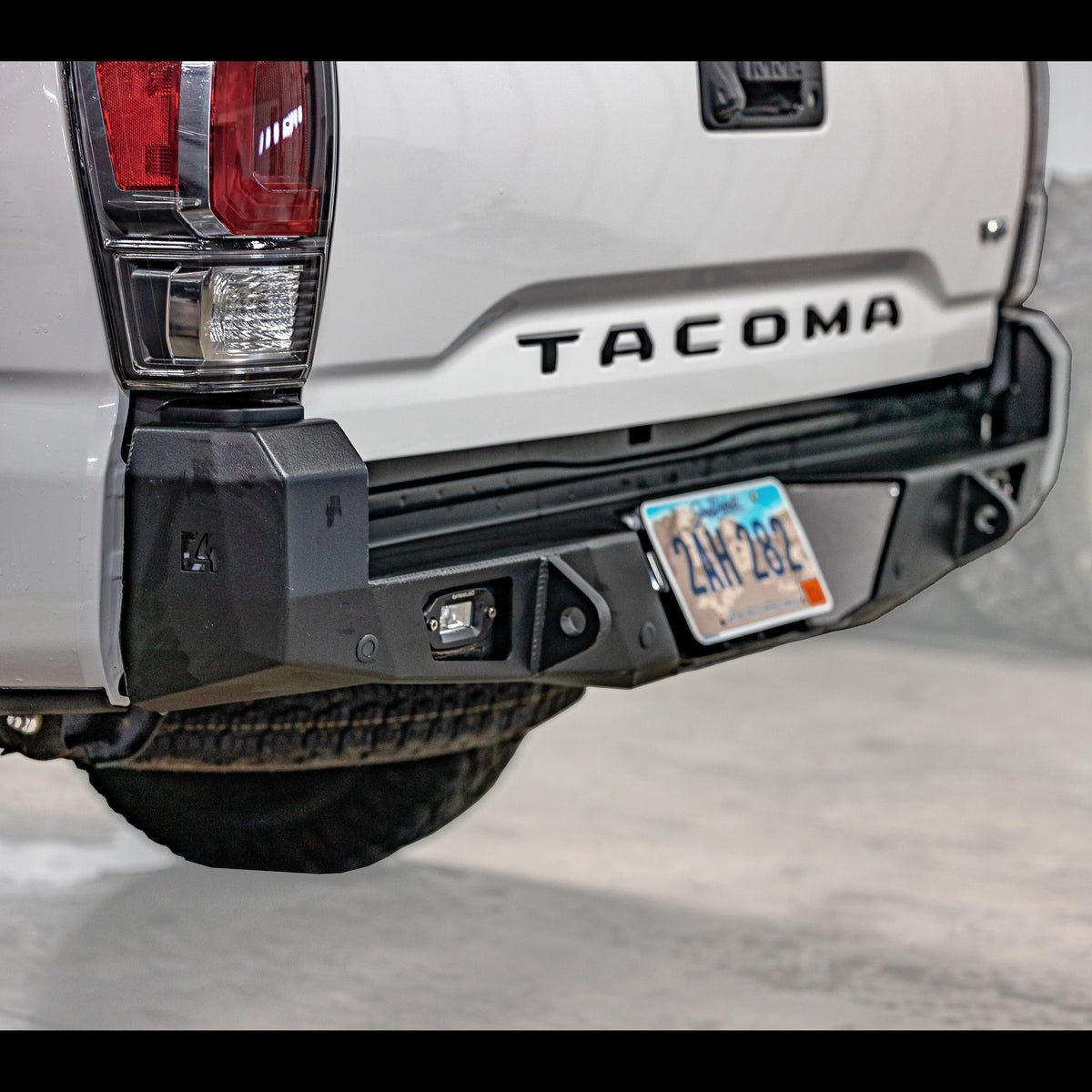

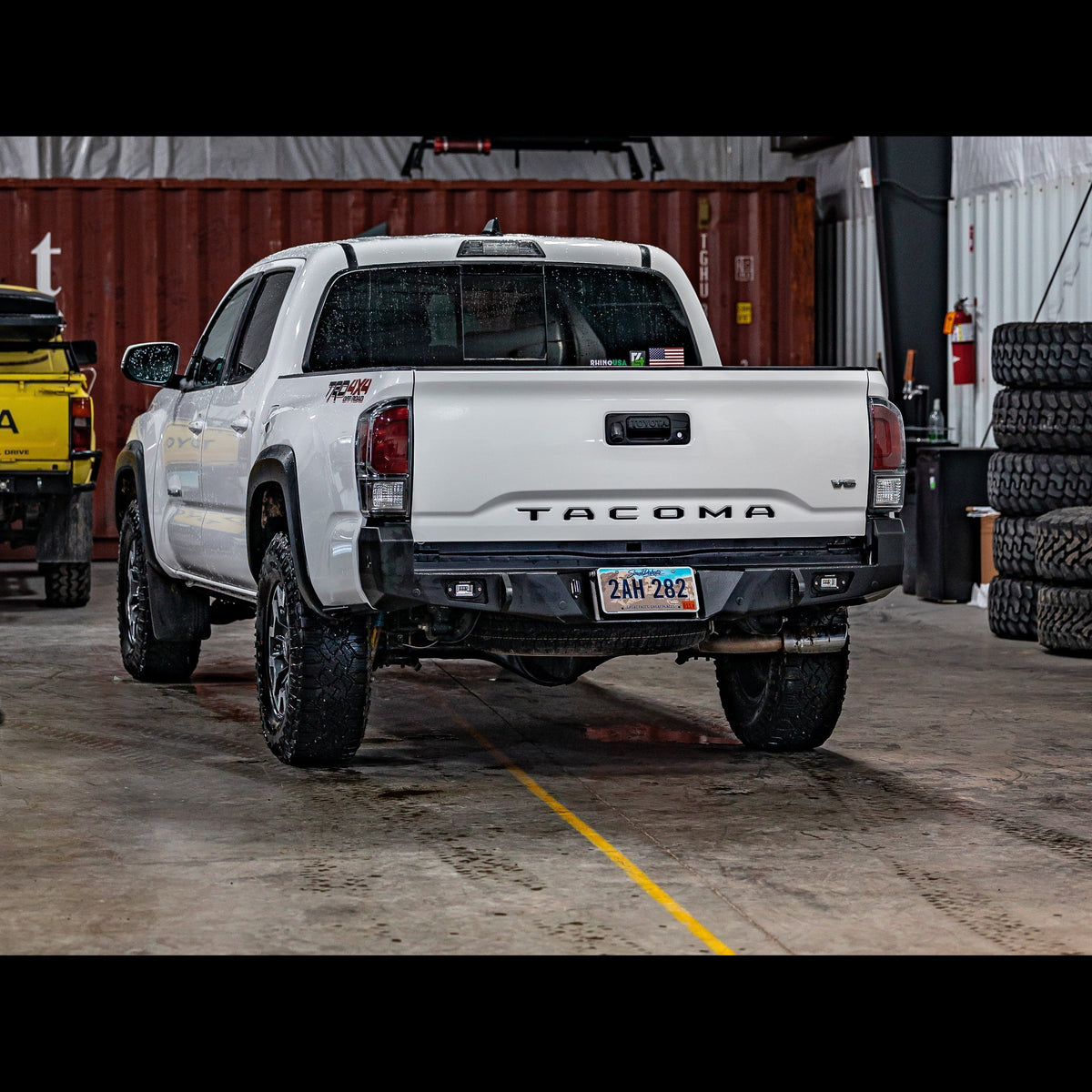

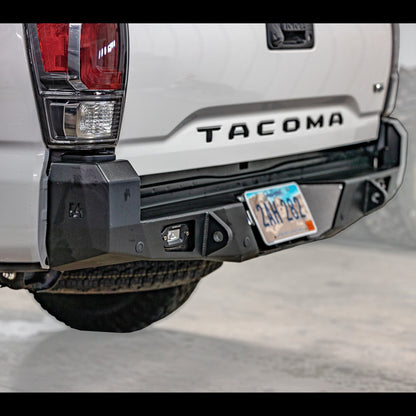

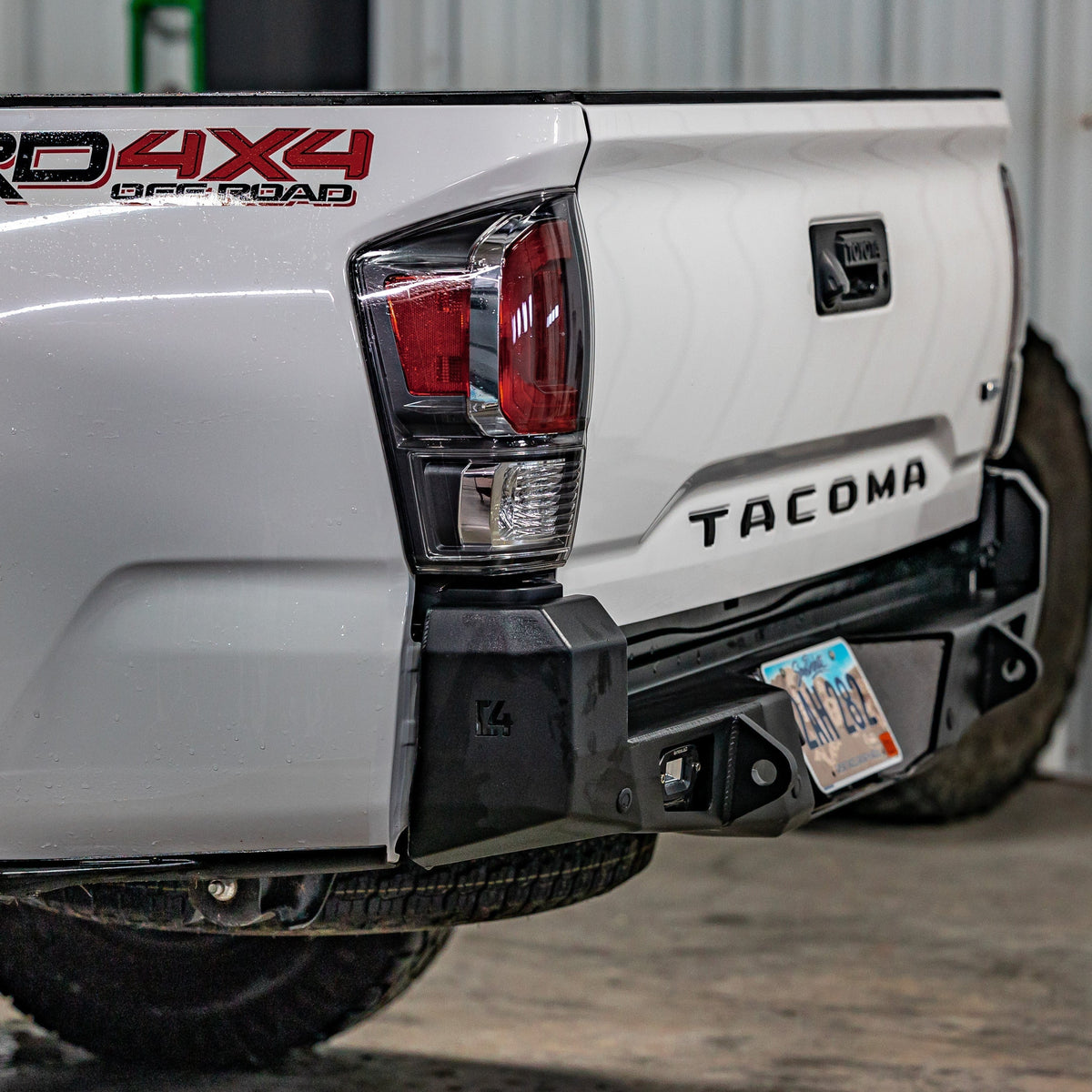

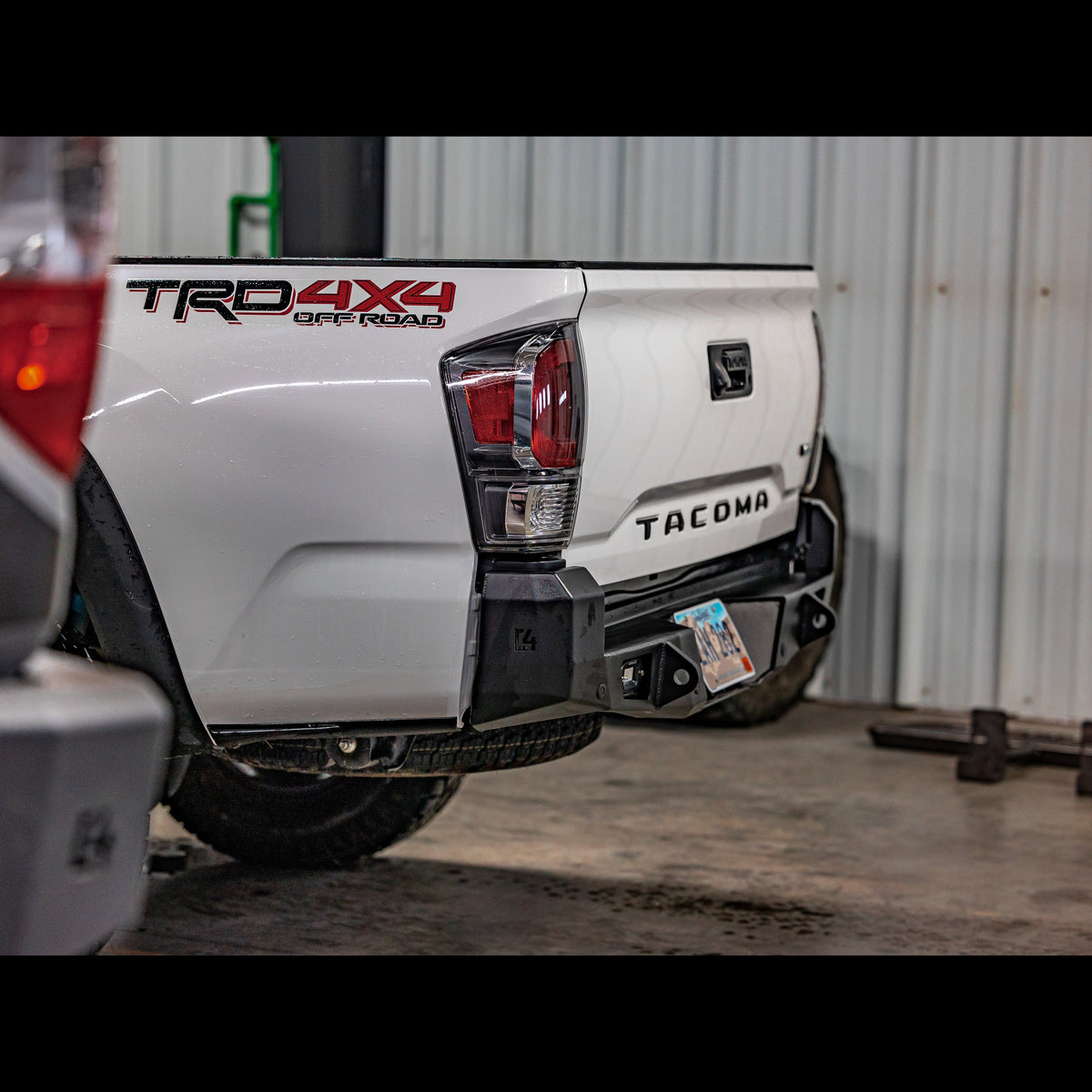

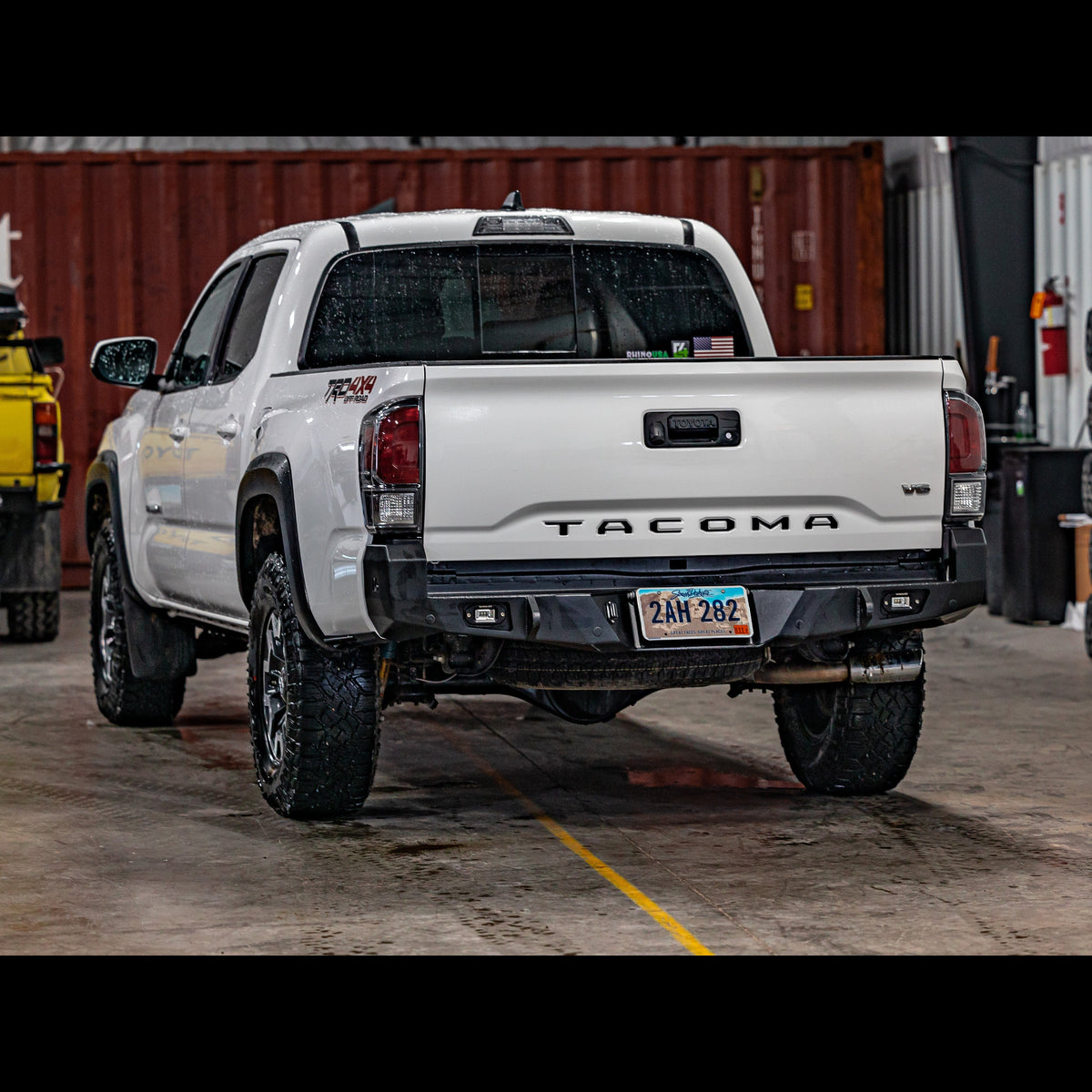

The C4 Fabrication Tacoma Overland Rear Bumper is a low-profile, bolt-on steel rear bumper built for 3rd Gen Toyota Tacomas (2016–2023). A 3/16-inch steel shell, 1/4-inch steel mounting brackets and integrated receiver hitch, and 3/4-inch fully welded D-ring recovery tabs deliver serious structural capability without the bulk of a full-wrap bumper. Available in Raw bare steel or Powder Coat finish.

Better Departure Angle Without Sacrificing Recovery Hardware

The Overland Rear Bumper's low-profile design reduces the rear overhang that a factory bumper creates, giving the Tacoma a meaningfully improved departure angle on steep exits and rocky descents. That geometry change matters most when you're picking a line off a ledge or cresting a hill with a loaded bed. The bumper stops being the first thing that contacts the ground. The integrated high-clearance receiver hitch keeps towing and accessory-mounting capability intact, so the departure-angle gain doesn't come at the cost of utility.

Bolt-On Installation, No Cutting or Welding Required

The Overland Rear Bumper installs entirely with bolts using the Tacoma's existing mounting points: no cutting, no welding, no fabrication work at the install site. A flip-up license plate bracket is included and swings clear for quick access to the hitch receiver and trailer plug, so you're not removing hardware every time you hook up. An LED license plate light is also included, covering the lighting requirement that the factory bumper handled.

Recessed Backup Light Cutouts for Aftermarket Lighting

Standard recessed backup light cutouts are built into the bumper and sized to accept Baja Designs S2 flush mounts, Rigid SR-M 2x3 flush mounts, or Extreme LED 2x3 flush mounts. The recessed design keeps the light faces protected and flush with the bumper surface rather than exposed. Aftermarket backup lights are sold separately and are not included with the bumper.

Features

• Low-profile design: improves departure angle compared to the factory rear bumper
• Integrated receiver hitch: 1/4-inch steel hitch built into the bumper structure
• 3/4-inch D-ring recovery tabs: fully welded front and back for maximum pull strength
• Flip-up license plate bracket: swings clear for hitch and trailer plug access; LED license plate light included
• Recessed backup light cutouts: compatible with Baja Designs S2, Rigid SR-M 2x3, and Extreme LED 2x3 flush mounts (lights sold separately)
• 100% bolt-on installation: no cutting or welding required; made in the USA

Specifications

Who This Is For and Isn't

The C4 Fabrication Tacoma Overland Rear Bumper suits 3rd Gen Tacoma owners (2016–2023) who want a departure-angle improvement, integrated recovery points, and a bolt-on installation that doesn't require cutting or welding. It works for overlanders who also need a functional receiver hitch and want the option to run aftermarket flush-mount backup lights.

This bumper does not fit 1st or 2nd Gen Tacomas, and it is not compatible with the Blind Spot Monitor (BSM) system on Tacomas equipped with that feature. Aftermarket backup lights are not included. Raw-finish buyers should be aware that the bare steel must be painted or powder coated before installation to prevent rust; C4 Fabrication recommends test-fitting before coating to confirm alignment.

Common Questions

Does this bumper fit my 2016–2023 Tacoma if it has the factory Blind Spot Monitor?

The C4 Fabrication Tacoma Overland Rear Bumper is not compatible with the factory Blind Spot Monitor (BSM) system. Tacoma owners with BSM should confirm this limitation before purchasing, as the bumper will interfere with that system.

What tools and skills are needed to install this bumper?

The Tacoma Overland Rear Bumper uses a 100% bolt-on design and installs without cutting or welding. C4 Fabrication provides a PDF installation guide. No fabrication experience is required, though professional installation is an option for those who prefer it.

What is the difference between the Raw and Powder Coat finish options?

The Raw finish ships as bare steel. To prevent rust, bare steel must be painted or powder coated before installation; C4 Fabrication recommends test-fitting the bumper first to confirm alignment before sending it out for coating. The Powder Coat finish arrives ready to install without additional surface treatment.

Are backup lights included with the bumper?

Backup lights are not included. The Tacoma Overland Rear Bumper has recessed cutouts sized for Baja Designs S2 flush mounts, Rigid SR-M 2x3 flush mounts, and Extreme LED 2x3 flush mounts, all of which are sold separately.

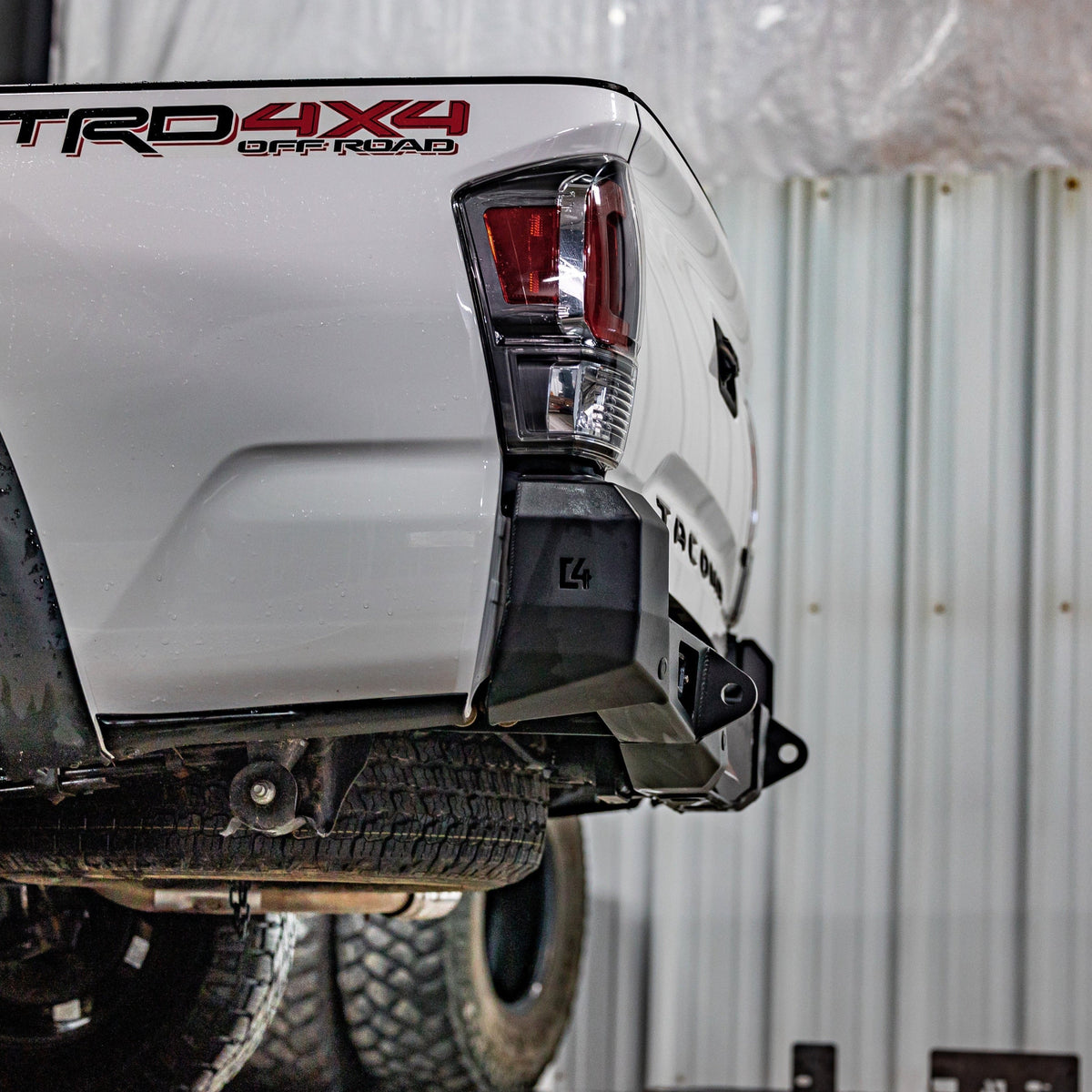

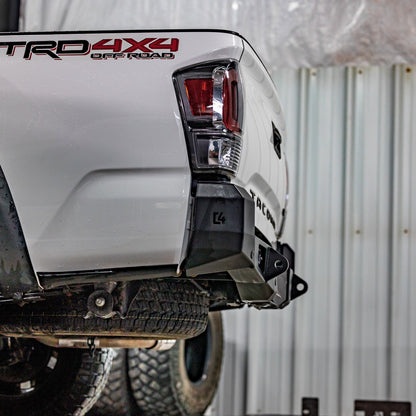

What recovery hardware is built into this bumper?

The Tacoma Overland Rear Bumper includes 3/4-inch D-ring recovery tabs that are fully welded front and back. D-rings or shackles to use with those tabs are sold separately and are not included with the bumper.
