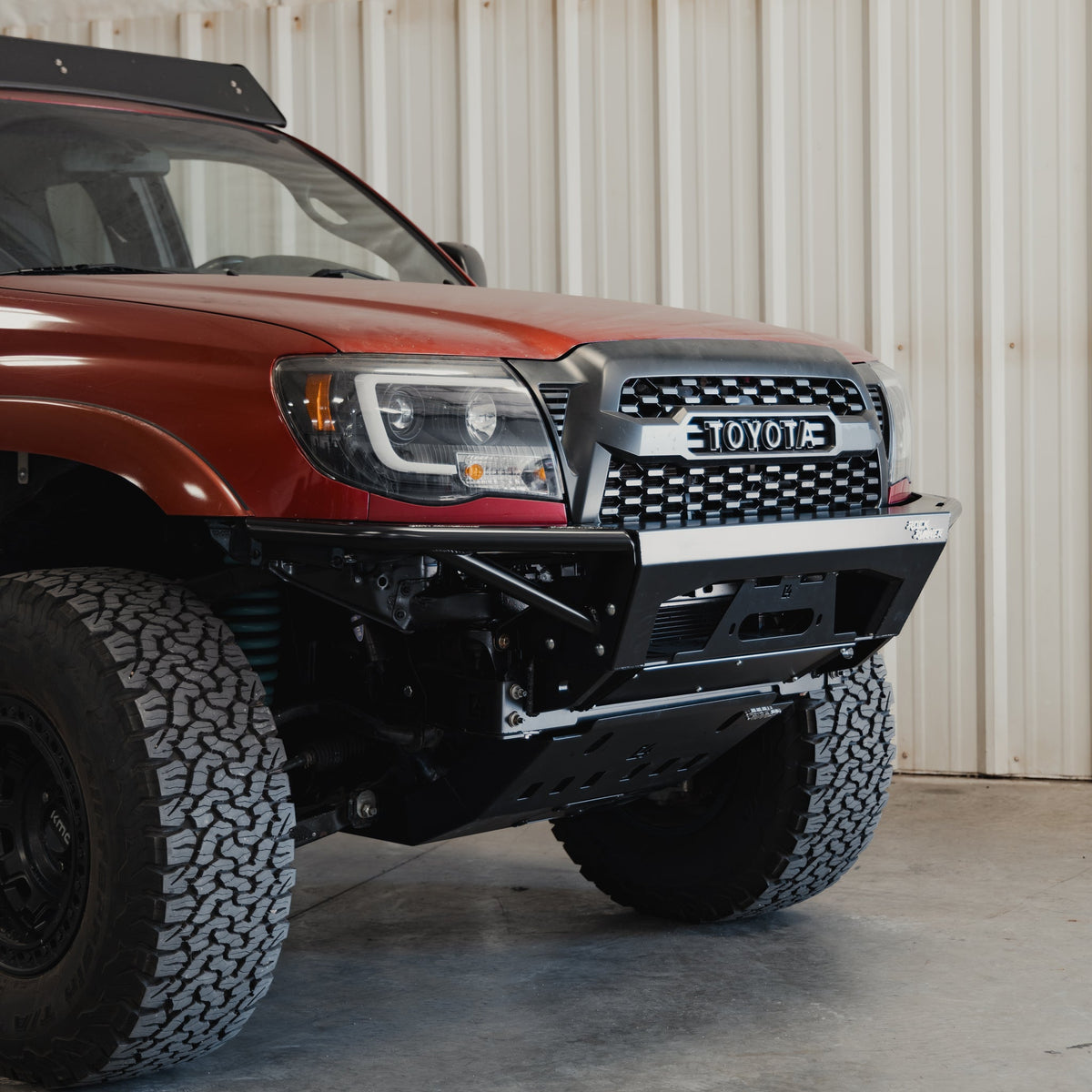

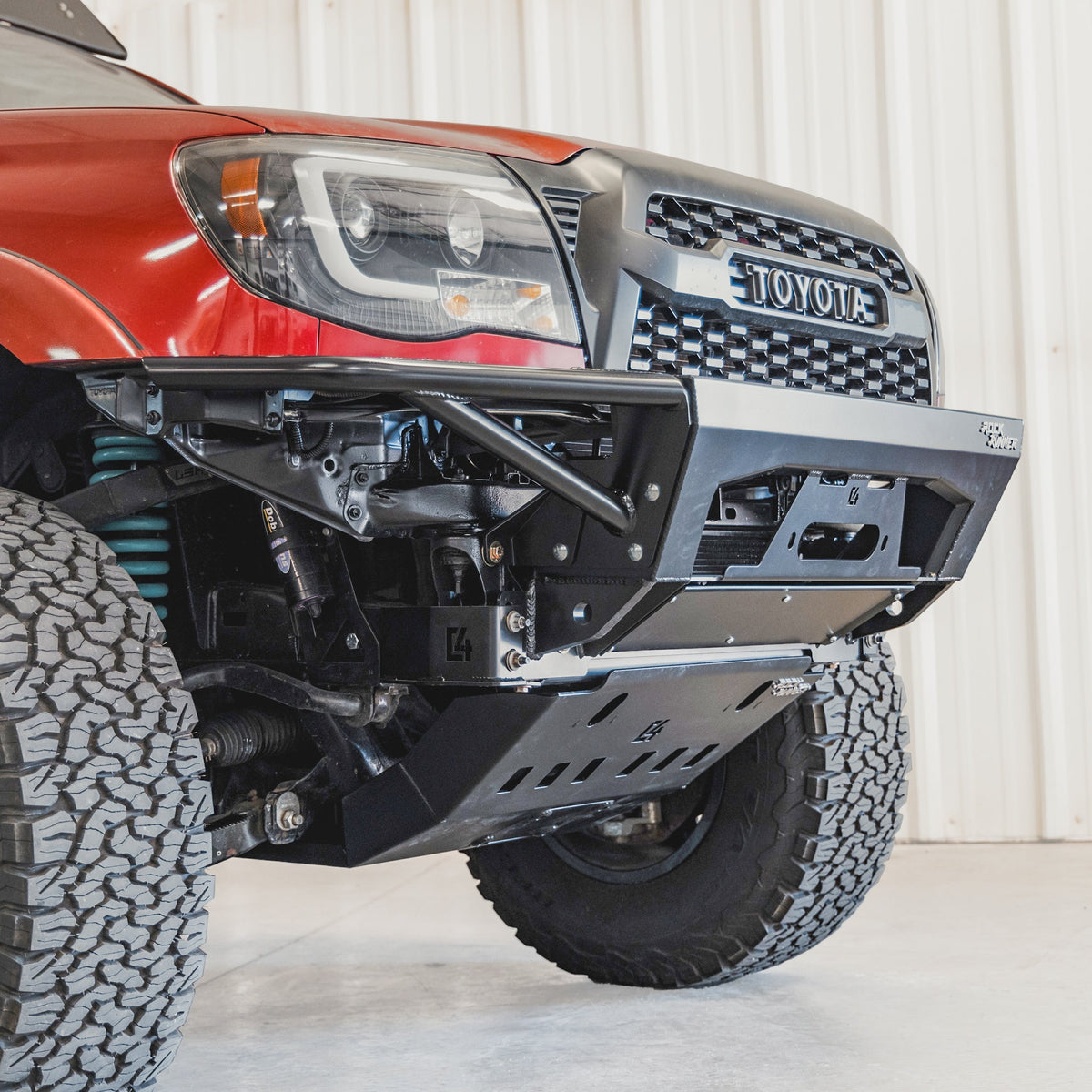

C4 Fabrication Rock Runner Front Bumper for 2nd Gen Tacoma

The C4 Fabrication Rock Runner Front Bumper is a modular, winch-ready steel front bumper built for 2005–2011 second-generation Toyota Tacomas. Constructed from 11-gauge laser-cut P&O steel with 3/16-inch mounting plates and a reinforced winch plate, it weighs 85 pounds in either Plate Sides or Tube Sides configuration and accepts winches rated 8,000 to 12,000 pounds. Three wing styles and two finish options let buyers configure the bumper to match their build.

Modular Construction That Adapts to Your Build

The Rock Runner uses a three-piece design with bolt-on wings, which means the bumper can be staged for installation in sections rather than wrestled into place as a single heavy assembly. Plate Sides and Tube Sides both weigh 85 pounds for the front section, keeping the weight manageable during a garage install. Wide Tube Sides are available for rigs running fiberglass front ends, so the bumper fits the actual body rather than requiring bodywork to accommodate a universal wing profile. Adding the optional low bar increases total weight by 5 pounds.

Built for Recovery, Not Just Looks

Three-quarter-inch D-ring tabs are fully welded front and back on every Rock Runner, providing solid recovery anchor points without relying on bolt-on hardware that can loosen over time. The reinforced winch plate accepts most 8,000- to 12,000-pound winches, and a recessed fairlead plate keeps the rope line clean. Front cutouts provide direct access to the winch lever without removing any body panels. C4 Fabrication confirms fitment with Smittybilt X20 and Warn VR series winches; winches with an integrated control box may require minor trimming of the grille support brackets. Synthetic rope with a hawse-style fairlead is recommended for best functionality.

Frame Support and Skid Integration Included

Additional frame support brackets ship with every second-generation Tacoma Rock Runner, reinforcing the connection between the bumper and the factory frame. A winch cover plate and bridge skid are also included, ready to tie into the factory cross member or C4 Fabrication's skid plate systems. Buyers who select the cross member delete package receive a replacement cross member, a Rock Runner front skid plate, and a power steering relocation kit in place of the factory cross member.

Finish Options and Pre-Install Requirements

The Rock Runner ships in Raw (bare steel) or Powder Coat finish. Raw variants ship as bare steel and must be painted or powder coated before installation to prevent rust; C4 Fabrication recommends test-fitting before coating to confirm alignment and fitment. Powder-coated variants are ready for installation without additional surface treatment.

Features

• 11-gauge P&O steel construction: laser-cut body with 3/16-inch mounting plates and reinforced winch plate
• 3/4-inch D-ring tabs: fully welded front and back, standard on every bumper

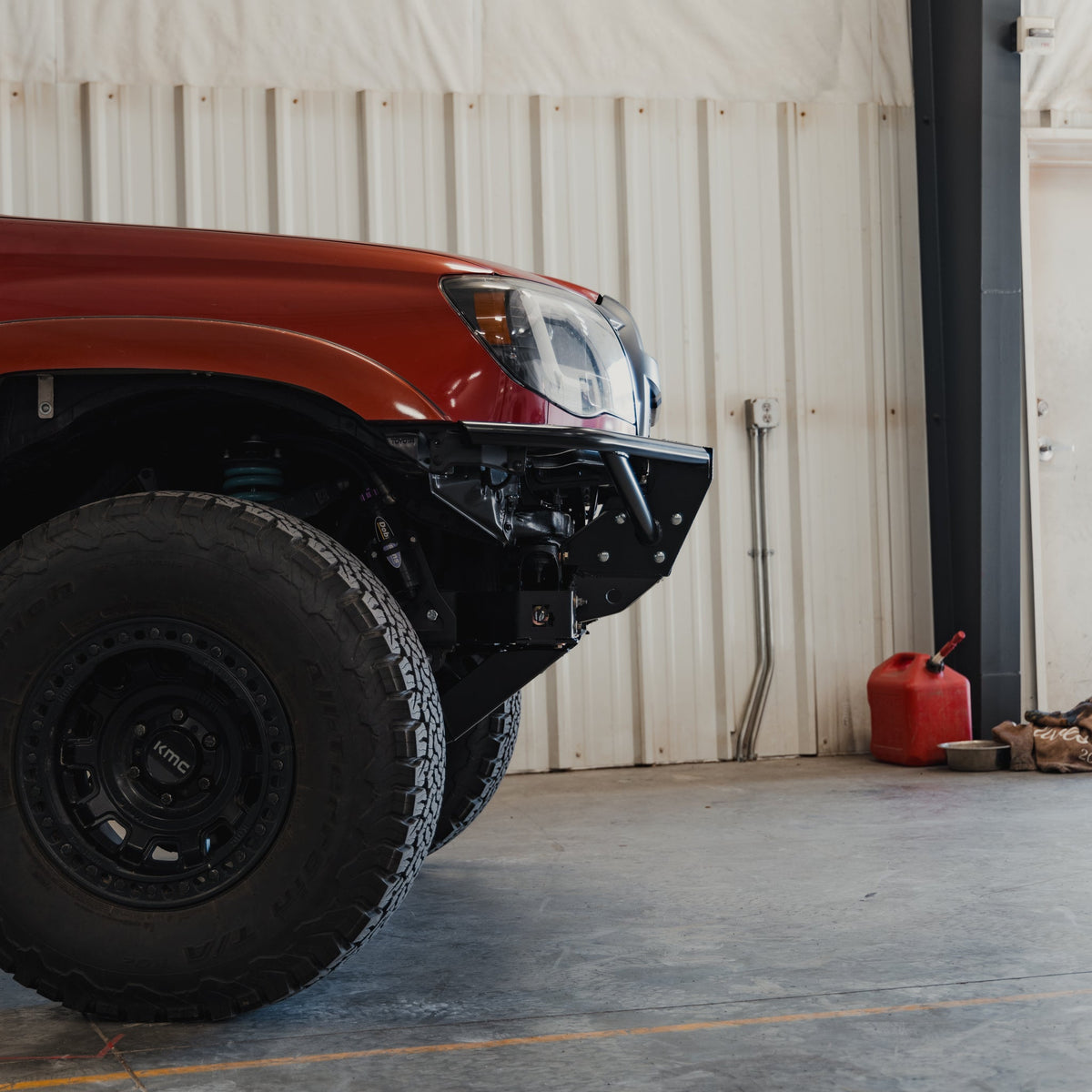

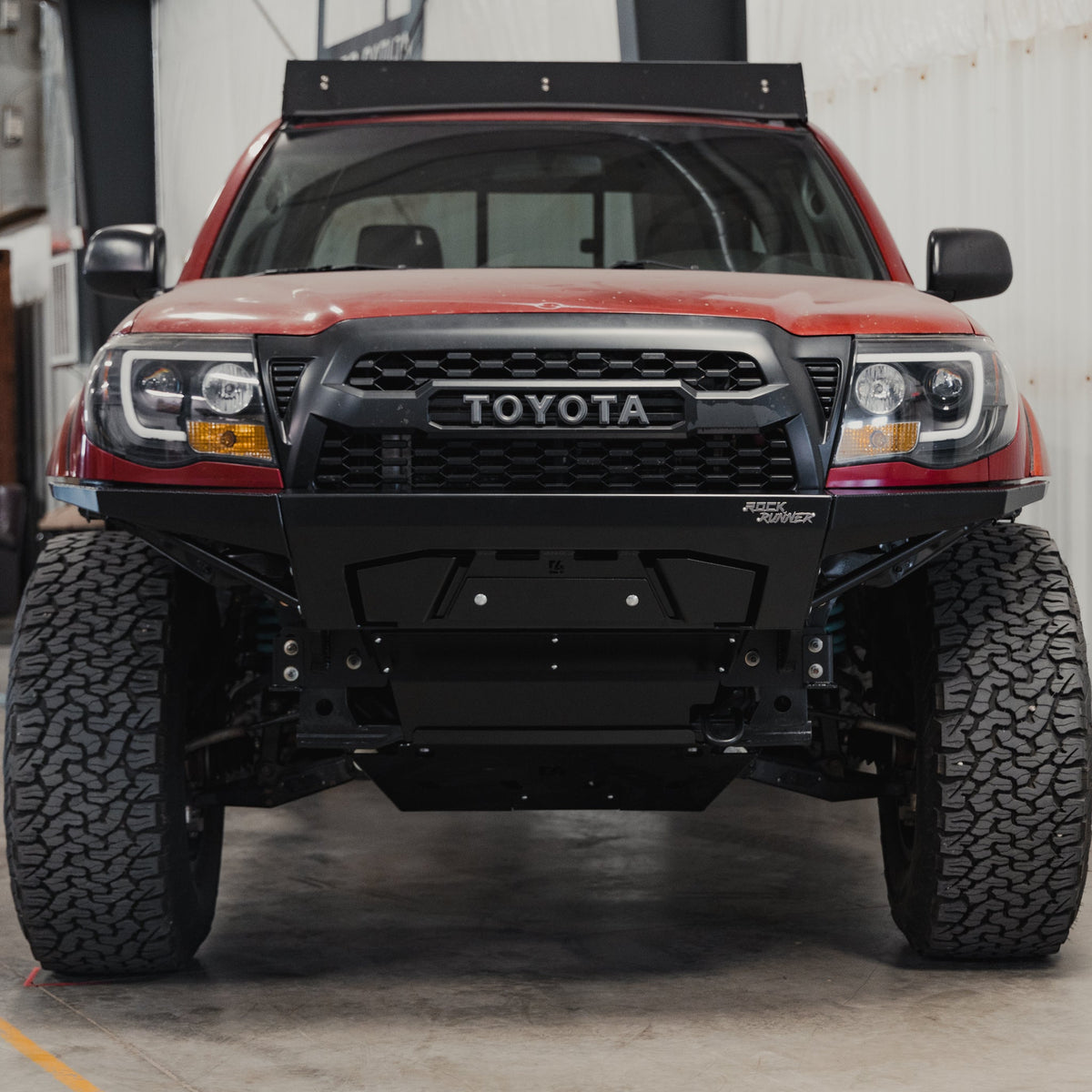

• Three-piece modular design: bolt-on wings in Plate Sides, Tube Sides, or Wide Tube Sides (fiberglass fitment)
• Winch-ready: accepts 8,000–12,000 lb winches; recessed fairlead plate and lever-access cutouts included
• Included hardware: winch cover plate, bridge skid, and additional frame support brackets
• Made in USA: 100% American made

Specifications

Who This Is For and Isn't

The Rock Runner Front Bumper suits 2005–2011 second-generation Toyota Tacoma owners who wheel regularly and want a winch-capable, recovery-ready front end built from heavy-gauge domestic steel. The three wing styles make it a practical choice for both steel-body and fiberglass-front builds, and the modular design accommodates a staged installation without a full shop setup.

This bumper does not fit any Tacoma generation outside 2005–2011. The optional low bar is not compatible with Toyota Safety Sense. Raw-finish variants are not ready to install without painting or powder coating first. The cross member delete package requires cutting out the factory cross member, which is not reversible without additional fabrication.

Common Questions

Which winches fit the Rock Runner Front Bumper?

The C4 Fabrication Rock Runner Front Bumper accepts most winches rated between 8,000 and 12,000 pounds. Confirmed fitment includes the Smittybilt X20 and Warn VR series. Winches with an integrated control box may require minor trimming of the grille support brackets. A synthetic rope winch paired with a hawse-style fairlead is recommended for best functionality with the recessed fairlead plate.

Does the bumper include D-rings or a winch?

The Rock Runner Front Bumper ships with 3/4-inch D-ring tabs fully welded front and back. No separate purchase is needed for recovery points. A winch cover plate and bridge skid are also included. A winch is not included and must be purchased separately. D-rings (shackles) to insert into the tabs are not listed as included and should be sourced separately.

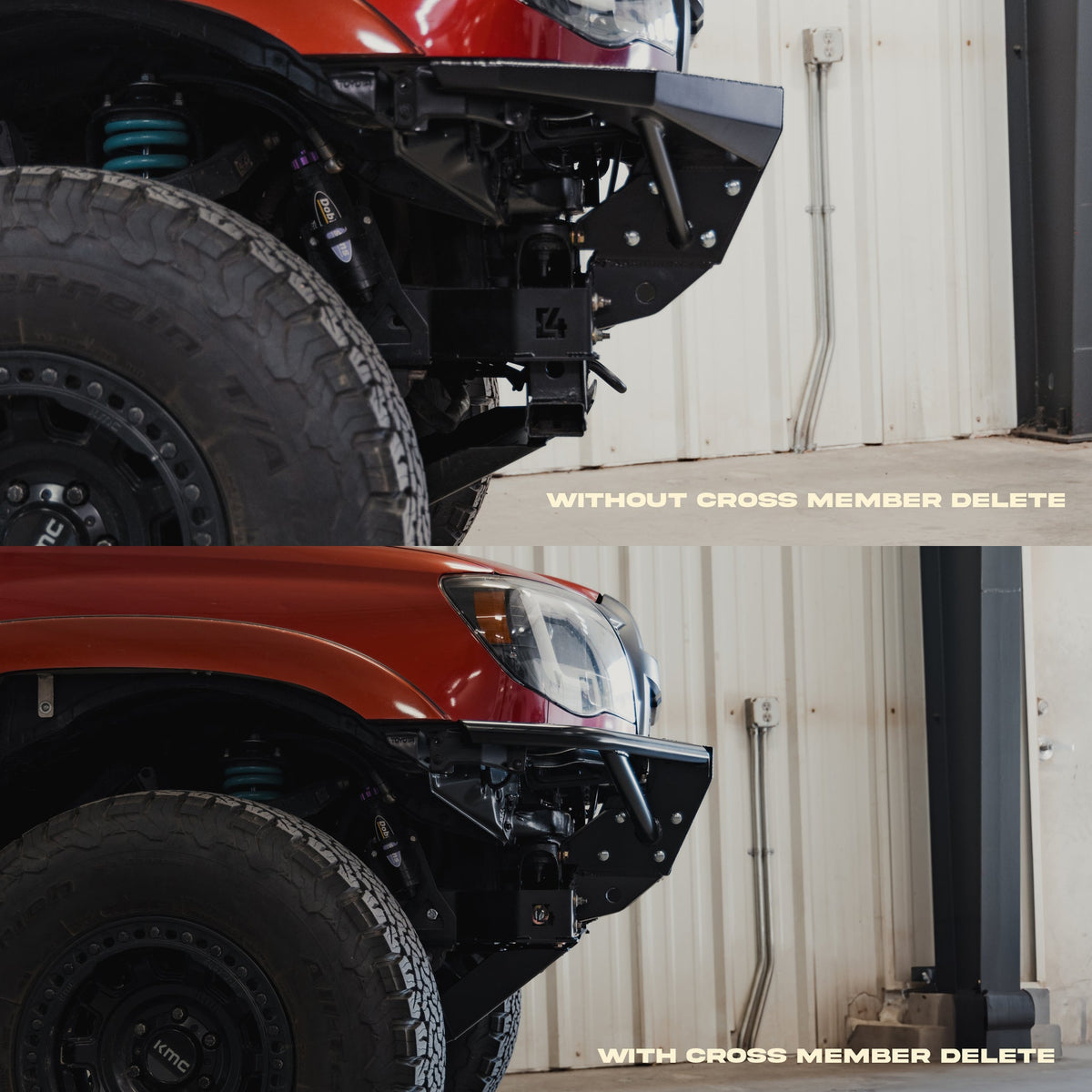

What does the cross member delete package add?

Selecting the cross member delete package means the factory cross member is cut out and replaced with a C4 Fabrication upgrade. The package includes the replacement cross member, a Rock Runner front skid plate, and a power steering relocation kit. This modification is not reversible without additional fabrication, so it is best suited to dedicated trail or overland builds rather than daily drivers that may need factory service access.

Does the Raw finish need any prep before installation?

Yes. Raw-finish Rock Runner bumpers ship as bare steel and must be painted or powder coated before installation to prevent rust. C4 Fabrication recommends test-fitting the bumper first to confirm alignment and fitment before sending it out for coating, since adjustments are easier on bare steel than on a finished surface.

Is the bull bar compatible with Toyota Safety Sense?

No. The optional low bar bull bar is not compatible with Toyota Safety Sense. Tacoma owners whose trucks are equipped with Toyota Safety Sense should select the No Bull Bar configuration to avoid interference with the system's sensors.
