C4 Fabrication Full Skid Plate Kit for Toyota Tacoma 2005–2023

The C4 Fabrication Full Skid Plate Kit is a 3-piece, 100% bolt-on undercarriage armor system for 2nd and 3rd Gen Toyota Tacomas (2005–2023), built from 3/16-inch CNC-cut steel to shield the engine, transmission, and transfer case from trail damage. The kit ships in two exhaust-drop configurations (one for trucks running a stock exhaust and one for trucks with an exhaust reroute) and is available in raw steel or powder coat finish.

Front-to-Rear Coverage Without Gaps

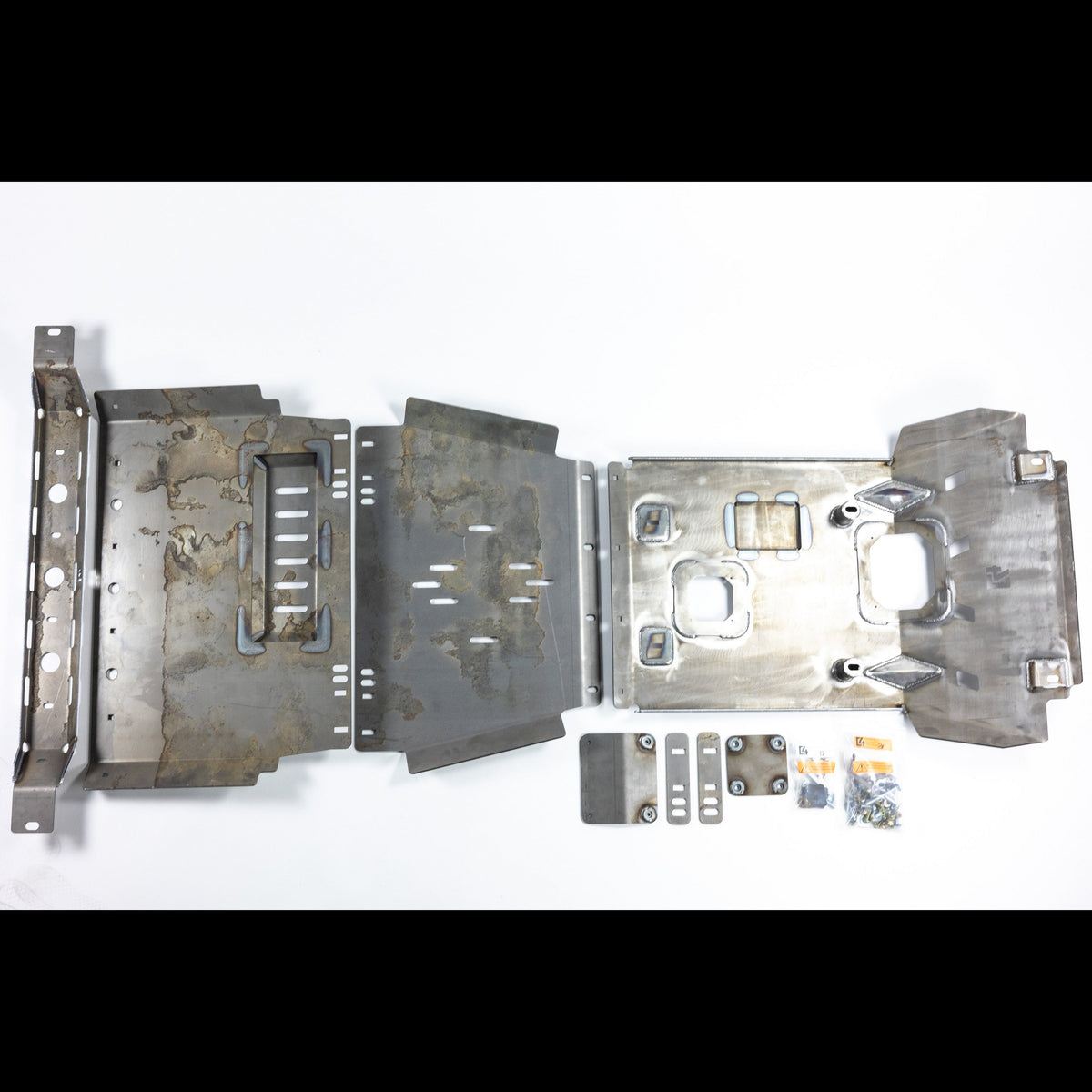

Three separate skid plates bolt together into a single continuous system, so there are no exposed gaps between panels where rocks or debris can sneak through to reach drivetrain components. A dedicated bolt-in crossmember reinforces the transfer case section specifically, adding structural rigidity at the point that takes the most punishment on technical terrain. That matters on a Tacoma because the transfer case sits low and is one of the first components to contact trail obstacles on a stock or mildly lifted truck.

Service Access Built In

Dedicated oil drain and oil filter covers are integrated into the skid plate design, so routine oil changes do not require pulling the entire skid. On a trail-built truck that sees regular service intervals, that time savings adds up. It also removes the temptation to skip a change because the job feels like too much work. The 100% bolt-on design means no cutting, welding, or frame modification is needed for installation.

Finish and Exhaust Compatibility, Chosen at Order

Raw steel variants ship as bare steel and must be painted or powder coated before installation to prevent rust. C4 Fabrication recommends test-fitting the plates before sending them out for coating to confirm alignment and fitment first. The powder coat option arrives ready to install. The exhaust drop variant includes a clearance drop sized for the stock Tacoma exhaust; the exhaust reroute variant replaces that drop with a flat fill plate welded in place, giving a clean fit for trucks that have already rerouted their exhaust. Both variants are compatible with a 1-inch differential drop and work with most aftermarket bumpers.

Features

• 3-piece bolt-together system: covers engine, transmission, and transfer case in a single continuous assembly
• 3/16-inch CNC-cut steel construction: heavy-duty plate thickness throughout
• Bolt-in crossmember: adds dedicated structural reinforcement at the transfer case
• Integrated oil drain and filter covers: allow oil changes without removing the skid plates
• Two exhaust configurations: stock-exhaust drop or flat fill plate for exhaust reroute builds
• All hardware included: 100% bolt-on installation, no cutting or welding required
• Made in the USA

Specifications

Who This Is For and Isn't

This kit suits 2nd and 3rd Gen Tacoma owners (2005–2023) who wheel on rocky or technical terrain and want front-to-rear undercarriage protection without giving up routine service access. It works with a 1-inch differential drop and most aftermarket bumpers, making it a practical choice for trucks that are already partially built or in the process of being built up.

This kit does not fit Tacomas outside the 2005–2023 2nd and 3rd Gen range. Raw steel variants require painting or powder coating before installation and are not corrosion-resistant as delivered. The exhaust reroute variant is not compatible with a stock exhaust routing; buyers must select the correct exhaust configuration for their build.

Common Questions

Does the full skid plate kit work with aftermarket bumpers?

The C4 Fabrication Tacoma Full Skid Plate Kit is compatible with most aftermarket bumpers and also works with a 1-inch differential drop. Compatibility with every aftermarket bumper configuration is not guaranteed; buyers running a non-standard front bumper setup should confirm fitment before ordering.

Can I change my oil without removing the skid plates?

Yes. The full skid plate kit includes dedicated oil drain and oil filter covers built into the skid plate design, so routine oil changes can be completed without unbolting and removing the plates. This is one of the primary design features of the system.

Which exhaust drop option should I choose?

Select the stock-exhaust variant if your Tacoma's exhaust has not been rerouted. That version includes a clearance drop sized for the factory exhaust path. Select the exhaust reroute variant if your exhaust has already been rerouted; that version replaces the drop with a flat fill plate welded in place for a clean fit. The two variants are not interchangeable.

Do the raw steel skid plates need any prep before installation?

Raw steel variants ship as bare steel and must be painted or powder coated before installation to prevent rust. C4 Fabrication recommends test-fitting the skid plates first to confirm alignment and fitment before sending them out for coating. The powder coat option arrives ready to install without additional prep.

Is this a true bolt-on installation, or does it require cutting or welding?

The C4 Fabrication Full Skid Plate Kit is a 100% bolt-on system for 2005–2023 Tacomas. All hardware is included. No cutting, drilling, or welding to the vehicle is required. PDF installation instructions are available from C4 Fabrication's product page.
