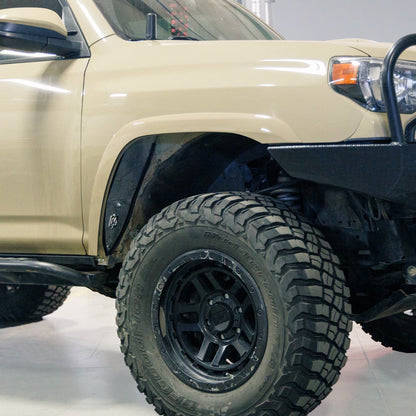

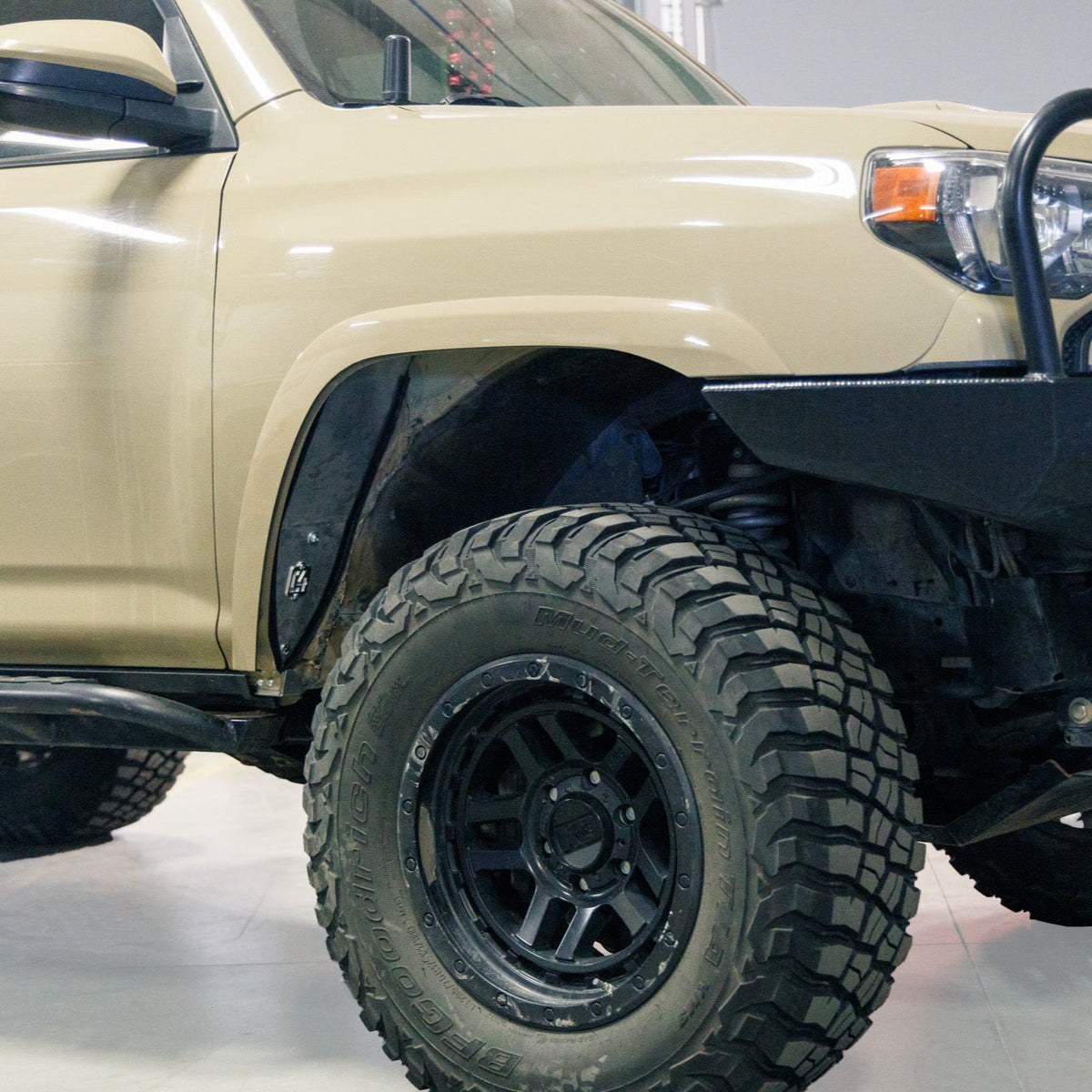

C4 Fabrication 5th Gen 4Runner Oversized Tire Fitment Kit

The C4 Fabrication 5th Gen 4Runner Oversized Tire Fitment Kit is a complete clearance solution that allows 2010–2024 Toyota 4Runners with a 3-inch lift to run 35-inch tires with minimal to no rubbing. The kit maintains coverage of the exposed air intake and doors throughout the modification. It ships with high-clearance fender liners, stick-on fender trim templates, and a body mount relocation kit. All three components are included to complete the conversion.

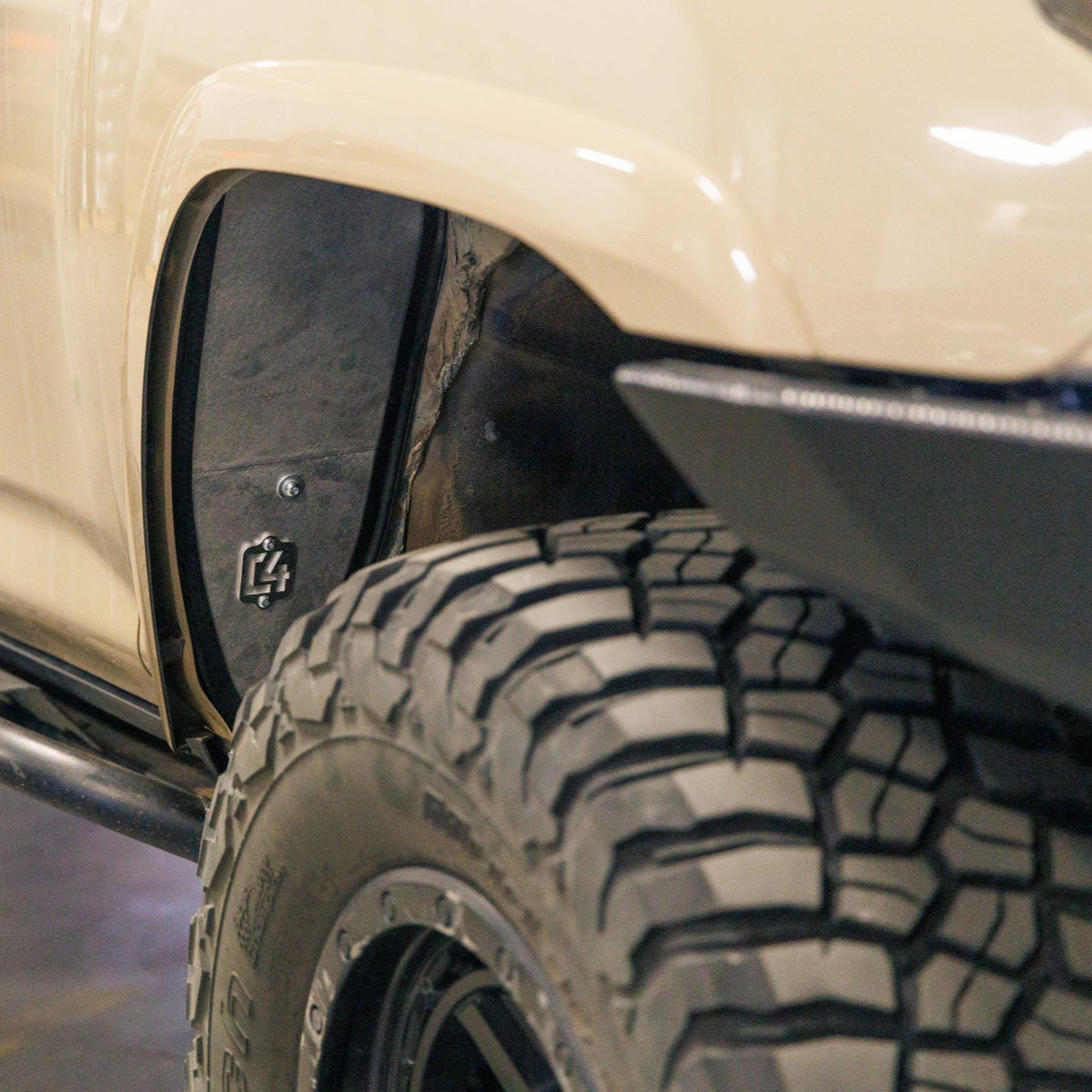

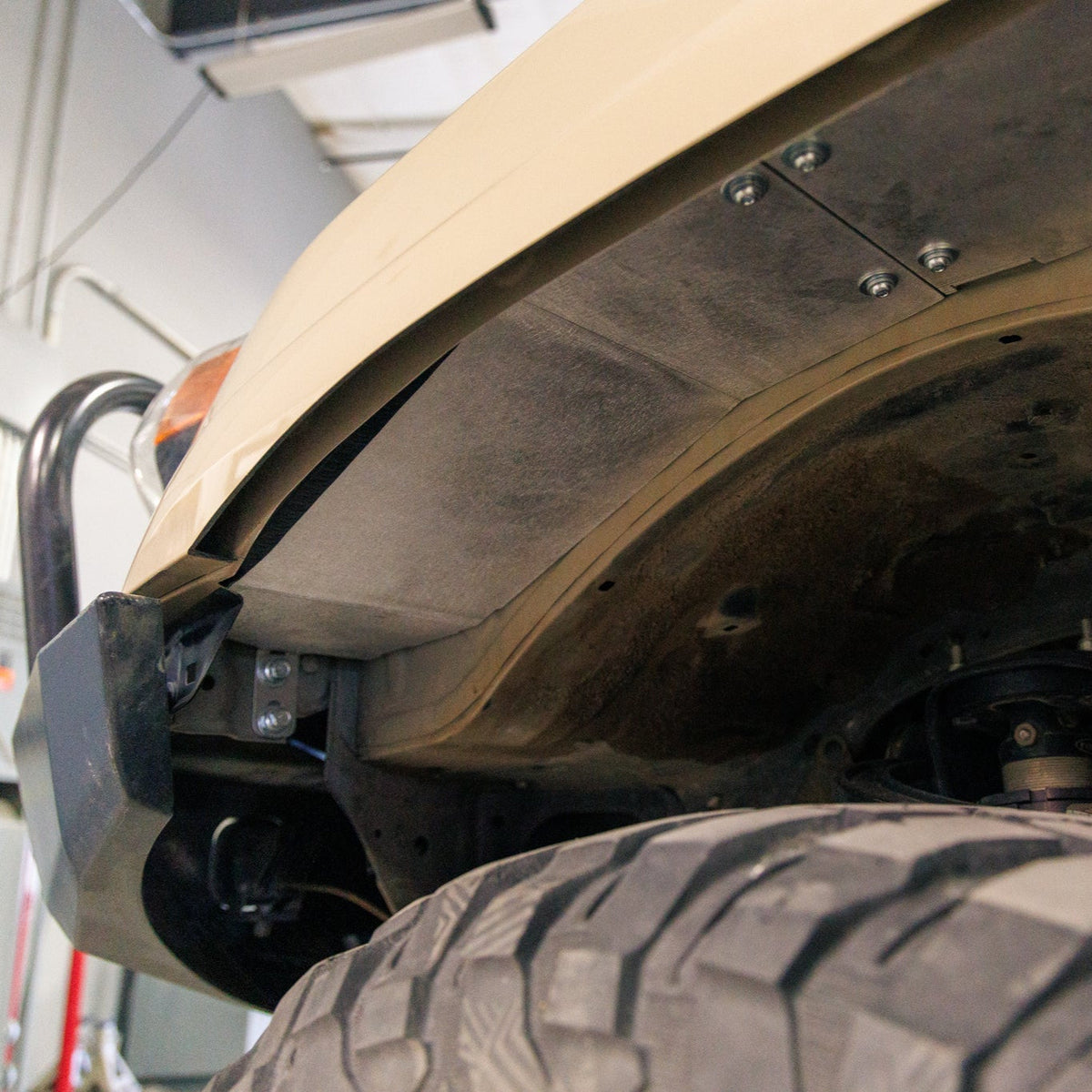

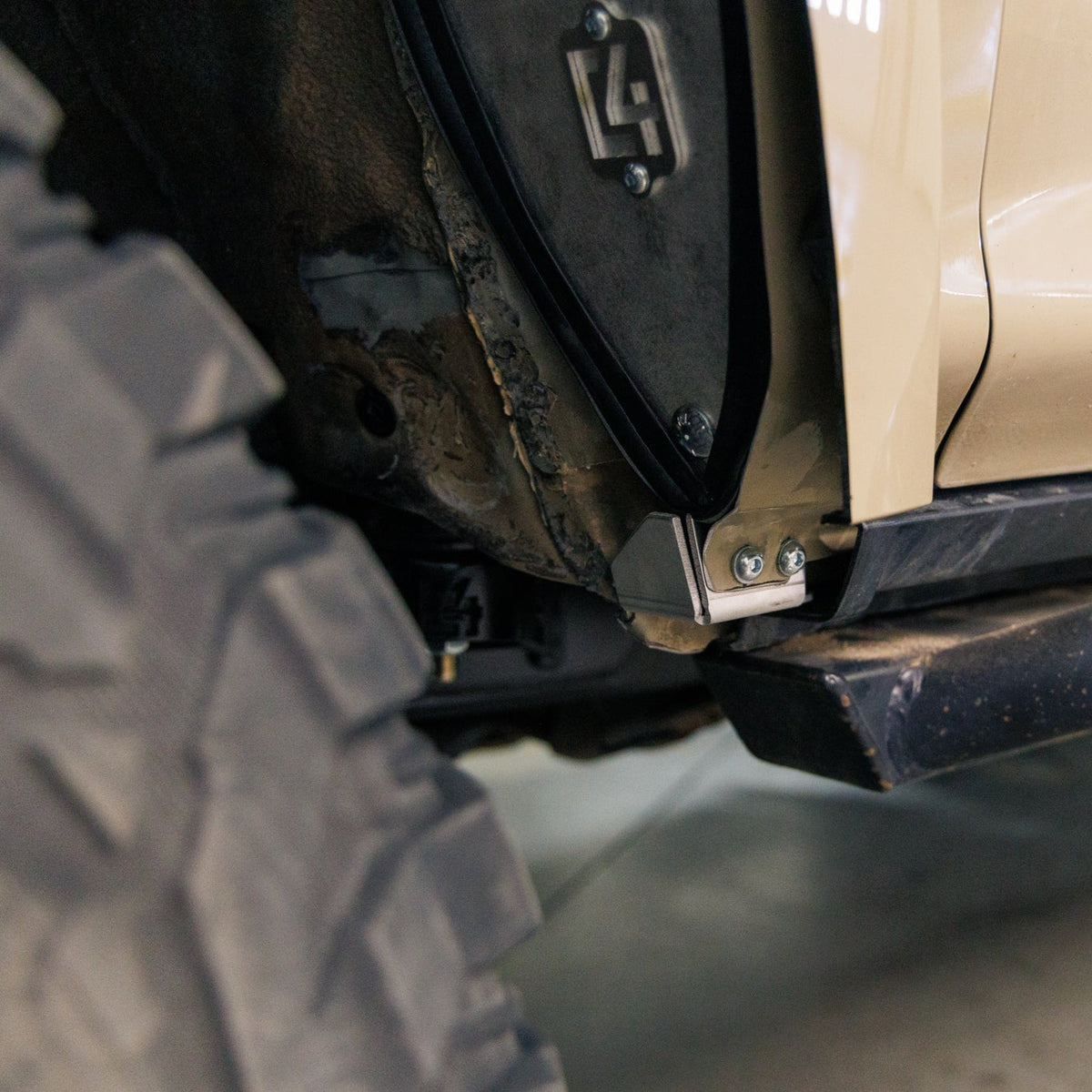

Room for 35-Inch Tires Without Sacrificing Coverage

Running 35-inch tires on a lifted 4Runner typically means choosing between clearance and protection. The front air intake and door edges become vulnerable the moment factory liners are removed. The C4 Fabrication kit resolves that tradeoff by pairing high-clearance fender liners with edge trim that seals tightly against the fender, keeping dirt and debris out while still giving the larger tire the room it needs. The result is a setup that clears 35s on a 3-inch lift without leaving critical components exposed.

Precision Cutting, Not Guesswork

Factory fender trimming is required for this conversion, and the stick-on fender trim templates included in the kit mark the cut lines directly on the vehicle. That removes the guesswork from one of the most consequential steps in the process and helps produce a clean, repeatable result. The edge trim then covers the cut edge and locks the liner into a sealed fit against the fender.

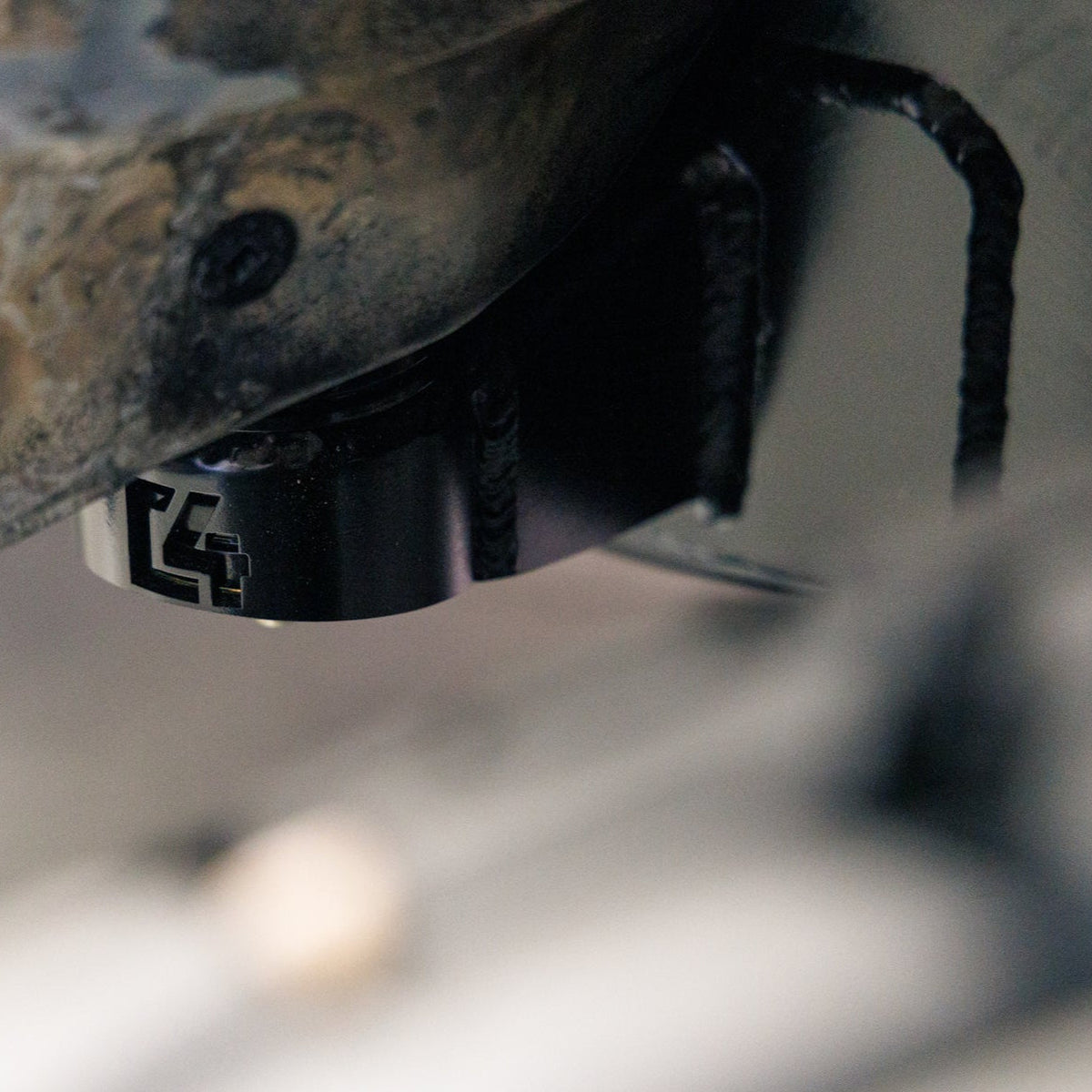

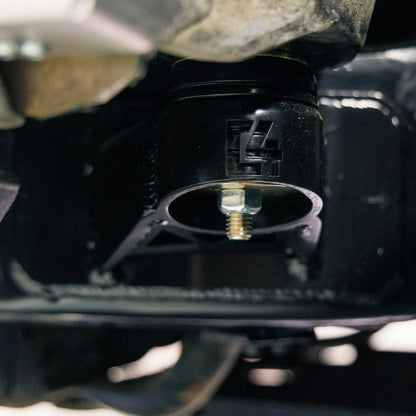

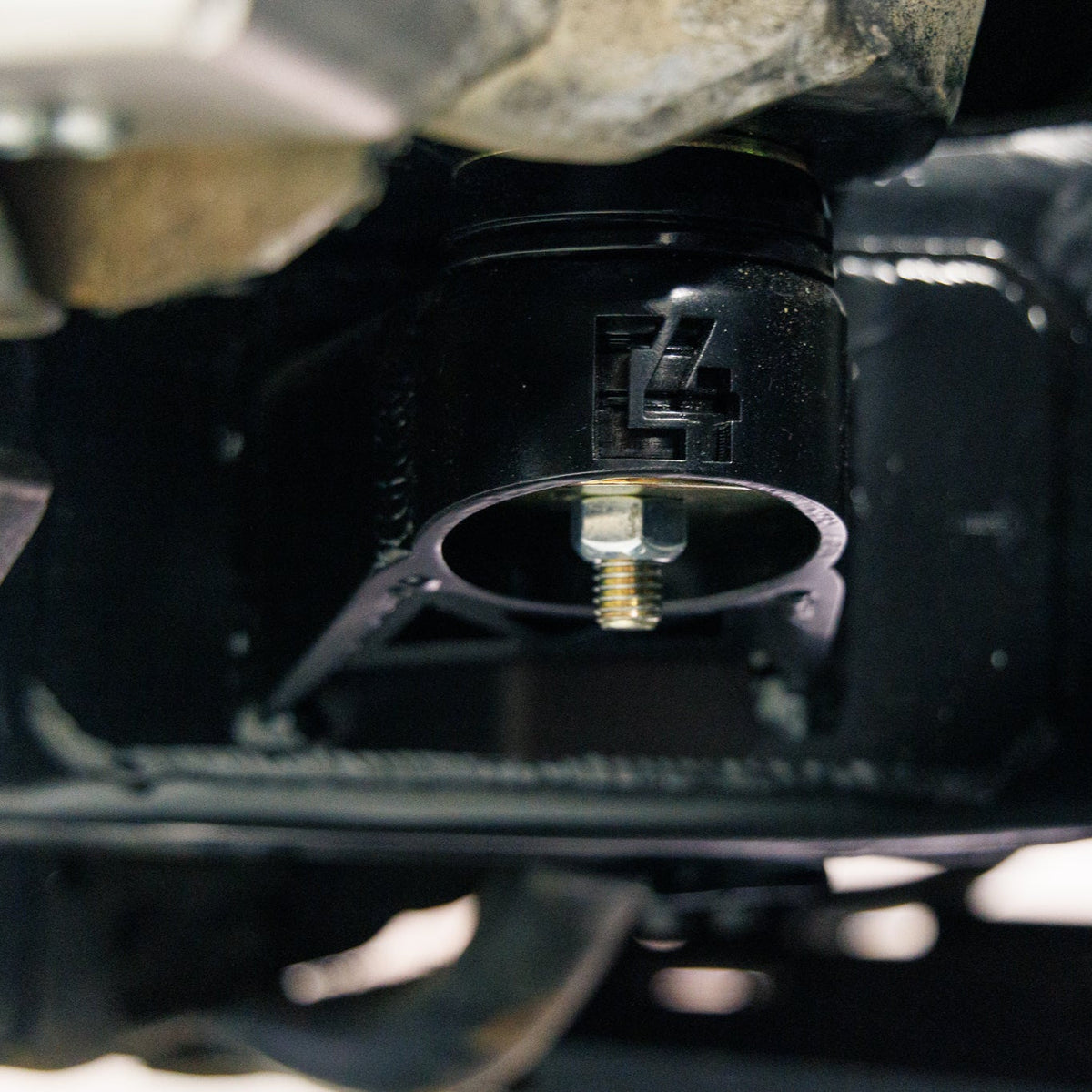

Body Mount Relocation for Maximum Clearance

The included body mount relocation kit addresses the factory body mount, which limits how far the fender can be modified for tire clearance. The relocation process requires removing the factory mount, cutting, and welding in a replacement. This work requires fabrication tools and welding capability. Once complete, the additional clearance gained at the body mount contributes to the overall 35-inch tire fitment the kit is designed to achieve.

Features

• 35-Inch Tire Clearance: engineered for 5th Gen 4Runners with a 3-inch lift to fit 35-inch tires with minimal to no rubbing
• High-Clearance Fender Liners: maintain coverage of the exposed air intake and doors after fender modification
• Edge Trim: seals liners tightly against the fender to keep dirt and debris out
• Stick-On Fender Trim Templates: mark cut lines directly on the vehicle for a precise, repeatable fender trim
• Body Mount Relocation Kit: allows removal and replacement of the factory body mount for additional clearance
• Made in the USA: manufactured by C4 Fabrication

Specifications

Who This Is For and Isn't

This kit is designed for 2010–2024 Toyota 4Runner (5th Gen) owners running a 3-inch lift who want to fit 35-inch tires. It suits builders who plan to perform or hire out fender cutting and body mount welding, and who want a single kit covering fender clearance, liner coverage, and body mount relocation.

This kit does not fit stock-height 4Runners, 4Runners outside the 2010–2024 5th Gen range, or any other vehicle. Installation requires cutting the factory fenders and cutting and welding the body mount. This is not a bolt-on modification.

Common Questions

Which 4Runner years and generations does this kit fit?

The C4 Fabrication Oversized Tire Fitment Kit is designed specifically for the 5th Generation Toyota 4Runner, covering model years 2010 through 2024. It is not designed for earlier 4Runner generations or other Toyota models.

What lift height is required for this kit to work?

This oversized tire fitment kit is engineered for 5th Gen 4Runners equipped with a 3-inch lift. The kit's clearance geometry is designed around that lift height; fitment on vehicles with a different lift height is not specified by C4 Fabrication.

What tire size does this kit accommodate?

The C4 Fabrication kit is designed to allow 35-inch tires to fit on a 3-inch-lifted 5th Gen 4Runner with minimal to no rubbing. C4 Fabrication does not specify compatibility with larger tire sizes for this kit.

What is included in the kit?

The kit includes high-clearance fender liners, stick-on fender trim templates, and a body mount relocation kit. The fender liners maintain coverage of the air intake and doors; the trim templates mark cut lines on the factory fender; and the body mount relocation kit provides the hardware needed to remove and replace the factory body mount.

Does installation require cutting or welding?

Yes. Installing the C4 Fabrication Oversized Tire Fitment Kit requires trimming the factory fenders and removing the factory body mount, then cutting and welding in the replacement body mount included in the kit. These steps require fabrication tools and welding capability.
