C4 Fabrication 4Runner Hybrid Front Bumper 4th Gen 2003-2009

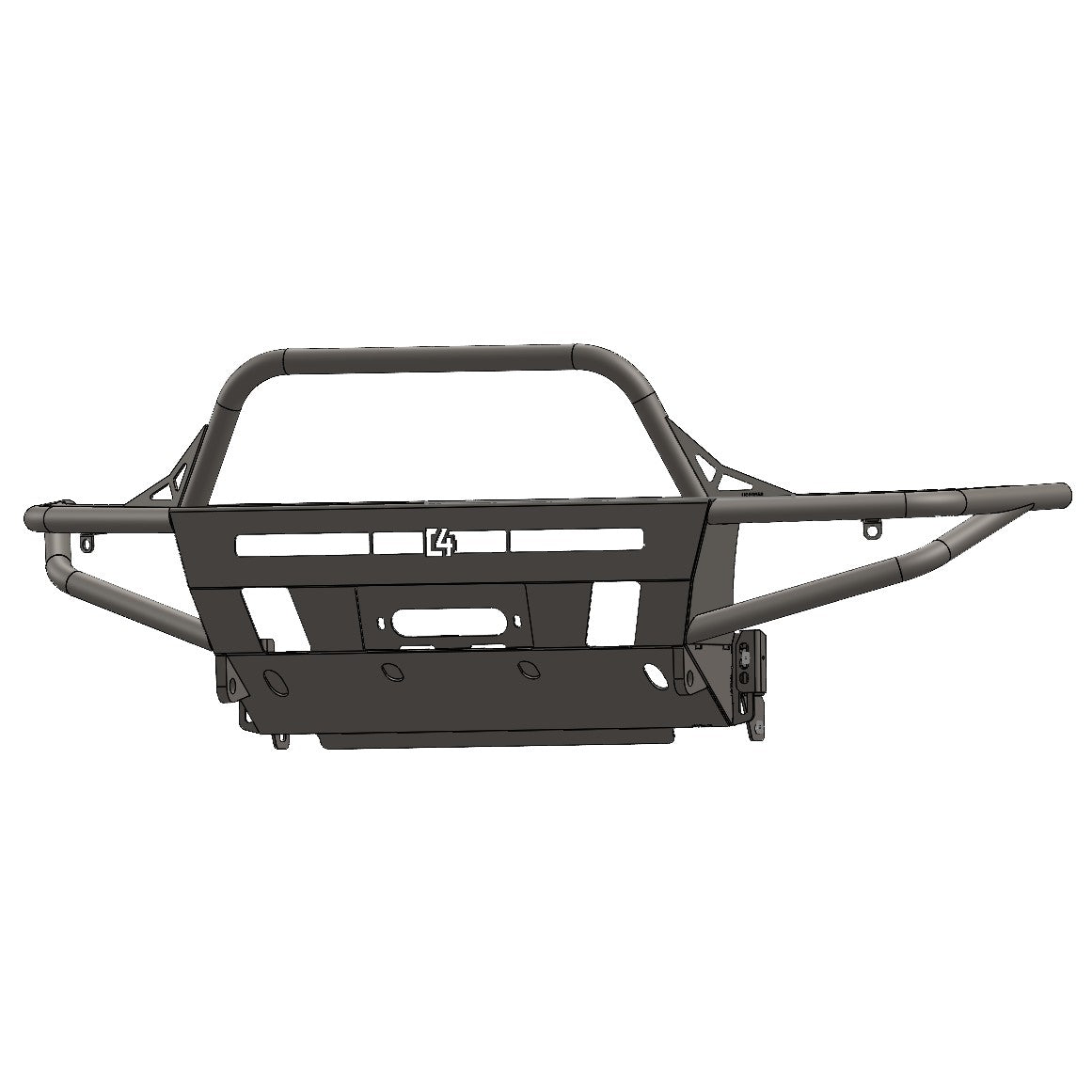

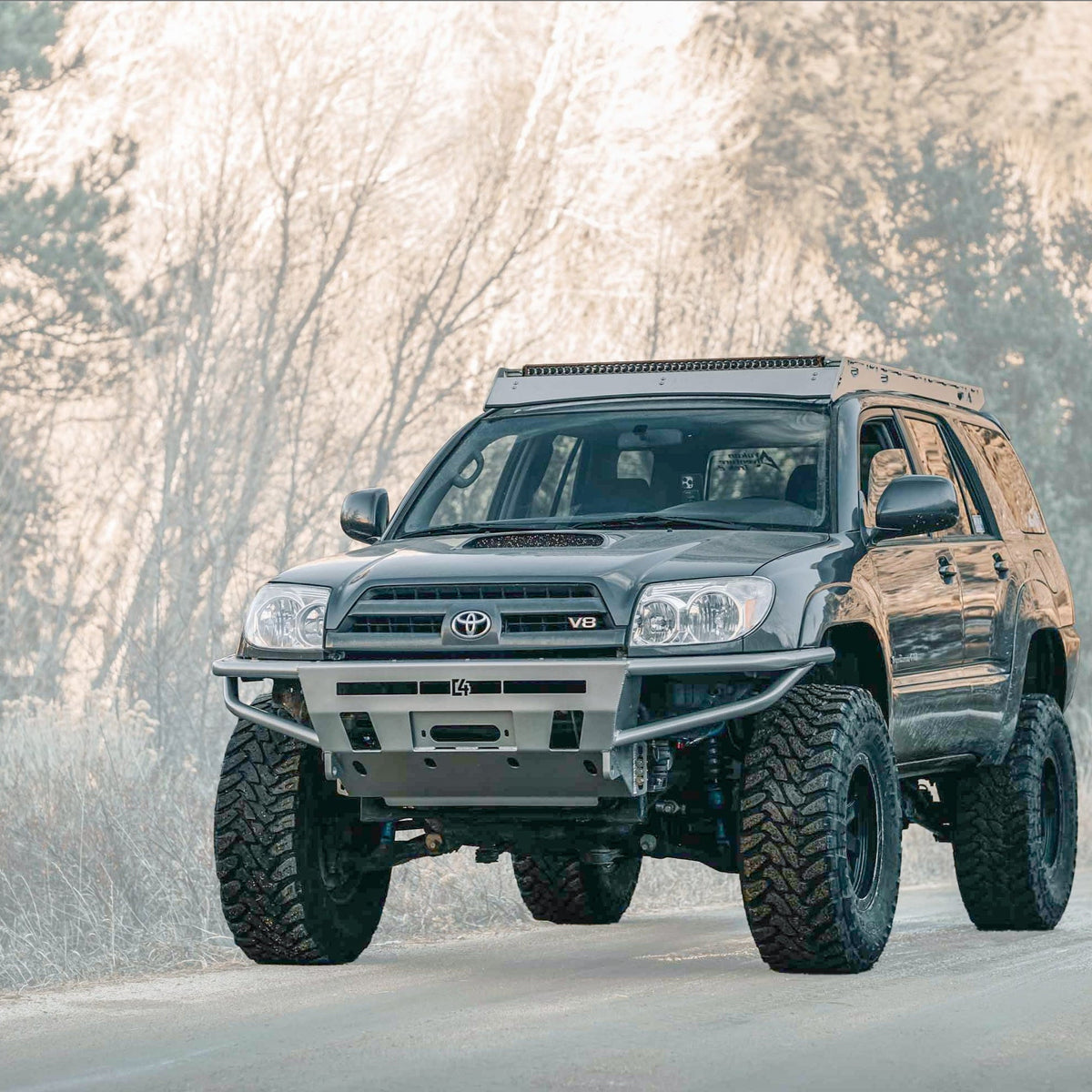

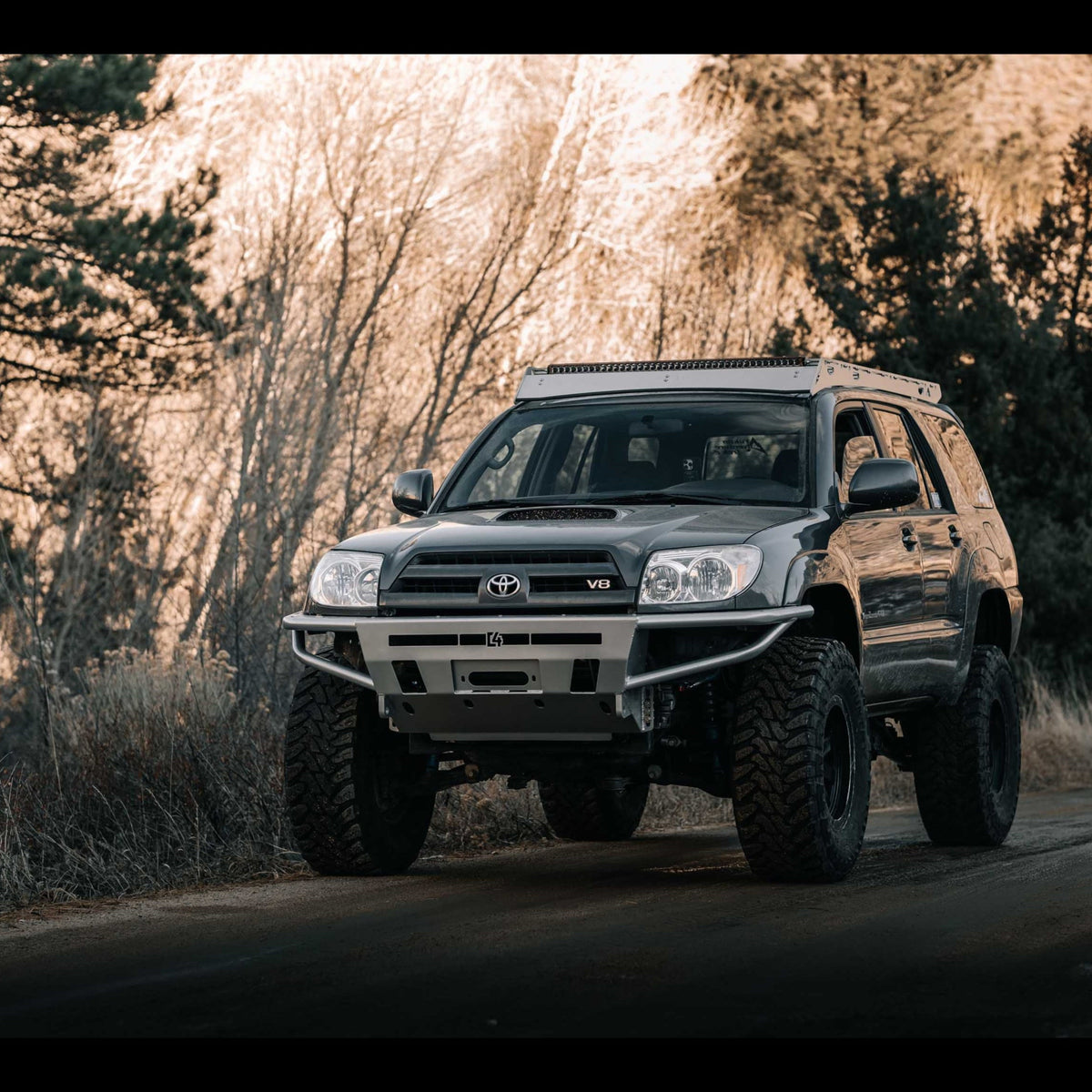

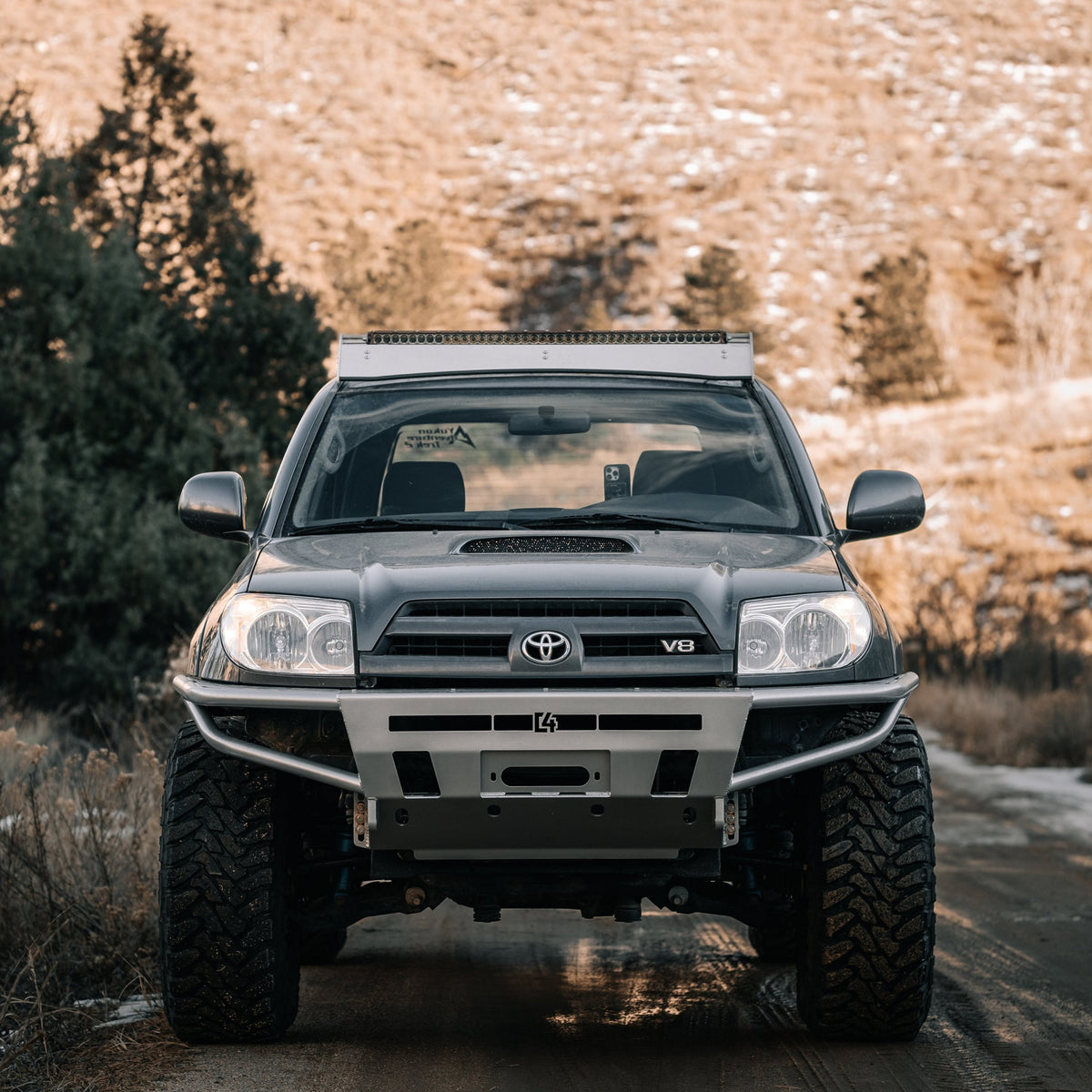

The C4 Fabrication Hybrid Front Bumper is a steel front replacement bumper built for 4th Generation Toyota 4Runner models from 2003 to 2009, combining a 3/16-inch laser-cut plate steel center section with 1 3/4-inch HREW tube sides. The hybrid construction saves weight compared to an all-plate design while retaining a winch mount, a 30-inch light bar pocket, and fully welded 3/4-inch D-ring recovery tabs on every unit. Two year-range variants (2003-2005 and 2006-2009) and three bull bar configurations are available, each in Raw bare steel or textured black powder coat.

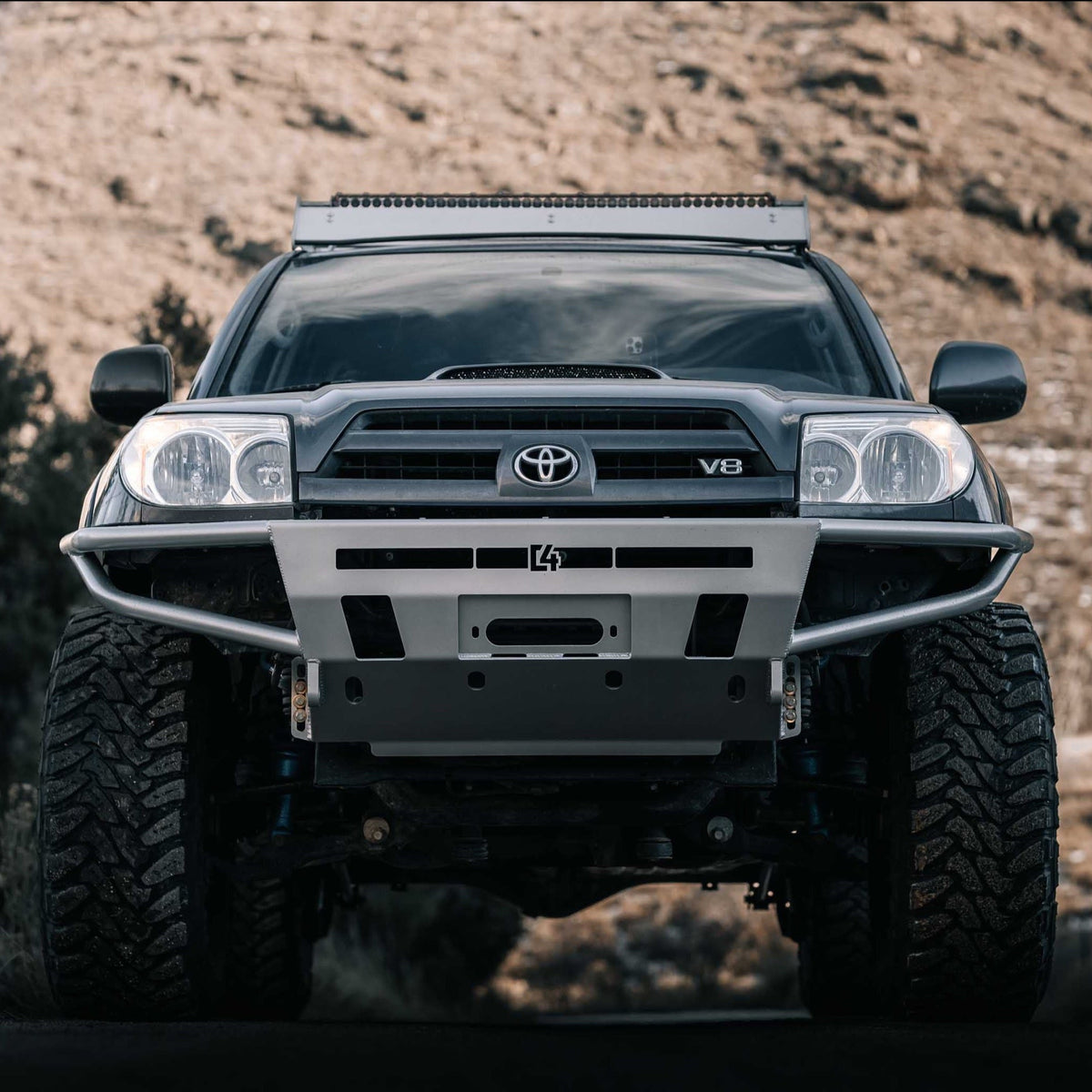

Hybrid Construction Balances Strength and Weight

Combining a plate steel center with round tube sides means the C4 Fabrication Hybrid Front Bumper carries the structural rigidity needed for winch loads and recovery pulls without the mass of a fully plated design. The center section uses 3/16-inch laser-cut P&O steel with 1/4-inch mounting plates; the tube sides are .120-wall, 1 3/4-inch diameter HREW tubing. For a 4Runner owner who wants genuine off-road capability without adding unnecessary weight to the front axle, that balance matters on every climb and descent.

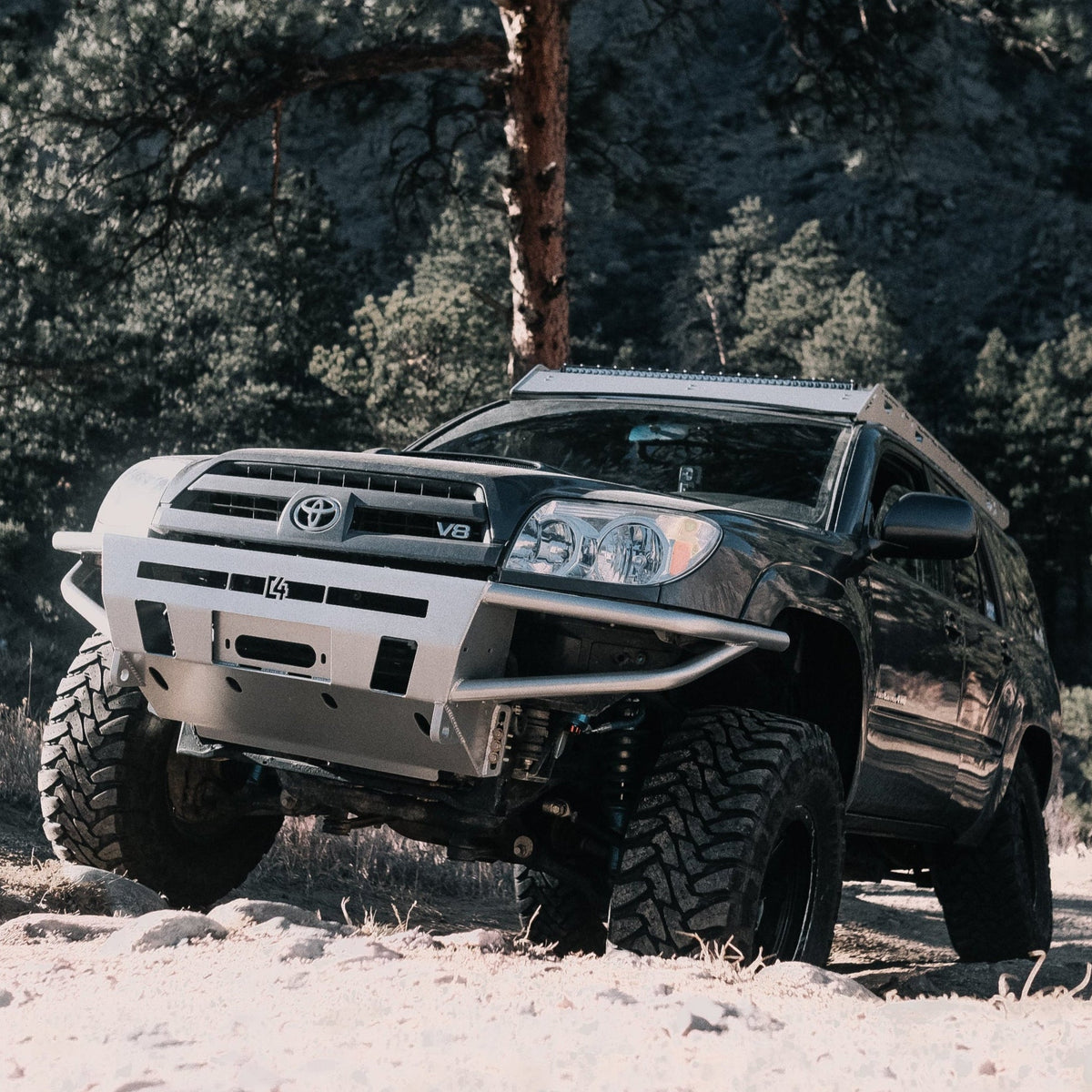

Improved Approach Angle and Larger Tire Clearance

The Hybrid Front Bumper is designed to improve approach angles and create clearance for larger tires compared to the factory bumper. Gaining approach angle is not cosmetic: it directly affects which obstacles a 4Runner can clear without catching the front end, and it widens the range of trails accessible without a body lift. The bumper is compatible with up to 2-inch body lifts when one is already installed.

Winch-Ready and Light Bar-Ready Out of the Box

The bumper accepts 8,000- to 12,000-pound winches, including Warn Zeon and VR series, Smittybilt X20, and ComeUp models. Winches with a relocatable electrical control box are recommended for the cleanest fit; integrated control box winches may require minor trimming of the grille support brackets. The recessed fairlead mounting plate is sized for a hawse-style fairlead used with synthetic rope; some roller fairleads are too large for the recess. The light bar pocket is designed around 30-inch single-row bars, specifically the Baja Designs S8, and the tube sides accommodate multiple fog light configurations.

Included Hardware and Year-Specific Fitment Parts

Every Hybrid Front Bumper ships with frame support brackets, a washer tank skid, and fully welded 3/4-inch D-ring recovery tabs. The 2003-2005 year range includes a bolt-on top fill plate specific to those model years. Turn signals are included depending on the year range selected. Raw-finish bumpers ship as bare steel and must be painted or powder coated before installation to prevent rust; C4 Fabrication recommends test-fitting the bumper before sending it out for coating to confirm alignment and fitment.

Features

• Hybrid plate-and-tube design: 3/16-inch laser-cut P&O steel center with .120-wall, 1 3/4-inch HREW tube sides
• Fully welded D-ring tabs: 3/4-inch thick, welded front and back, standard on every unit
• Winch-compatible: fits 8K-12K winches including Warn Zeon/VR, Smittybilt X20, and ComeUp; hawse fairlead recommended
• 30-inch light bar pocket: designed for single-row bars, specifically the Baja Designs S8
• Year-specific hardware included: frame support brackets, washer tank skid, top fill plate (2003-2005), turn signals (year-range dependent)
• Made in the USA: 100% American made

Specifications

Who This Is For and Isn't

The C4 Fabrication Hybrid Front Bumper suits 4th Generation Toyota 4Runner owners (2003-2009) who want a winch-capable, light bar-ready steel front bumper that improves approach angle and tire clearance for trail and overland use. It works with up to 2-inch body lifts and accepts a range of 8K-12K winches.

This bumper does not fit any 4Runner generation outside the 4th Gen (2003-2009). Roller fairleads may be too large for the recessed fairlead mounting plate; a hawse-style fairlead with synthetic rope is recommended. Integrated control box winches may require minor trimming of the grille support brackets. Raw-finish units are not ready to install without first painting or powder coating the bare steel.

Common Questions

Which winches fit the C4 Fabrication Hybrid Front Bumper?

The Hybrid Front Bumper accepts 8,000- to 12,000-pound winches. Confirmed compatible models include the Warn Zeon series, Warn VR series, Smittybilt X20, and ComeUp winches. Winches with a relocatable electrical control box fit best; integrated control box winches may require minor trimming of the grille support brackets to clear the bumper.

Does this bumper work with a body lift?

The C4 Fabrication Hybrid Front Bumper is confirmed compatible with body lifts up to 2 inches. Fitment with larger body lifts is not confirmed.

What is included with the bumper?

Every Hybrid Front Bumper ships with frame support brackets, a washer tank skid, and fully welded 3/4-inch D-ring recovery tabs. The 2003-2005 year range also includes a bolt-on top fill plate. Turn signals are included depending on the year range selected. A winch, fairlead, and light bar are not included and are sold separately.

How much does this bumper weigh?

The C4 Fabrication Hybrid Front Bumper weighs 115 lb in the No Bull Bar configuration, 123 lb with the Mid-Height Bull Bar, and 125 lb with the Full-Height Bull Bar with Plate Gussets. These are product weights; the shipping weight is higher.

Does the Raw finish need to be coated before installation?

Yes. Raw-finish Hybrid Front Bumpers ship as bare steel and must be painted or powder coated before installation to prevent rust. C4 Fabrication recommends test-fitting the bumper on the vehicle before sending it out for coating to confirm proper alignment and fitment. The Powder Coat finish option arrives ready to install.

What light bar does this bumper fit?

The Hybrid Front Bumper's light bar pocket is designed for 30-inch single-row light bars and was specifically designed around the Baja Designs S8 30-inch bar. The tube sides also accommodate multiple fog light configurations; no specific fog light models are listed.
