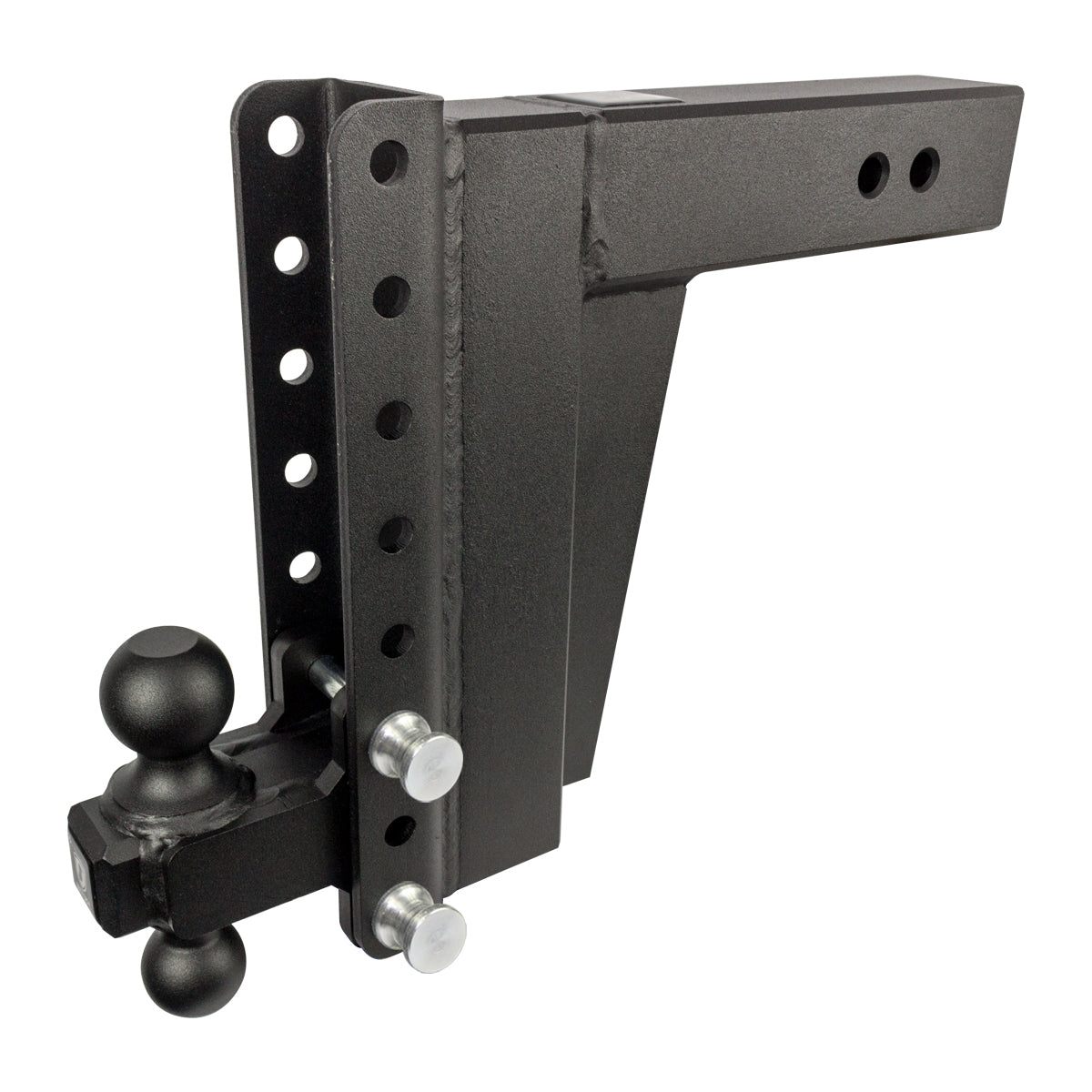

BulletProof Hitches Extreme Duty 3.0" Shank 10" Drop/Rise Tow Hitch

The BulletProof Hitches Extreme Duty 3.0" Shank 10" Drop/Rise Tow Hitch is a Class 5 adjustable hitch rated for up to 36,000 lb max towing capacity and 6,000 lb tongue weight, with six selectable ride heights to level a trailer behind lifted or lowered tow vehicles. It exceeds SAE-J684 testing requirements and works with all BulletProof Hitches accessories.

Six Ride Heights, One Hitch

The Extreme Duty hitch offers six easily adjustable ride heights, letting drivers dial in a level tow angle without swapping hardware. Whether the tow vehicle sits higher after a suspension lift or lower from a heavy payload, the adjustment range accommodates the difference without a separate drop bar purchase.

Built Beyond Standard Load Requirements

At a 36,000 lb max towing capacity and 6,000 lb tongue weight rating, this hitch is classed as a Class 5 unit and has been tested to exceed SAE-J684 requirements, the industry standard governing hitch strength and safety. An additional down bar between the channel and the gusset reinforces the shank assembly where stress concentrates most during heavy towing, adding structural redundancy that a standard single-bar design does not provide.

Ready to Tow Out of the Box

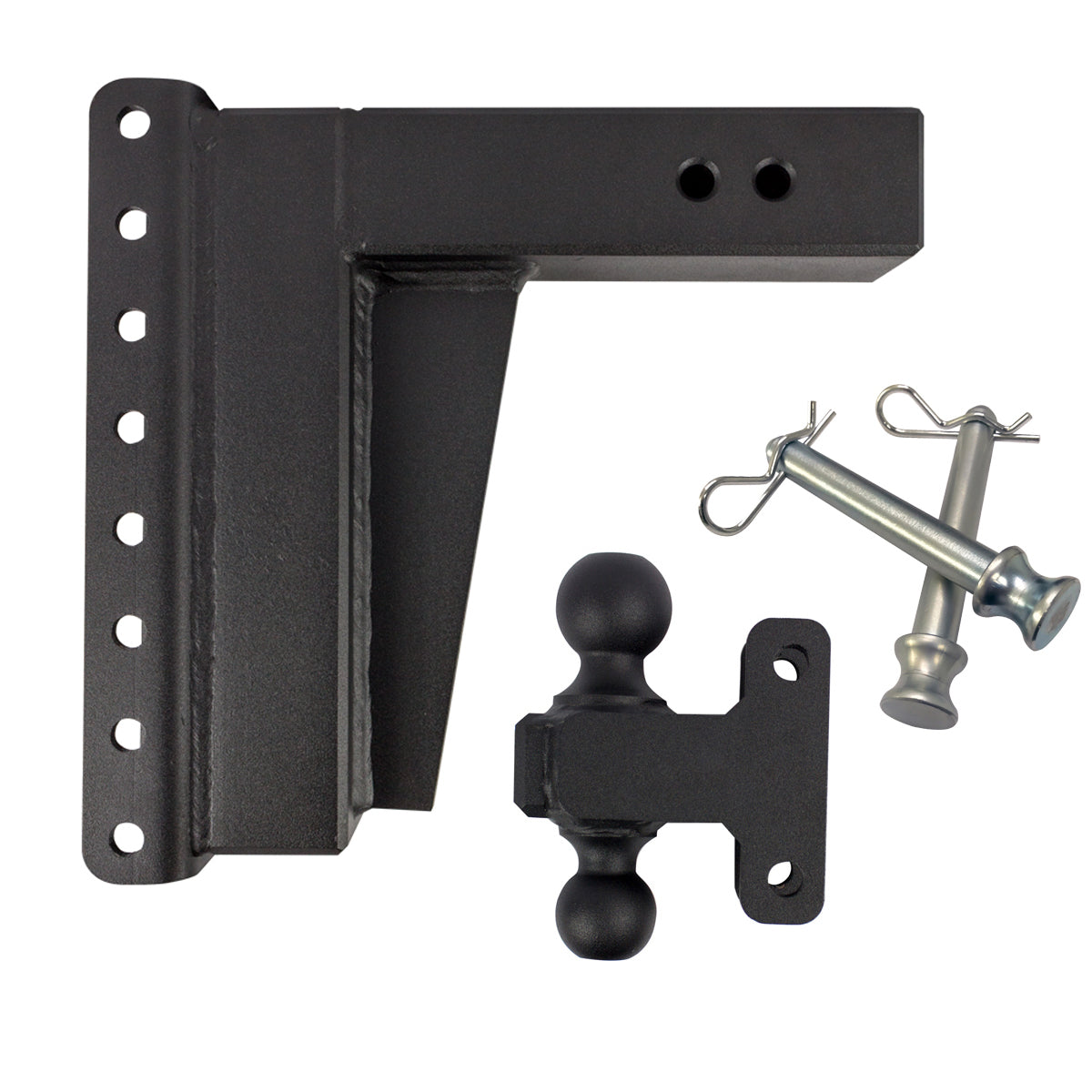

The hitch ships with a dual-ball head accommodating both 2" and 2-5/16" ball sizes, two corrosion-resistant pins, and R-clips to secure the ball head. Both common ball sizes are covered without a separate purchase, and the corrosion-resistant pins are included so the hitch is ready to use immediately.

Features

• Class 5 rating: 36,000 lb max towing capacity and 6,000 lb tongue weight capacity
• Six adjustable ride heights: easily reconfigured to level trailer tongue angle
• Reinforced gusset assembly: additional down bar between channel and gusset for added structural integrity
• Dual-ball head included: accommodates 2" and 2-5/16" ball sizes
• Corrosion-resistant hardware: two pins and R-clips included to secure the ball head
• BulletProof Hitches accessory compatible: works with the full BulletProof Hitches accessory lineup

Specifications

Who This Is For and Isn't

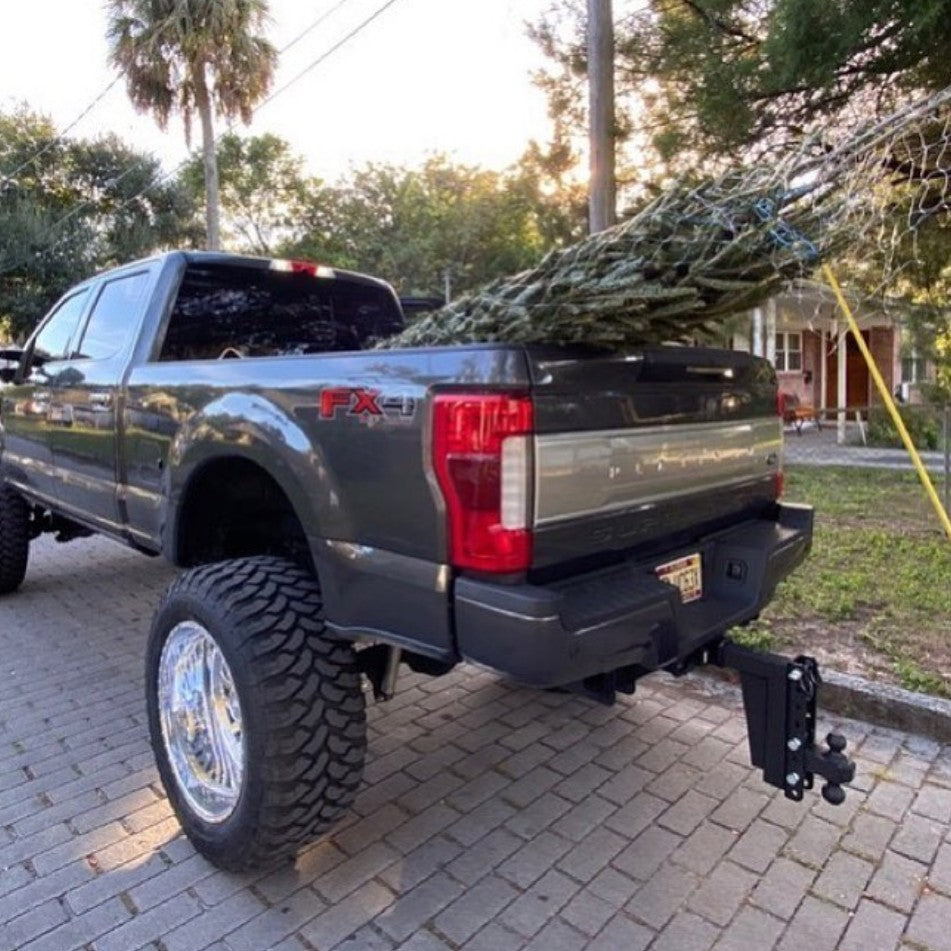

This hitch suits drivers of lifted trucks, heavy-duty pickups, or work vehicles that tow heavy trailers (goosenecks, equipment trailers, or large loads) and need a Class 5 shank with significant drop or rise to achieve a level tow angle. The six adjustable ride heights make it particularly useful when the tow vehicle's hitch height changes seasonally or after a suspension modification.

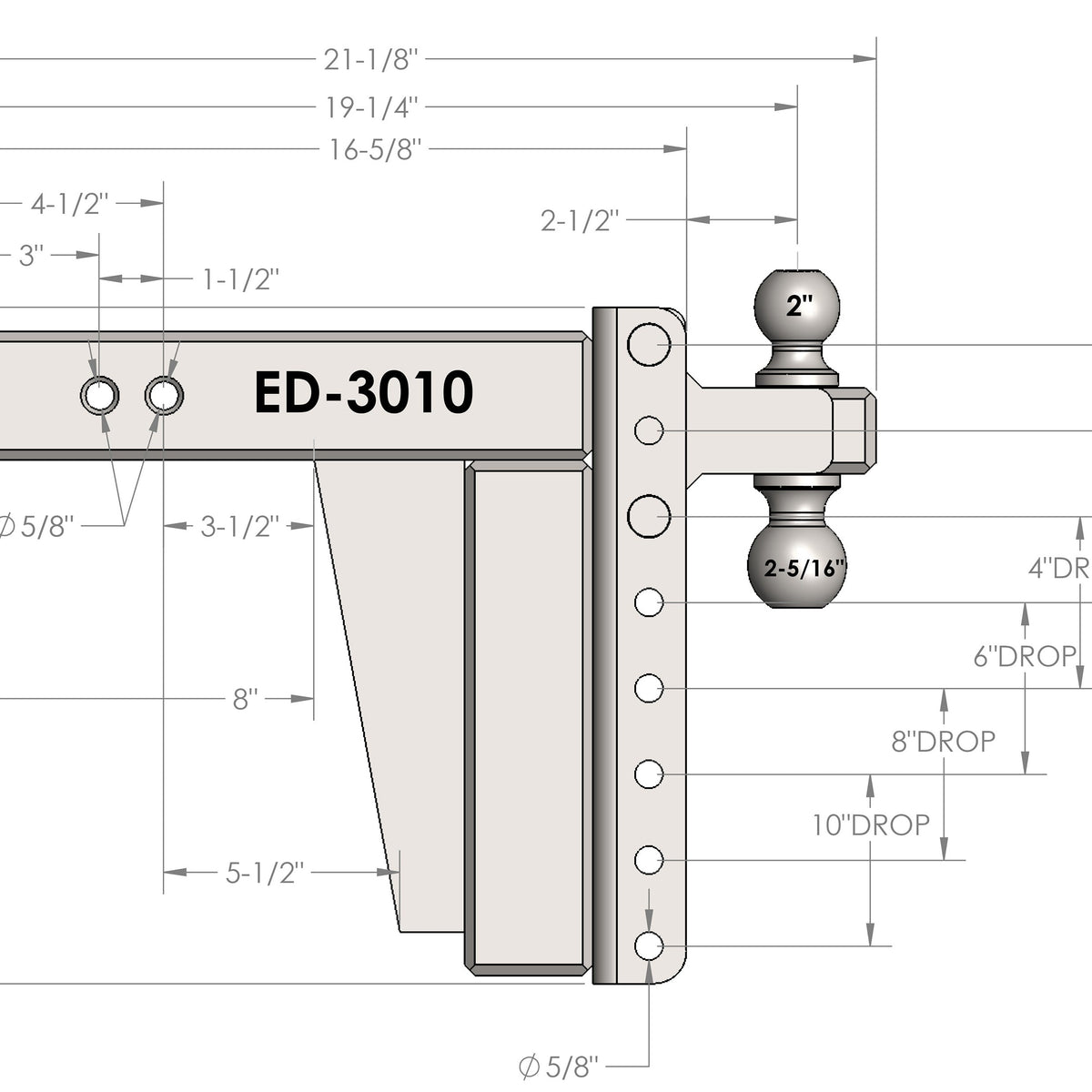

This hitch requires a 3.0" receiver tube; it will not fit standard 2" or 2-5/16" receivers. It provides 10" of drop or rise; applications needing a different drop measurement require a different model. Verify your tow vehicle's receiver size and your trailer's required tongue height before ordering.

Common Questions

What receiver size does this hitch require?

The BulletProof Hitches Extreme Duty 3.0" hitch is designed for a 3.0" receiver tube. It will not fit the 2" or 2-5/16" receivers found on most light-duty and half-ton trucks. Confirm your tow vehicle's receiver opening before purchasing.

Are both ball sizes included, or do I need to buy them separately?

The hitch ships with a dual-ball head that covers both 2" and 2-5/16" ball sizes, along with two corrosion-resistant pins and R-clips to lock the head in place. No separate ball purchase is required for either of those two common trailer coupler sizes.

How are the ride heights adjusted?

The Extreme Duty hitch offers six ride height positions described as easily adjustable. The adjustment mechanism is not detailed in the available product data; contact TerrainVault before purchase if tool-free adjustment is a requirement for your application.

What safety standard does this hitch meet?

The BulletProof Hitches Extreme Duty hitch has been extensively tested and exceeds SAE-J684 requirements, the industry standard governing hitch assembly strength and performance. It carries a Class 5 rating with a 36,000 lb max towing capacity and 6,000 lb tongue weight capacity.

Does this hitch work with BulletProof Hitches accessories?

Yes. The Extreme Duty 3.0" hitch is compatible with the full BulletProof Hitches accessory lineup, so add-on components such as additional ball mounts or accessory bars designed for BulletProof Hitches products will work with this shank.

California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
