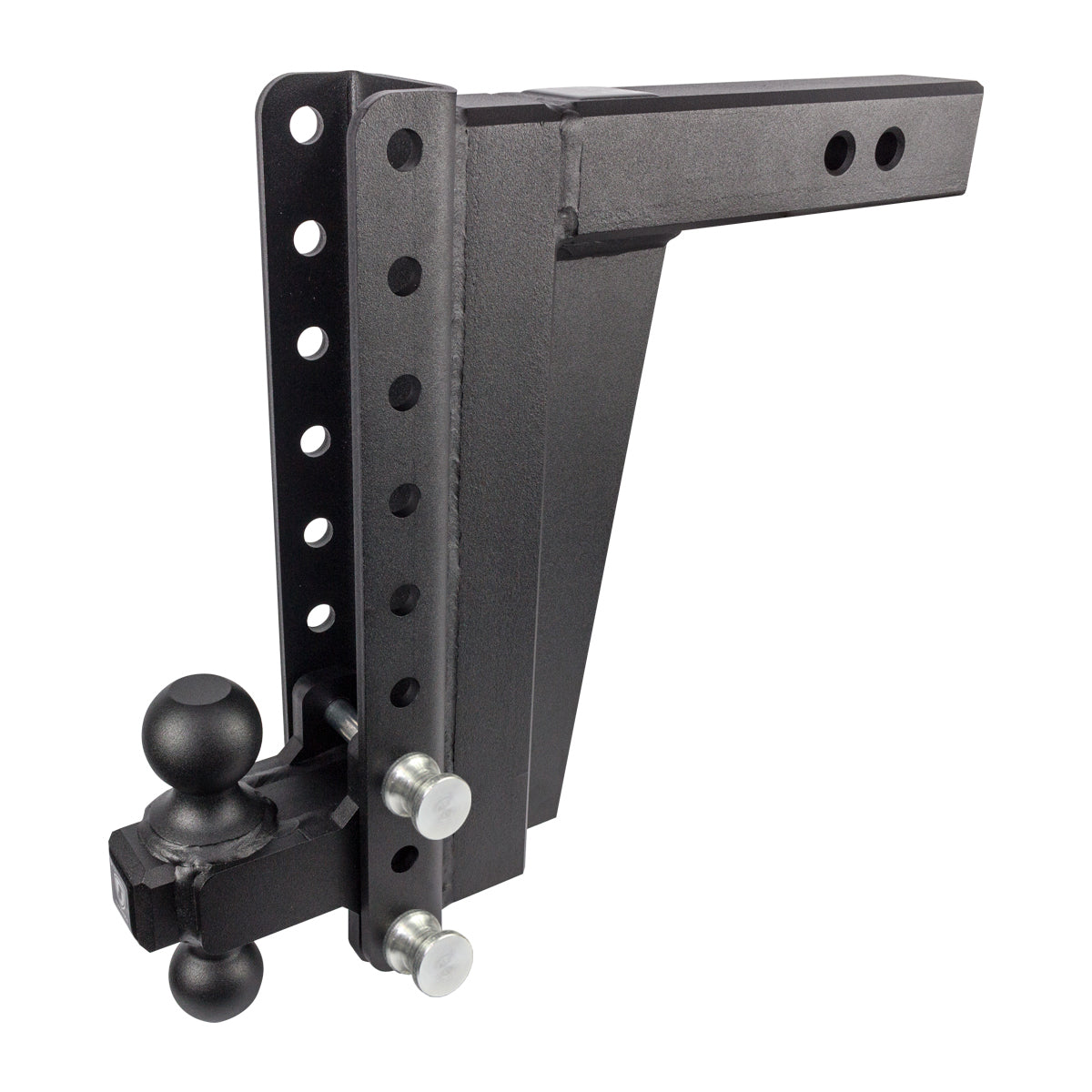

BulletProof Hitches Extreme Duty 12-Inch Drop/Rise 2.5-Inch Receiver Hitch

The BulletProof Hitches Extreme Duty 12-Inch Drop/Rise Hitch fits 2.5-inch receiver tubes and is rated for a 36,000 lb maximum towing capacity and 6,000 lb tongue weight, meeting and exceeding SAE-J684 testing requirements. Seven adjustable ride heights let a single hitch serve a wide range of trailer-to-tow-vehicle height combinations, covering both drop and rise configurations up to 12 inches.

Seven Ride Heights, One Hitch

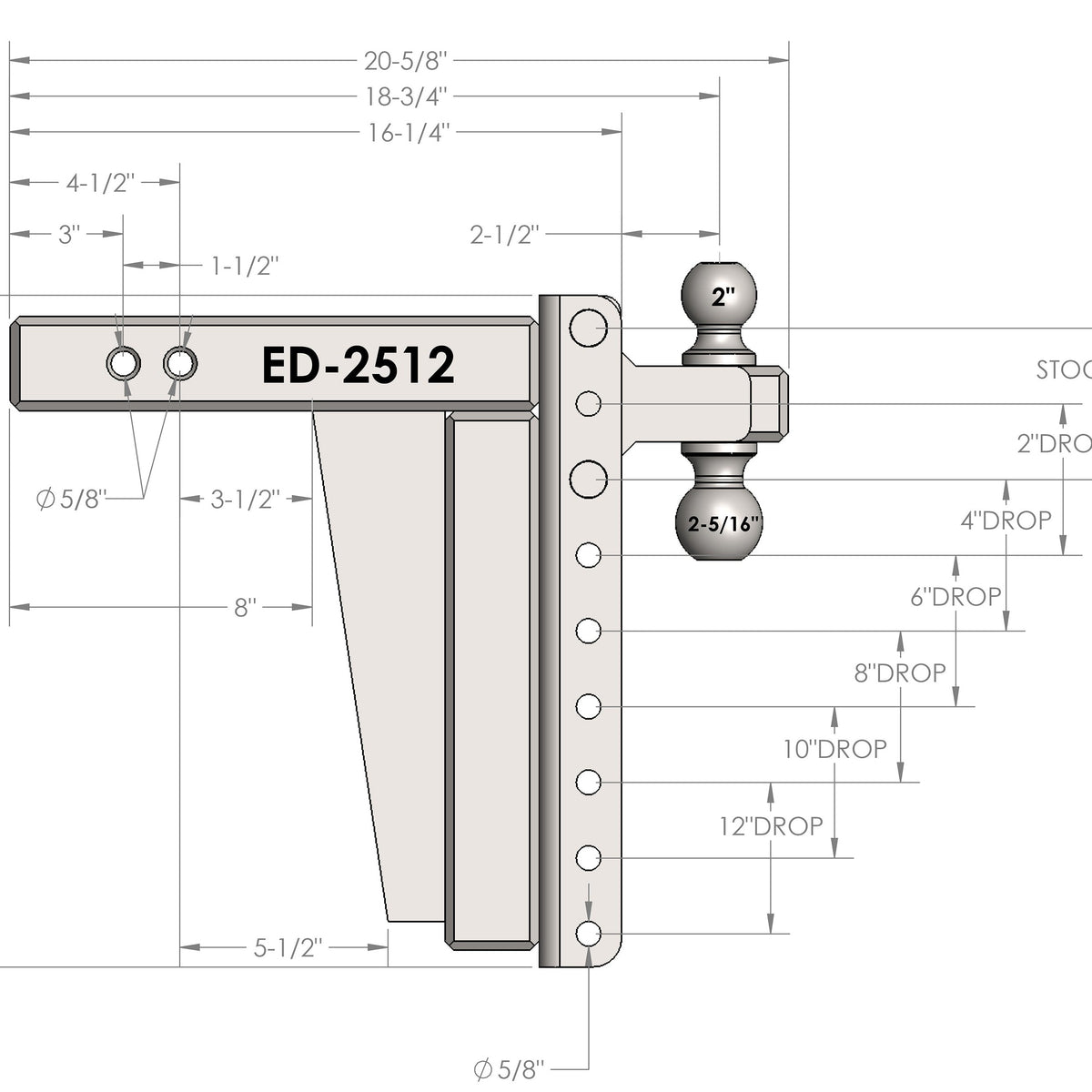

The Extreme Duty hitch offers seven selectable ride heights across its 12-inch drop/rise range, so the same unit can level a trailer whether the tow vehicle sits high on a lift or at stock ride height. Height changes are made by repositioning the dual-ball head, and no special tools are required. That flexibility means one hitch covers configurations that would otherwise require purchasing multiple fixed-drop bars.

Built Around the Connection Points

An additional down bar runs between the channel and the gusset, reinforcing the area that takes the most stress during braking and surge. The included dual-ball head accepts both a 2-inch and a 2-5/16-inch ball, covering the two most common trailer coupler sizes without a separate purchase. Two corrosion-resistant pins and R-clips secure the ball head and are included in the box.

Features

• Class 5 rating: 36,000 lb maximum towing capacity and 6,000 lb tongue weight capacity
• 12-inch drop or rise: covers both drop and rise configurations in one adjustable unit
• Seven adjustable ride heights: selectable without special tools
• Dual-ball head included: accepts 2-inch and 2-5/16-inch balls
• Reinforced gusset channel: additional down bar between the channel and the gusset
• Corrosion-resistant hardware: two pins and R-clips included to secure the ball head
• BulletProof Hitches accessory compatible: works with the full BulletProof Hitches accessory line

Specifications

Who This Is For and Isn't

The Extreme Duty 12-Inch Drop/Rise Hitch suits owners of heavy-duty trucks or commercial vehicles equipped with a 2.5-inch receiver who need a high-capacity, adjustable hitch to level a trailer across a wide range of vehicle and trailer heights. The dual-ball head and seven ride-height positions make it practical for operators who tow different trailer types or switch between lifted and stock vehicles.

This hitch requires a 2.5-inch receiver tube and will not fit standard 2-inch receivers. It does not include a weight-distribution head, sway-control hardware, or fifth-wheel or gooseneck adapter; those are separate purchases.

Common Questions

What receiver size does this hitch require?

The BulletProof Hitches Extreme Duty 12-Inch Drop/Rise Hitch is designed for 2.5-inch receiver tubes. It will not fit a standard 2-inch receiver without an adapter sleeve, which is sold separately.

What is included in the box?

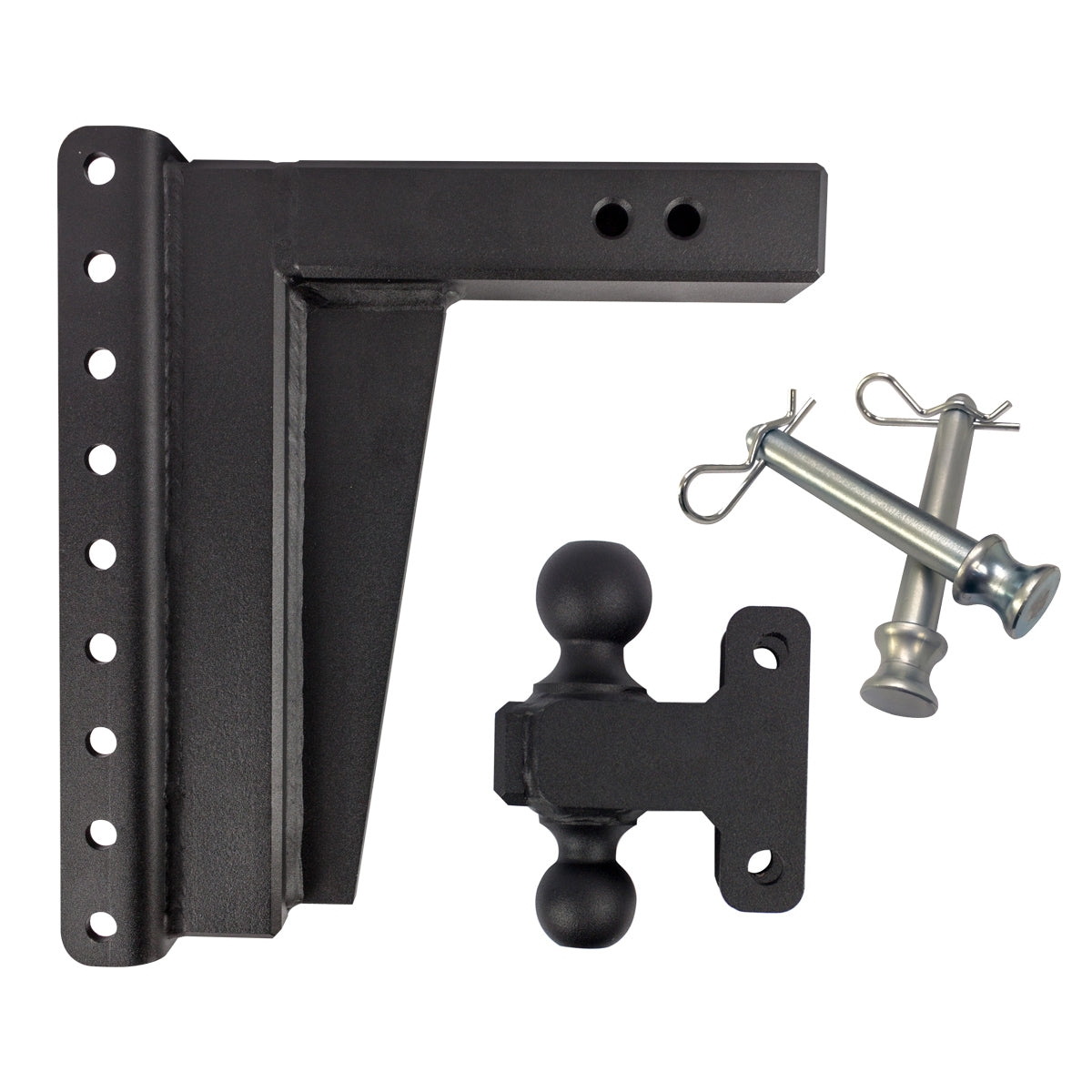

The Extreme Duty hitch ships with a dual-ball head (accepting both 2-inch and 2-5/16-inch balls), two corrosion-resistant pins, and two R-clips to secure the ball head in position.

How are the ride heights adjusted?

The Extreme Duty 12-Inch Drop/Rise Hitch offers seven selectable ride height positions across its 12-inch drop/rise range. Height changes are made by repositioning the dual-ball head; no special tools are required for the adjustment.

Is this hitch compatible with BulletProof Hitches accessories?

Yes. The Extreme Duty 12-Inch Drop/Rise Hitch is designed to work with the full line of BulletProof Hitches accessories, including add-on ball mounts, pintle hooks, and other attachments sold separately by BulletProof Hitches.

Does this product carry a California Proposition 65 warning?

Yes. This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm. California residents should review the Proposition 65 warning before purchase.
