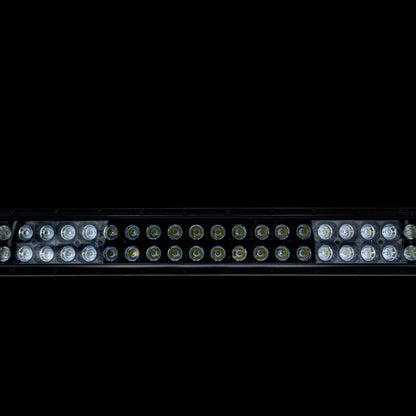

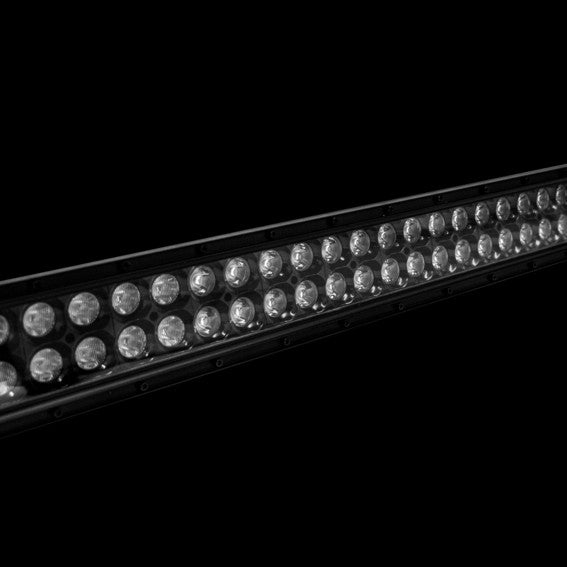

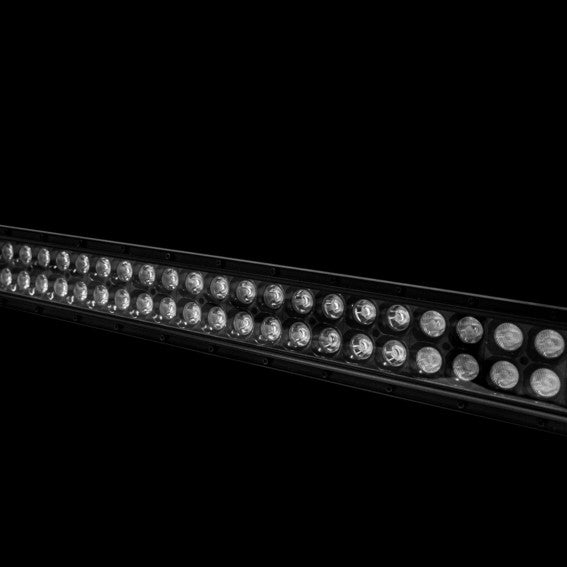

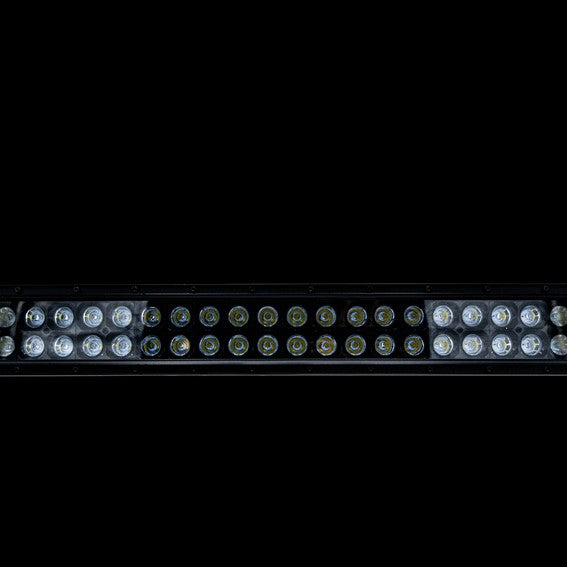

Body Armor 4x4 Blackout 30 Inch LED Light Bar Combo Beam

The Body Armor 4x4 Blackout 30 Inch LED Light Bar is a 180-watt, 12,600-lumen combo flood/spot light bar built for trucks, Jeeps, and off-road rigs that need serious forward illumination. The die cast aluminum housing carries an IP67 waterproof rating, and the kit includes mounting brackets and a wiring harness with illuminated switch, ready to install without sourcing additional hardware.

Flood and Spot Coverage in One Bar

A combo beam pattern combines a wide flood spread with a focused spot center, so the Blackout light bar lights up the road edge and the distance at the same time. Drivers running unlit trails or forest roads get both the peripheral coverage needed to catch obstacles at the sides and the throw needed to read the terrain ahead, without mounting two separate bars or swapping optics.

Built to Stay Sealed Off-Road

The IP67 waterproof rating means the Blackout light bar is rated to withstand temporary submersion, not just rain or splash. Die cast aluminum housing dissipates heat from the 180-watt draw and resists the flex and vibration that crack cheaper housings on rough terrain. The blacked-out background finish reduces glare reflection back into the cab and keeps the bar from standing out visually when not in use.

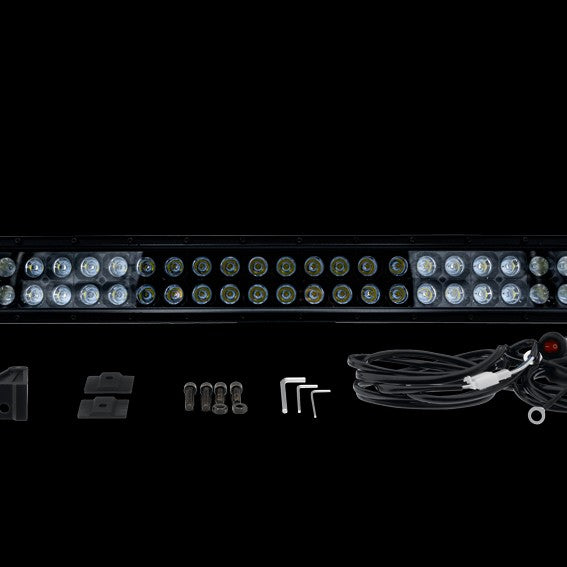

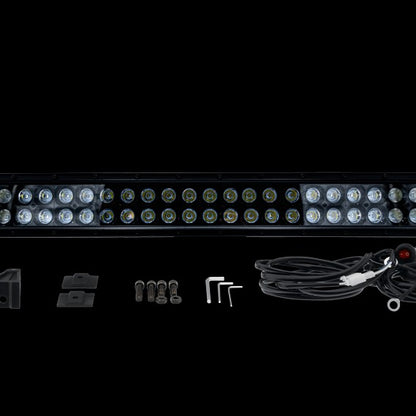

Complete Wiring Kit Included

The Blackout light bar includes mounting brackets and a full wiring harness with an illuminated rocker switch. The illuminated switch confirms at a glance whether the bar is drawing power, which is useful when the bar is mounted out of the driver's direct sightline.

Features

• Combo beam pattern: simultaneous flood and spot output from a single bar
• 180 watts / 12,600 raw lumens: high-output LED array across the 30 inch bar
• IP67 waterproof: rated for temporary submersion and continuous exposure to water and dust
• Die cast aluminum housing: heat-dissipating, vibration-resistant construction with blackout finish
• Complete hardware kit: mounting brackets and wiring harness with illuminated switch included
• 2-year limited warranty: covered by Body Armor 4x4's warranty program

Specifications

Who This Is For and Isn't

The Blackout 30 Inch LED Light Bar suits off-road drivers, overlanders, and truck or Jeep owners who need high-output forward lighting for unlit trails, job sites, or remote camping. The included harness and switch make it a practical choice for buyers who want a complete, install-ready kit rather than sourcing components separately.

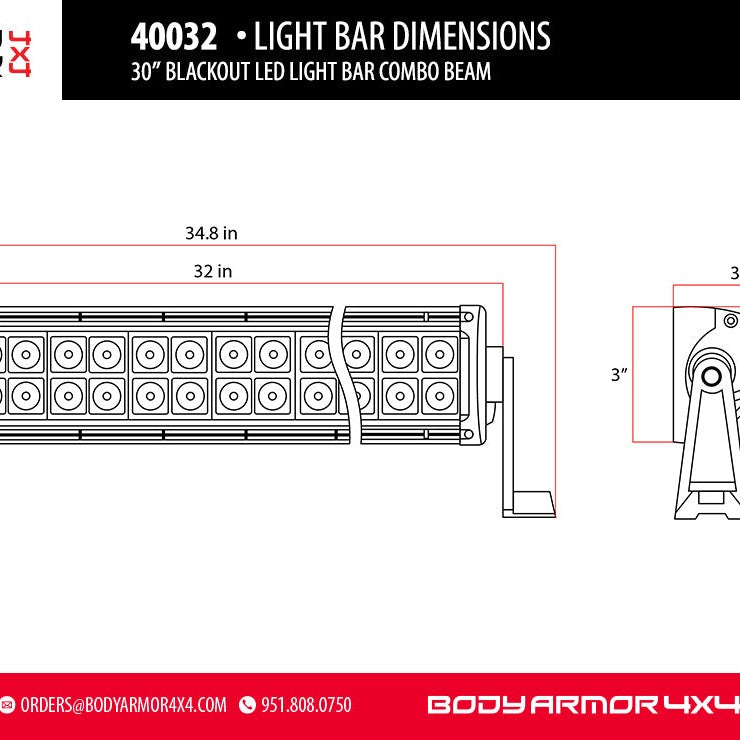

No vehicle-specific mounting dimensions are provided with this light bar; buyers should confirm their bumper or roof mount accepts a 30 inch bar before ordering. The wiring harness contents are listed as a harness and illuminated switch; whether a relay is included is not specified.

Common Questions

Does this light bar come with everything needed to wire it up?

The Body Armor 4x4 Blackout 30 Inch LED Light Bar includes a wiring harness and an illuminated rocker switch, along with mounting brackets. Whether a relay is part of the harness is not specified; buyers should confirm relay requirements for their vehicle before installation.

What does the IP67 rating mean for trail use?

IP67 means the Blackout light bar is rated to withstand dust ingress completely and temporary submersion in water up to one meter for up to 30 minutes. For trail use, this covers rain, stream crossings, and mud spray without requiring additional sealing or covers.

Is this a flood light, a spot light, or both?

The Blackout 30 Inch LED Light Bar uses a combo beam pattern, combining a wide flood spread for peripheral coverage with a focused spot beam for distance. Both patterns operate simultaneously from the same bar, so no optic swap or secondary bar is needed to get both types of coverage.

What is the housing made of, and will it hold up to vibration?

The Blackout light bar housing is die cast aluminum, which resists flex and vibration better than plastic housings and dissipates heat from the 180-watt LED draw. The blackout finish also reduces reflective glare back toward the driver when the bar is mounted at cab level.
