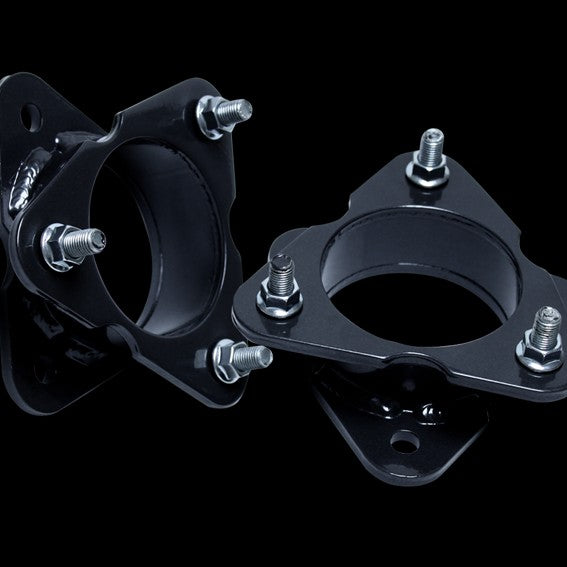

Body Armor 4x4 2.0 Inch Strut Spacer for Ford F-150

The Body Armor 4x4 2.0 Inch Strut Spacer is a bolt-on front lift solution for 2004–2025 Ford F-150 (excluding Raptor), fabricated from 1/4-inch steel with grade 10 hardware. The 2.0-inch lift creates clearance for tires up to 33 inches while preserving the factory ride quality most F-150 owners expect on and off pavement.

Room for Larger Tires Without Rebuilding the Front End

The 2.0-inch lift this spacer provides clears tires up to 33 inches in diameter, enough for the aggressive rubber most F-150 owners target without stepping into a full suspension overhaul. Because the spacer mounts above the existing strut rather than replacing it, the factory damping and spring rate stay intact, so the truck continues to ride the way Ford tuned it.

Bolt-On Installation, Reversible When You Need It

The strut spacer installs with standard hand tools using the existing mounting points, with no cutting, welding, or alignment of new brackets required. That same simplicity means the truck can return to stock height by reversing the installation, which matters if you're running a leased vehicle, planning to sell, or just want the option to undo the modification cleanly.

Steel Construction with Grade 10 Hardware

The spacer body is fabricated from 1/4-inch steel, and the fastener kit uses grade 10 hardware throughout. Grade 10 fasteners carry a higher tensile strength rating than the grade 5 or grade 8 hardware common in general-purpose kits, which is relevant on a component that bears the full compressive load of the front suspension every time the truck hits a bump or carries weight in the bed.

Features

• 2.0-inch front lift: creates clearance for tires up to 33 inches in diameter
• Bolt-on installation: mounts to existing strut with no cutting or welding
• Stock ride quality: factory strut and spring rate are retained
• Reversible: truck returns to stock height by reversing the installation
• 1/4-inch steel construction: with grade 10 fastener hardware included

Specifications

Who This Is For and Isn't

This strut spacer suits 2004–2025 Ford F-150 owners on 2WD or 4WD configurations who want a modest front lift for larger tires (up to 33 inches) without replacing the factory struts or significantly changing the truck's ride character. It is a practical choice for overlanding builds, light off-road use, and daily drivers where reversibility matters.

This spacer does not fit the Ford F-150 Raptor. It is not a replacement for the factory strut assembly and does not change spring rate or damping. Buyers seeking more than 2.0 inches of lift or a performance suspension upgrade will need a different solution.

Common Questions

Which Ford F-150 years and configurations does this spacer fit?

The Body Armor 4x4 2.0 Inch Strut Spacer fits 2004 through 2025 Ford F-150 trucks in both 2WD and 4WD configurations. The Ford F-150 Raptor is not compatible with this spacer and is explicitly excluded from the fitment list.

What tools are needed to install this strut spacer?

The Body Armor 4x4 strut spacer uses a bolt-on installation that works with the F-150's existing mounting points. No cutting, welding, or fabrication is required. Standard hand tools are sufficient, and the installation is reversible using the same process if you need to return the truck to stock height.

Will this spacer change how the F-150 rides on the street?

The 2.0 Inch Strut Spacer mounts above the factory strut rather than replacing it, so the original damper and spring remain in place. Body Armor 4x4 rates this as a stock-ride-quality lift, meaning the factory suspension tune is preserved. Buyers who want a firmer or performance-oriented ride would need a strut replacement instead.

What is the maximum tire size this lift supports?

Body Armor 4x4 rates the 2.0 Inch Strut Spacer for tires up to 33 inches in diameter on compatible F-150 fitments. Clearance for a specific tire also depends on wheel offset and width, so confirming fitment against your exact wheel and tire combination before purchasing is recommended.
