Addictive Desert Designs Digital Device Dash Mount for Ram 1500 TRX RHO

The Addictive Desert Designs Digital Device Dash Mount is a 1/8-inch steel dash plate for 2019-2024 Ram 1500, 2021-2024 Ram 1500 TRX, and 2025 Ram 1500 RHO trucks that gives drivers a dedicated, flush-fitting surface for smartphones, GPS units, action cameras, radios, and tablets. Mounting holes follow the AMPS standard (1.9-inch / 48.5mm spacing) and accept PEM-nutted 10-24 accessory bolts, making it compatible with Ram Diamond Base Mounts, Bulletpoint Mounting Solutions, and Quad Lock Systems base plates.

Flush Fit Without Sacrificing Factory Features

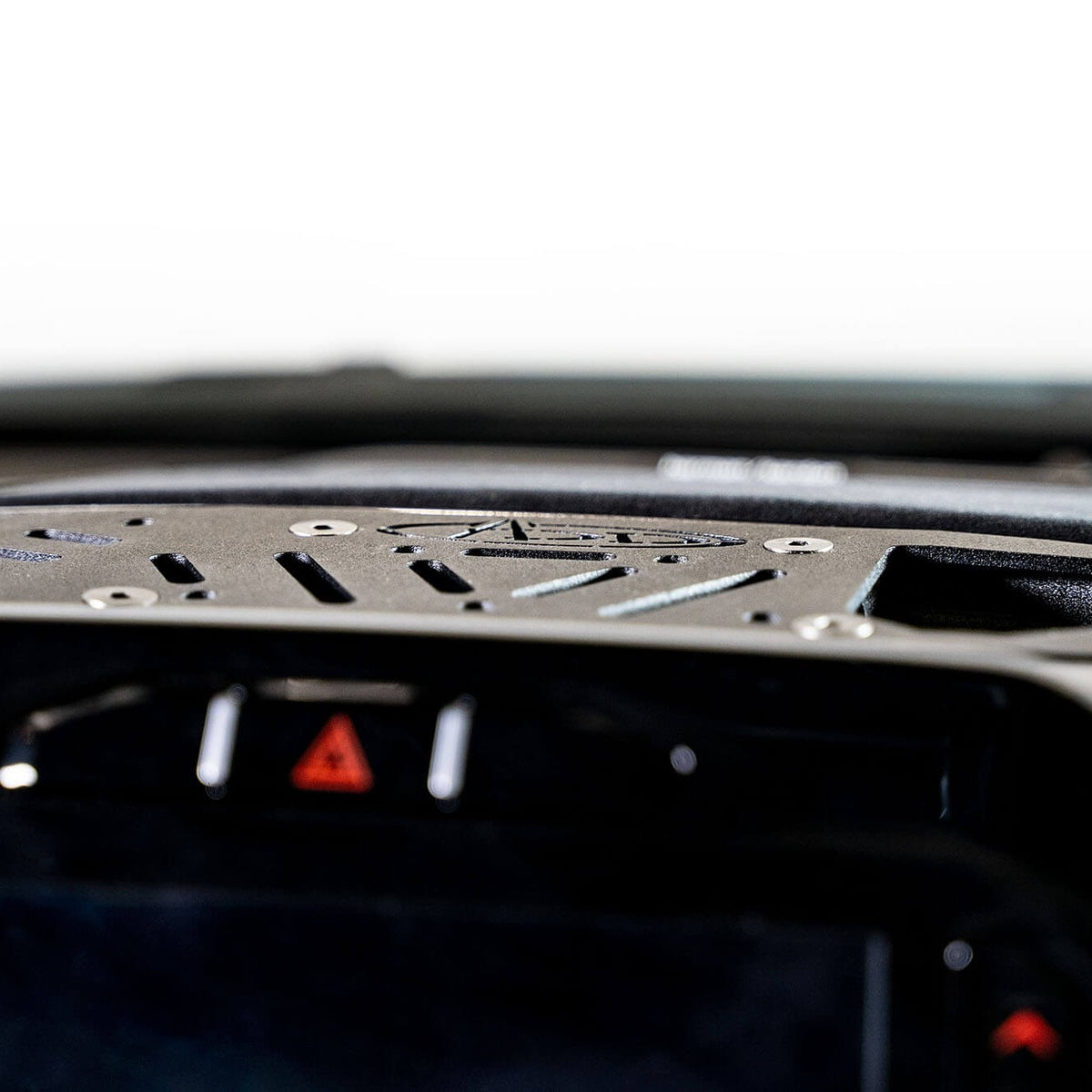

The dash mount is engineered to sit flush with the factory bodylines of the Ram interior, so the added plate looks like it belongs rather than like an afterthought. The design retains the OEM dash speaker and includes a cutaway that keeps the factory 12V port fully accessible: devices can be mounted and charging without loose cables routed around obstructions, and the factory speaker output is not muffled by the plate.

AMPS-Standard Holes and PEM Nuts Keep Installation Simple

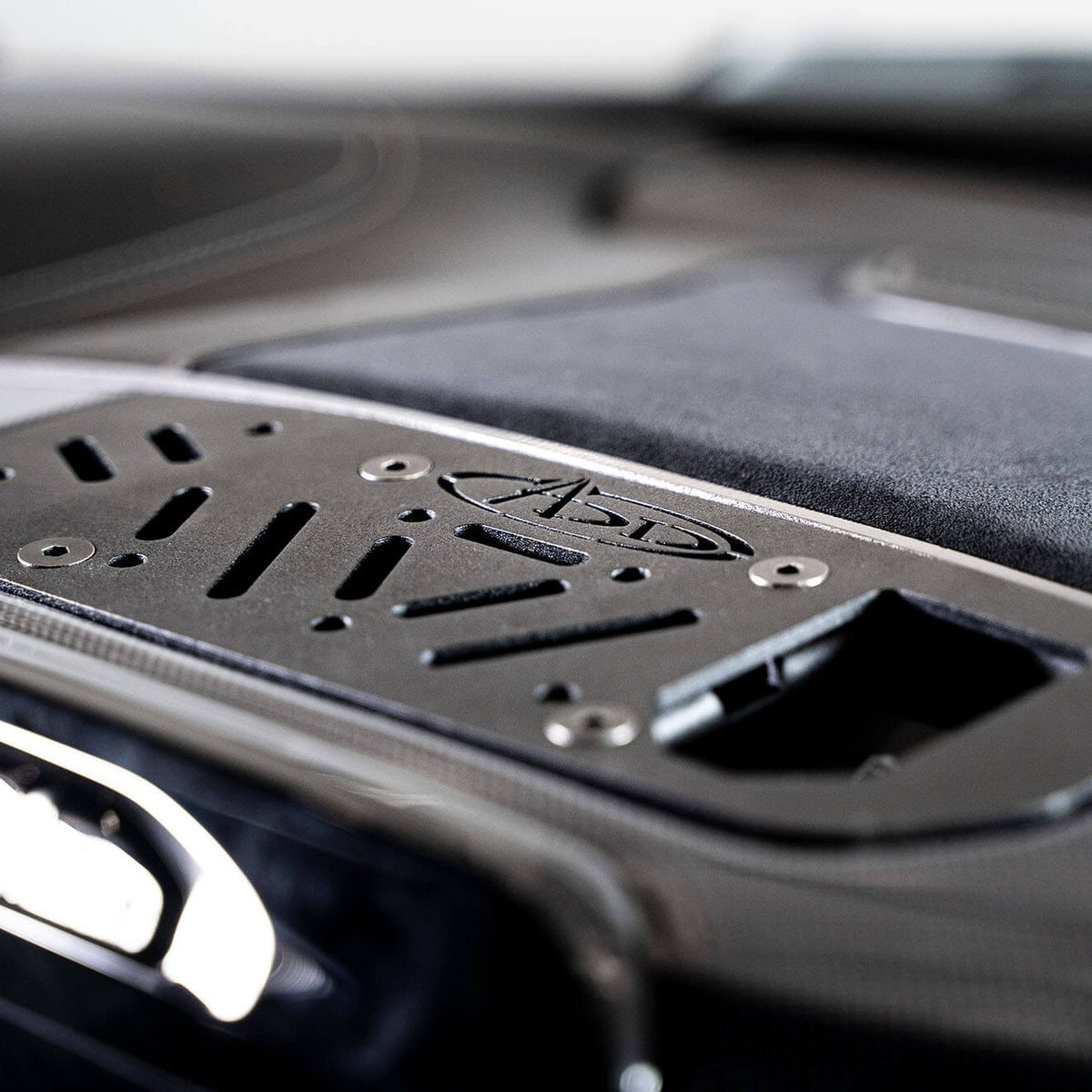

The mounting holes are spaced to the AMPS standard (1.9 inches / 48.5mm), the same pattern used by Ram Diamond Base Mounts, Bulletpoint Mounting Solutions, and Quad Lock Systems base plates. PEM nuts are pressed into the plate at the factory, so installing a device holder requires only the appropriate 10-24 accessory bolts. No drilling, tapping, or backing nuts are required. The entire assembly is bolt-on.

Steel Construction with a Durable Powder Coat Finish

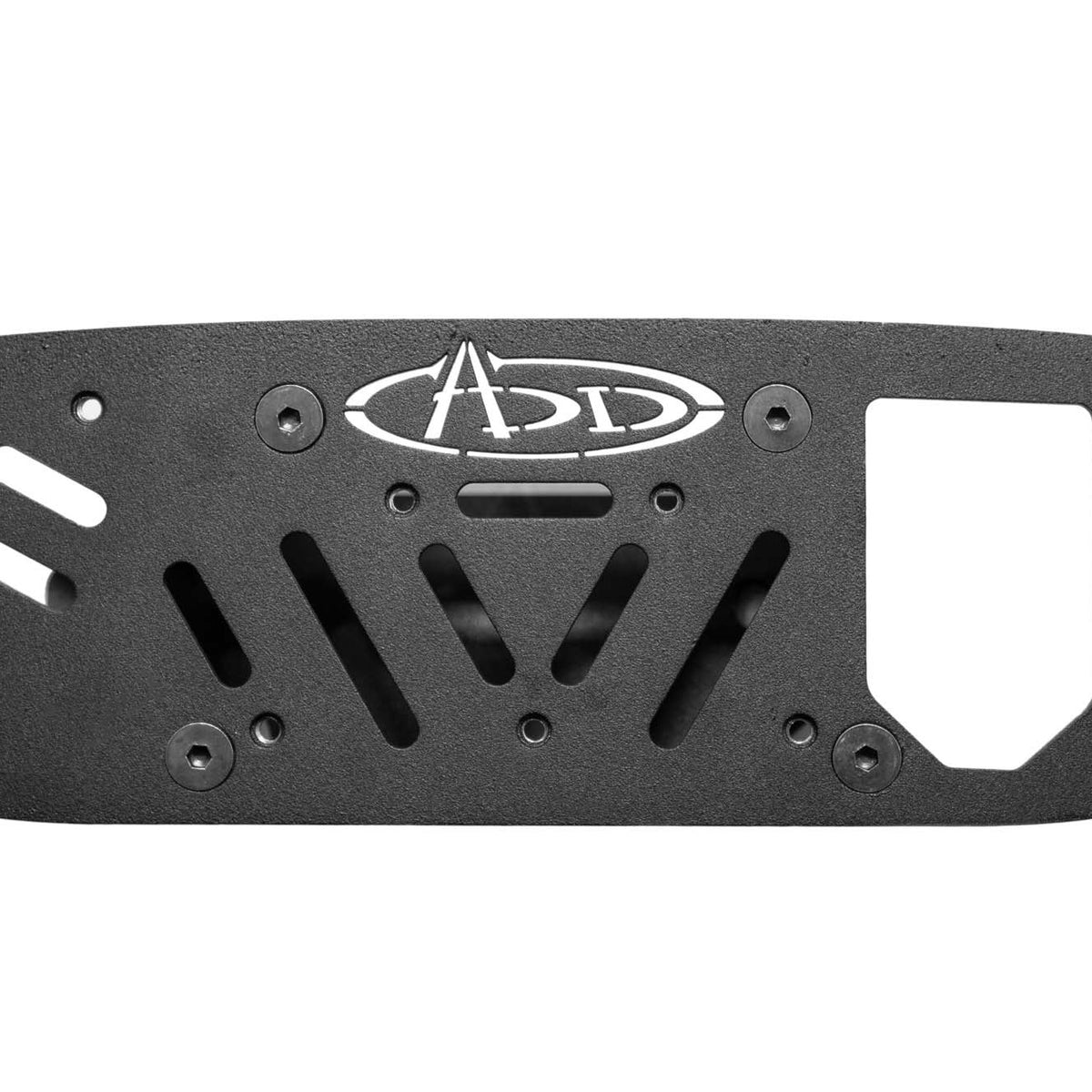

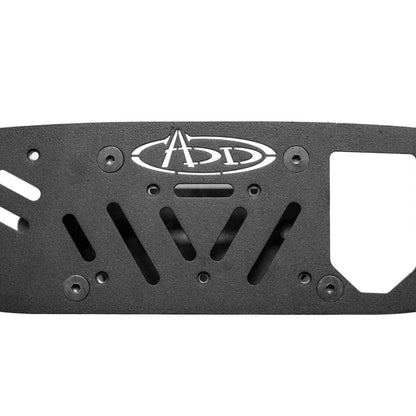

The plate is cut from 1/8-inch steel and finished with a two-stage hammer black powder coat after sandblasting. The textured hammer finish reduces glare inside the cab and gives the surface a consistent appearance that holds up to daily use. The plate is manufactured in the USA.

Features

• AMPS-standard hole spacing: 1.9-inch / 48.5mm pattern compatible with Ram Diamond Base Mounts, Bulletpoint Mounting Solutions, and Quad Lock Systems base plates
• PEM nuts for 10-24 bolts: factory-pressed nuts accept accessory bolts without additional hardware

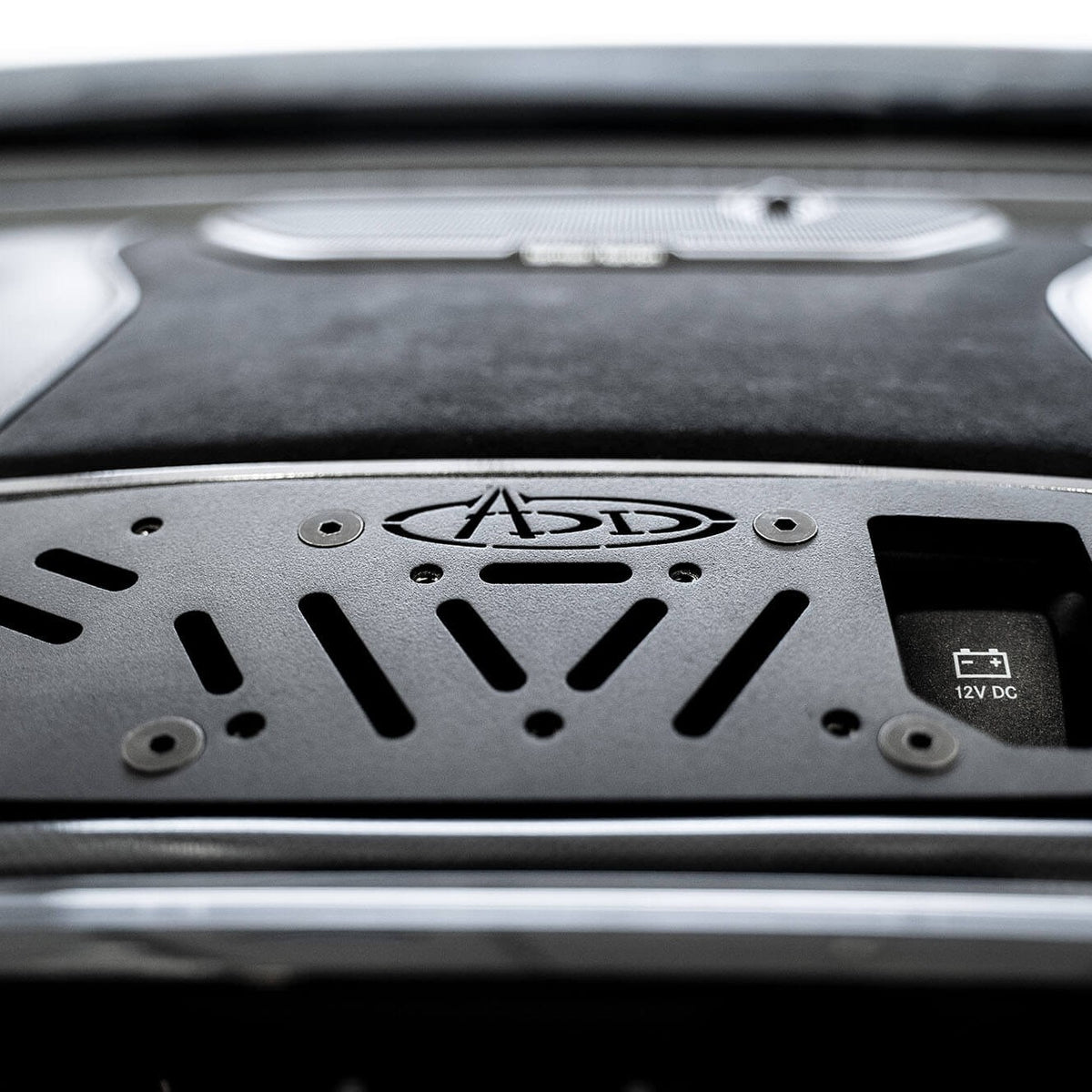

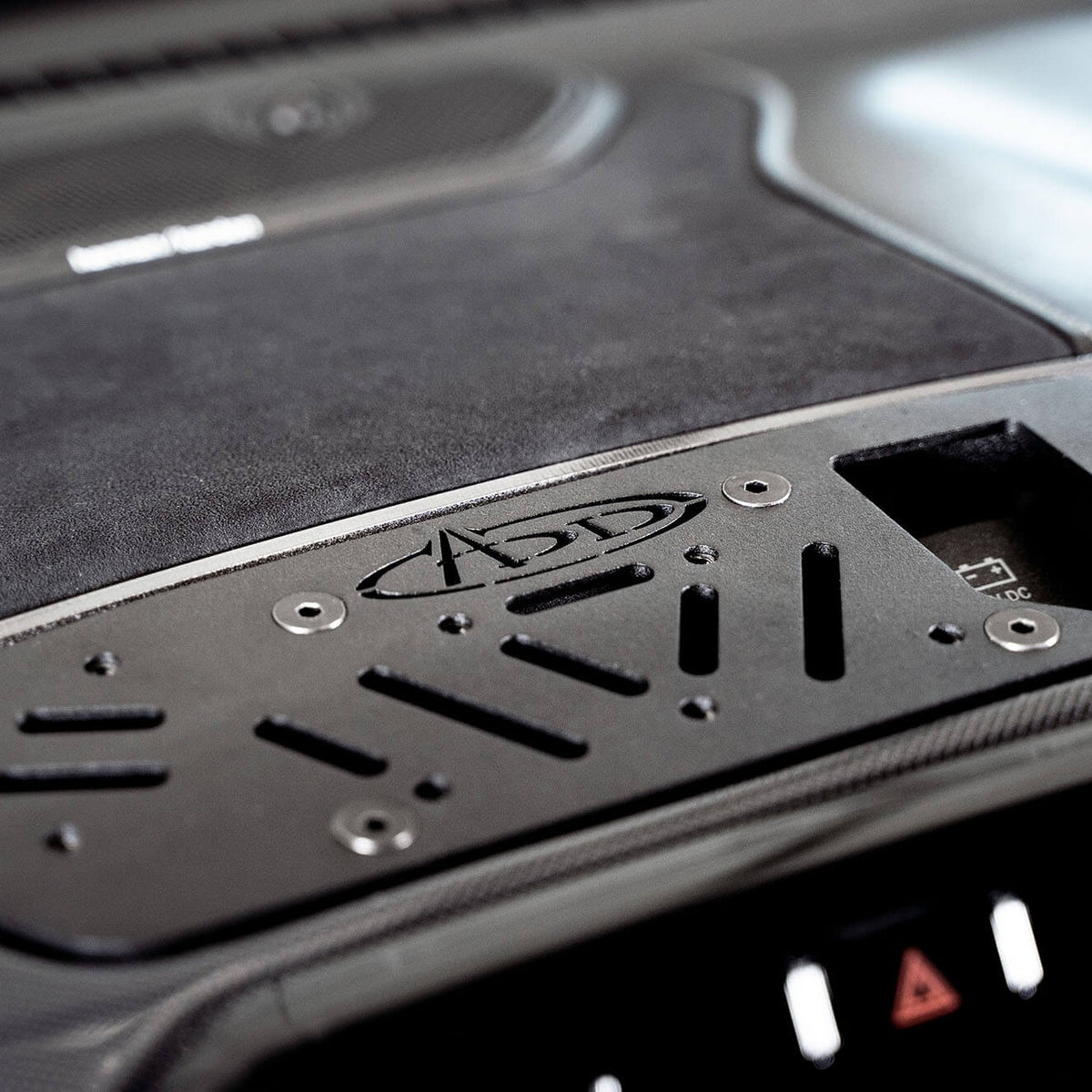

• OEM 12V port cutaway: side cutaway keeps the factory 12V charging port fully accessible
• Retains OEM dash speaker: plate geometry preserves factory speaker function
• 1/8-inch steel construction: two-stage hammer black powder coat finish applied after sandblasting
• Made in the USA: bolt-on installation, no permanent modifications required

Specifications

Who This Is For and Isn't

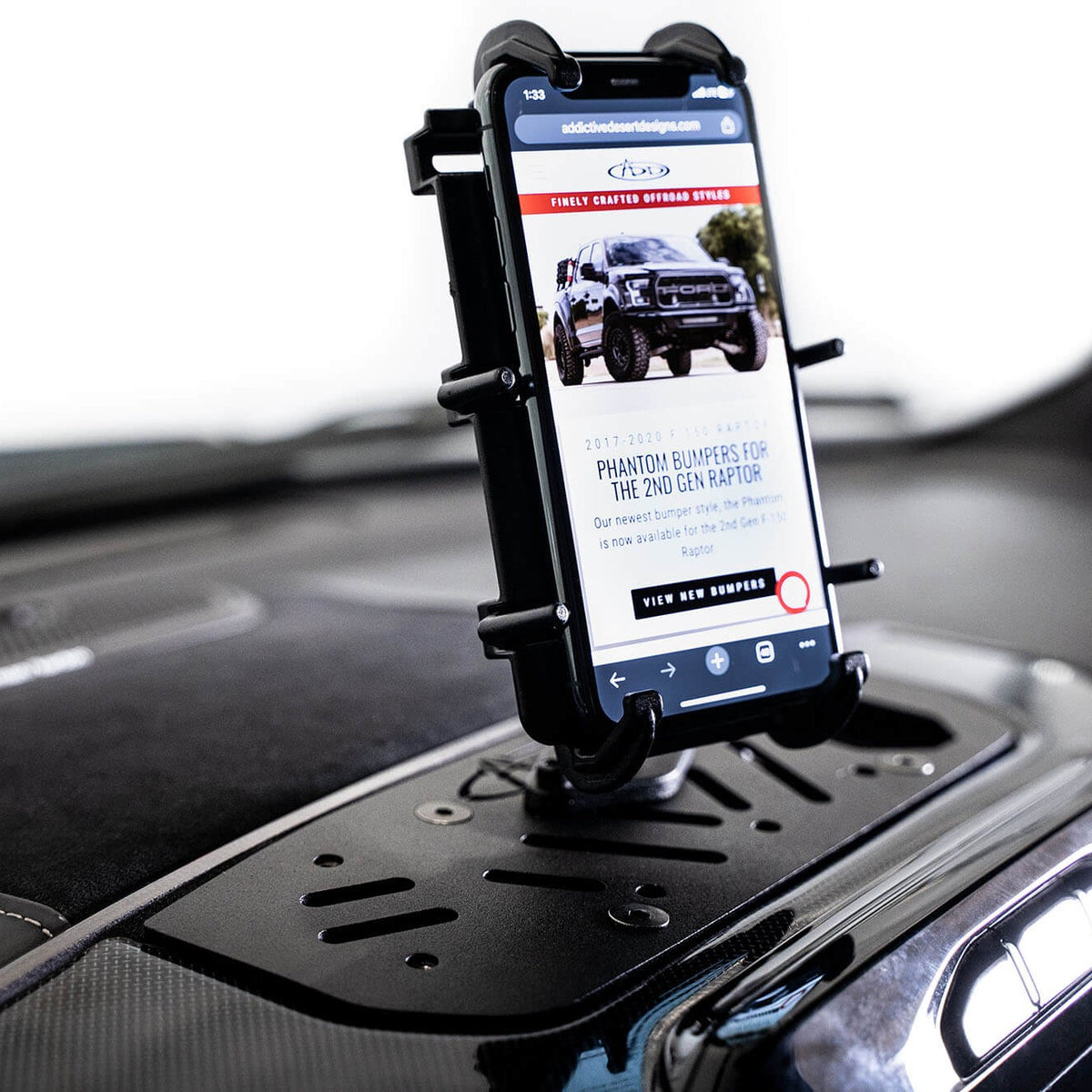

The Addictive Desert Designs Digital Device Dash Mount suits 2019-2024 Ram 1500, 2021-2024 Ram 1500 TRX, and 2025 Ram 1500 RHO owners who want a clean, factory-integrated surface for a smartphone, GPS, radio, action camera, or tablet, particularly those already using Ram Diamond Base Mounts, Bulletpoint Mounting Solutions, or Quad Lock Systems base plates, which bolt directly to the AMPS-spaced PEM nuts.

The dash mount does not fit Ram 1500 model years outside 2019-2024, TRX trucks outside 2021-2024, or RHO trucks outside 2025. Device holders and mounting arms are not included and must be sourced separately. WARNING: This product can expose you to chemicals including silica, crystalline, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Common Questions

Which device mounting systems are compatible with this dash mount?

The Addictive Desert Designs Digital Device Dash Mount features AMPS-standard holes spaced 1.9 inches / 48.5mm apart with PEM nuts sized for 10-24 accessory bolts. This pattern is compatible with Ram Diamond Base Mounts, Bulletpoint Mounting Solutions, and Quad Lock Systems base plates. Device holders themselves are not included.

Does the dash mount block the factory 12V port or the OEM dash speaker?

The Addictive Desert Designs Digital Device Dash Mount includes a side cutaway that keeps the OEM 12V port accessible, and the plate geometry is designed to retain the factory dash speaker. Neither the port nor the speaker is blocked by the installed plate.

Does installation require drilling or permanent modifications?

The Addictive Desert Designs Digital Device Dash Mount is a fully bolt-on installation that requires no drilling or permanent modifications to the truck's interior. PEM nuts are already pressed into the plate at the factory, so device holders attach using standard 10-24 accessory bolts.

What years and models does this dash mount fit?

The Addictive Desert Designs Digital Device Dash Mount fits 2019-2024 Ram 1500, 2021-2024 Ram 1500 TRX, and 2025 Ram 1500 RHO trucks. It does not fit Ram 1500 model years outside those ranges or other Ram body styles.
