Goal Zero Yeti 500X Power Station and Nomad 100 Solar Panel Kit
Goal Zero Yeti 500X Power Station and Nomad 100 Solar Panel Kit
Regular price
$859.99 USD
Regular price
Sale price
$859.99 USD
Quantity
Couldn't load pickup availability

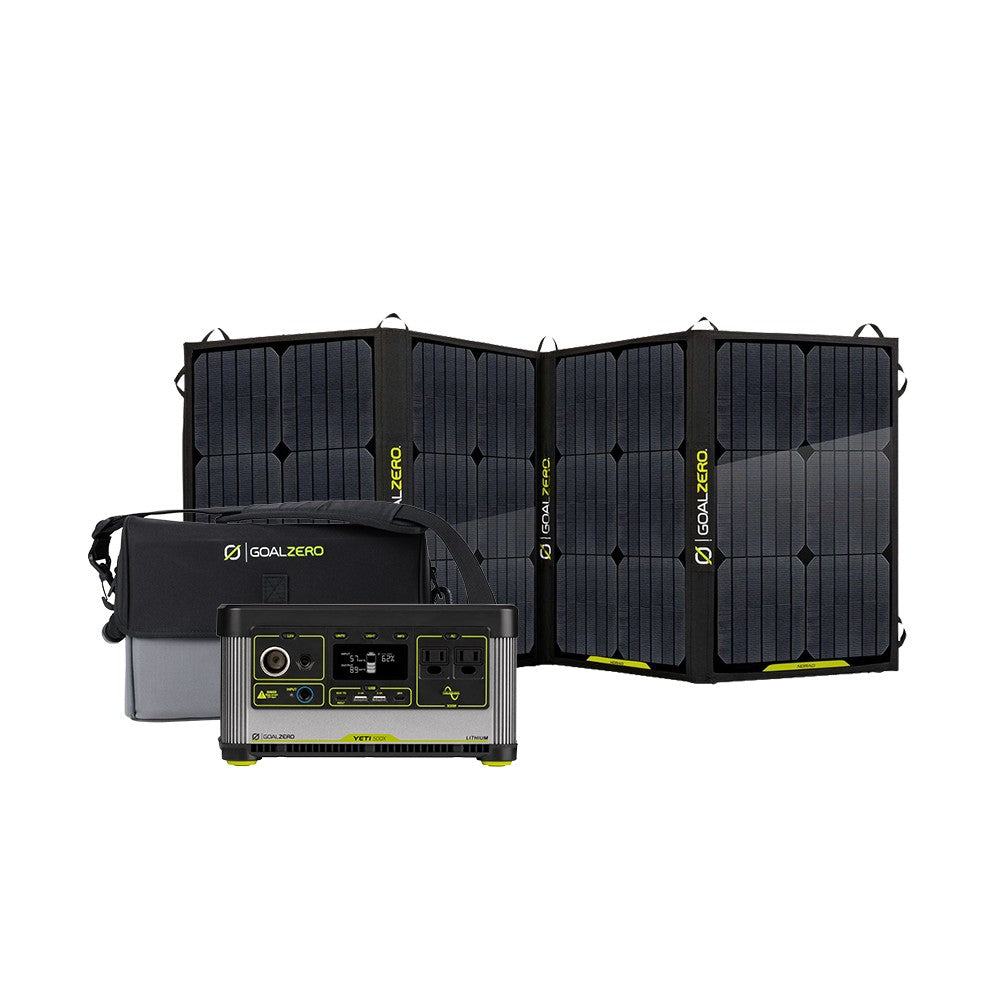

The Goal Zero Yeti 500X and Nomad 100 kit pairs a 497Wh Li-ion NMC power station with a 100-watt foldable solar panel, a 12V car charging cable, a 60W wall power supply, and a protection case for the Yeti. The station can recharge from the included Nomad 100 in 6 to 12 hours, from a wall outlet in 10 hours with the included 60W supply, or from a vehicle's 12V port. It produces no noise and no fumes. The Yeti 500X weighs 12.9 lbs; the Nomad 100 panel weighs 10.2 lbs.
Features

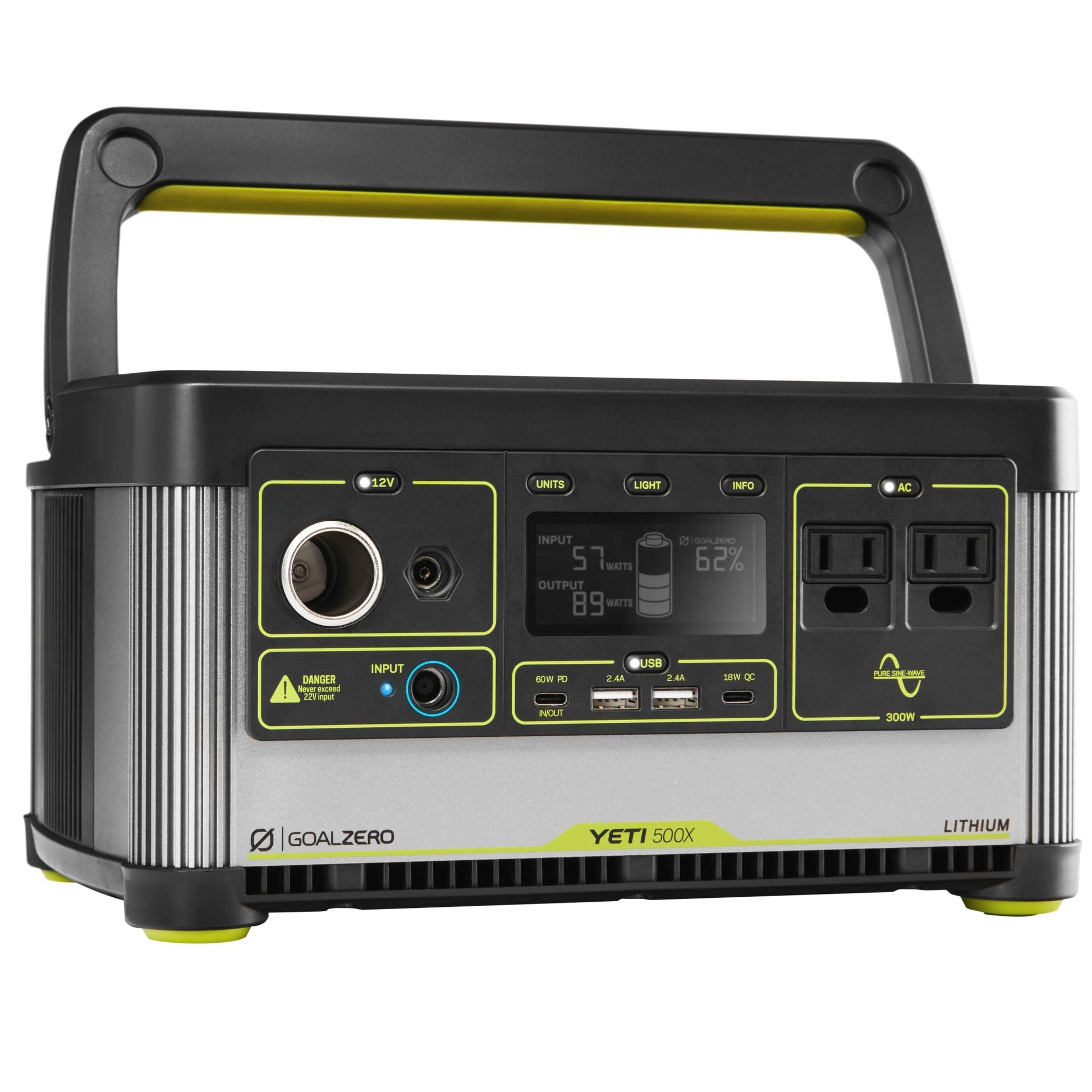

- Multiple output ports: two 120V AC outlets (300W continuous, 1200W surge, pure sine wave), a 60W USB-C PD port, a standard USB-C port, two USB-A ports, a 12V car port, and a 6mm output port.
- MPPT charge controller: the Yeti 500X uses maximum power point tracking to optimize solar input efficiency.
- Simultaneous recharge and discharge: the station can power devices while it is being recharged.

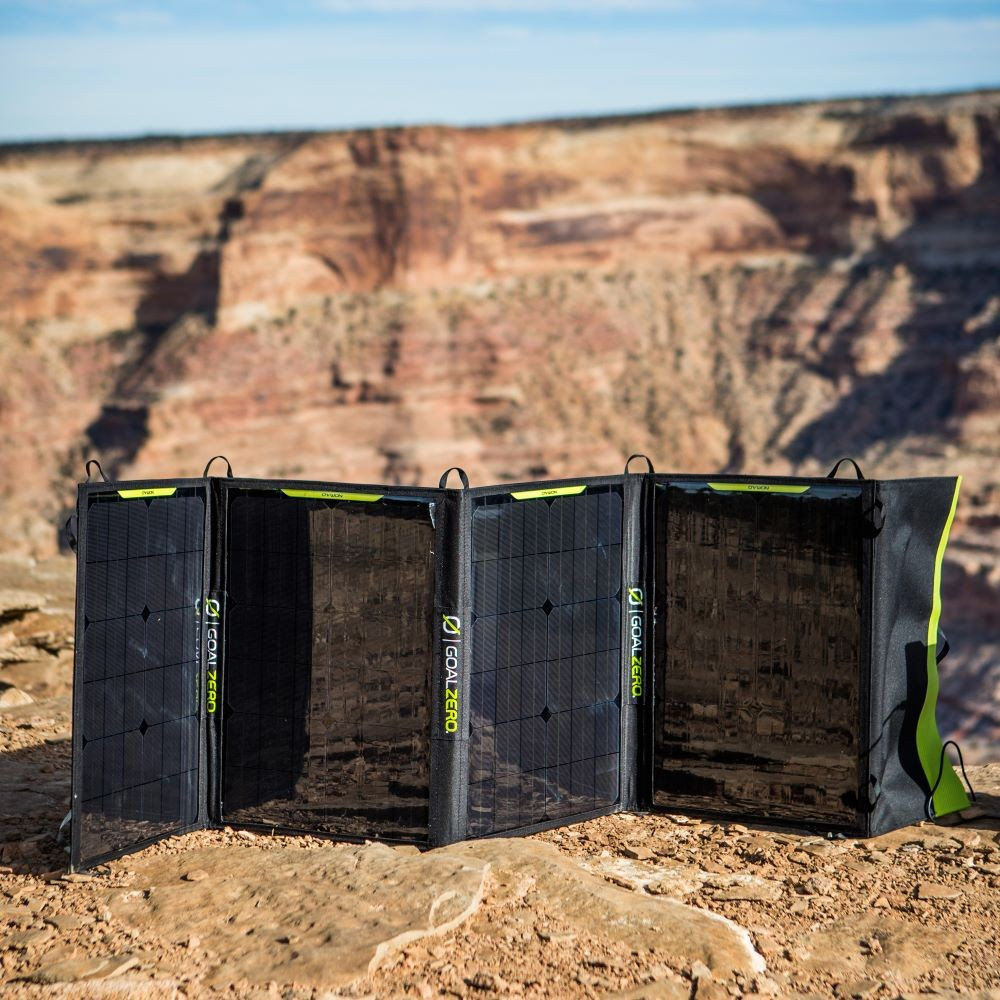

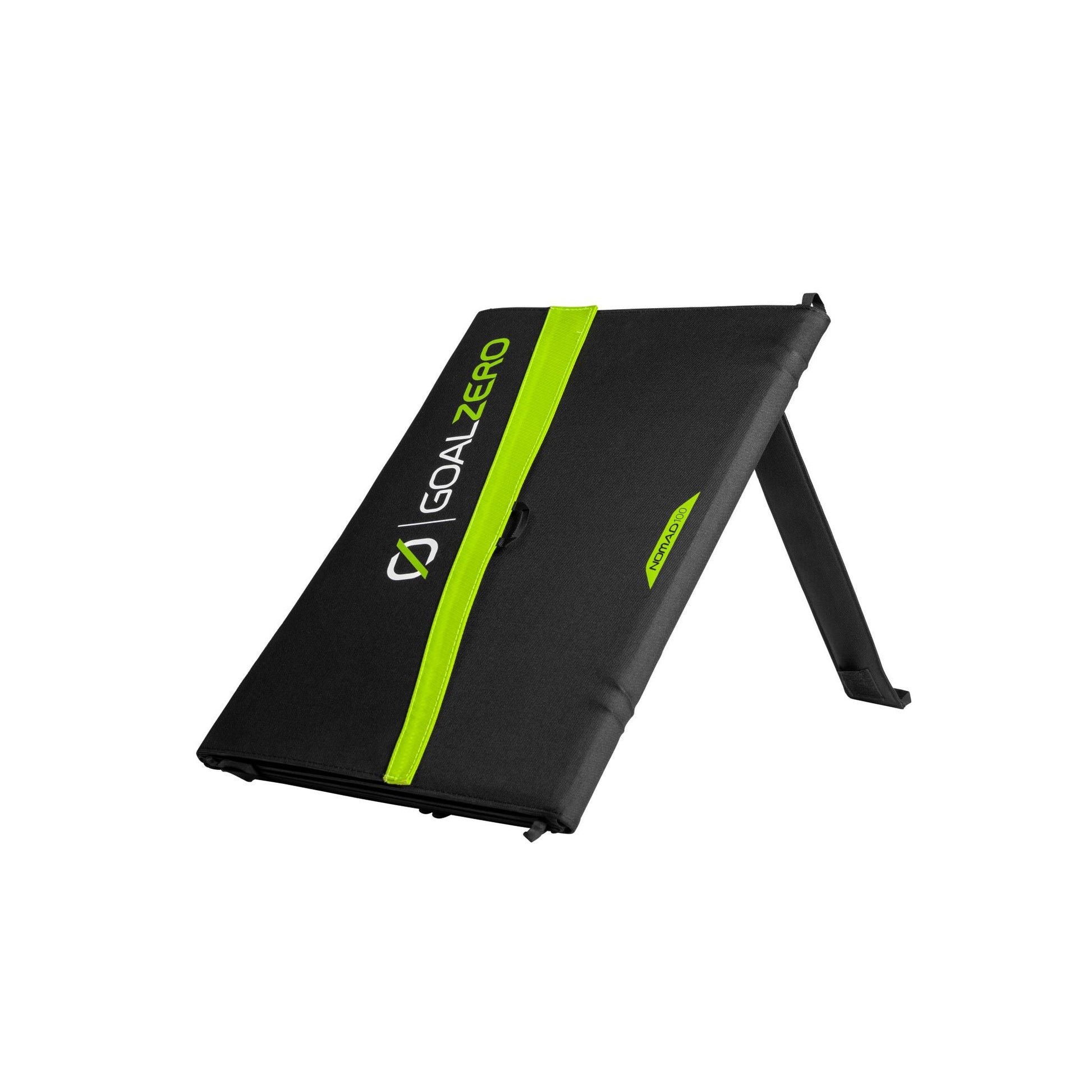

- Foldable, weatherproof panel: the Nomad 100 folds to 20.5 x 15.5 x 2 in for transport and unfolds to 20.5 x 59.5 x 1 in in use.
- Three charging paths: solar, wall outlet, or 12V vehicle port give flexibility away from and at home base.

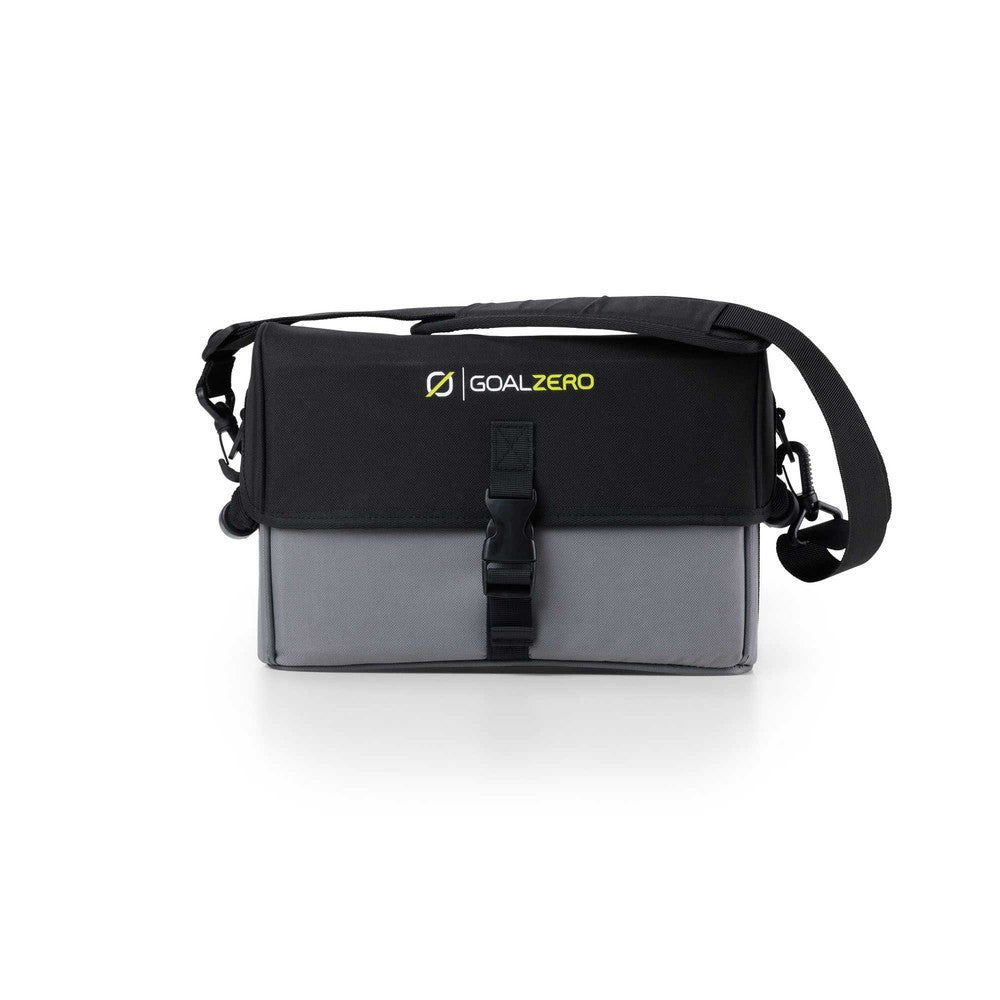

- Protection case included: a fitted case for the Yeti 500X is part of the kit.
Specifications

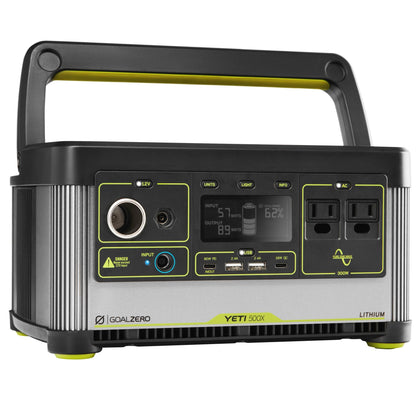

Yeti 500X Power Station
| Battery chemistry | Li-ion NMC |
|---|---|
| Capacity | 497Wh (10.8V, 46.8Ah) |
| Weight | 12.9 lbs (5.85 kg) |
| Dimensions | 7.5 x 11.25 x 5.8 in (19.05 x 28.58 x 14.73 cm) |
| Operating temperature | 32–104 F (0–40 C) |
| Lifecycles | 500 cycles to 80% capacity |
| Shelf life | Charge every 3–6 months |
| Warranty | 2 years |

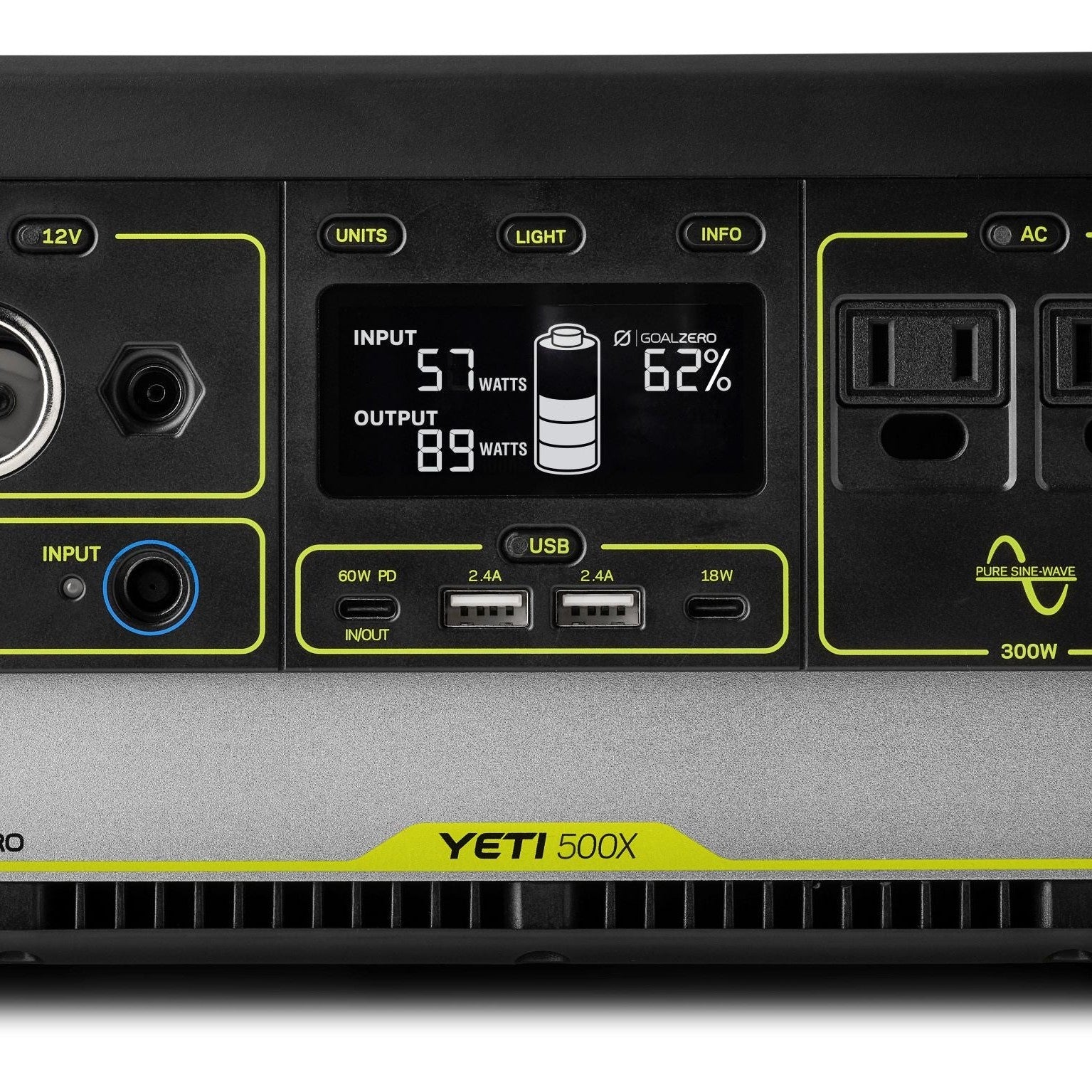

Yeti 500X Output Ports
| Port | Spec |
|---|---|
| 120V AC (x2) | 120VAC 60Hz, 2.5A, 300W continuous / 1200W surge, pure sine wave |
| USB-C PD (input/output) | 5–20V, up to 3.0A (60W max), regulated |
| USB-C | 5–9V, up to 3.0A (18W max), regulated |
| USB-A (x2) | 5V, up to 2.4A (12W max), regulated |
| 12V car port | 12V, up to 10A (120W max), regulated |
| 6mm output | 12V, up to 10A (120W max) |
| 8mm charge input | 13–22V, up to 10A (150W max) |
Yeti 500X Charge Times
| Source | Time |
|---|---|
| Maximum input (180W) | 3 hrs |
| Wall charger (120W) | 4.5 hrs |
| Car charger (120W) | 4.5 hrs |
| Wall charger (60W, included) | 10 hrs |
| Nomad 100 (included) | 6–12 hrs |

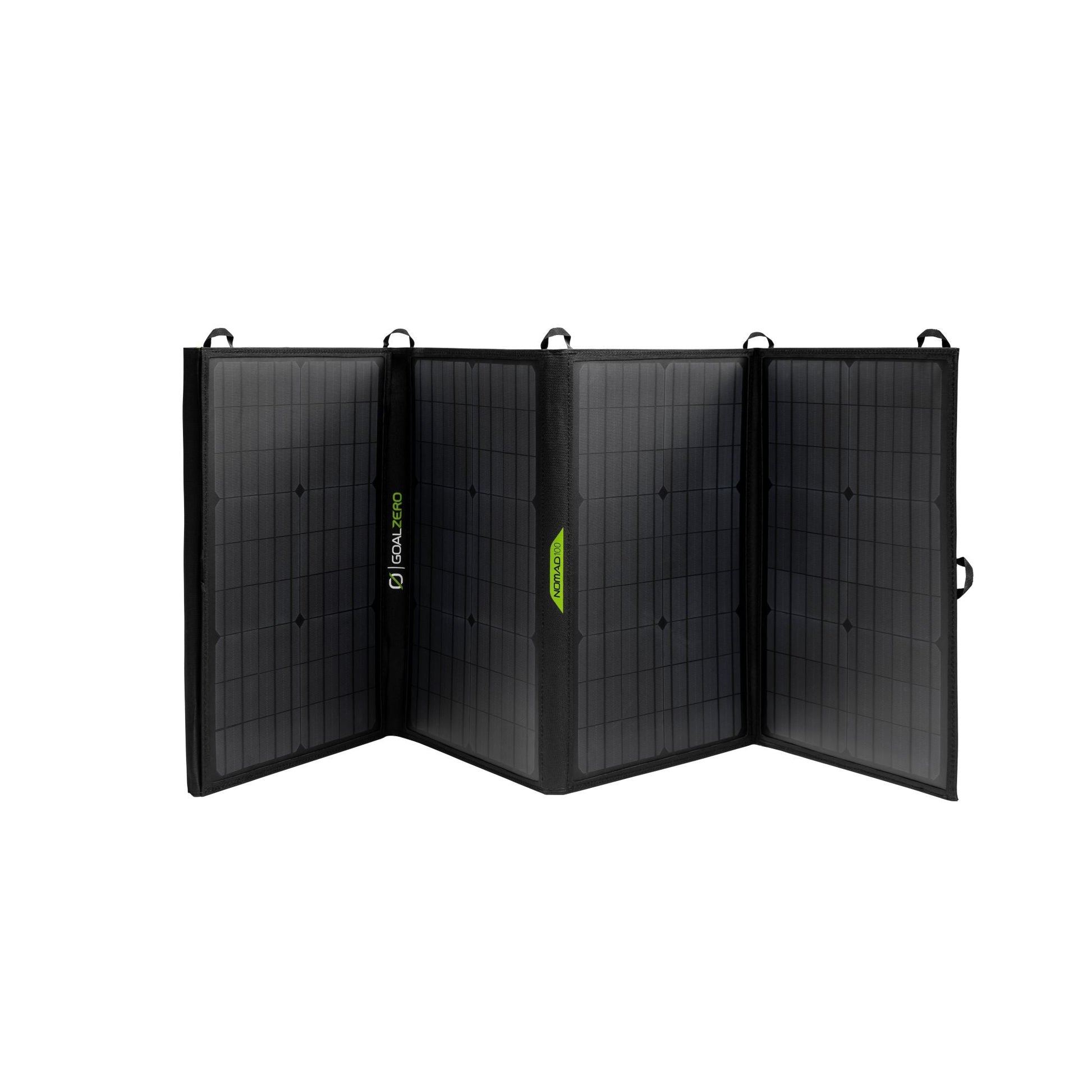

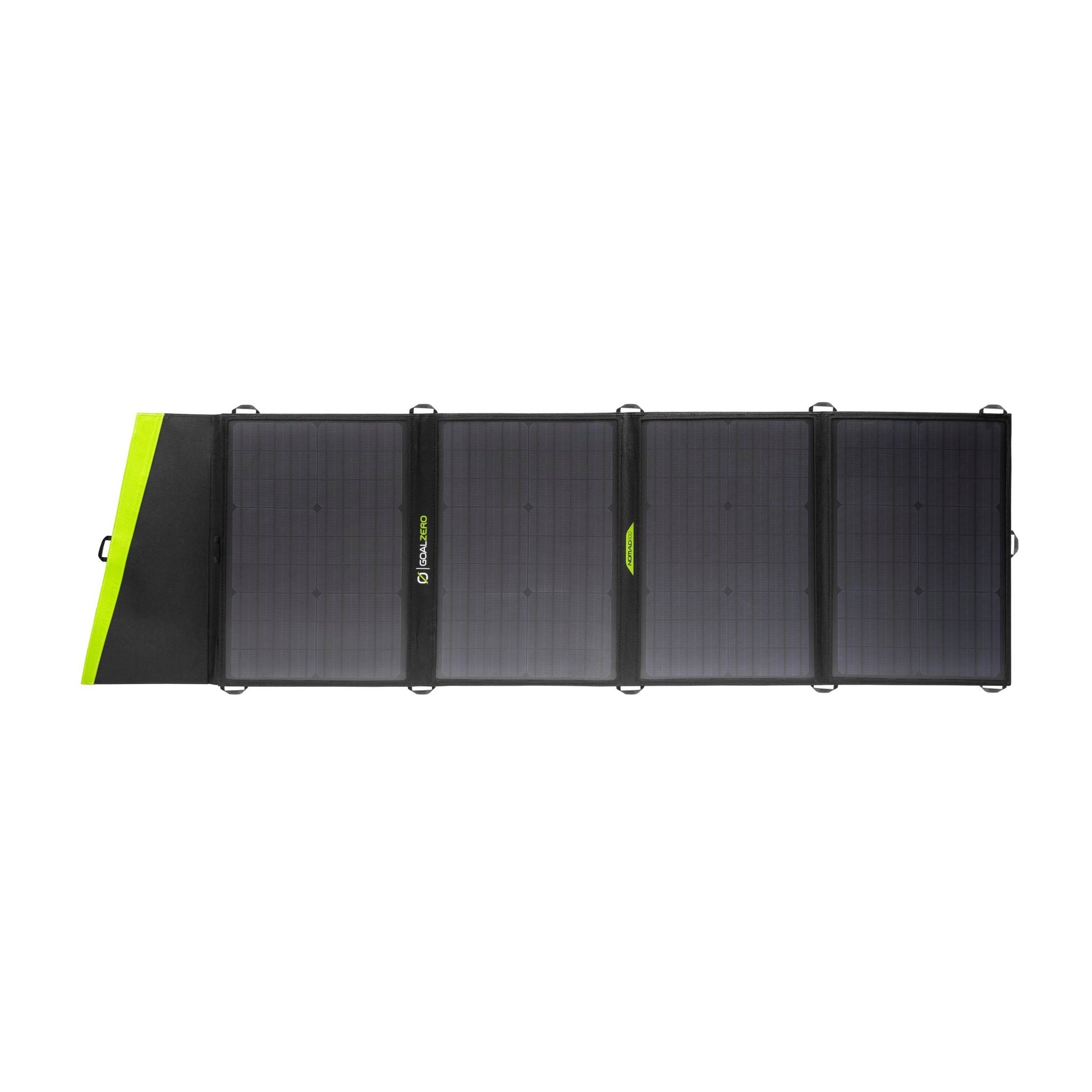

Nomad 100 Solar Panel
| Output | 100W (14–22V) |
|---|---|
| Weight | 10.2 lbs (4.6 kg) |
| Dimensions (unfolded) | 20.5 x 59.5 x 1 in (52 x 151.1 x 2.54 cm) |
| Dimensions (folded) | 20.5 x 15.5 x 2 in (52 x 39.37 x 5.08 cm) |
| Cable length | 6 ft |
| Solar port | 14–22V, up to 5.56A (100W max), blue 8mm male |
| Warranty | 2 years |
What's in the Box
- Yeti 500X Power Station
- Nomad 100 Solar Panel
- 500X Protection Case
- Yeti 12V Car Charging Cable
- 60W Wall Power Supply
Care and use
- The Nomad 100 panel produces power only when exposed to sunlight; it does not store a charge.

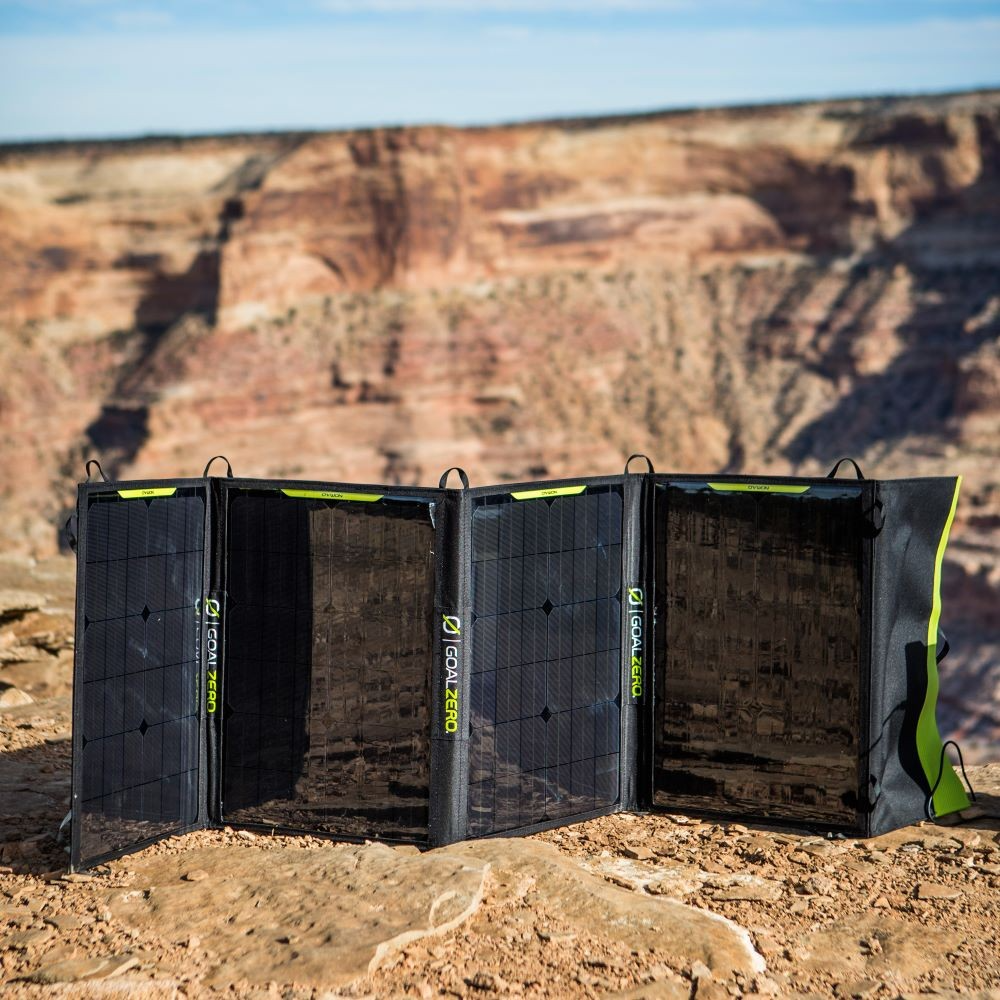

- Angle the panel toward the sun and adjust position as the sun moves for best output.
- To chain multiple Nomad 100 panels, a separate 4x 8mm combiner to high power port connector is required (not included).
- Charge the Yeti 500X from a 12V vehicle source only with the included car charging cable. Using a different cable may damage the unit.
- Store the Yeti 500X with a charge and top it off every 3–6 months when not in regular use.
- The Yeti 500X lithium battery exceeds 100Wh and is not permitted on commercial aircraft under FAA regulations.
