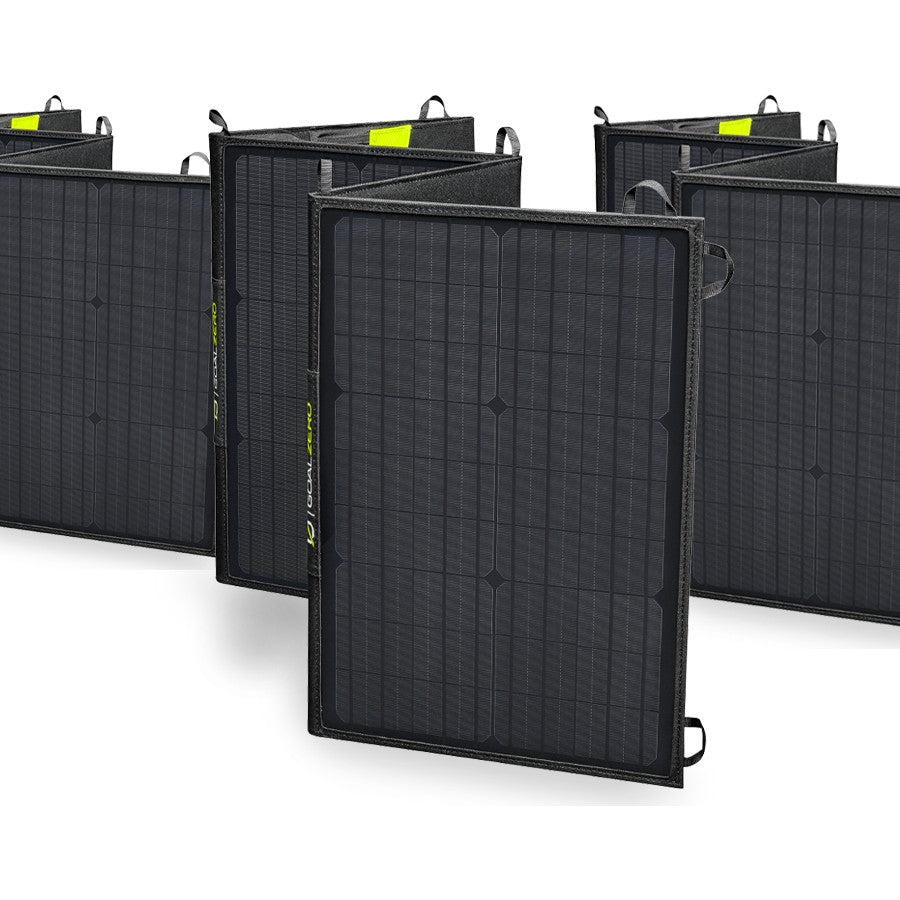

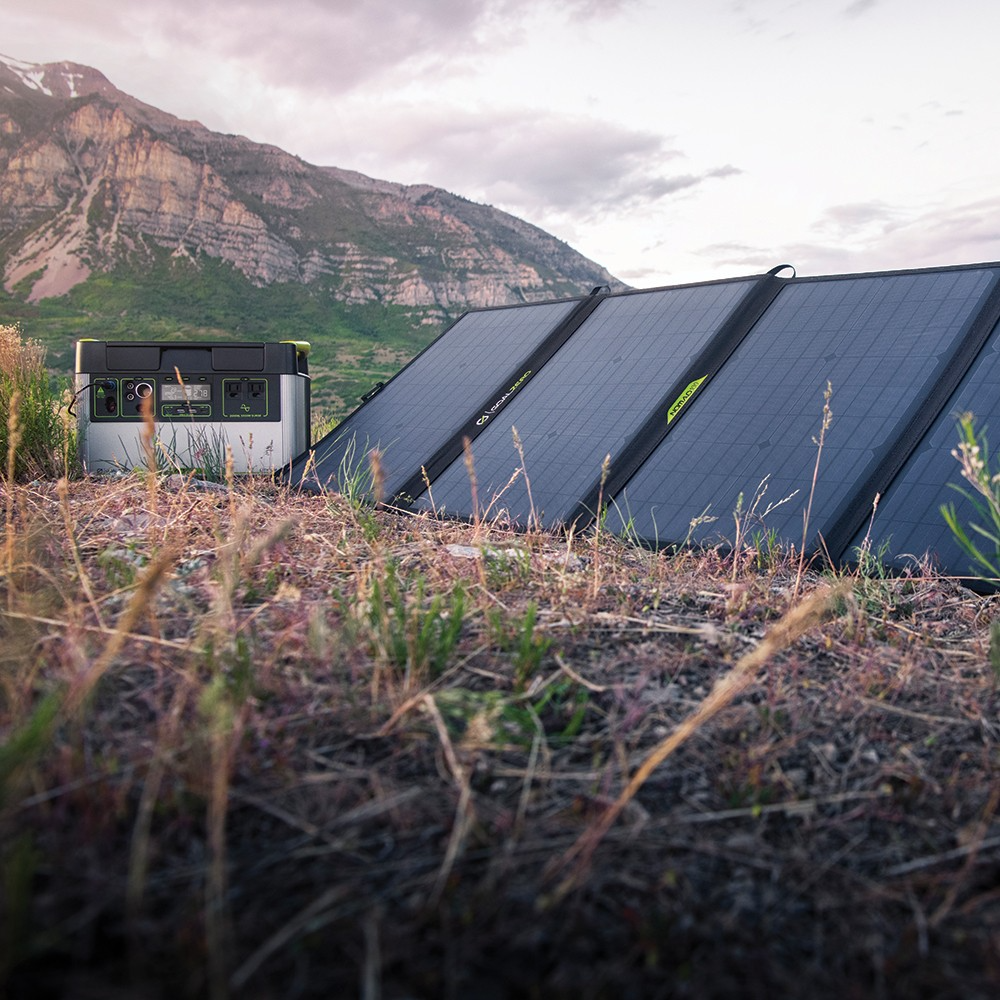

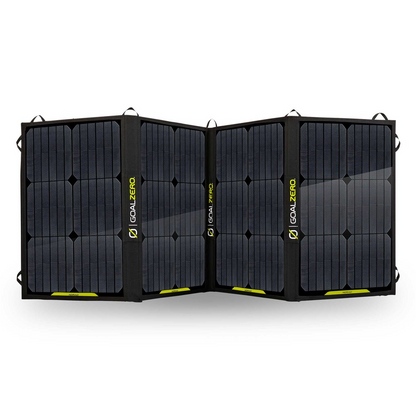

The Goal Zero Nomad 100 Solar Panel Bundle includes three 100-watt monocrystalline foldable solar panels, a 4x 8mm to High Power Port Combiner, and a 30 ft. High Power Port Extension Cable. Each panel uses monocrystalline cells, outputs 14–22V through a blue 8mm solar port, and folds down to 20.5 x 15.5 x 2 in for transport. The bundle is designed to charge Goal Zero Yeti power stations and is the recommended solar array for the Yeti 1500X.
Features
300 watts combined output: Three 100-watt panels working together through the included combiner cable.

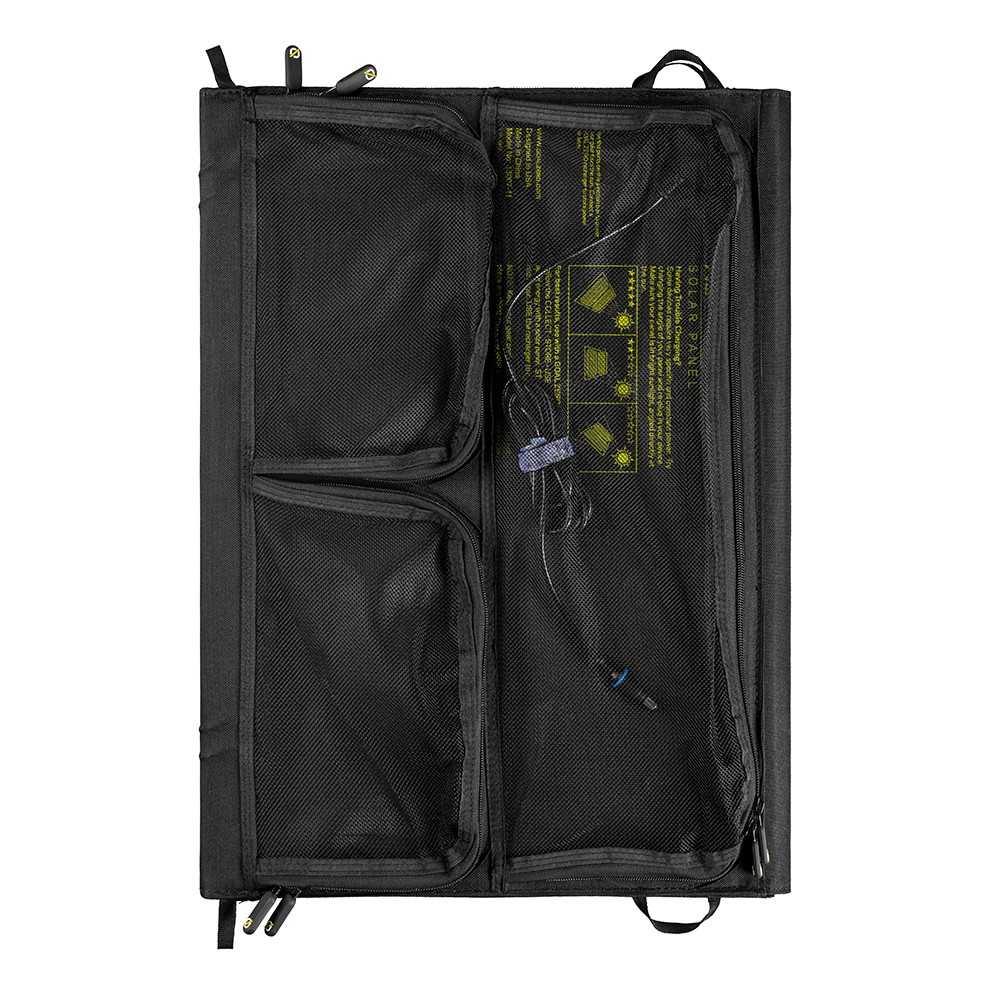

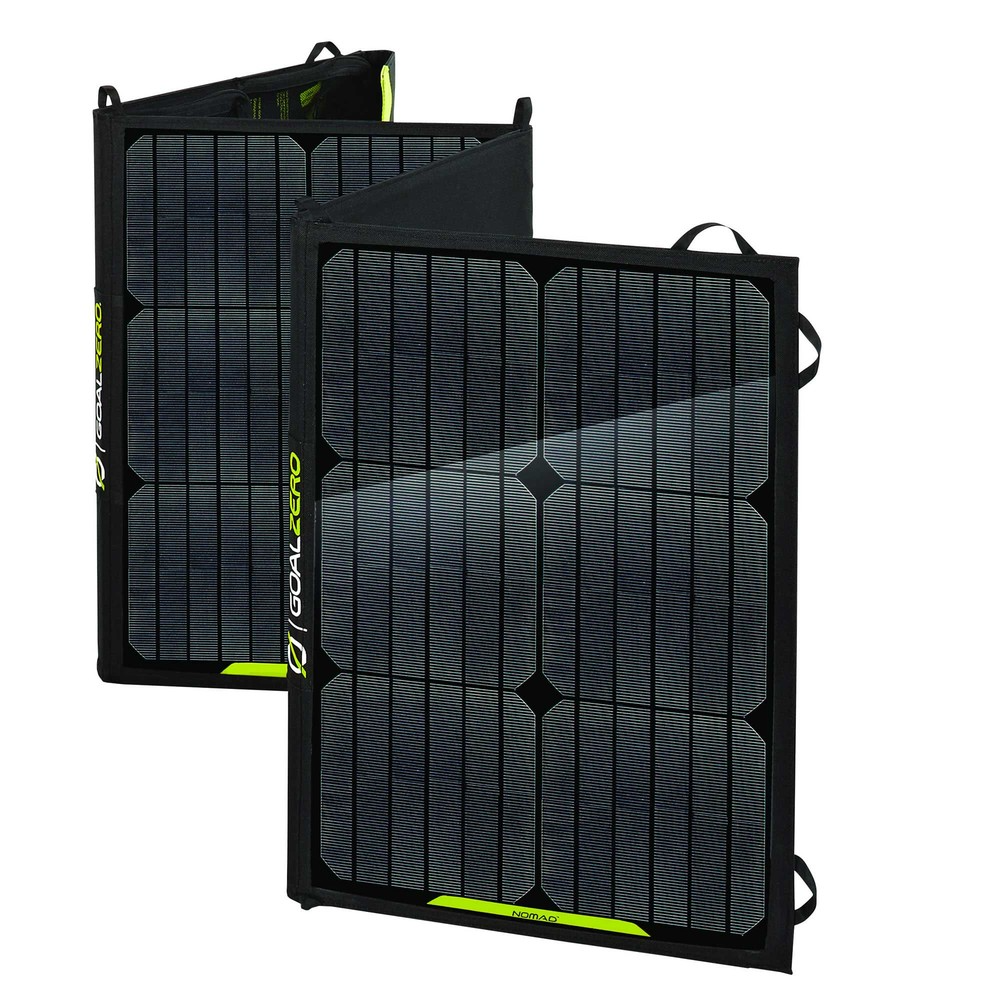

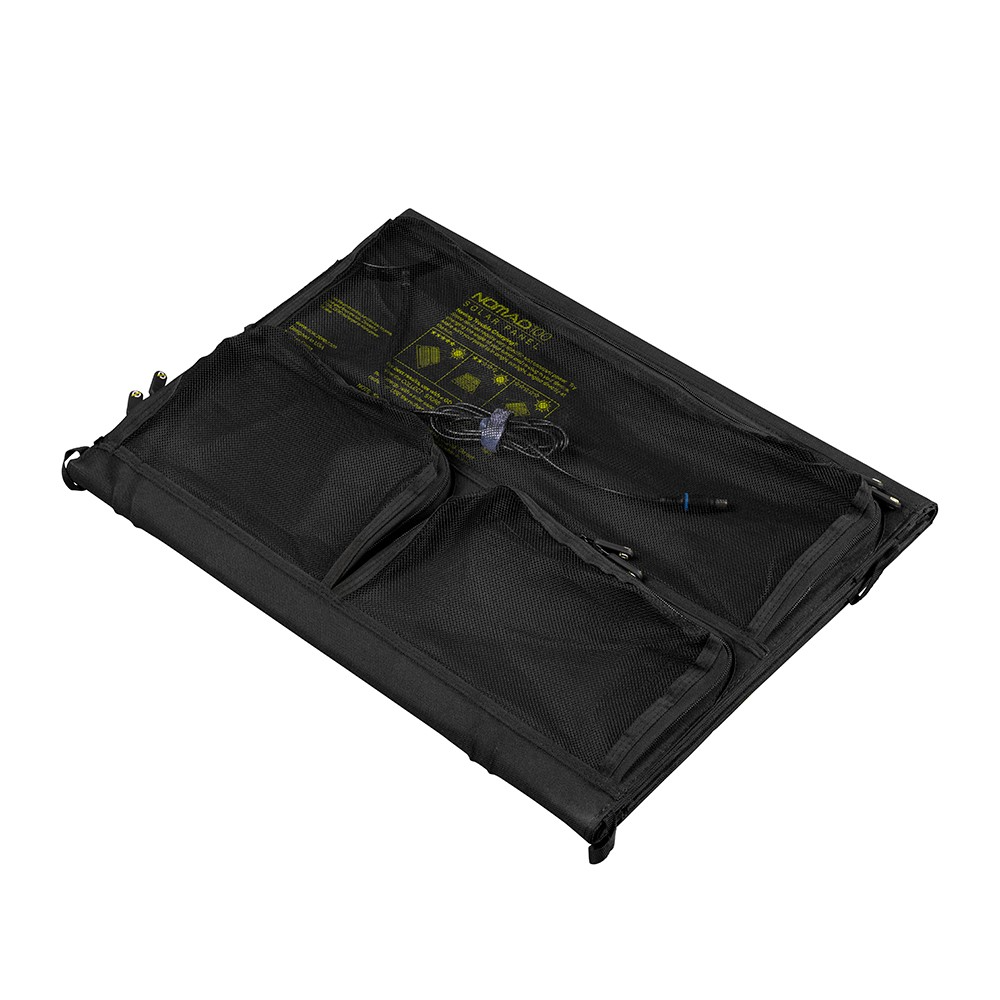

Foldable and weatherproof: Each panel folds for transport and is built to withstand the elements.
Monocrystalline cells: Cell type as specified by Goal Zero for the Nomad 100.
Combiner included: The 4x 8mm to High Power Port Combiner connects all three panels into a single HPP output without additional purchases.
Extended reach: The included 30 ft. HPP Extension Cable allows flexible panel placement relative to the power station.
Specifications
Specification
Per Panel
Rated Power
100 W
Cell Type
Monocrystalline
Open Circuit Voltage (Voc)
21.5 V
Max Power Point Voltage (Vmpp)
18.0 V
Max Power Point Current (Impp)
5.56 A
Short Circuit Current (Isc)
5.9 A
Solar Port

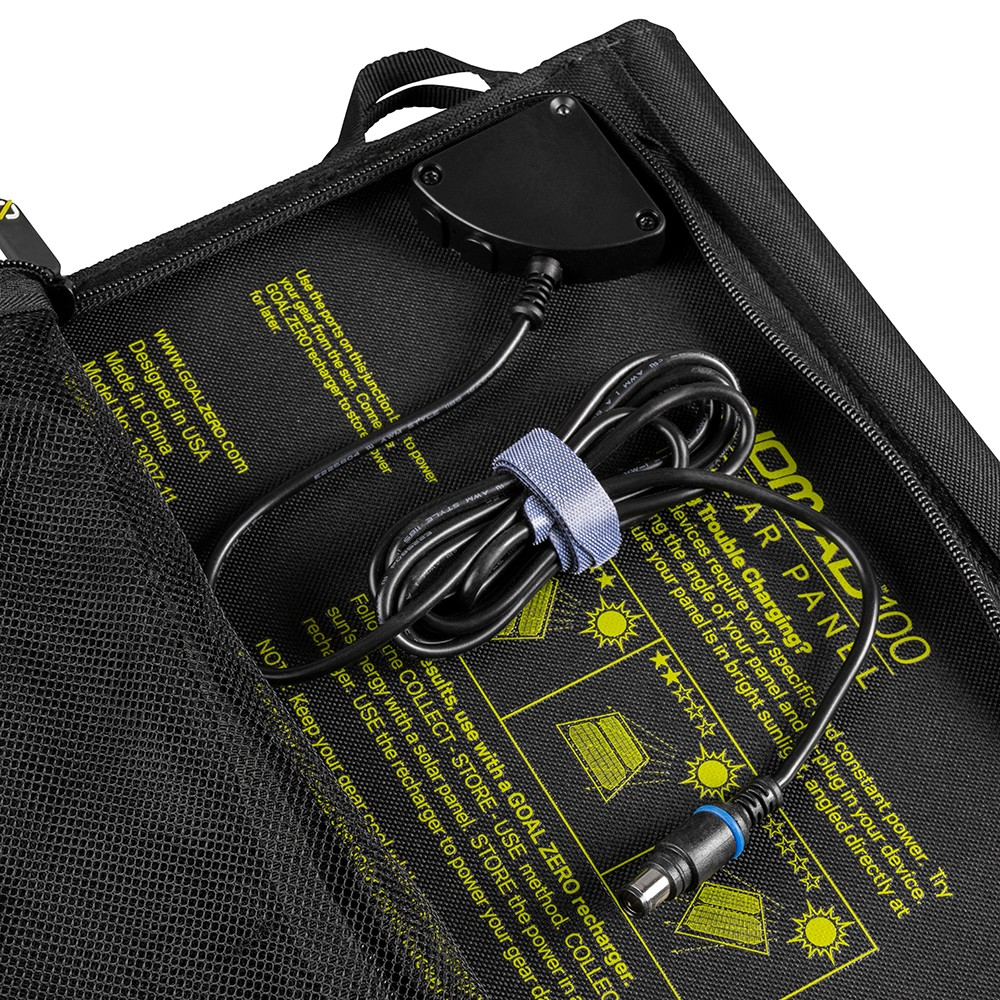

Blue 8mm male, 14–22V, up to 5.56A
Weight
10.2 lbs (4.6 kg)
Dimensions (unfolded)

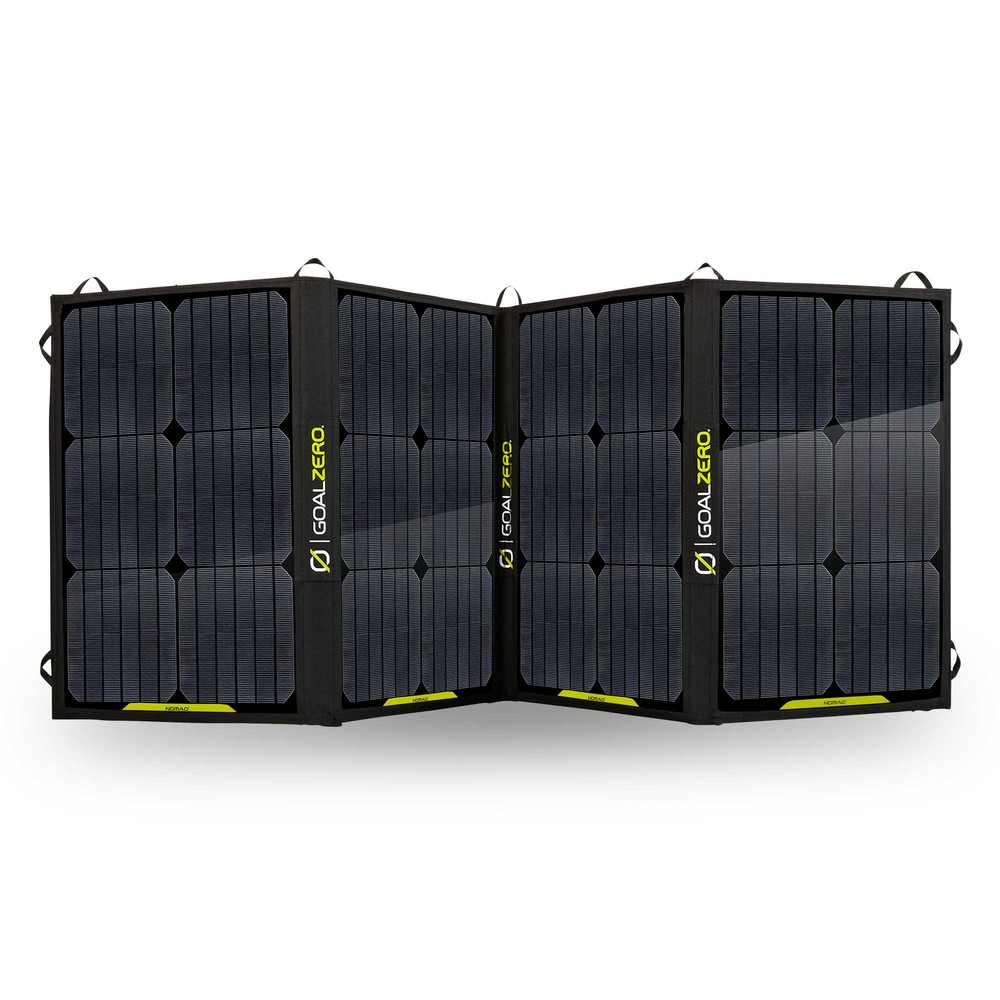

20.5 x 59.5 x 1 in (52 x 151.1 x 2.54 cm)
Dimensions (folded)

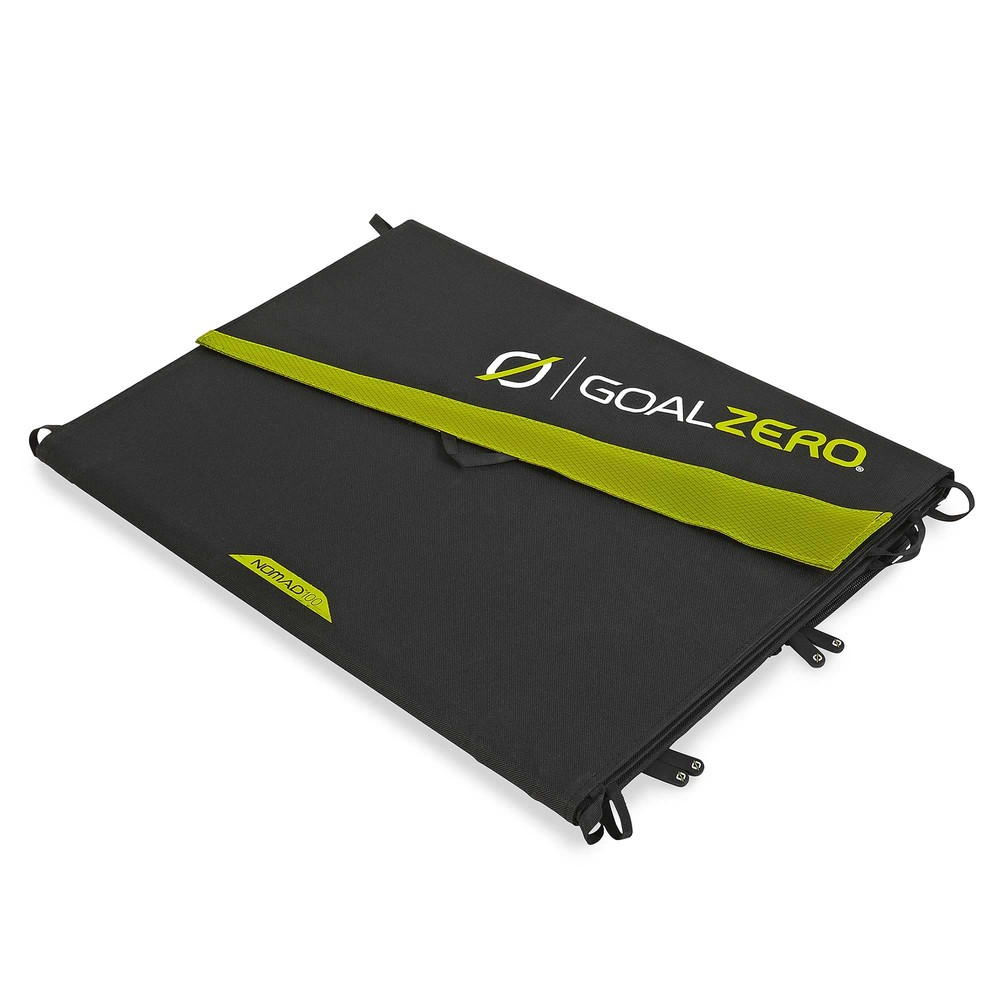

20.5 x 15.5 x 2 in (52 x 39.37 x 5.08 cm)
Cable Length (per panel)
6 ft.
Warranty
2 years
Estimated Charge Times (300W array)
Yeti 1000 Lithium: 5–10 hours
Yeti 1000X: 4–8 hours
Yeti 1400 Lithium: 7–14 hours
Yeti 1500X: 6–12 hours
Yeti 3000 Lithium: 12–24 hours
Yeti 3000X: 12–24 hours
Solar charge times vary based on elevation, temperature, time of year, and panel angle and position relative to the sun.
