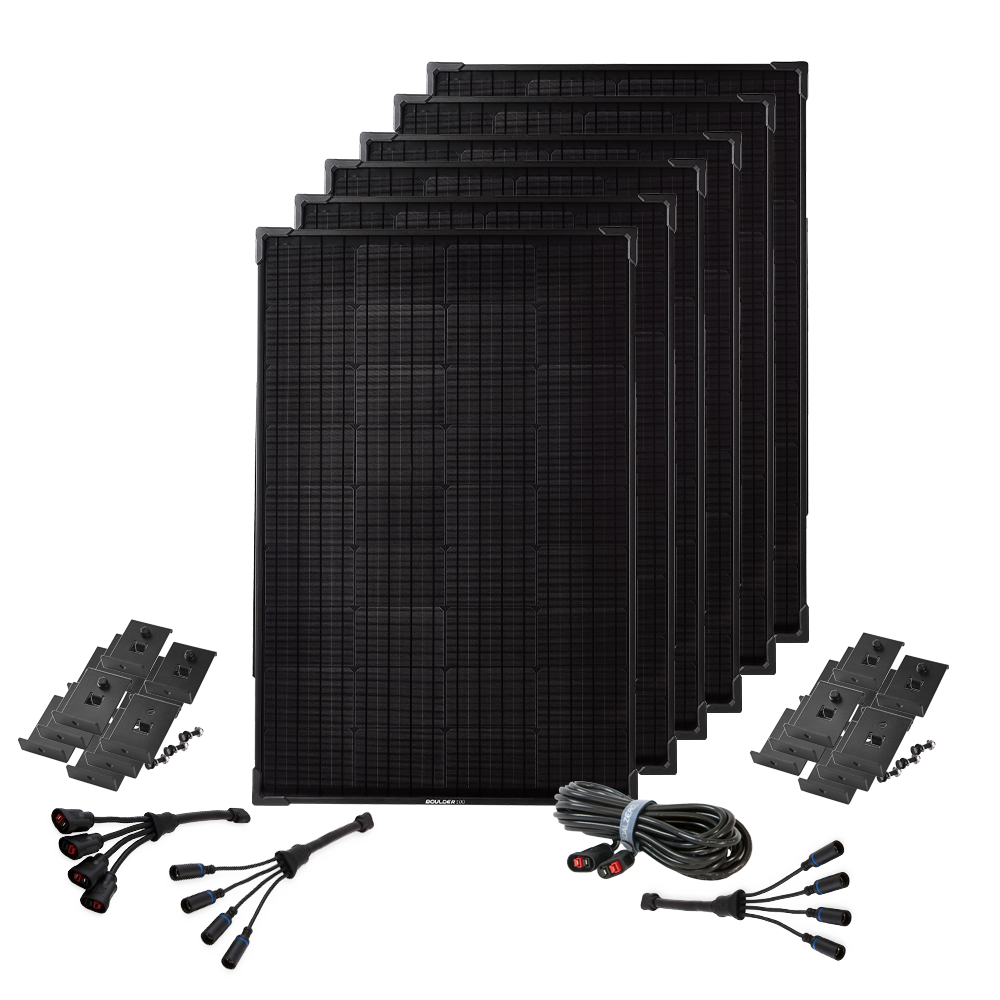

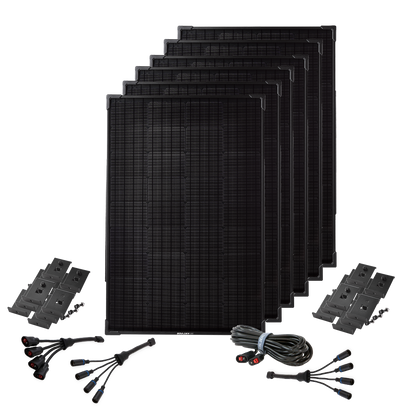

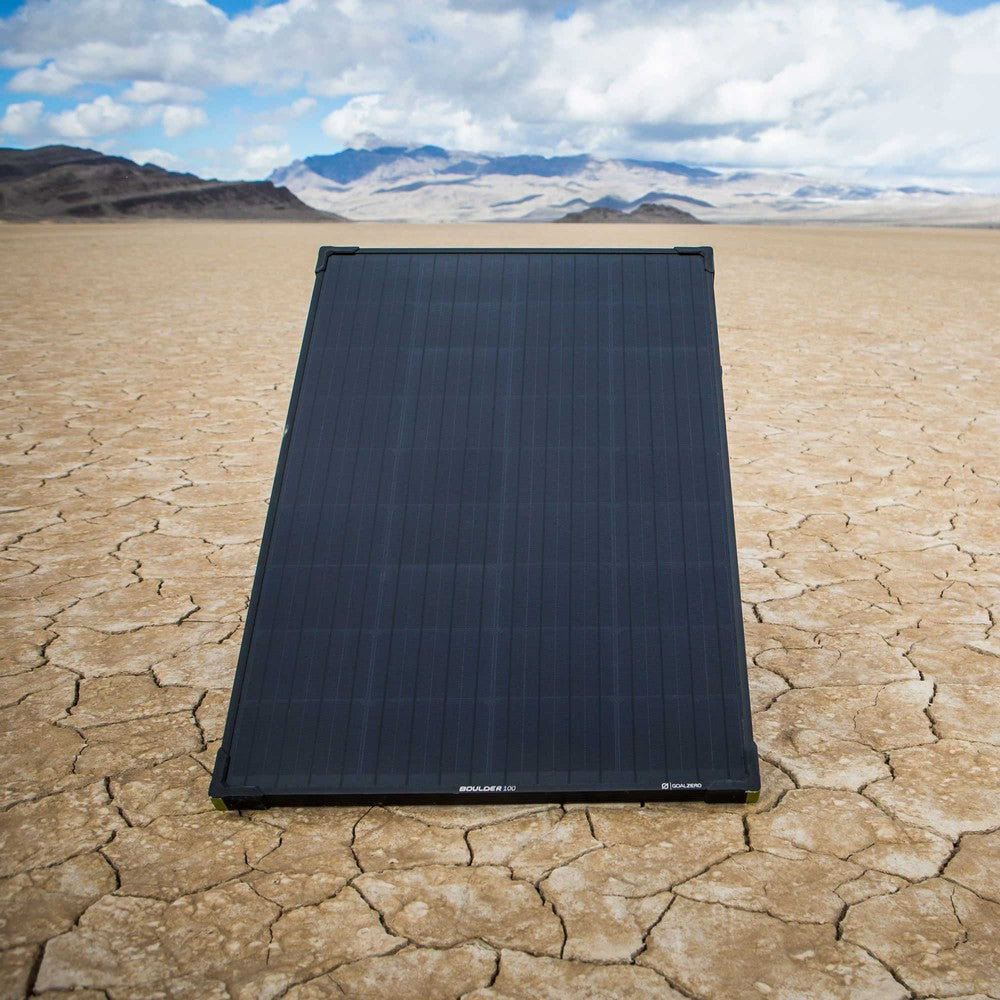

The Goal Zero Boulder 100 Six-Panel Mountable Solar Bundle is a stationary solar charging array built around six Boulder 100 monocrystalline solar panels. Each panel is rated at 100 watts and constructed with tempered glass and an aluminum frame with corner protection. The bundle includes mounting brackets, Combiners to connect the panels into a single array, and a 30 ft. High Power Port (HPP) Extension Cable.
Features
- Six 100-watt panels: Monocrystalline cells rated at 100W each, outputting 14–22.5V up to 7A per panel via an 8mm solar port.

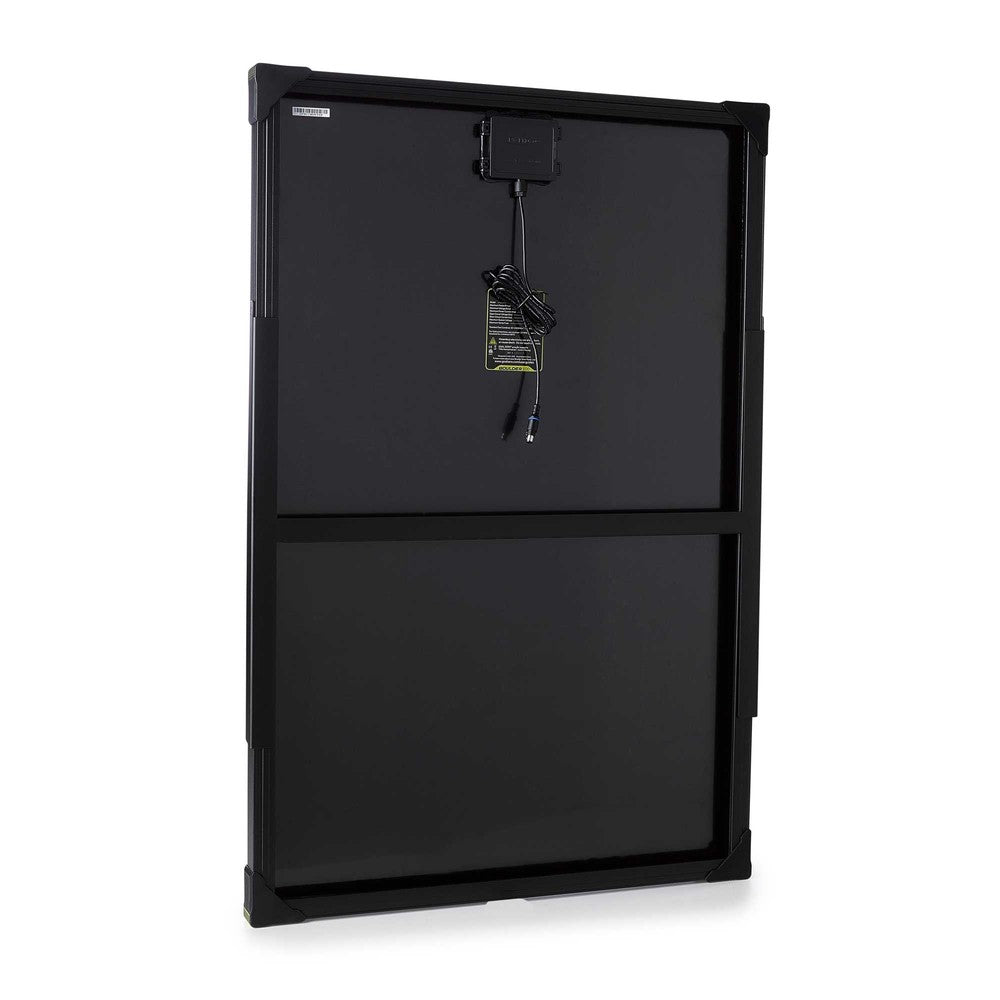

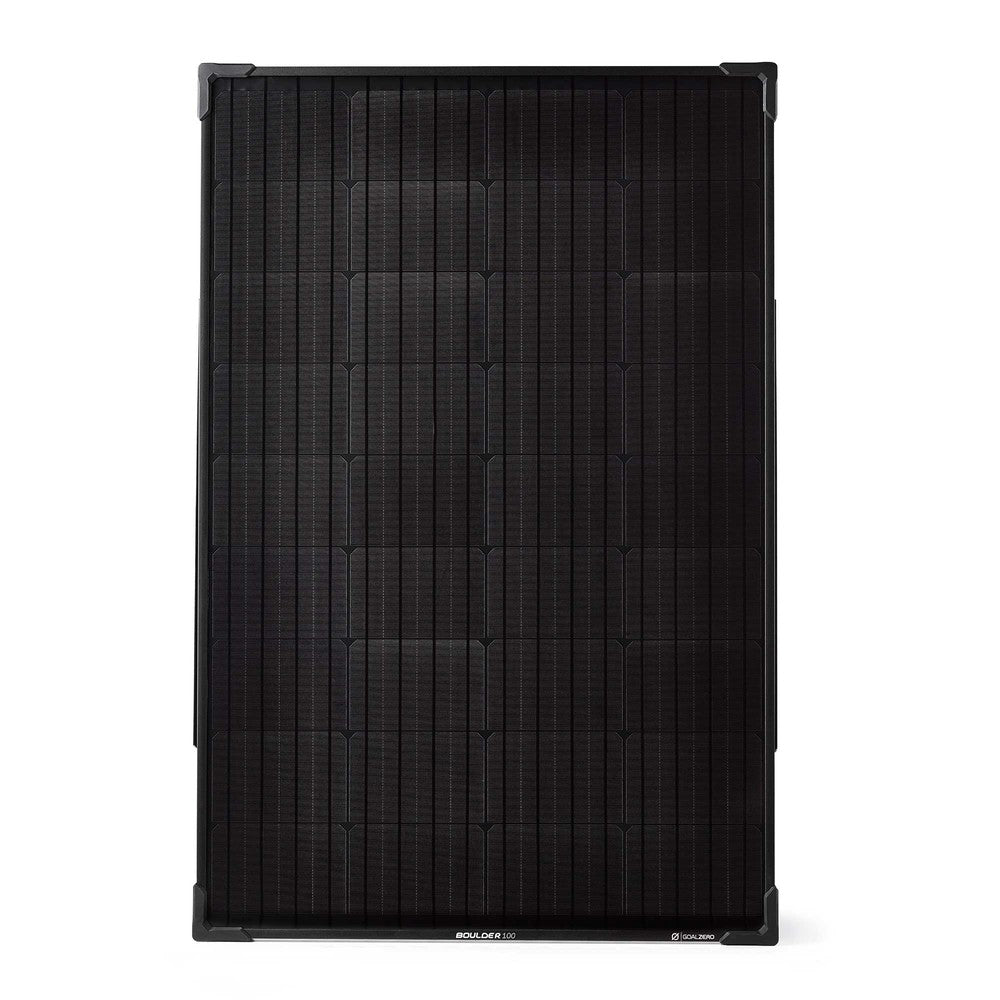

- Tempered glass construction: Each panel uses tempered glass and an aluminum frame with added corner protection.

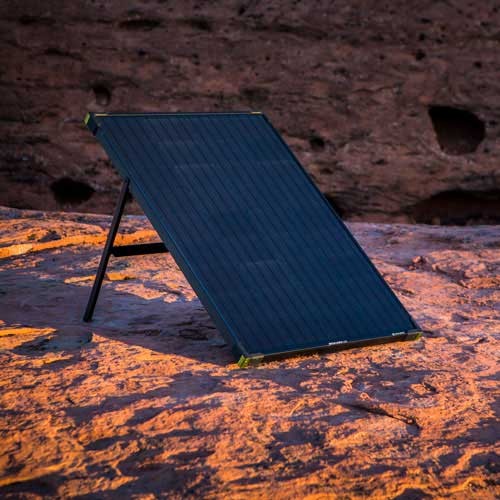

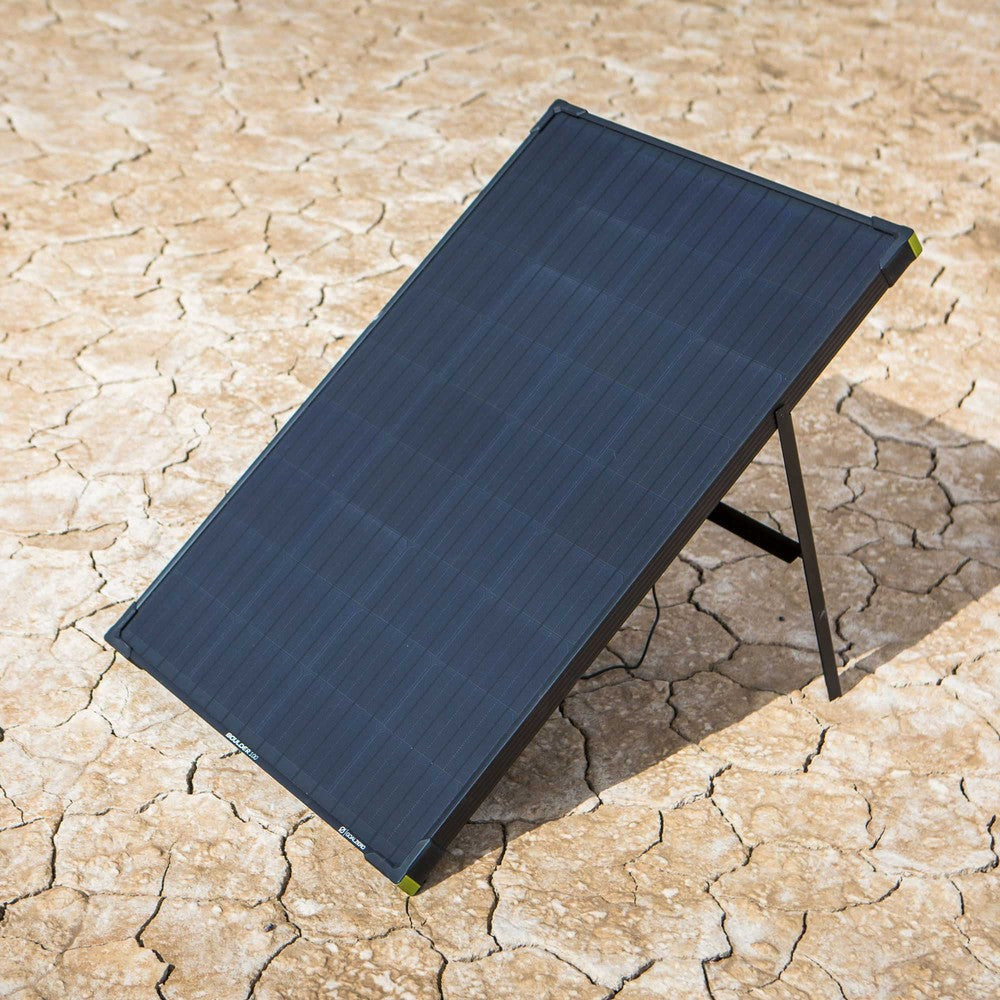

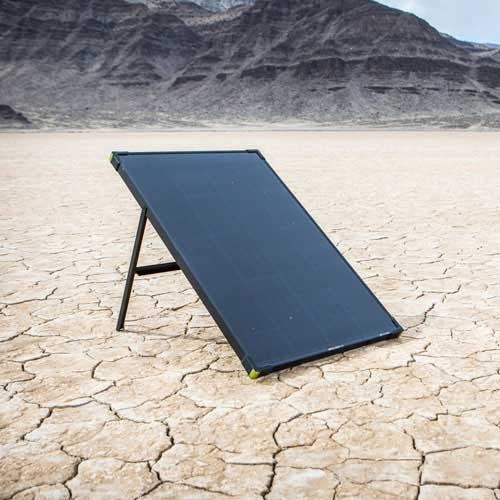

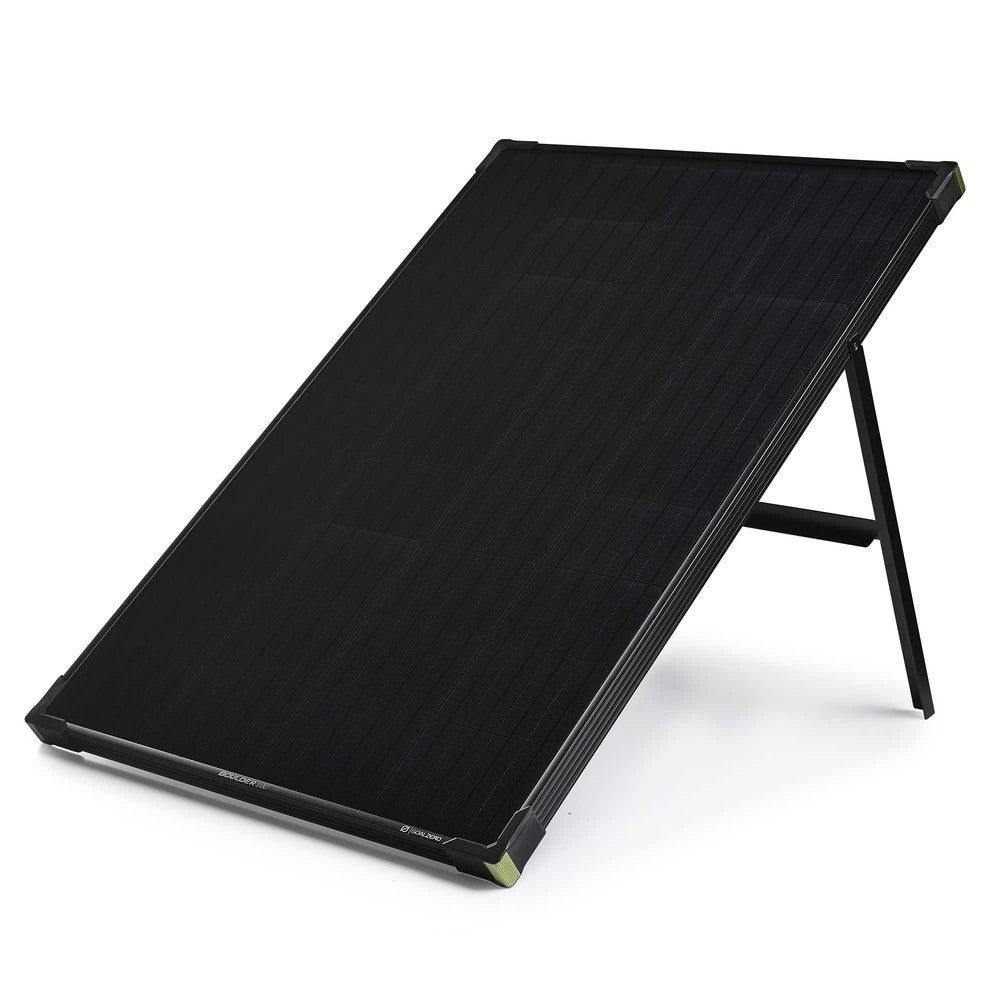

- Integrated kickstand: Each panel includes a built-in kickstand for angled ground placement.
- Mountable design: Panels are designed for permanent and semi-permanent roof or surface installation using the included mounting brackets.
- Weatherproof panels: The Boulder panels are designed to withstand the elements, suitable for permanent and semi-permanent outdoor installations.

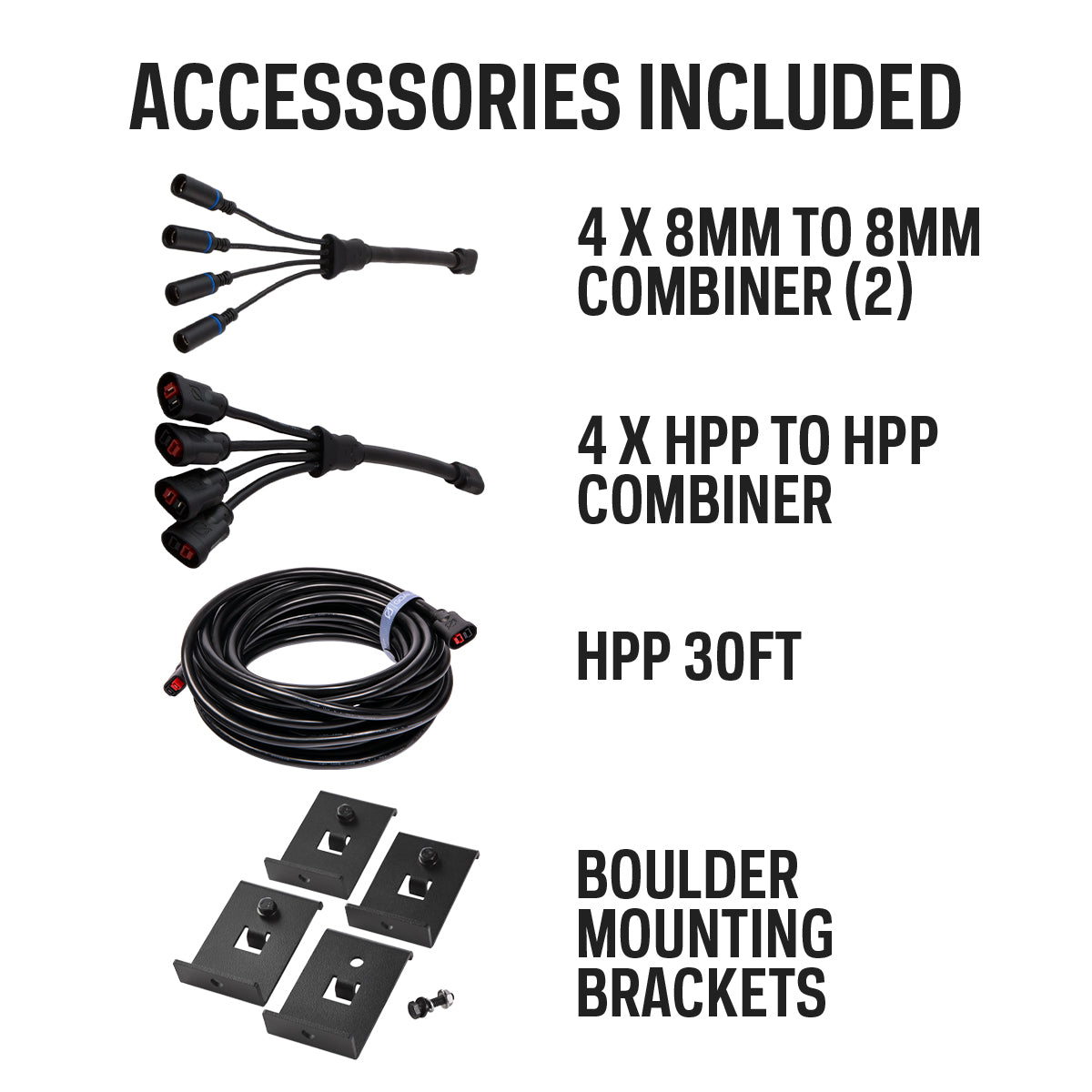

- Included Combiners and extension cable: Combiners allow multiple 8mm panel outputs to feed a single High Power Port input; the 30 ft. HPP Extension Cable provides reach from array to power station.
Specifications
| Specification | Per Panel |
|---|---|
| Rated Power | 100 watts |
| Cell Type | Monocrystalline |
| Open Circuit Voltage (Voc) | 22.5V |
| Solar Port Output | 14–22.5V, up to 7A (100W max), 8mm blue connector |
| Weight | 20.1 lb (9.1 kg) |
| Dimensions | 40.0 x 26.75 x 1.75 in. (101.6 x 70 x 4.4 cm) |
| Cable Length | 6 ft |
| Warranty | 2 years |
Charge Times (Six-Panel Array)
Estimated charge times when all six panels are connected. Actual times vary with elevation, temperature, season, and panel angle.
| Power Station | Estimated Charge Time |
|---|---|
| Yeti 1400 Lithium | 4–8 hours |
| Yeti 1500X | 3–6 hours |
| Yeti 3000 Lithium | 6–12 hours |
| Yeti 3000X | 6–12 hours |
| Yeti 6000X | 12–24 hours |
Care and Use

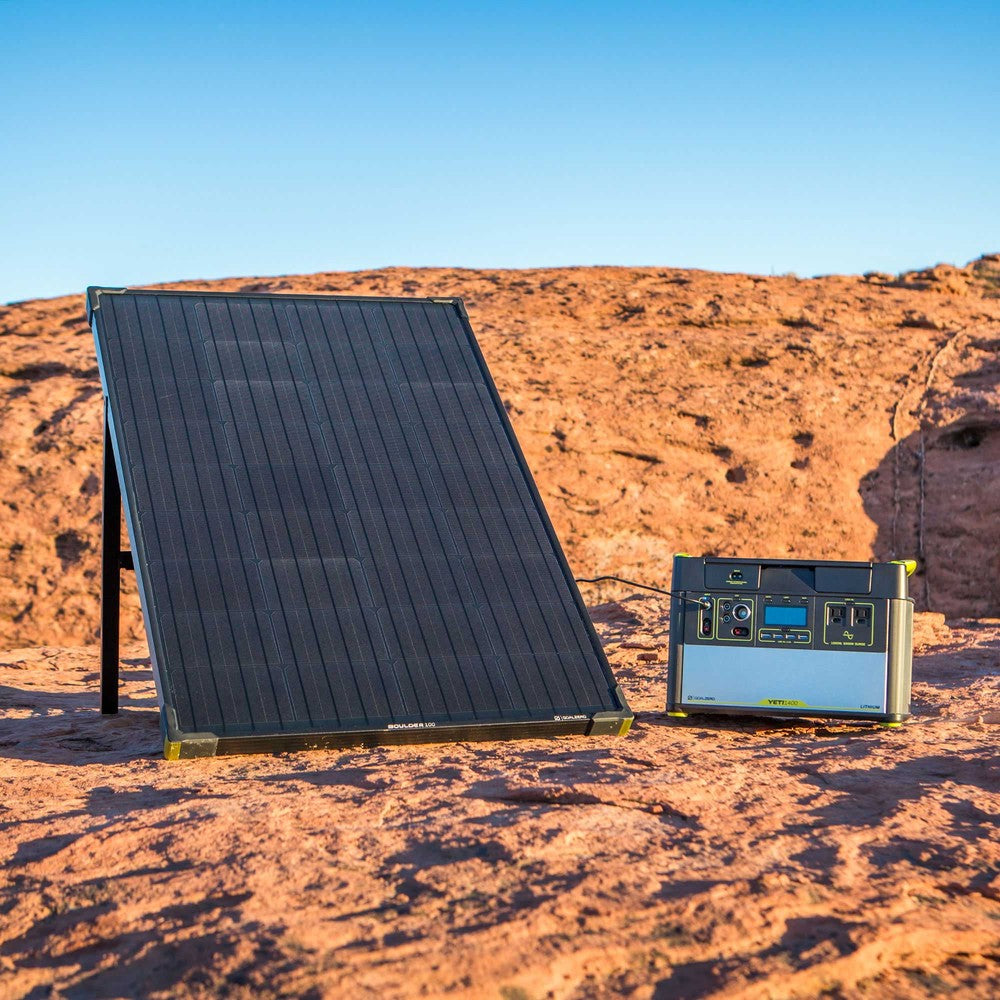

The panels produce power only when exposed to sunlight; they do not store energy. Connect the array output to a compatible Goal Zero Yeti portable power station to charge it. Keep power stations protected from rain, dust, and snow during charging. Panels can be chained using the included Combiners; for arrays over 150W, an 8mm to HPP Combiner Cable is required to safely combine outputs into a single High Power Port connection.
